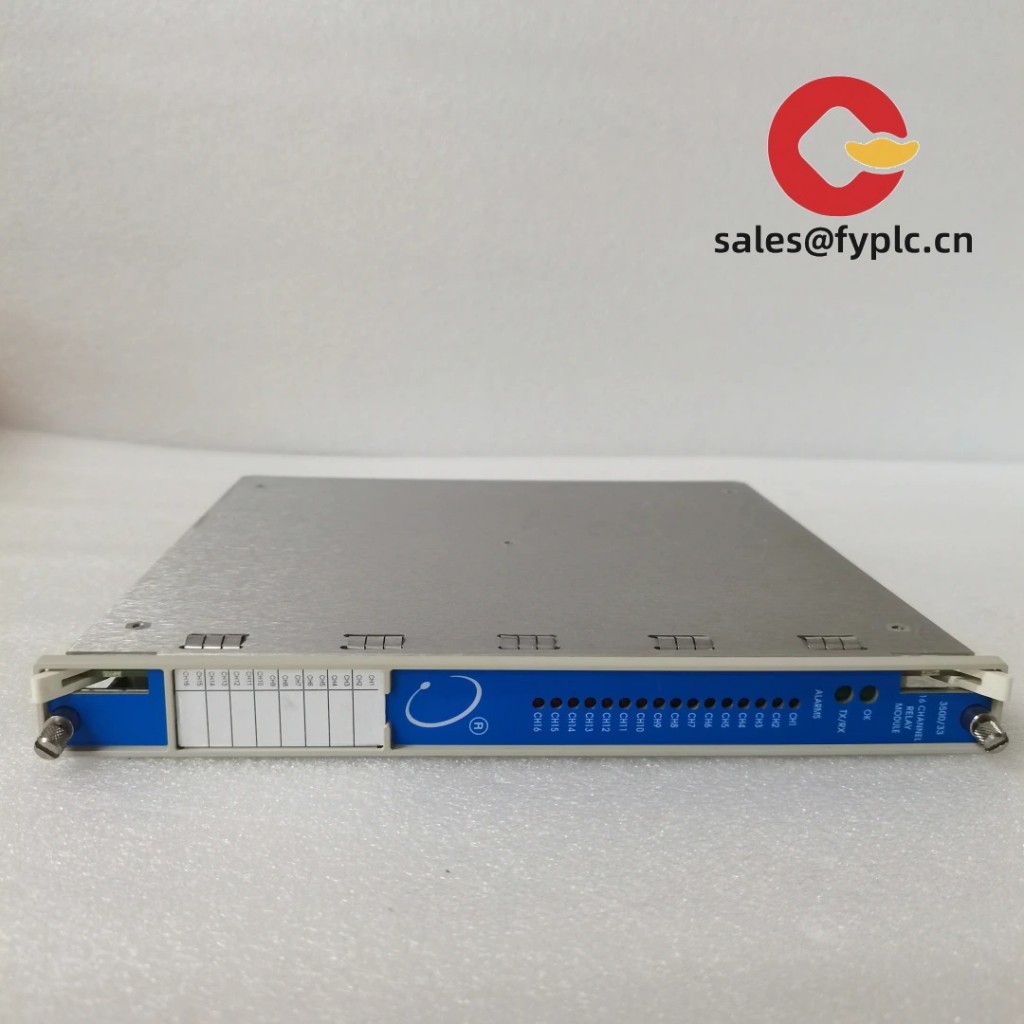

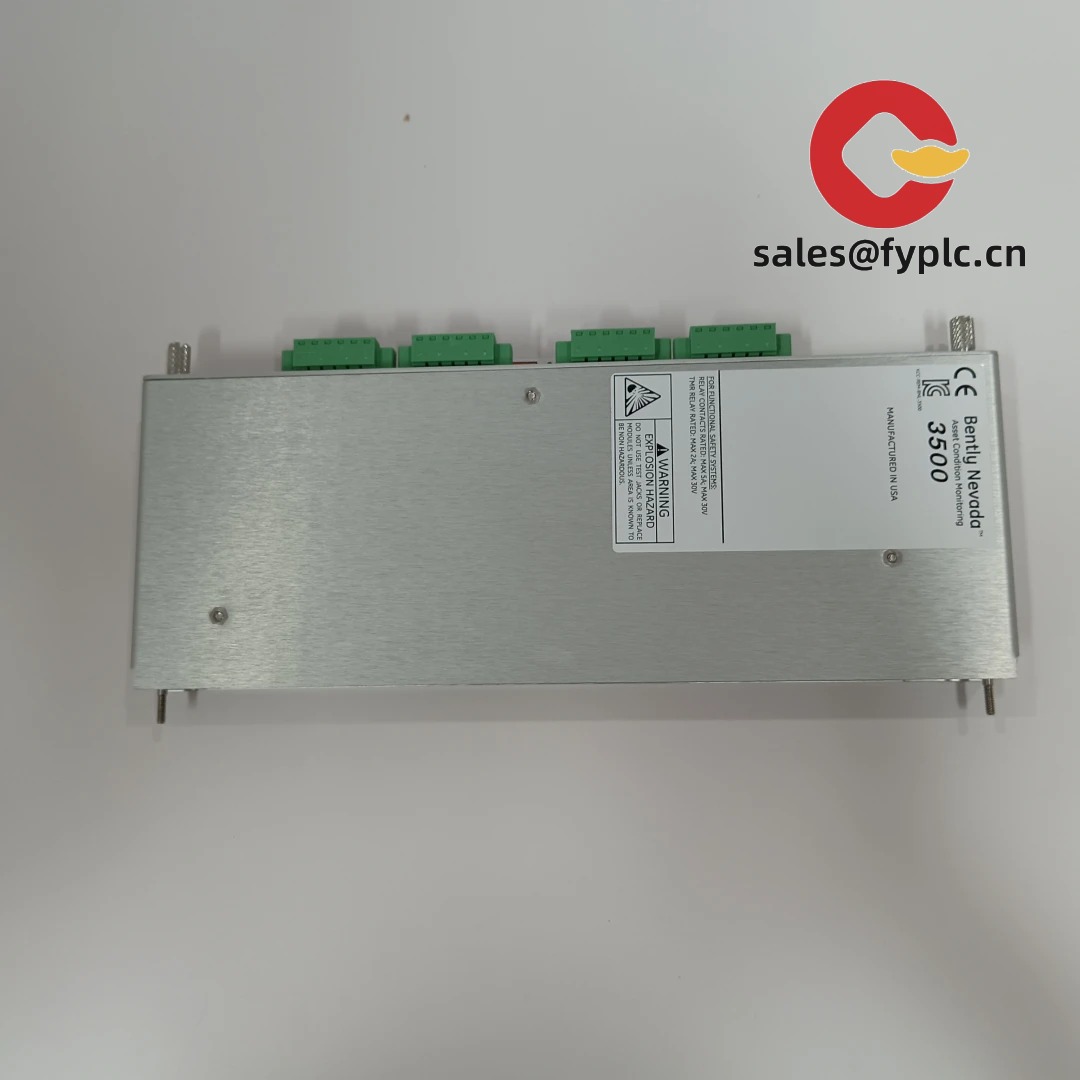

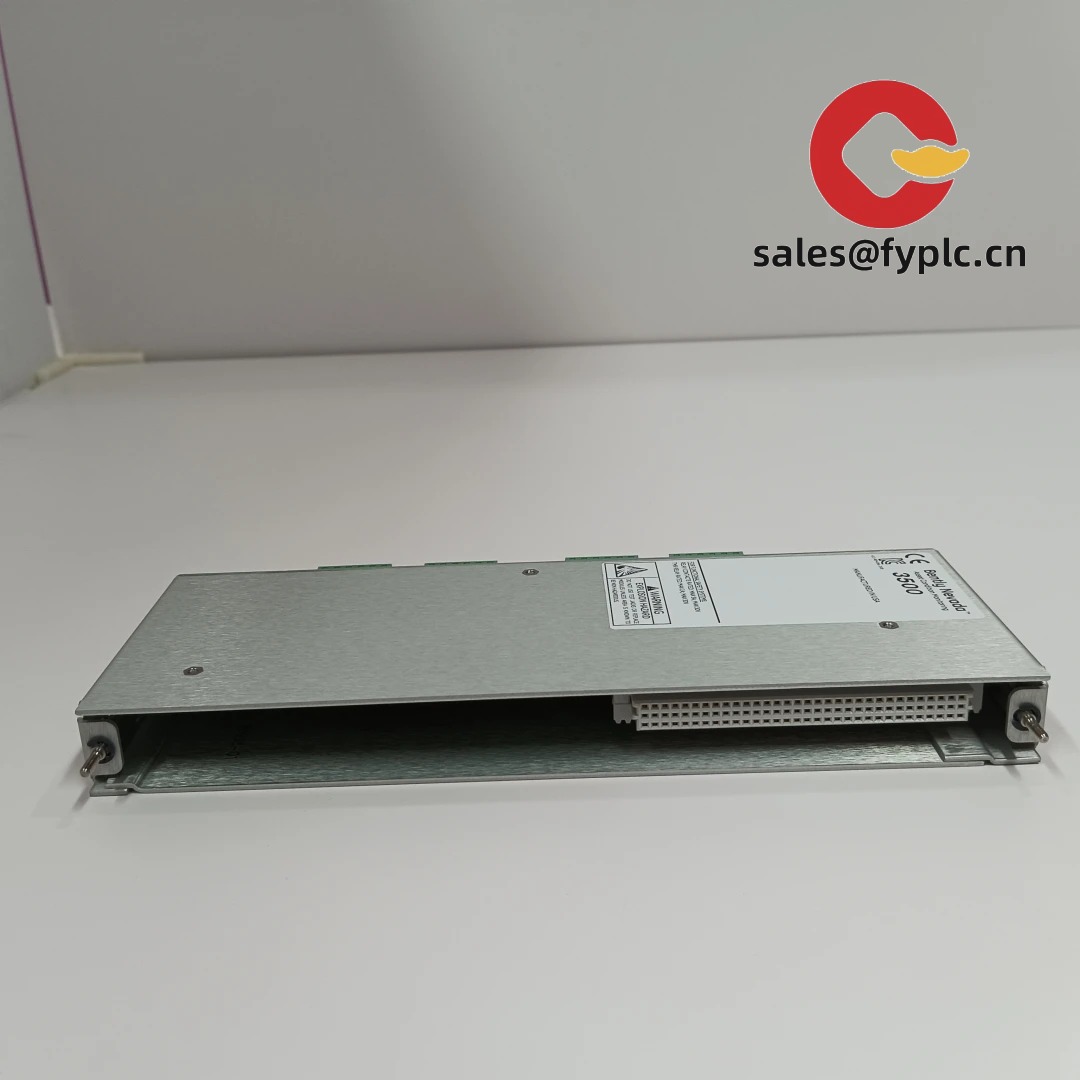

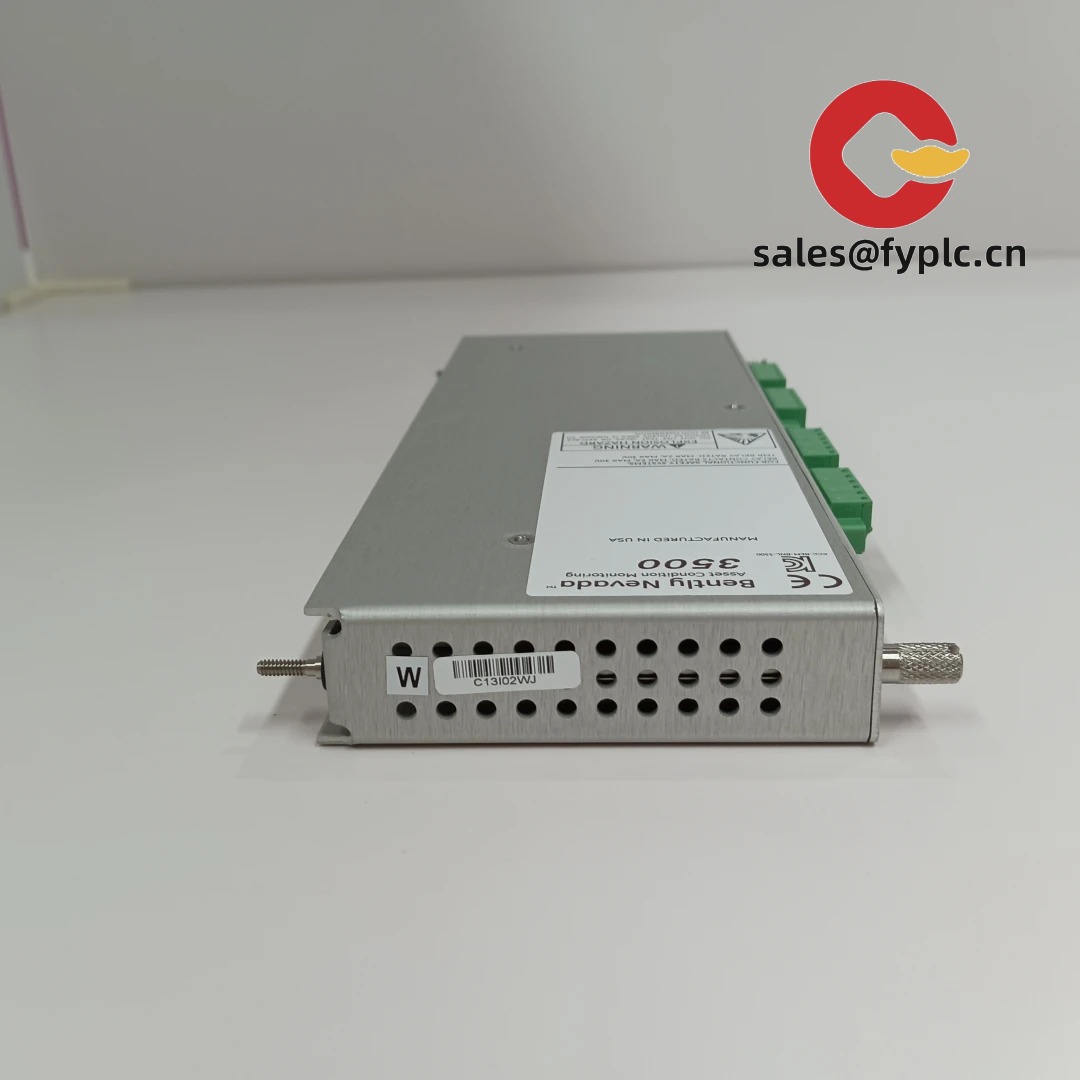

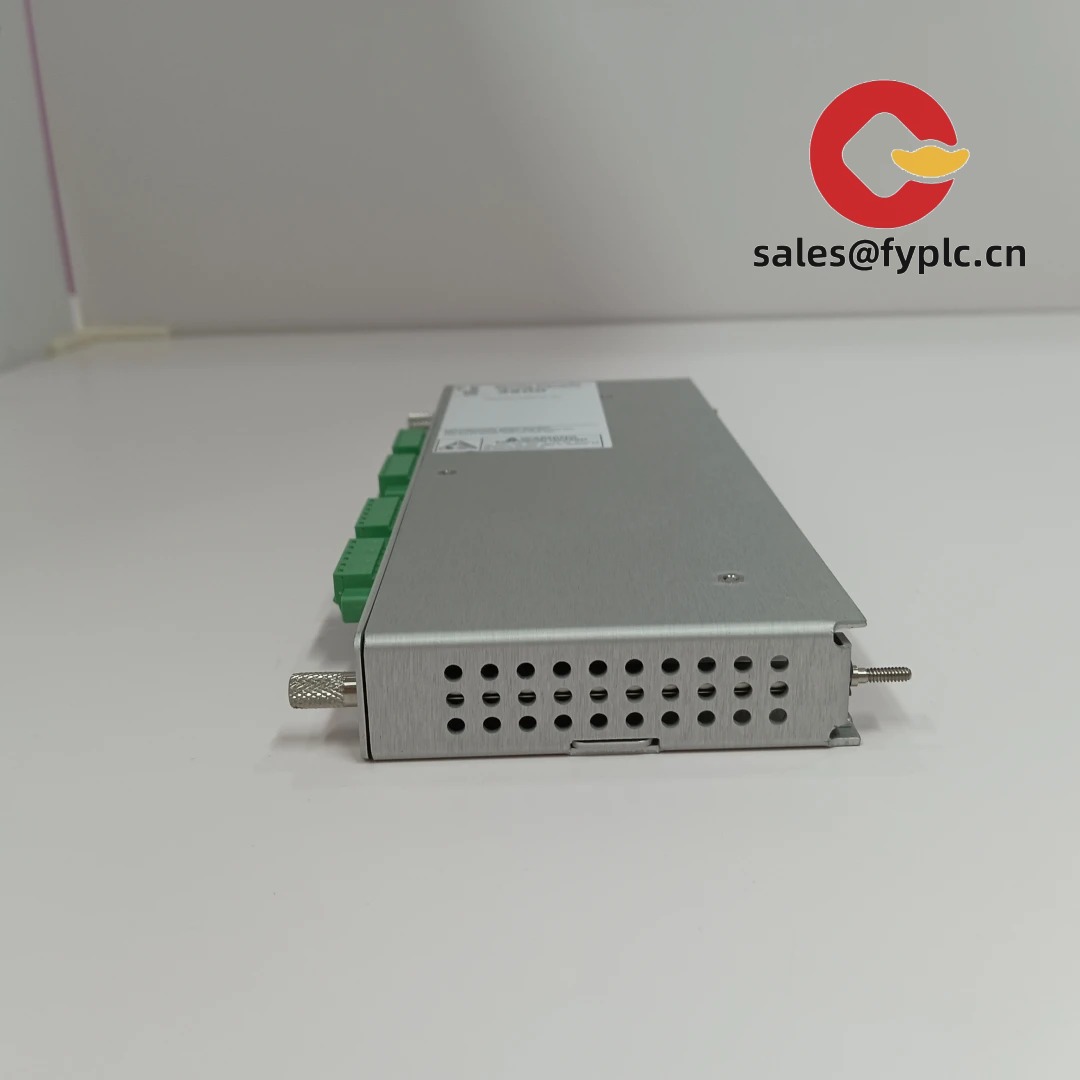

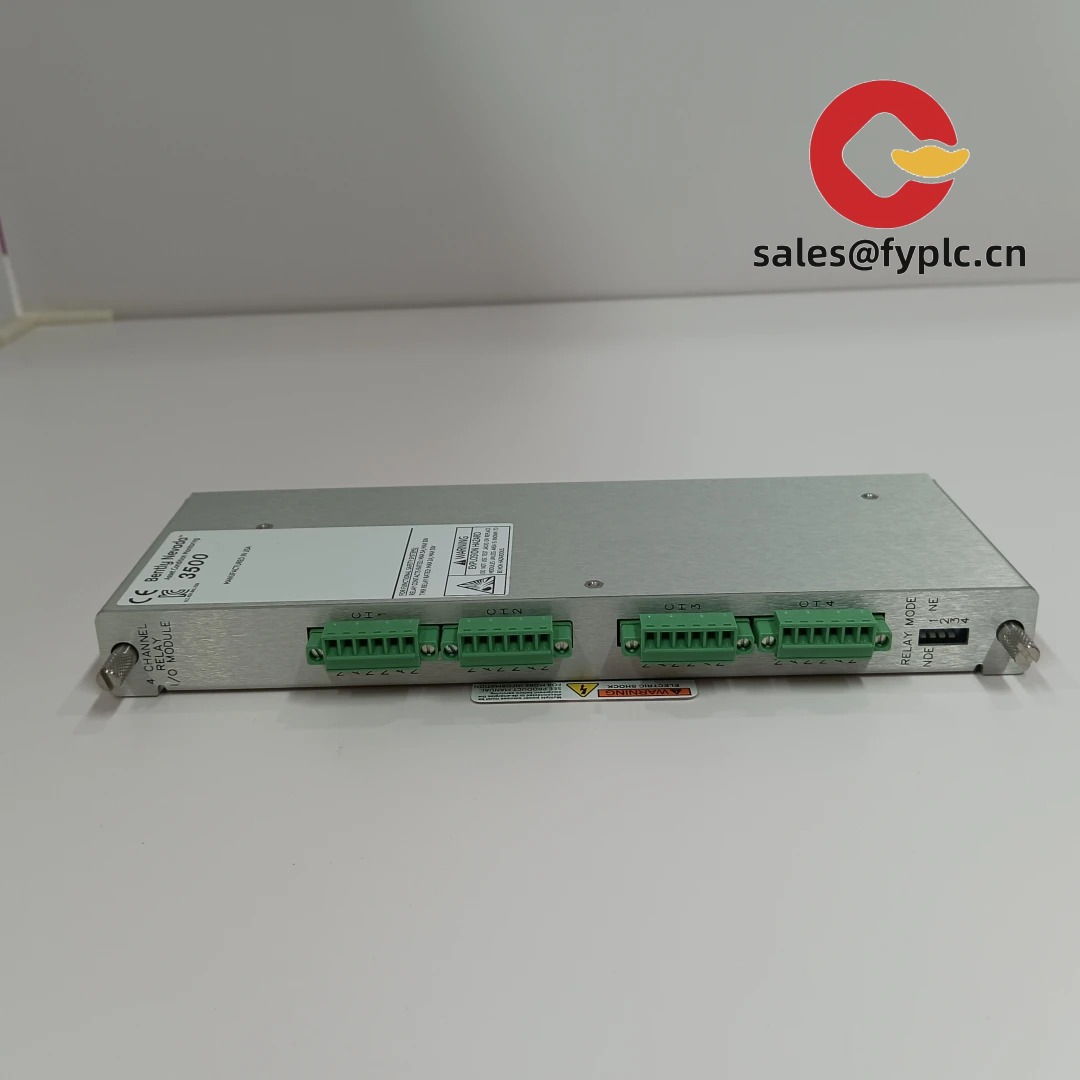

Bently Nevada 3500/32M 149986-02 – Dual-Channel Overspeed Protection System

If you’re managing rotating equipment in oil & gas, power generation, or heavy industrial settings, overspeed protection isn’t just a feature—it’s a necessity. The Bently Nevada 3500/32M (model 149986-02) is a dual-channel safety monitor built specifically for turbine and compressor overspeed detection. From my experience, it’s one of the more reliable standalone safety modules that integrates cleanly into existing 3500 monitoring racks without needing a full system overhaul.

Key Features

• Dual-channel redundancy: Monitors two independent speed input sources, which typically improves fault tolerance—especially useful during critical shutdown scenarios.
• Self-diagnostics and relay verification: One thing I appreciate is how it continuously checks its own health, including output relays, reducing false trips and increasing trust in automated responses.
• Compatible with magnetic pickup sensors: Works directly with standard proximitor or MPUI signals, so retrofitting older turbines doesn’t usually require sensor replacement.
• Configurable trip logic: You might notice that the trip thresholds and delay times are adjustable via software, giving engineers flexibility depending on machine dynamics.
• Rack-based integration: Fits into the standard 3500 rack chassis alongside other condition monitoring modules, maintaining signal consistency across platforms.

Technical Specifications

Application Fields

This module shows up most often in turbomachinery environments where mechanical failure from overspeed could lead to catastrophic damage. In many cases, we’ve seen it deployed on steam turbines, centrifugal compressors, and gas expanders in refineries and co-generation plants. It’s also used as part of SIL-2 compliant safety systems when paired with proper installation practices and external voting logic.

Advantages & Value

Procurement teams tend to favor this unit because it avoids vendor lock-in at the system level while still delivering certified safety performance. Since it slots into an existing 3500 rack, there’s no need for separate enclosures or additional wiring hubs—this can save thousands in panel fabrication and engineering time. Also, spare stocking becomes simpler if your site already uses other 3500-series modules. Firmware updates are handled through standard tooling, and technical support documentation is generally thorough, though sometimes dense.

Installation & Maintenance

Mounting requires a compatible 3500 mainframe (like the 3500-20M) installed in a controlled environment—typically NEMA 1 or better, away from excessive vibration and moisture. Make sure cabinet ventilation meets specs; these modules don’t handle heat well over long periods. Wiring should use shielded twisted pair cables with single-point grounding to reduce noise interference. For maintenance, periodic functional testing of trip relays is recommended—at least annually. Calibration isn’t field-serviceable per se, but you can simulate input pulses using a handheld RPM calibrator to verify setpoints. Don’t forget to back up configuration files before doing any firmware upgrades.

Quality & Certifications

The 3500/32M carries CE, UL, and CSA certifications, and complies with relevant parts of IEC 61508 for functional safety applications. It appears to meet SIL-2 requirements when used in accordance with approved system designs. RoHS compliance is confirmed per EU directives. Our warranty covers 365 days from shipment date—covering defects in materials and workmanship under normal operating conditions.

Order Notes: Delivery takes about one week for in-stock units, and never exceeds one month. We accept FedEx, UPS, or DHL for express shipping. Payment terms are 50% upfront, balance due before dispatch.
