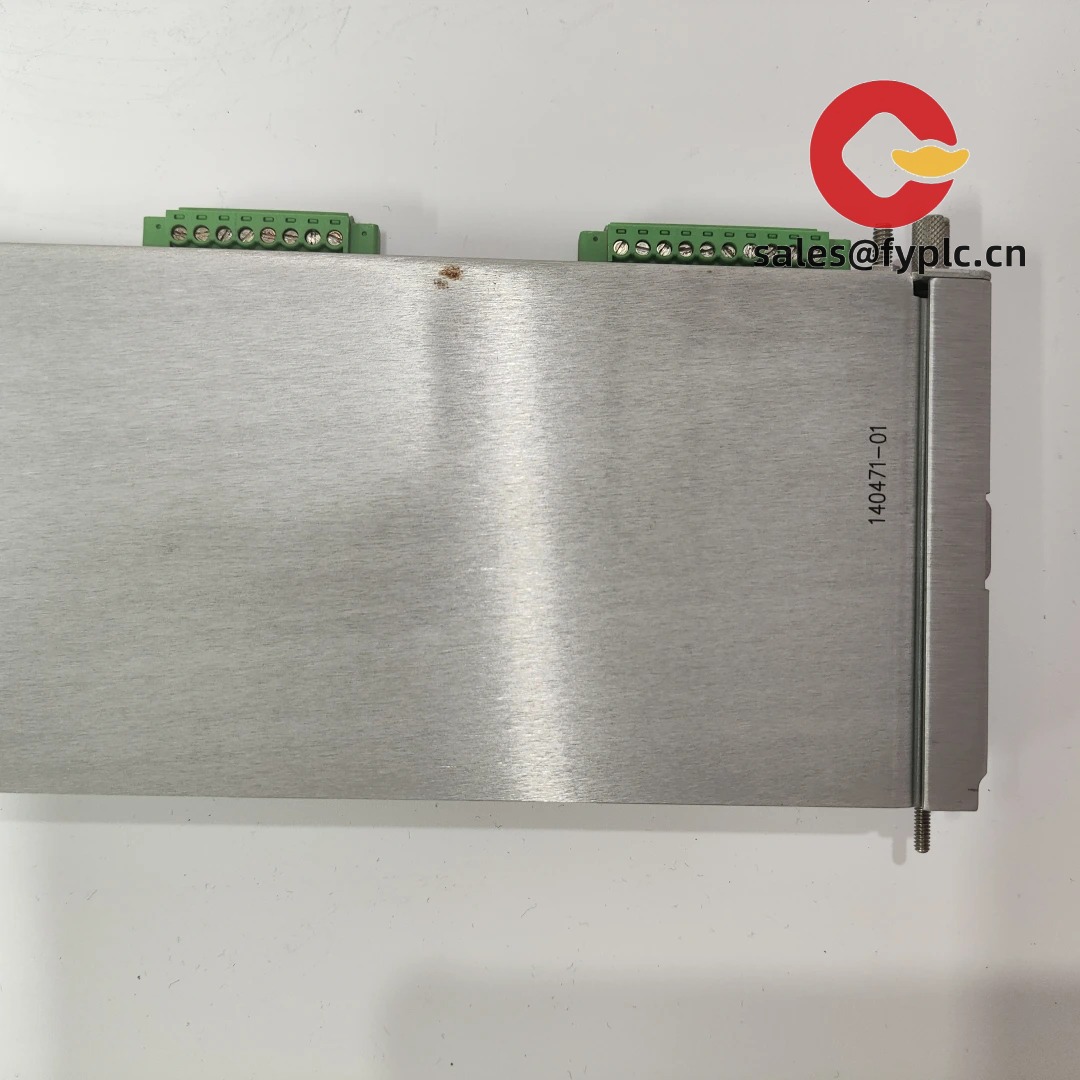

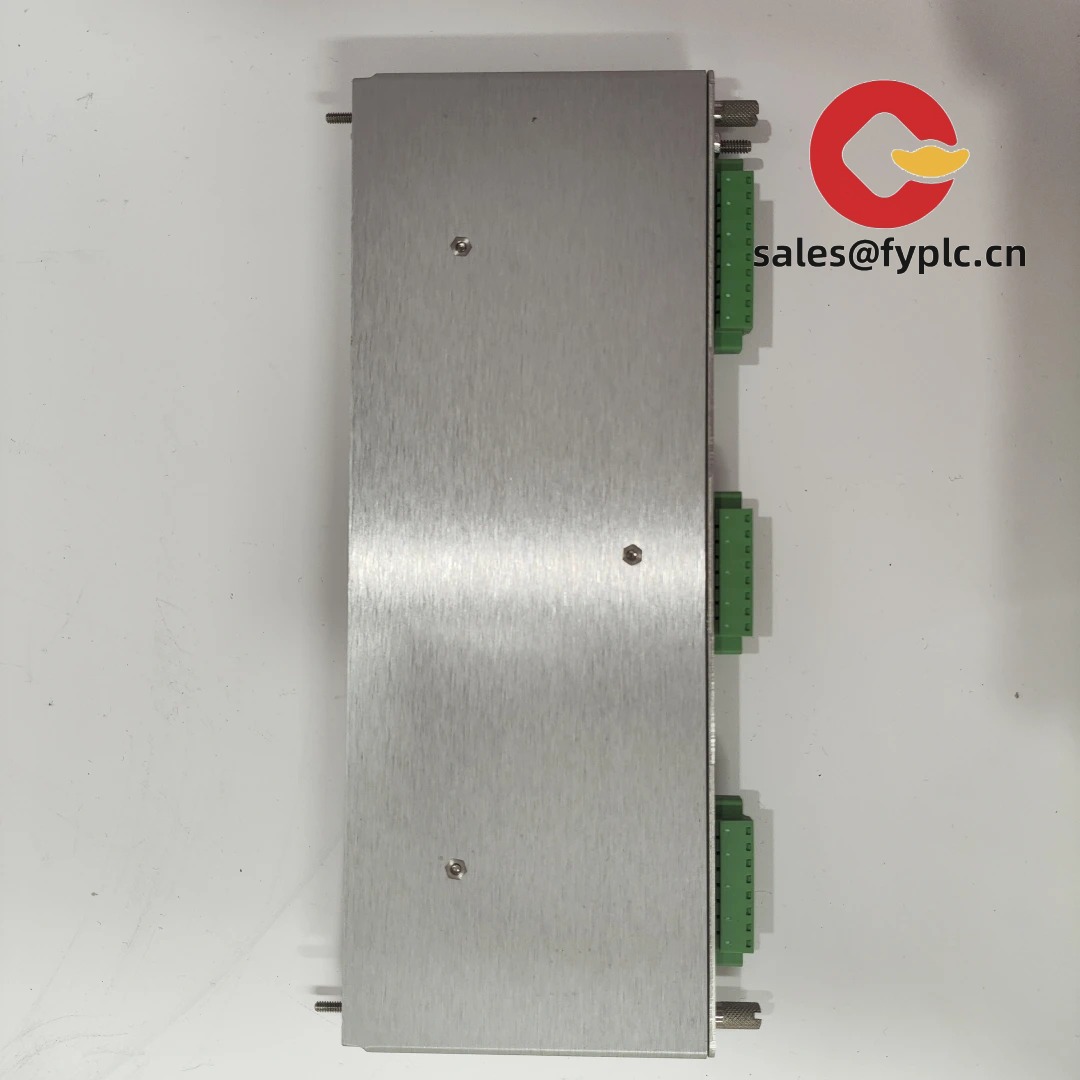

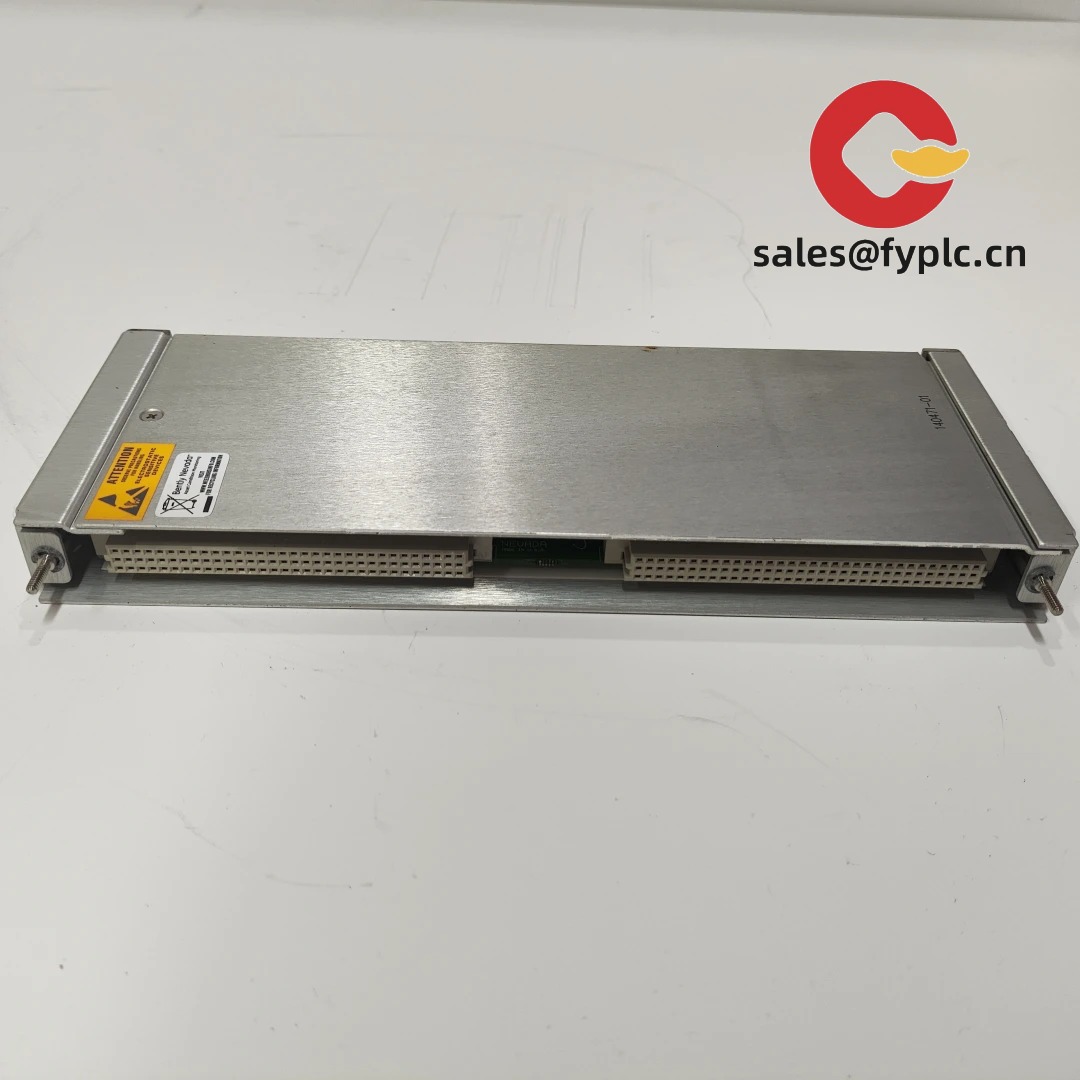

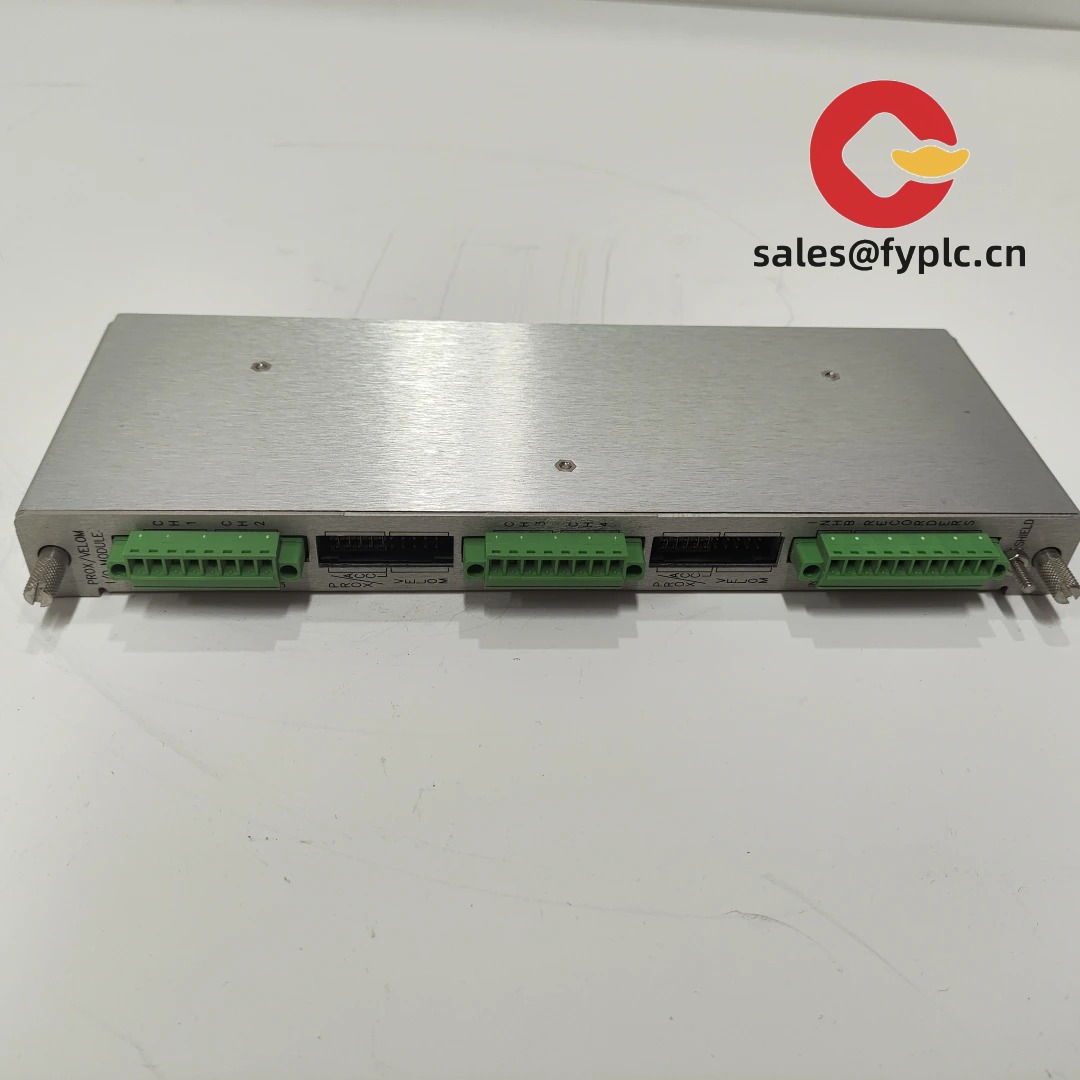

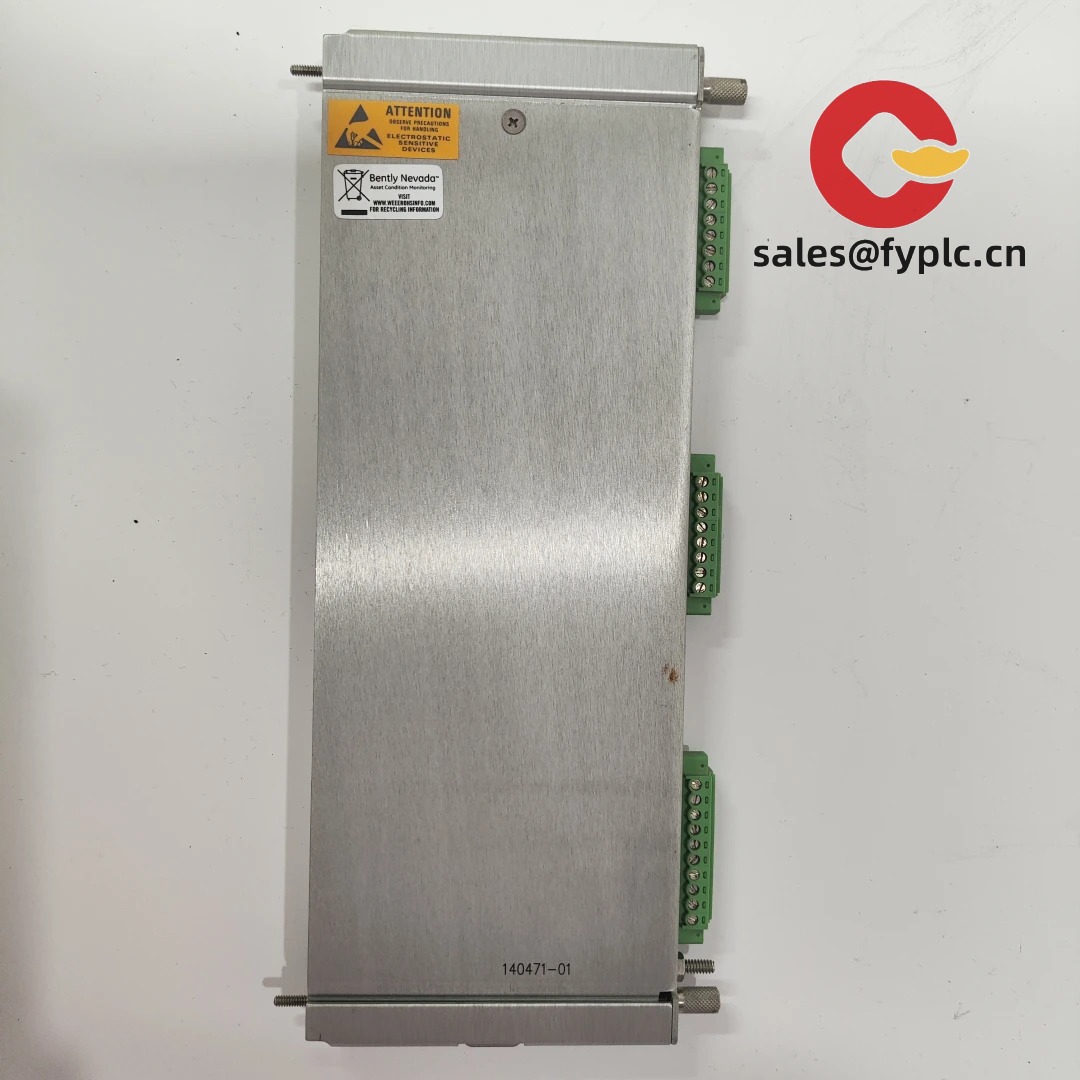

Bently Nevada 3500/70 (140471-01) – Reciprocating Compressor Monitor with Crank‑Angle Referenced Protection

The Bently Nevada 3500/70 Reciprocating Compressor Monitor brings angle‑based protection and diagnostics into the 3500 rack. It correlates impact and dynamic events to crank angle using a Keyphasor reference, so you can see exactly when valve, crosshead, or piston issues occur in the rotation. From my experience, variant 140471-01 is a widely used assembly that fits straight into existing 3500 cabinets, giving plants protection‑grade alarms while keeping wiring and configuration familiar for the maintenance team.

Key Features

• Crank‑angle referenced monitoring: Uses a Keyphasor input so impacts and events are aligned to crank position—much easier to pinpoint valve and ring faults.
• Protection‑grade alarms: Alert/Danger setpoints with OK/not‑OK checking; alarm status shares across the rack for relay voting and trips.
• Dynamic sensor support: Commonly paired with accelerometers or dynamic pressure sensors on cylinders; exact I/O depends on the selected terminal base.
• Waveform and transient capture: When used with the 3500‑22M TDI, angle‑based waveforms are available for deeper diagnostics and reporting.
• Backplane integration: Configuration, status, and event data flow through the rack backplane—no separate network port on the module.
• Commissioning friendly: Front LEDs and buffered signal access (I/O dependent) help with sensor checks and quick troubleshooting.

Technical Specifications

Application Fields

You’ll typically find the 3500/70 wherever reciprocating equipment needs angle‑aware protection and clearer diagnostics:

• Gas gathering and pipeline compression: valve impact monitoring tied to shutdown interlocks
• Gas processing & petrochemicals: early detection of cylinder, crosshead, and packing issues
• Refining and chemicals: alarm mapping to DCS/ESD with time‑correlated event records

Advantages & Value

• Rack‑native solution: No external analyzer for essential protection—keeps architecture simple and maintainable.
• Faster troubleshooting: Angle‑based views typically cut root‑cause time after trips and near‑miss events.
• Lower installed cost: Backplane data and shared relays reduce panel hardware and wiring effort.
• Standardization: Consistent hardware across compressors helps spares planning and training.

Installation & Maintenance

• Cabinet environment: Install the 3500 rack in a clean, ventilated enclosure; avoid condensation and corrosive atmospheres.
• Sensors & Keyphasor: Provide a stable Keyphasor via a 3500 Keyphasor module; route dynamic sensor cables away from noise sources and earth shields properly.
• Alarm philosophy: Tune Alert/Danger thresholds and any time‑in‑alarm delays; map trips using 3500/32 or 3500/33 relay modules with voting as required.
• Safety and handling: De‑energize the rack before inserting/removing modules; observe ESD precautions for backplane connectors.
• Routine care: Back up configuration, verify OK status, clean cabinet filters, and schedule firmware updates during planned outages.

Quality & Certifications

• CE marking for EMC and safety (3500 family)
• UL/cUL and CSA certifications commonly available for 3500 modules
• RoHS conformity where applicable
• Manufacturer warranty is typically 12 months; we support a 365‑day warranty on supply
