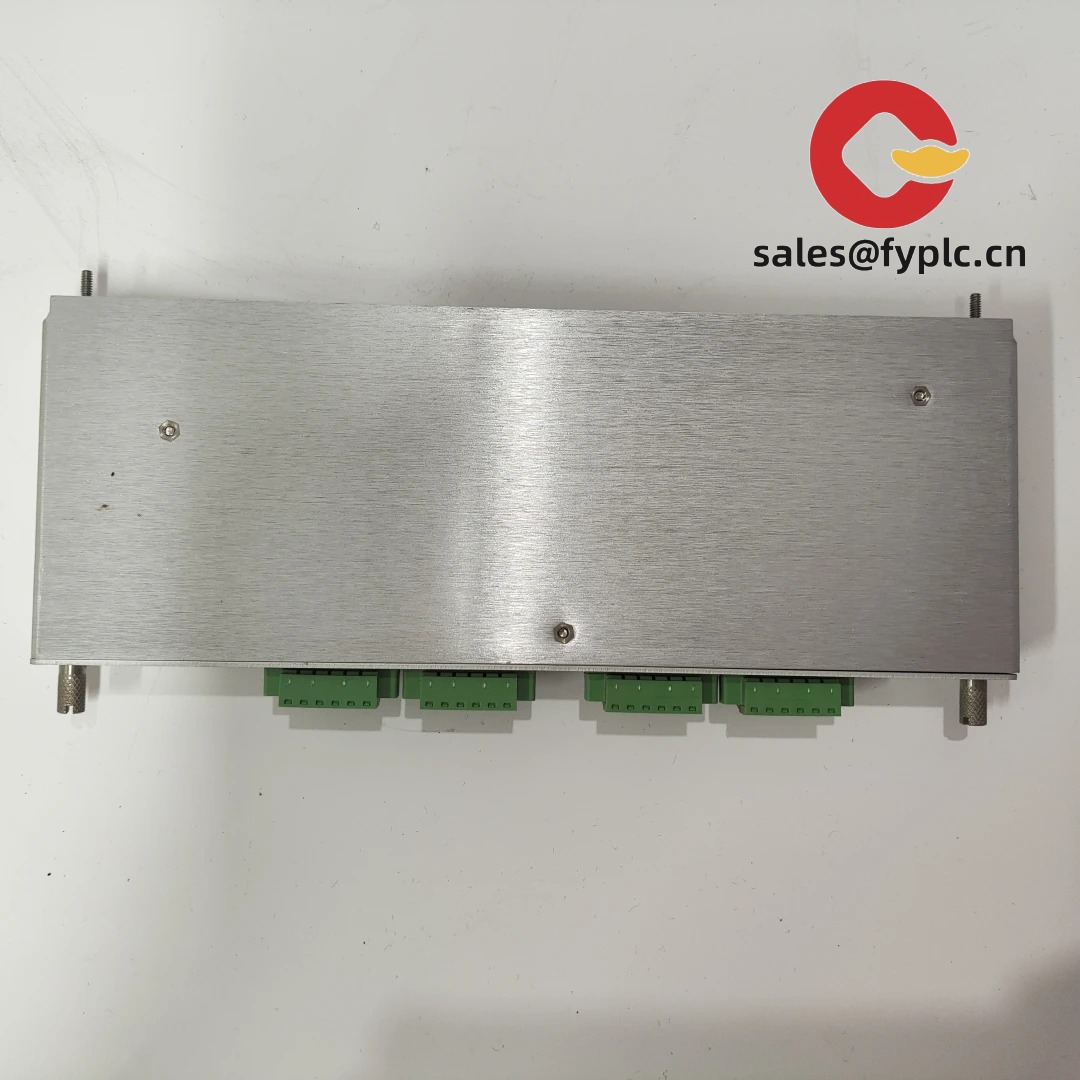

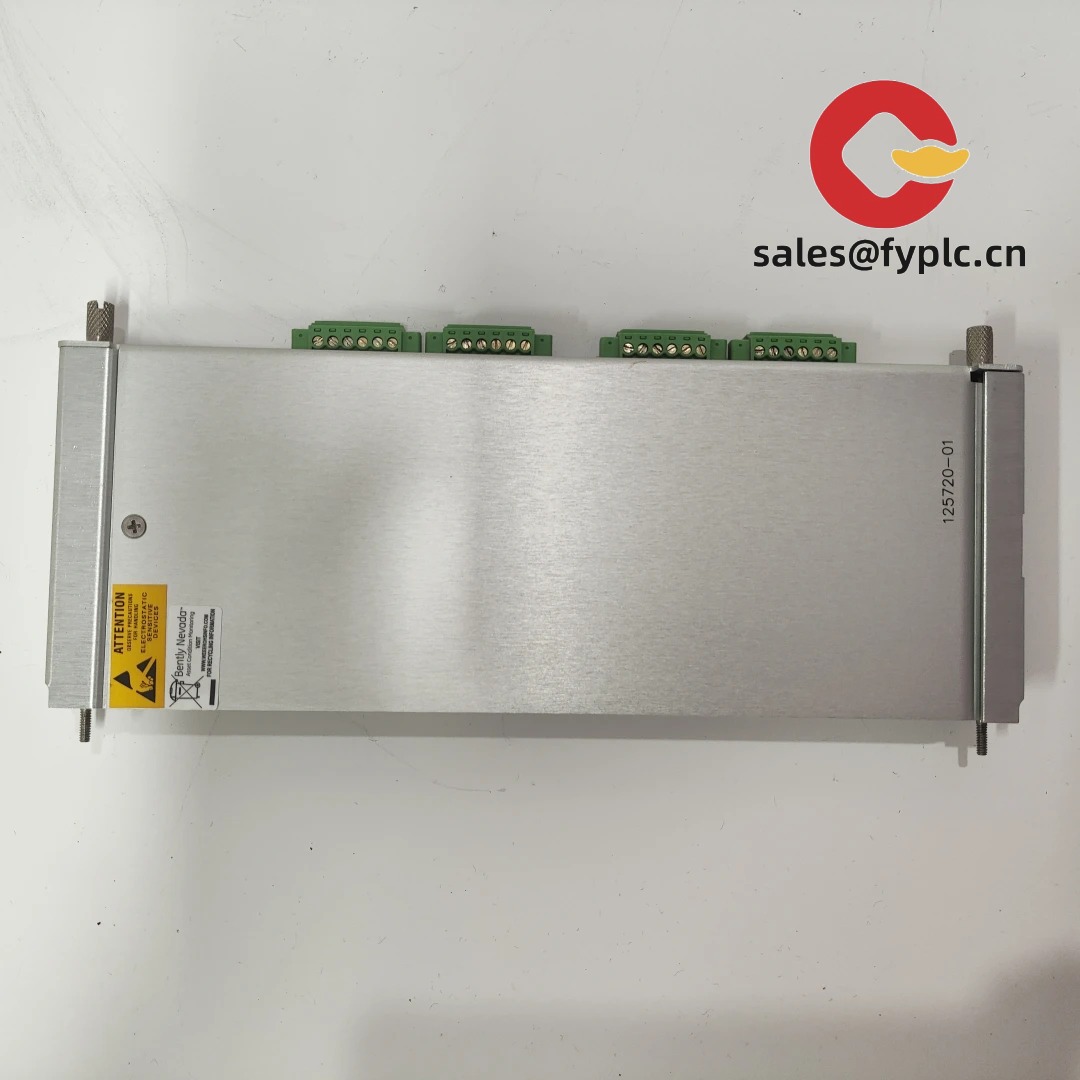

Bently Nevada 3500/70M 140734-09 – Rack Monitor for Machinery Protection Systems

If you’re running critical rotating equipment—turbines, compressors, or large motors—you likely need a reliable monitoring backbone. The Bently Nevada 3500/70M 140734-09 is typically the go-to rack monitor in plants where uptime and asset integrity are non-negotiable. From my experience, it’s not just about detecting vibration anomalies; it’s about having a system that integrates cleanly with your existing control architecture while delivering consistent, actionable data.

Key Features

• Dual-Channel Monitoring: Handles two independent channels of vibration or position data, which seems to be enough for mid-tier machinery without overcomplicating setup.
• Modbus RTU & RS-485 Support: One thing I appreciate is its native communication compatibility—it typically talks directly to SCADA or DCS systems without needing protocol converters.
• Configurable Alarm Logic: You can set up event-based alerts with delay timers and latching options, which helps reduce false trips during transients.
• Front Panel Diagnostics: LED indicators give real-time status on power, communication, and alarm states—useful during commissioning or troubleshooting.
• Backplane Integration: Designed specifically for the 3500 rack system, so installation is straightforward if you’re already in the ecosystem.

Technical Specifications

Application Fields

This module shows up frequently in oil & gas facilities, power generation plants, and large HVAC systems—anywhere high-value rotating equipment runs continuously. It’s commonly used to monitor steam turbines, centrifugal compressors, and boiler feed pumps. In many cases, it replaces older relay-based protection schemes with something more configurable and diagnostic-rich.

Advantages & Value

Procurement teams tend to stick with this model because of long-term availability and backward compatibility. Even if you upgrade firmware, the physical footprint and wiring stay the same—minimizing downtime during retrofits. It also reduces integration costs since it avoids third-party gateways. While it’s not the cheapest option upfront, the total cost of ownership tends to be lower due to fewer field failures and solid vendor support.

Installation & Maintenance

Install it in a standard 3500 rack with proper ventilation—don’t stack modules too tightly. Make sure the cabinet meets NEMA 12 or IP54 standards if it’s in a dusty or humid area. Wiring should use shielded twisted pair cables, grounded at one end only to avoid ground loops. From my experience, most issues stem from poor grounding, not the unit itself.

For maintenance, schedule annual visual inspections and clean air vents if needed. Firmware updates are rare but worth applying when released—especially for security patches. Calibration isn’t required under normal conditions unless sensor thresholds drift over time.

Quality & Certifications

The 3500/70M carries CE, UL, and CSA certifications, and complies with IEC 61000-6-2 for industrial immunity. It’s also RoHS compliant. The manufacturer typically offers a 3-year warranty, but our supply comes with an extended 365-day coverage regardless of origin—just in case you’re replacing legacy hardware without OEM support.

Ordering Notes: In-stock units ship within one week; international deliveries take no more than four weeks. Payment requires 50% upfront, balance before dispatch. We ship via FedEx, UPS, or DHL—your choice. No minimum order quantity, but lead times improve with volume.
