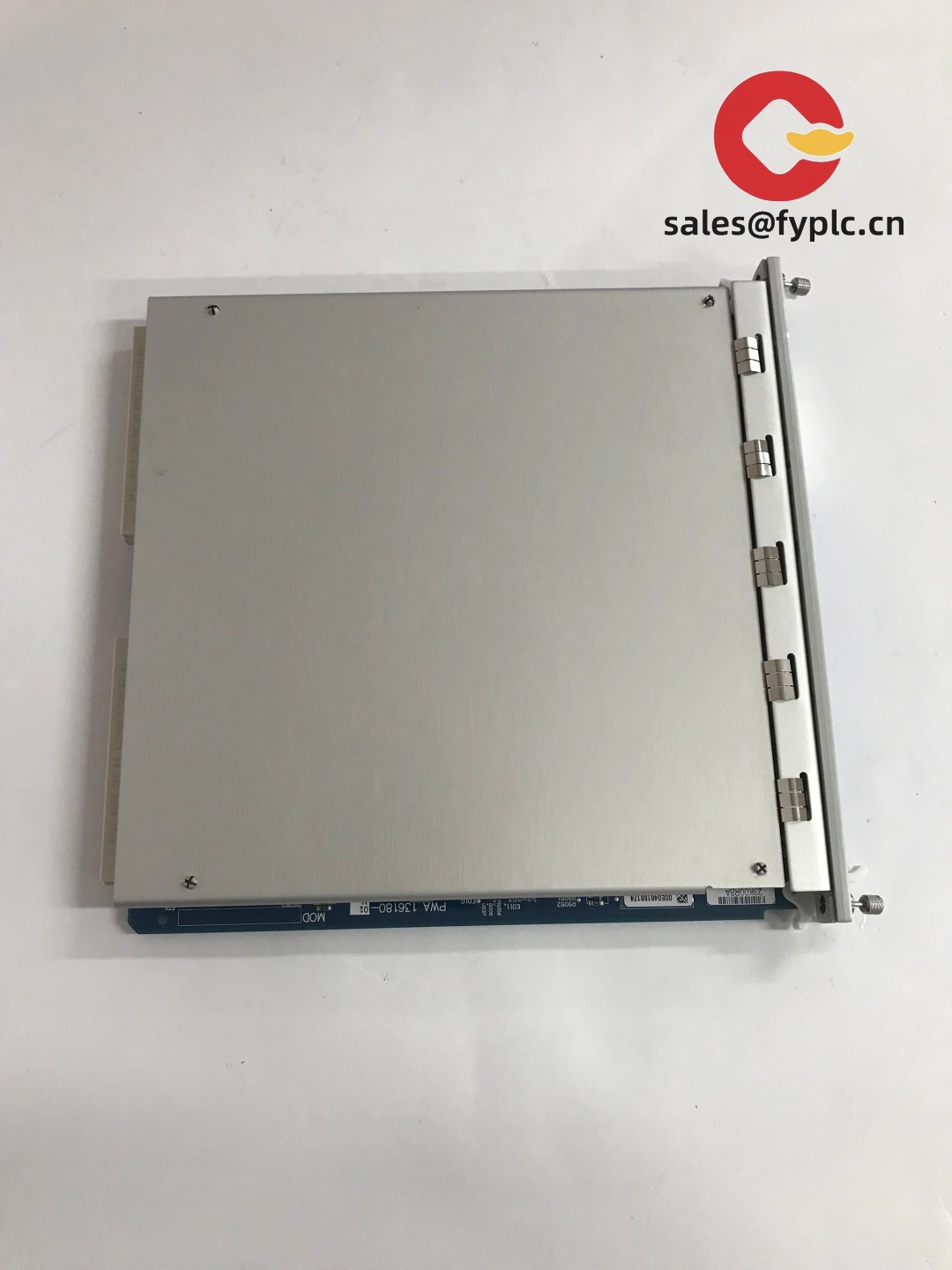

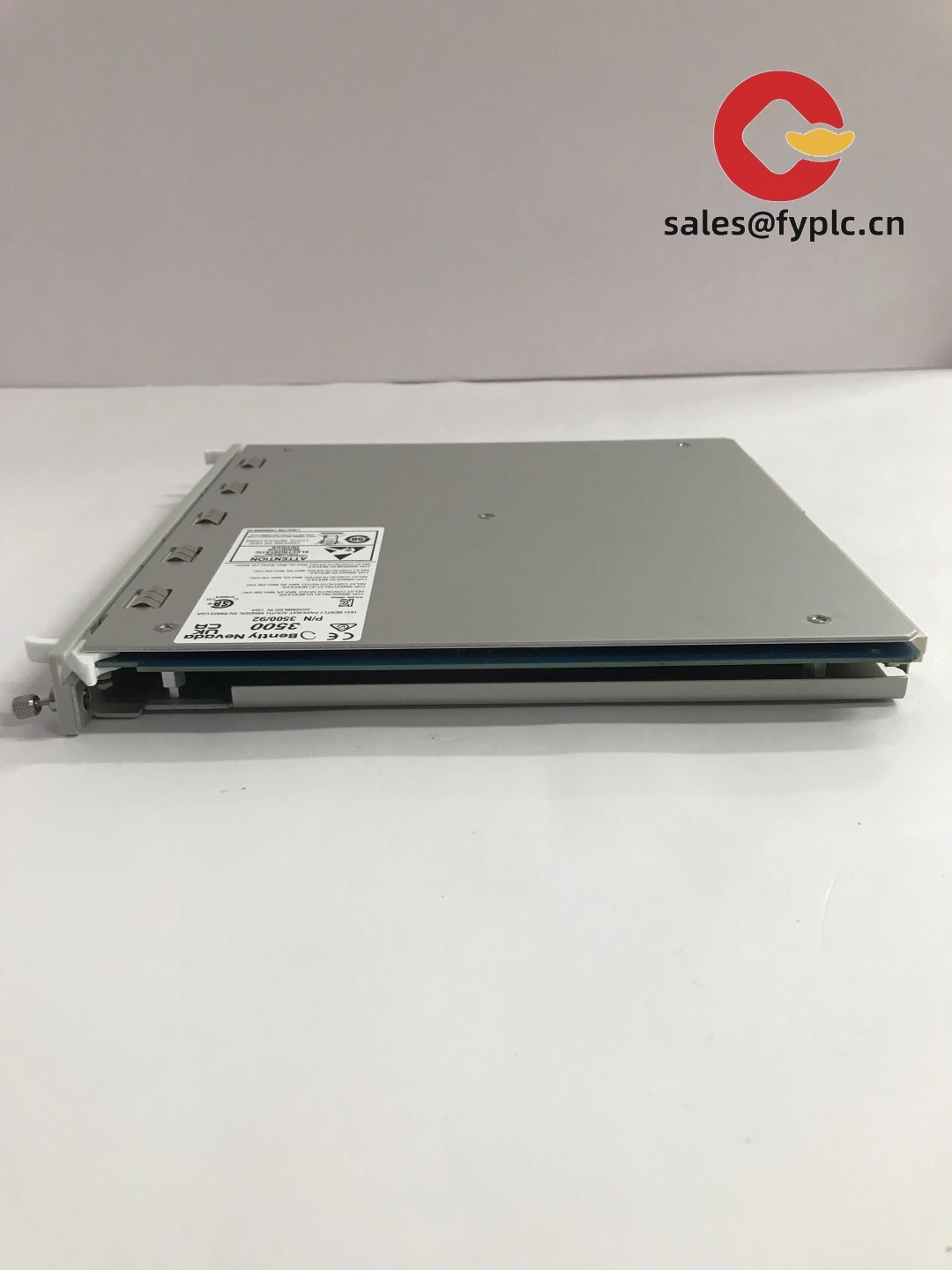

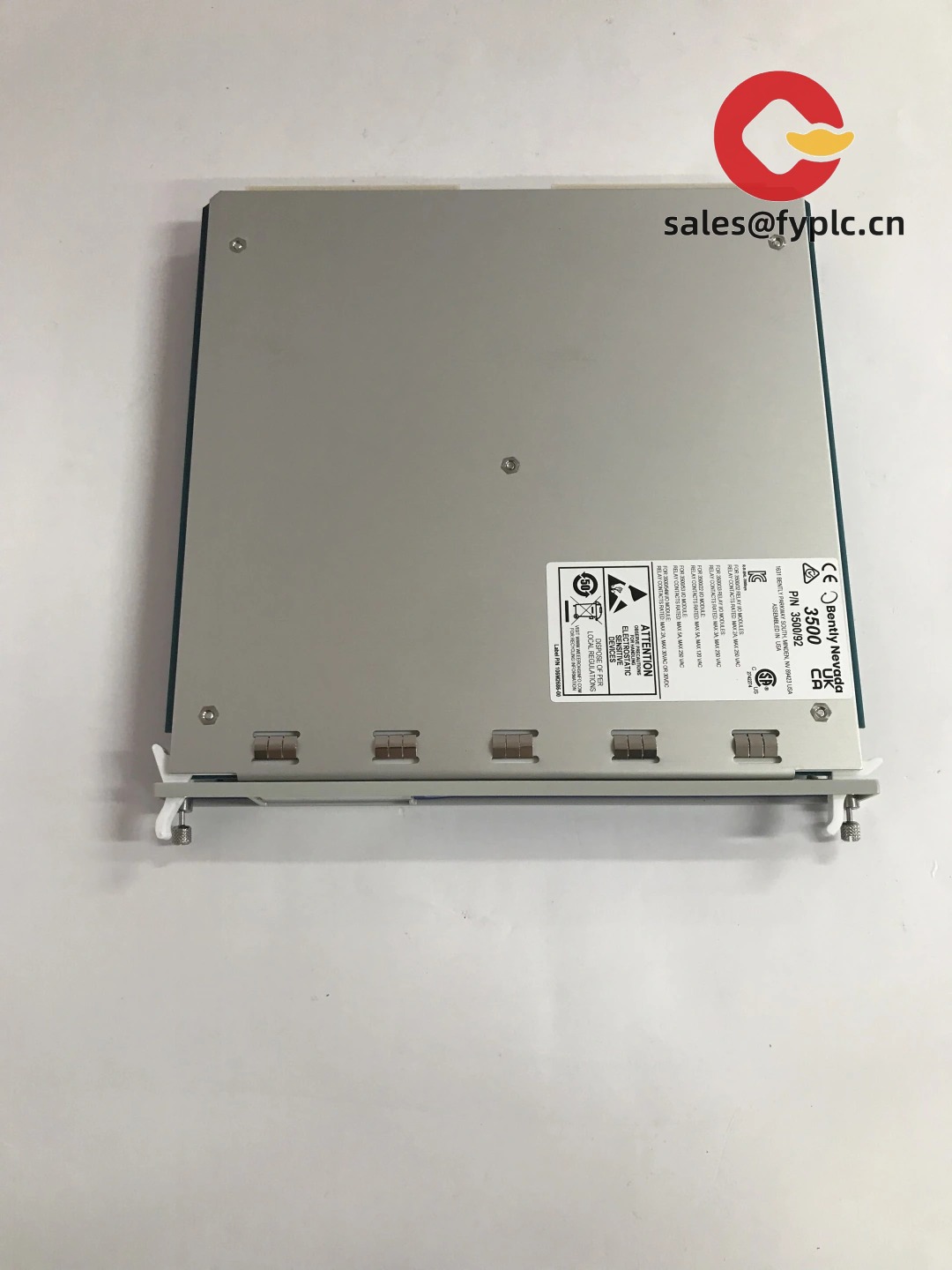

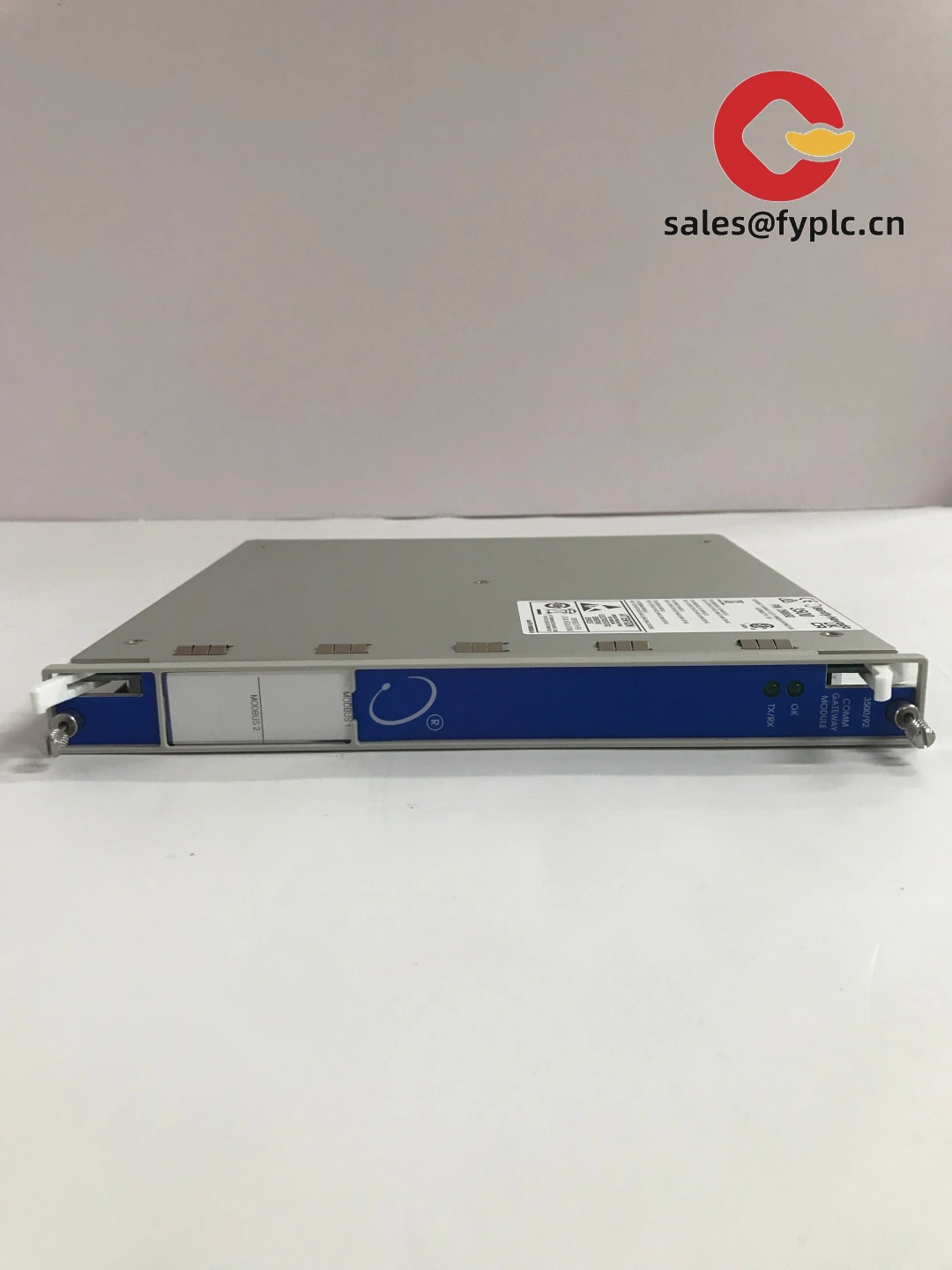

Bently Nevada 3500/92 (136180-01) – Communications Gateway for DCS/PLC Integration

The Bently Nevada 3500/92 Communications Gateway is the rack’s bridge to your control system. It aggregates channel values, OK status, alerts/dangers, and system health from the entire 3500 rack and publishes them to DCS/PLC via Modbus. From my experience, this is the cleanest way to get protection data into the control layer without adding a separate protocol converter. Part number 136180-01 is a widely deployed hardware variant that drops into standard 3500 cabinets with no special wiring tricks.

Key Features

• Single data gateway for the rack: Publishes channel values, Alert/Danger states, Not OK, relay status, and rack health to the control system.
• Modbus connectivity: Supports Modbus TCP over Ethernet and Modbus RTU over RS‑485 for flexible DCS/PLC integration.
• Read‑only mapping: Data is exposed to the control system without allowing writes back to protection logic—safer for ESD and trip paths.
• Tight 3500 integration: No extra sensors or terminations; the module reads monitor data via the backplane and keeps cabinets tidy.
• Separation of duties: Use 3500‑22M TDI for configuration and waveform diagnostics; use the 3500/92 strictly for controls communications—clear and maintainable.
• Commissioning friendly: Deterministic register maps and front status LEDs make FAT/SAT point‑to‑point checks straightforward.

Technical Specifications

Application Fields

You’ll typically use the 3500/92 anywhere you need clean, read‑only 3500 data inside the control system:

• Oil & Gas: mapping vibration/position alarms to DCS and ESD inputs on turbines, compressors, and pumps
• Power Generation: sending protection status and key values to the plant control network for annunciation
• Petrochemical/Refining: standardizing Modbus tags across units for uniform graphics and alarm management

Advantages & Value

• Reliable integration: Native gateway avoids third‑party protocol boxes and the finger‑pointing that sometimes comes with them.
• Compatibility: Works across the 3500 family; register maps line up with common DCS/PLC templates in many cases.
• Lower engineering effort: One source of truth for alarms and values reduces tag hunting and custom logic.
• Operational clarity: Read‑only path protects the machinery protection logic while still giving operators exactly what they need.

Installation & Maintenance

• Cabinet & environment: Install the 3500 rack in a clean, ventilated enclosure; avoid condensation and corrosive atmospheres.
• Networking: Place Modbus TCP on the controls VLAN; assign fixed IPs and document the register map. RS‑485 runs should be properly terminated and shielded.
• Commissioning: Verify key points (OK, Alert, Danger, relay states) against the Modbus register list; many teams script a quick read test from the DCS.
• Safety & handling: De‑energize the rack before inserting/removing modules; follow ESD procedures to protect the backplane.
• Routine care: Backup configuration, review event logs after trips, and schedule firmware updates during planned outages.

Quality & Certifications

• CE marking for EMC and safety (3500 family)
• UL/cUL and CSA certifications commonly available for 3500 modules
• RoHS conformity where applicable
• Manufacturer warranty is typically 12 months; we support a 365‑day warranty on supply
