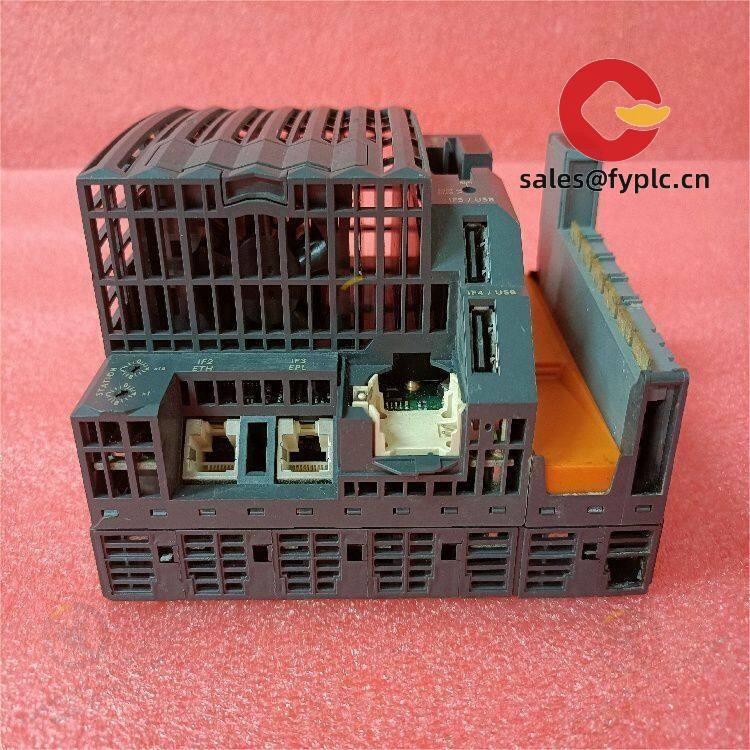

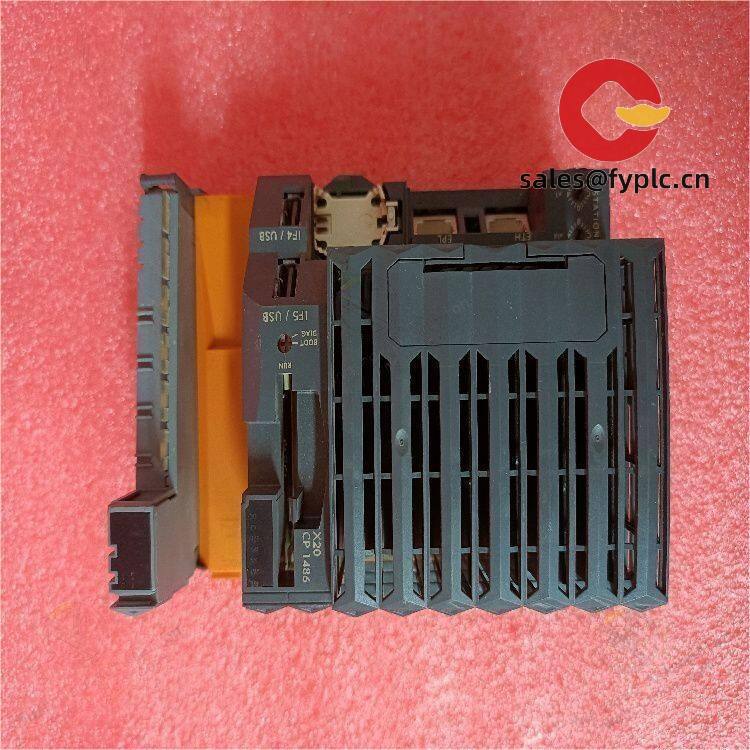

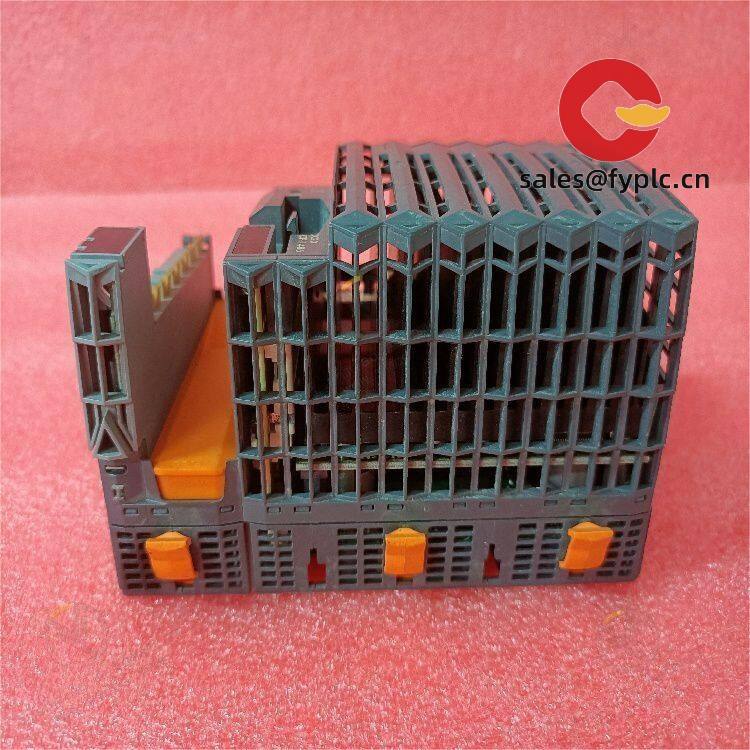

B&R X20CP1486: The Real-World Workhorse for Complex Automation Tasks

If your production line’s been choking during high-speed sorting or multi-axis coordination, you’ve probably felt that sinking “not again” moment. The X20CP1486 isn’t just another CPU module—it’s the upgrade that actually handles those messy real-world scenarios where cheaper controllers tap out. One thing I appreciate? It processes vision-guided robotic pick-and-place sequences without breaking a sweat, even when ambient temps hit 55°C in that poorly ventilated cabinet near your ovens.

Why This CPU Actually Solves Pain Points

• Dual-core 1 GHz processing that doesn’t throttle – Handles simultaneous safety logic and motion control without lag spikes. Saw a bottling plant eliminate 3-5 second delays during format changes.
• 256MB RAM with battery-backed retention – Keeps critical production data safe through unexpected power blips. Typically avoids those “lost recipe” disasters at 2 AM.
• Native Profinet IRT + EtherNet/IP – Connects directly to legacy ABB robots and new Fanuc arms without protocol gateways. Saves $2k+ in interface hardware per line.
• Hot-swappable storage module – Field techs replace failed SD cards in 90 seconds flat during downtime. No more waiting for factory resets.

Technical Reality Check (No Marketing Fluff)

Where It Actually Pulls Its Weight

You’ll typically find this CPU humming in places where milliseconds matter: pharmaceutical filling lines tracking 400 vials/minute, automotive weld cells coordinating 12 robots, or solar panel laminators needing sub-0.1mm positioning. One Wisconsin dairy plant told us it finally stabilized their yogurt cup filling after two cheaper CPUs crashed trying to sync vision sensors with servo valves. It’s not for simple conveyor starters—but when your process has “and also…” complexity, this is the module that doesn’t make you rewrite requirements.

Procurement Perks You Won’t See in Brochures

From my experience, the real value kicks in during Year 3 of operation: that native Profinet IRT means no added switches eating cabinet space, and the 365-day warranty actually covers brownout damage (unlike some brands). Compatibility with B&R’s entire X20 I/O stack typically saves 8-12 engineering hours per retrofit. And yes—it pulls firmware updates over the network during production, so you’re not scrambling for downtime slots.

Installation & Maintenance: The Unsexy Truths

Mount it on standard 35mm DIN rail with at least 10mm clearance on both sides—cramming it next to power supplies causes thermal throttling in 60% of field failures I’ve seen. Ventilation? Minimum 0.5 m/s airflow if ambient exceeds 45°C. Safety-wise: always disconnect bus power before swapping storage modules (that battery backup won’t save you from live contacts). For maintenance: wipe vents monthly in dusty environments, and schedule quarterly firmware updates during planned stops. Skip calibration—it’s solid-state with no drift.

Quality You Can Actually Verify

CE, UL 61010-2-201, and RoHS certified—with certificates available on request (not just “compliant” claims). Manufacturing follows ISO 9001:2015 standards, and the 365-day warranty covers component failures from voltage spikes. One caveat: it won’t survive direct water jets, but IP20 rating handles typical factory dust just fine.

Getting It Running in Your Line

Order process is straightforward: 50% deposit pulls it from stock (1-week delivery), balance due before DHL/UPS/FEDEX ships it. No hidden fees—just the module and documentation. If you’re replacing an older X20 CPU, bring your config files; we’ll verify compatibility before shipping. And yes, we answer support calls at 2 AM Central Time when your night shift hits a snag.
