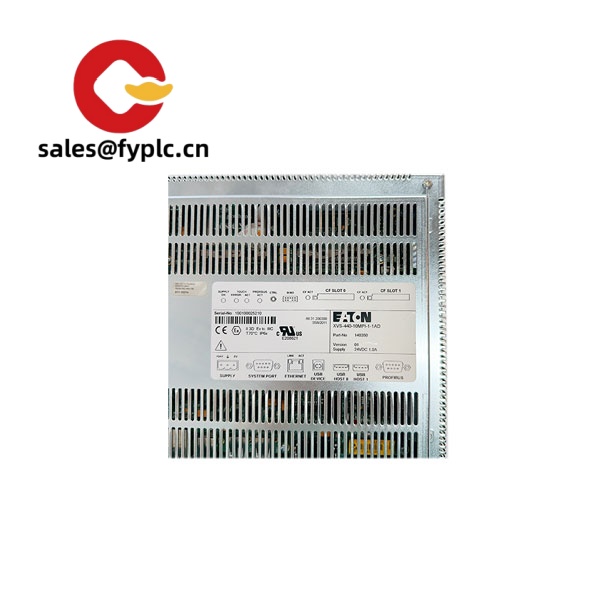

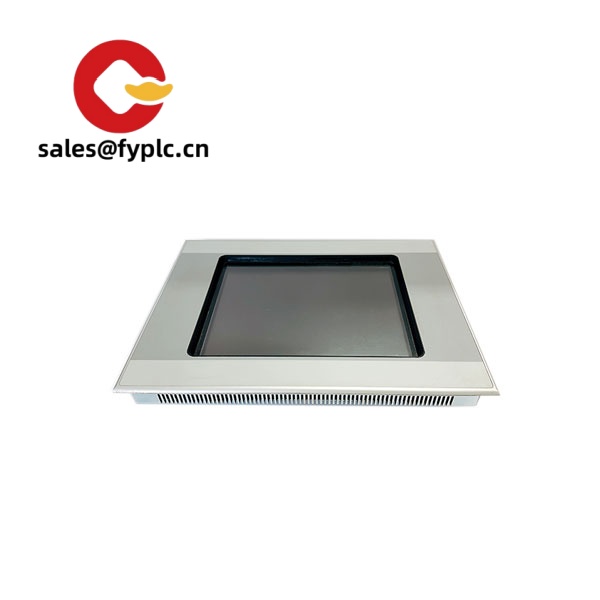

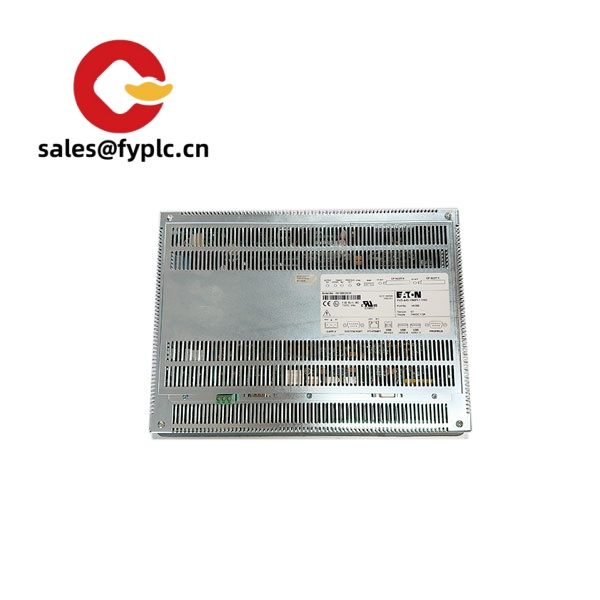

Eaton XVS-440-10MPI-1-10 HMI Panel – Compact 4.3-inch operator interface with native MPI connectivity for Siemens S7

The Eaton XVS-440-10MPI-1-10 is a compact HMI designed for machines where space is tight but reliable PLC communication is non‑negotiable. One thing I appreciate is how the integrated MPI port streamlines connections to Siemens S7 controllers—no extra gateways, fewer points of failure. It seems to be a great fit for small packaging machines, pump skids, and compact process panels where operators need a clear 4.3-inch display, quick diagnostics, and simple recipe handling without overcomplicating the control cabinet.

From my experience, teams moving from basic text displays to the XVS-440 notice faster commissioning. A packaging OEM recently told us they tied this panel to an S7-300 over MPI and got the line running in under an hour, using USB for quick project download and backup. You might notice that it’s built for everyday reliability: 24 VDC supply, front IP protection when properly gasketed, and straightforward panel mounting.

Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery time: 1 week for in‑stock items; no more than one month at the latest
• Payment: 50% advance payment, full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• Integrated MPI interface – Direct communication to Siemens S7 PLCs; reduces the need for external converters.
• 4.3-inch color display – A practical size for small panels, typically 480×272 resolution for clear status and alarms.
• 24 VDC supply – Standard industrial power input, easy to integrate with existing control power.
• Compact panel mounting – Saves cabinet space; front sealing with the supplied gasket helps achieve IP-rated protection.
• USB service port – Convenient for project download, backup, and firmware updates.
• Serial connectivity (typ.) – RS‑232/RS‑485 support is common on this series for secondary devices or service links.
• Operator‑friendly runtime – Suits alarm lists, setpoint entry, and simple trend views in many cases.

Technical Specifications

Related or Supporting Products

• Eaton XV-102 series (4.3-inch variants) – Similar compact HMIs with Ethernet‑centric options; useful if MPI is not required.
• Eaton XVS-440 variants – Models with different communication options (e.g., Ethernet) if your PLC network isn’t MPI-based.
• Eaton PSG series 24 VDC power supplies – Reliable DIN‑rail supplies sized for low‑power HMI loads.
• Industrial MPI cable – Shielded DB9 MPI cable for stable S7 communication and reduced noise in high‑EMI panels.
• DIN‑rail UPS/Buffer module – Keeps the HMI alive long enough to save data during brief power dips.

Installation & Maintenance

• Cabinet & mounting – Use a rigid, vibration‑controlled panel. Cutout per datasheet; secure evenly with the included clamps. Ensure the gasket seats uniformly to maintain front IP protection.
• Power & wiring – 24 VDC supply with proper grounding; keep the HMI’s DC feed separate from inductive loads. Use shielded cable for MPI and maintain proper shielding/grounding on one side to reduce EMC issues.
• Ventilation – Provide airflow or spacing around the rear; avoid mounting above heat‑generating VFDs or power supplies without a thermal barrier.
• Networking – For MPI, set the correct node address and baud rate; avoid star‑topologies on MPI and respect segment lengths.
• Routine care – Periodically back up the project via USB, clean the screen with non‑abrasive wipes, and check for firmware updates during scheduled maintenance windows.
• Safety – De‑energize before servicing; verify the enclosure maintains the required IP rating after any field work.

Quality & Certifications

• CE compliant; RoHS alignment for hazardous substance restrictions
• cULus listing on most regional variants (check model label for specifics)
• Manufactured under ISO 9001 quality systems
• Standard warranty: 12 months (365 days)
