Description

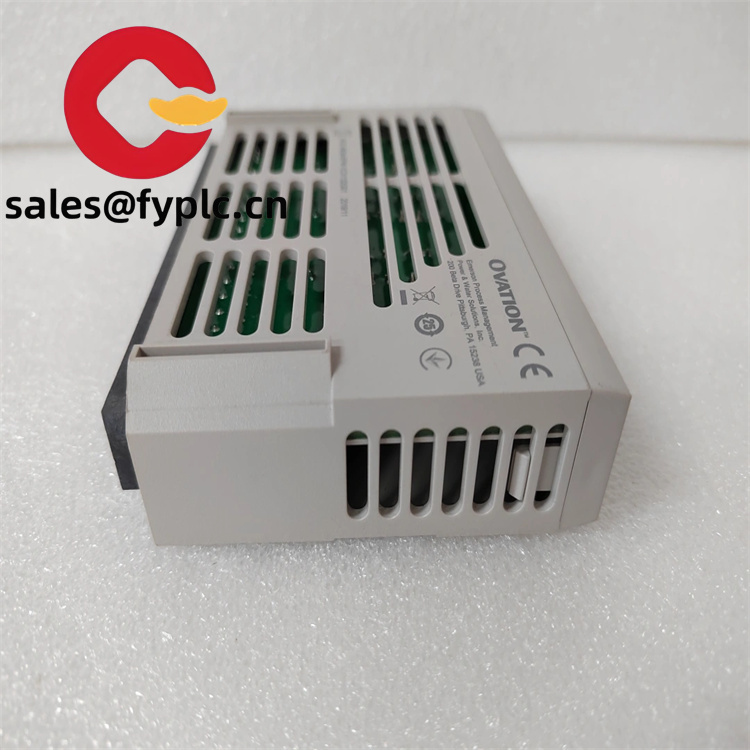

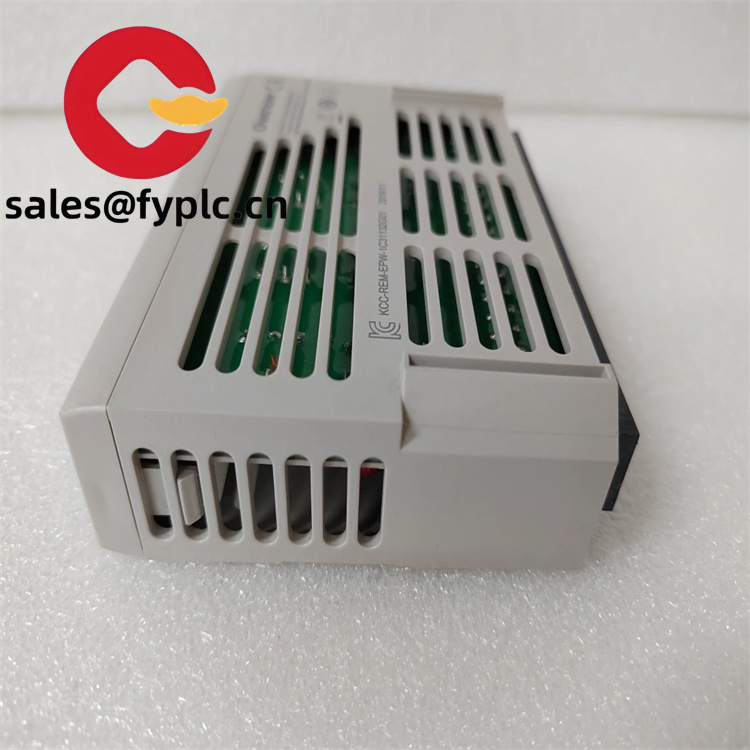

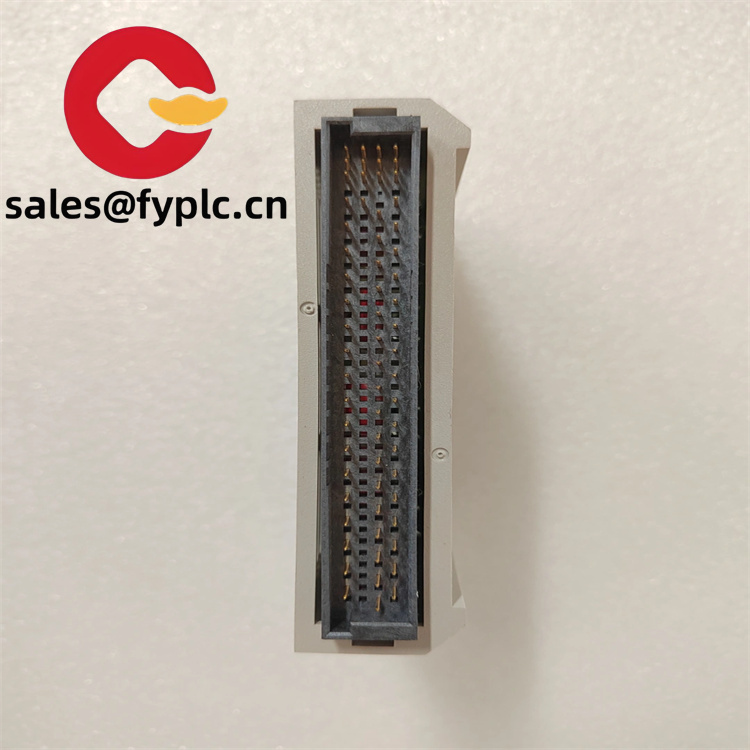

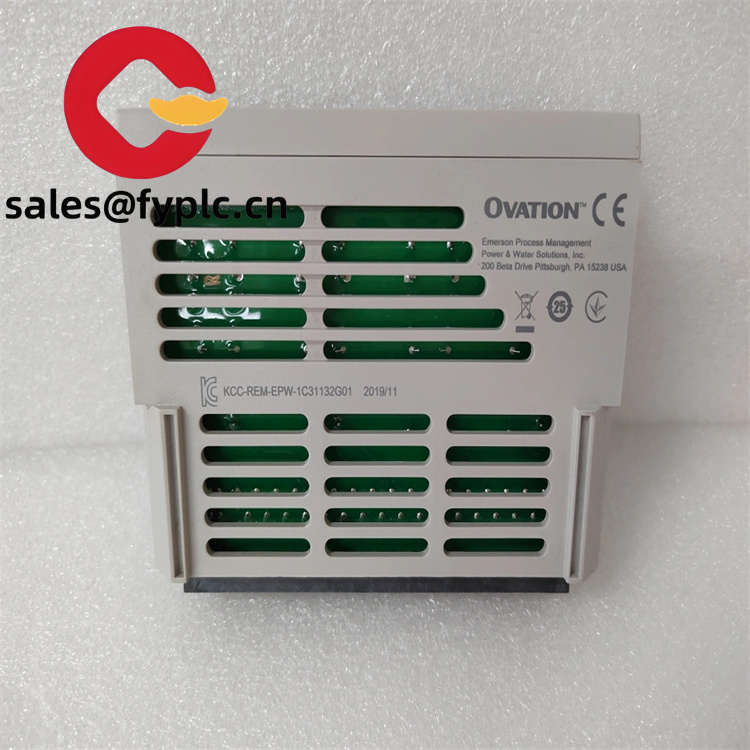

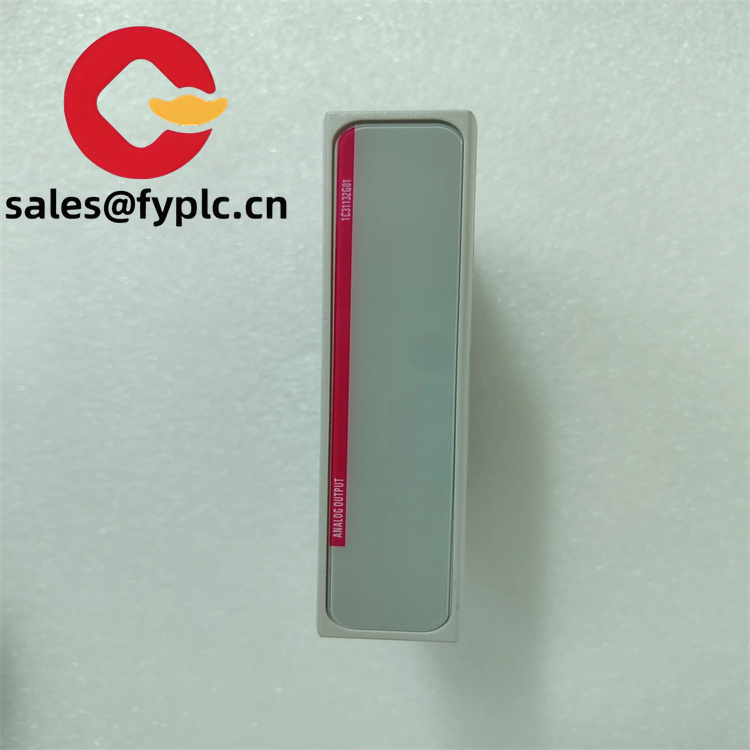

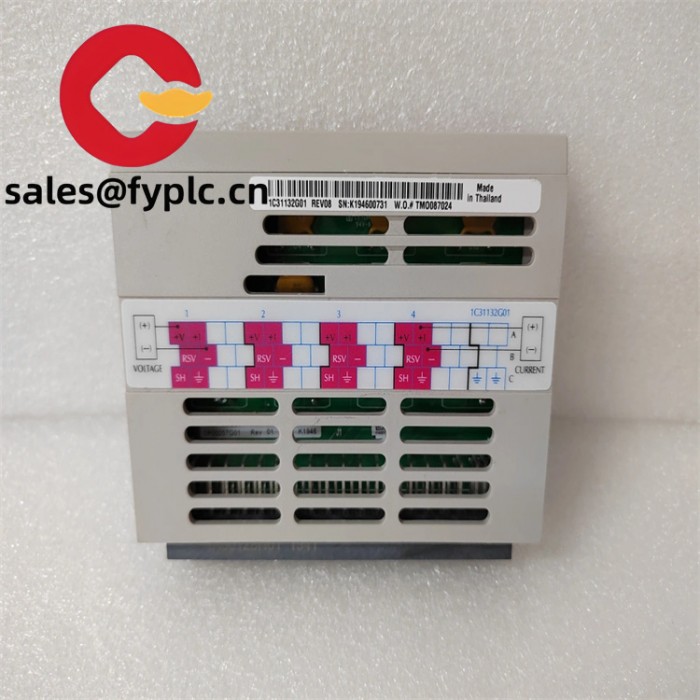

EMERSON 1C31132G01 Adjustable Controller Card

1C31132G01

The EMERSON 1C31132G01 is a versatile 8-channel universal I/O module designed to deliver precise signal conditioning and control in mission-critical industrial environments. As part of Emerson’s Ovation™ distributed control system (DCS), this module supports configurable analog input/output and digital input/output channels, making it ideal for applications requiring flexible integration of sensors, actuators, and other field devices in power generation, oil & gas, and process manufacturing. Its advanced isolation technology and rugged design ensure reliable performance in high-noise or harsh operating conditions, while seamless compatibility with Ovation controllers streamlines system architecture for enhanced operational efficiency.

The 1C31132G01 stands out for its adaptive signal processing capabilities. Its built-in overvoltage, overload, and short-circuit protection mechanisms ensure robust operation even in unstable power conditions . For analog applications, the module’s electronic viscosity compensation minimizes signal ripple, while its high common-mode rejection ratio (120dB at DC) effectively isolates noise in high-voltage environments like electrical substations . In digital mode, it supports discrete control functions such as relay switching and pulse counting, with 2A output current per channel for direct actuator control .

Compatible and Related Models

• 1C31129G03 – A 4-channel analog output module optimized for 4-20mA current loops, ideal for retrofitting legacy systems .
• 1C31124G01 – An 8-channel analog input module supporting RTD and thermocouple sensors, enhancing temperature monitoring accuracy .
• 1C31201G01 – A digital output module base with 32 channels for high-density discrete control applications .
• 5X00790G01 – The Ovation OCC100 controller, which coordinates data from the 1C31132G01 in distributed control architectures .
• 1C31204G01 – A remote I/O node module that enables long-distance signal transmission via fiber optic cables, expanding the system’s geographical reach .
