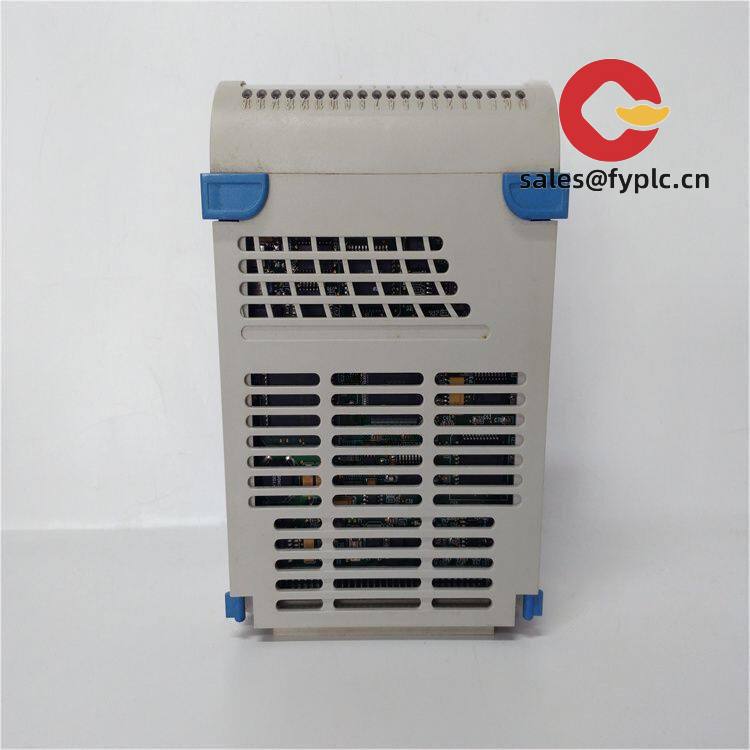

Emerson 1C31179G02 Ovation DCS Module – Reliable field signal interfacing for critical process control
The Emerson 1C31179G02 is a plug-in module used in the Emerson Ovation distributed control system. From my experience, it’s the kind of card plants keep as a ready spare because it drops into the rack fast, restores I/O continuity, and just works. You might notice that this G02 revision is typically paired with standard Ovation I/O carriers, making it straightforward to integrate with existing backplanes and terminal bases without reworking cabinet wiring.
Company’s Order Placement Process and Guarantees
- Warranty: 365 days, covering workmanship and functional defects under normal use.
- Lead time: 1 week when in stock; no more than one month at the latest.
- Payment terms: 50% advance payment; full balance prior to delivery.
- Express delivery: FedEx, UPS, DHL—packed for ESD protection and shock mitigation.
- Testing: Functional check before dispatch with traceable report upon request.
Key Features
- Ovation rack compatibility: Designed for the Emerson Ovation DCS ecosystem, integrating via the backplane I/O bus.
- Backplane-powered: Draws low-voltage DC from the carrier; no separate front-end power supply needed in most cases.
- Hot-swap serviceability: Typically supports field replacement with minimal downtime when the rack is designed for online maintenance.
- Status indicators: Front-panel LED cues (power/health/activity) that make diagnostics fast on a live panel.
- Robust build for plant environments: Industrial temperature rating and conformal coating options on many Ovation modules help resist dust and humidity.
- Lifecycle continuity: Common footprint and connectors help keep existing cabinet layouts and marshalling intact.
Technical Specifications
| Brand / Model | Emerson Ovation / 1C31179G02 |
| HS Code | 8537.10 (Boards, panels, consoles for electric control, <=1000 V) |
| System Platform | Emerson Ovation DCS I/O rack/backplane |
| Power Requirements | Backplane-supplied low-voltage DC (typically 5 VDC); consumption varies by application loading |
| Dimensions & Weight | Standard Ovation plug-in module format; compact card, approx. sub-1 kg installed |
| Operating Temperature | 0 to +55°C typical for Ovation I/O modules; non-condensing humidity environment recommended |
| Signal I/O Types | Interfaces to field signals via the I/O carrier/terminal base; digital or analog function depends on the specific I/O assembly paired with the 1C31179G02 |
| Communication Interfaces | Ovation backplane bus; controller linkage via rack data path (no separate external comm ports on the module face) |
| Installation Method | Front-insertion into Ovation I/O rack/carrier; captive hardware and keyed guides to reduce misalignment |
Note: Exact channel functionality and power draw can vary by rack revision and terminal base. If you share your carrier and controller part numbers, we’ll cross-check compatibility before shipping.
Application Fields
- Power generation (thermal, combined cycle, renewables) for boiler/turbine balance-of-plant I/O.
- Water and wastewater treatment: valve manifolds, pump skids, and process analyzers.
- Oil & gas: utility systems, compressor auxiliaries, burner management interfaces (non-SIL-specific usage).
- Chemicals and petrochemicals: discrete and analog field loops in unit operations.
- Metals and mining: drives auxiliaries and plant utilities where Ovation is already deployed.
Advantages & Value
- Reliability in harsh environments: The module seems to handle temperature swings and panel dust well when cabinets are properly ventilated.
- Compatibility and continuity: Keeps existing Ovation wiring topology intact, reducing re-engineering time.
- Lower downtime: Hot-swap serviceability and clear status LEDs make changeouts quick on live systems.
- Procurement simplicity: Stable part numbering and widely supported in utilities worldwide, which helps with spares strategy.
- Technical backing: We can assist with part mapping against your controller, carrier, and firmware levels to avoid nuisance mismatches.
Field note
A combined-cycle plant maintenance lead shared that a 1C31179G02 swap restored a tripped I/O segment in under 30 minutes. The only hiccup was reseating the carrier once to clear a backplane contact—ESD strap and a quick clean solved it.
Installation & Maintenance
- Cabinet standards: Install in a clean, ventilated control cabinet (IEC/UL rated), with ambient 0–55°C and non-condensing humidity.
- Wiring & grounding: Keep shield terminations consistent at the marshalling side; ensure the rack and door earth bonds are intact.
- ESD handling: Use an ESD wrist strap and antistatic mat when inserting/removing cards to protect sensitive components.
- Ventilation: Maintain unobstructed airflow around the rack power supply; dust filters cleaned on a regular schedule.
- Routine checks: Visual inspection of LEDs and carrier locks, verify diagnostics in the Ovation HMI, and record any intermittent faults.
- Firmware alignment: Where applicable, align firmware with your controller revision; we can provide guidance or a pre-check list.
- Spare strategy: Keep at least one tested spare per rack type in critical units—typically reduces MTTR significantly.
Quality & Certifications
- Certifications (typical for Ovation modules): CE, UL, RoHS; manufactured under ISO 9001 quality systems.
- Warranty coverage: 12 months from delivery against defects; replacement or repair per our standard RMA process.
- Traceability: Serial and revision tracking to match site documentation and system records.
One thing I appreciate is how predictable installation becomes when the rack and terminal base are confirmed ahead of time. If you share your current controller, carrier part numbers, and any I/O drawings, we’ll validate the 1C31179G02 drop-in fit before you place the order—saves time on site.
