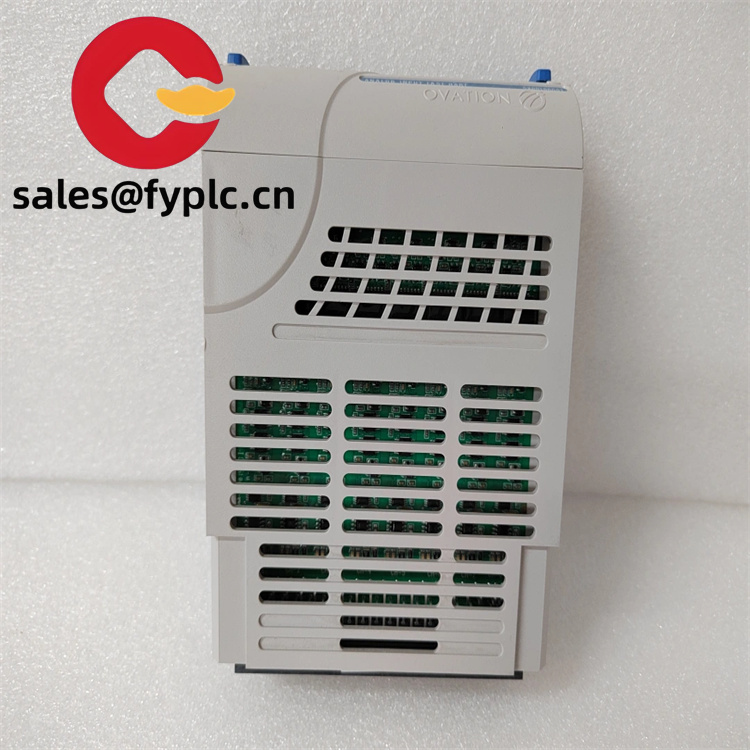

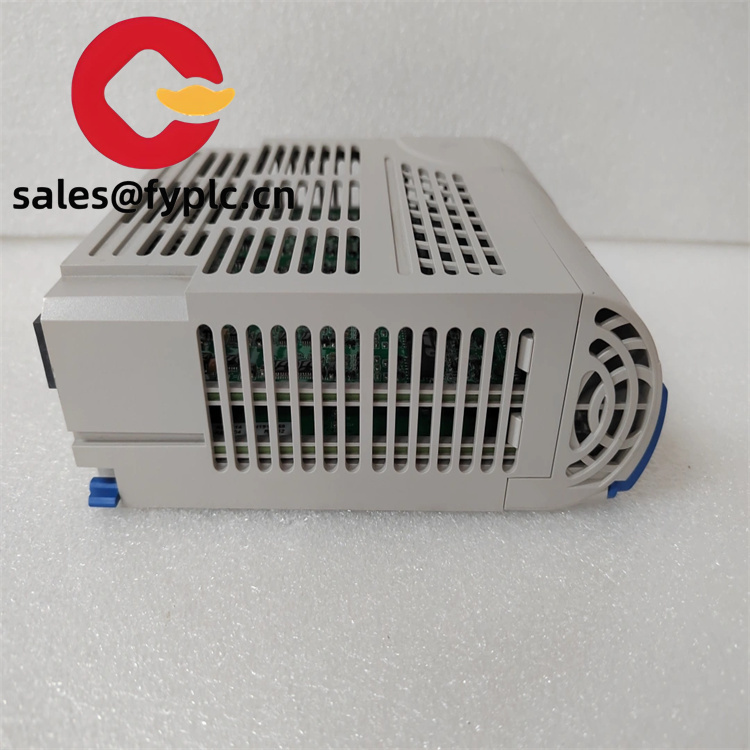

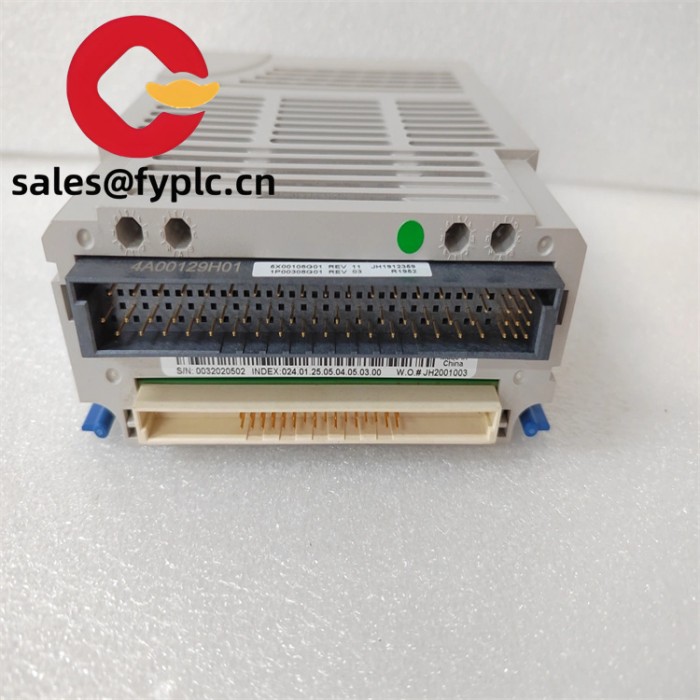

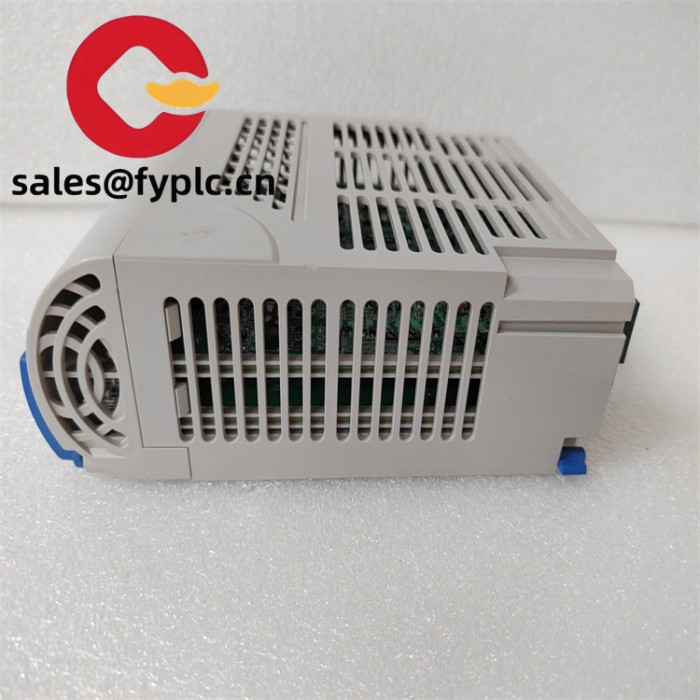

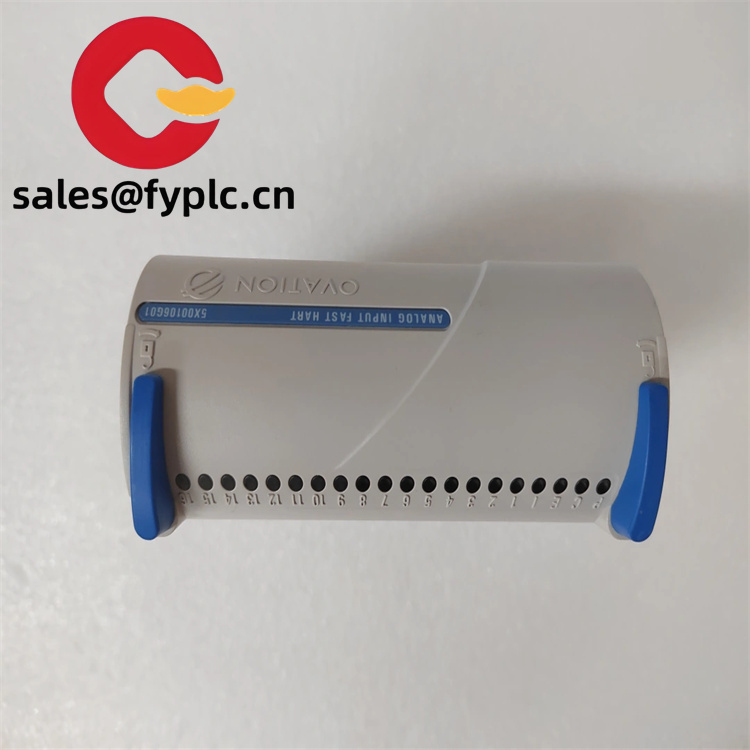

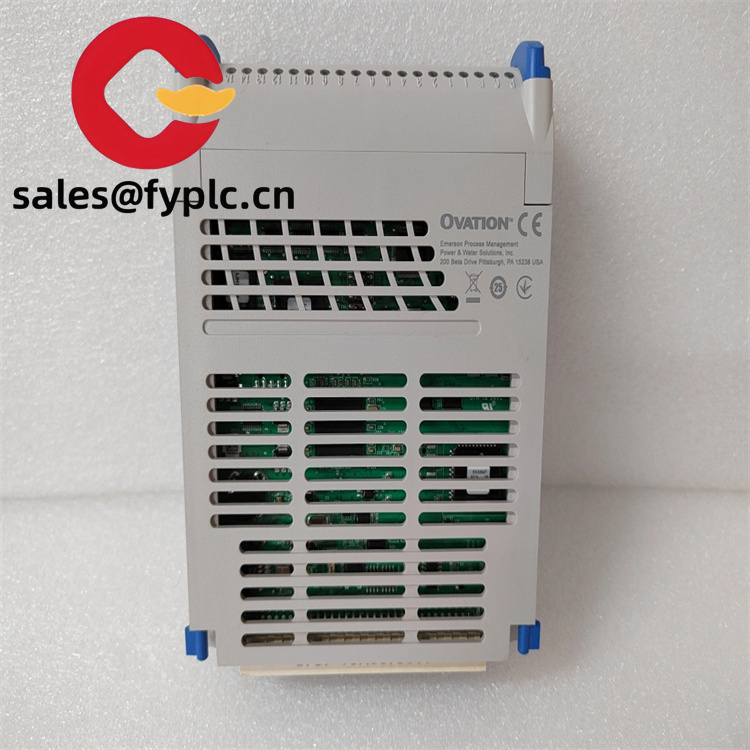

The Emerson 5X00106G01 is a High-Speed HART Analog Input Module designed for precision data acquisition in industrial automation systems, particularly within Emerson’s Ovation Distributed Control System (DCS). Below is a detailed analysis based on technical specifications, application scenarios, compatibility, and lifecycle considerations:

• Function:
  This module is engineered for real-time data acquisition from analog sensors (e.g., temperature transmitters, pressure transducers) in industrial environments. It supports HART 7.0 communication, enabling bidirectional interaction with smart field devices for remote diagnostics, calibration, and configuration.

• Key Features:
  • 8-channel analog input: Simultaneously processes signals from up to 8 sensors.
  • Wide input range: Accepts ±10V DC signals with 16-bit resolution and a sampling rate of up to 100 Hz.
  • Environmental resilience: Operates reliably between -20°C to +70°C and withstands harsh industrial conditions with IP20-rated protection (requires enclosure).
  • Compact design: Measures 120 x 52 x 166 mm and weighs 0.35 kg, facilitating space-efficient installation in control cabinets.
