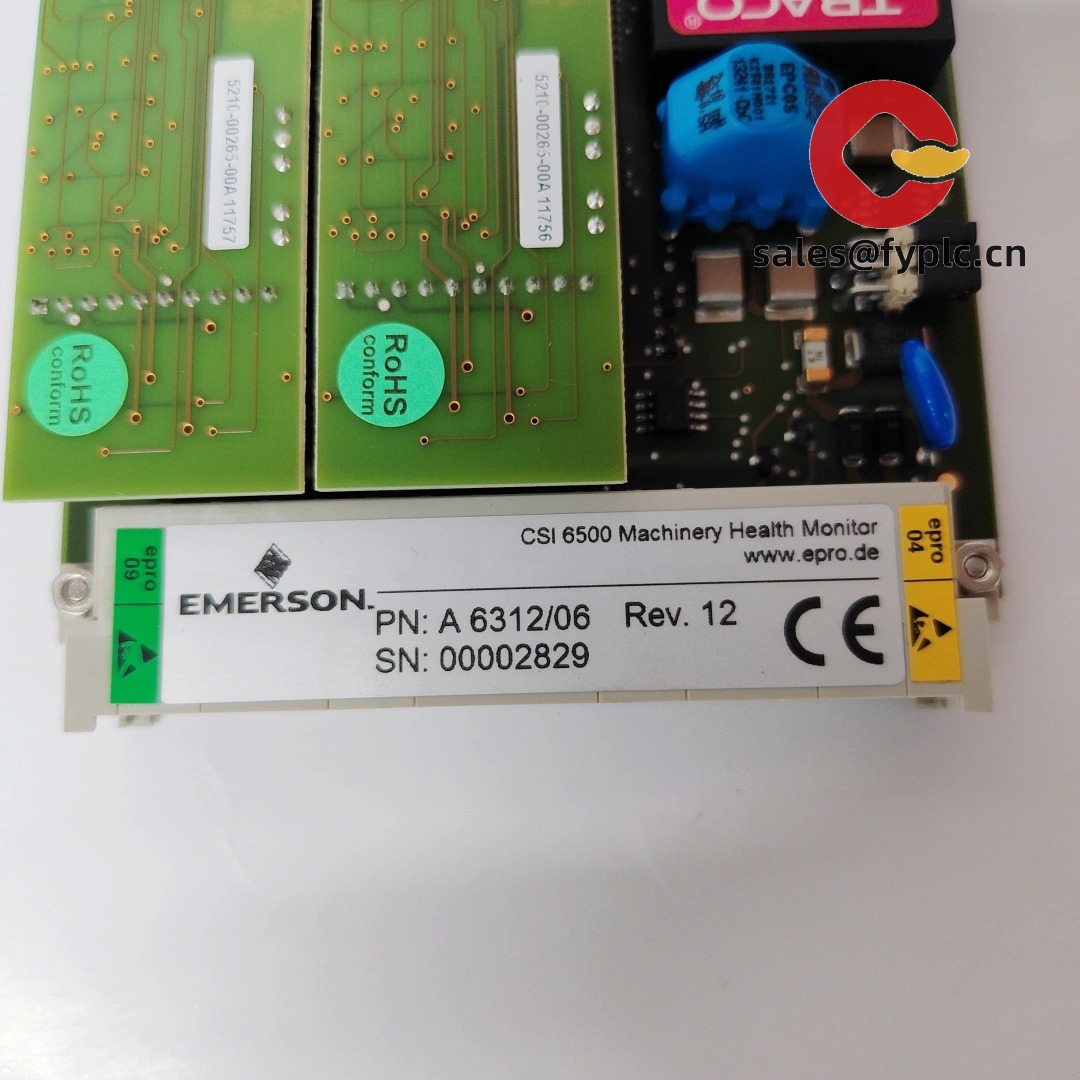

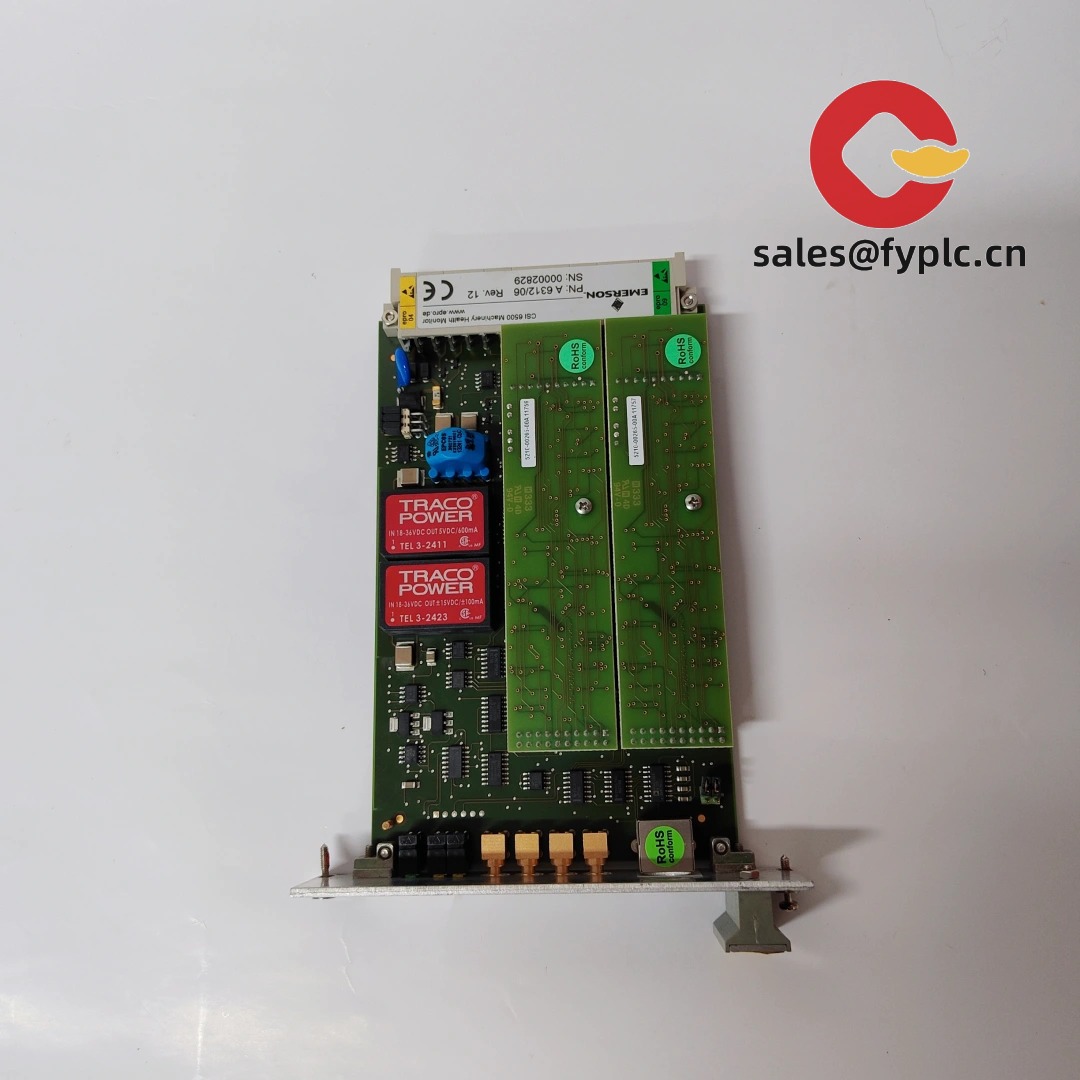

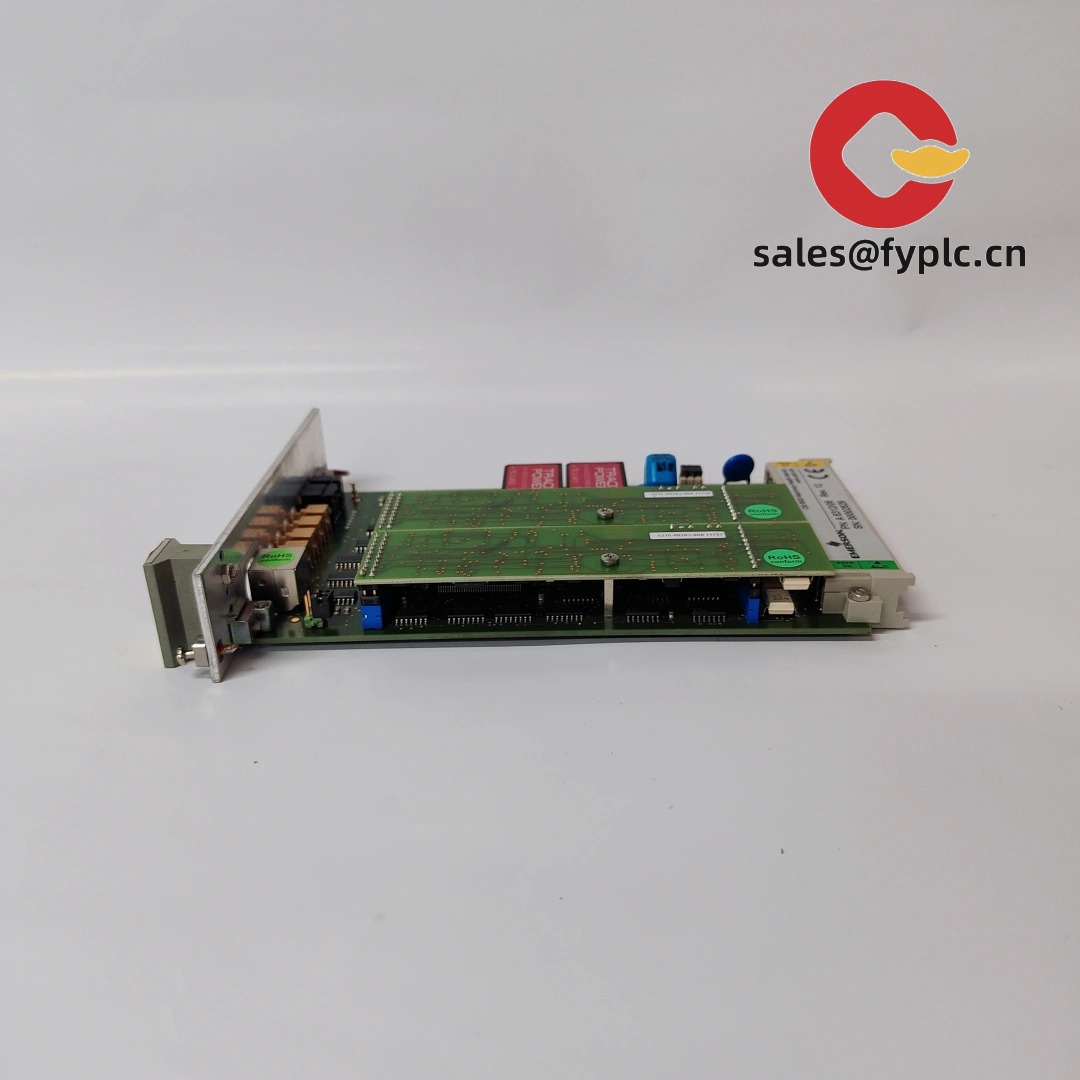

EMERSON A6312/06 (A631206) – Dual‑Channel Proximity/Vibration Monitor for Machinery Protection

The EMERSON A6312/06—often written as A631206—is a two‑channel measuring module used in epro MMS machinery monitoring racks for critical rotating equipment. From my experience, it’s typically paired with PR642x eddy‑current proximity probes (via CON0xx drivers) to measure radial vibration, shaft position, or axial displacement on compressors, turbines, large pumps, and fans. One thing I appreciate is how straightforward it is to drop into an existing MMS rack, set thresholds, and get reliable machine protection with buffered signal access for diagnostics.

Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week if in stock; no more than 1 month latest
• Payment: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• Dual independent channels – Monitor two proximity probe channels for radial vibration, shaft position, or axial movement, typically configurable per channel.

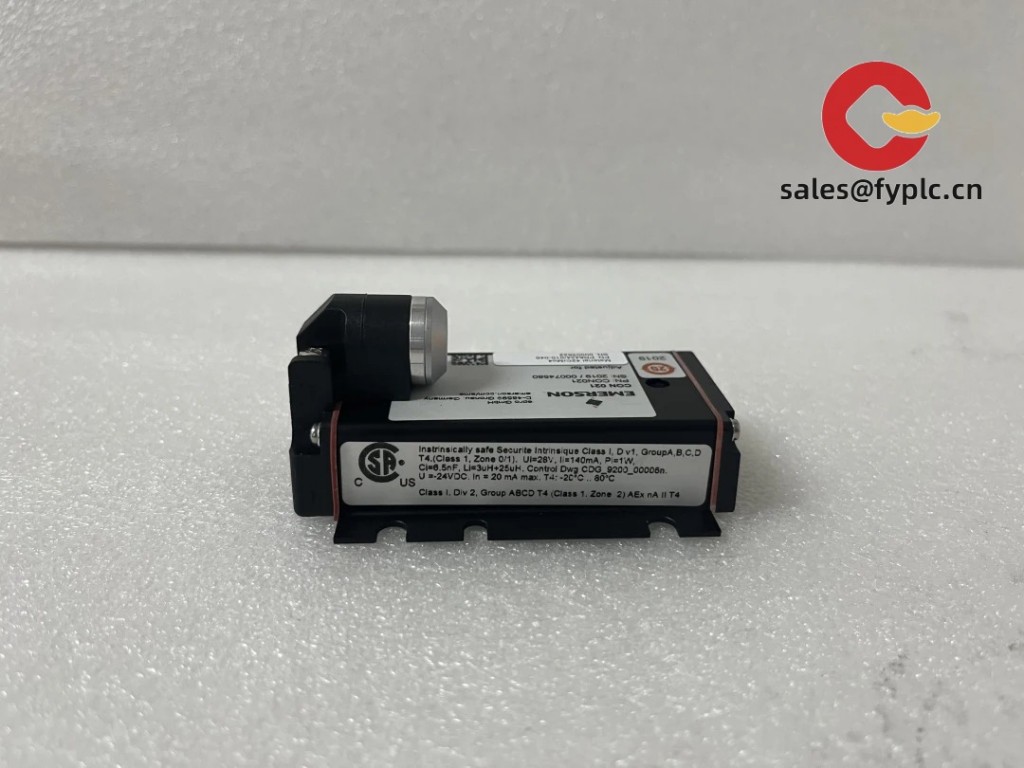

• Compatible with PR642x probes – Works with PR6422/PR6423/PR6424 proximity transducers via CON0xx drivers (e.g., CON021), which you might already have installed.
• Alarm and trip logic – High/low alarms with OK/fault status; relay outputs are commonly used for machine protection interlocks.
• Buffered signal outputs – Front or rack-access buffered outputs for portable analyzers; makes troubleshooting and condition analysis much easier.
• Analog outputs – In many cases provides 4–20 mA proportional outputs per channel for DCS/PLC trending (rack configuration dependent).
• Rack/backplane integration – Slides into the MMS rack and communicates over the proprietary backplane; no time-consuming re‑wiring.
• Industrial build – Eurocard 3U form factor with robust component selection for continuous service in plant environments.

Technical Specifications

Application Fields

You’ll typically see the A6312/06 in continuous monitoring and API 670‑style protection loops on:

• Steam and gas turbines – radial vibration, axial thrust position
• Compressors and expanders – casing vibration and shaft motion with keyphasor correlation
• Large motors, pumps, and fans – bearing vibration and shaft runout monitoring
• Refining, petrochemical, power generation, pulp & paper, and steel mill rotating assets

Advantages & Value

• Drop‑in compatibility – If you already run epro MMS hardware, this module integrates without changing cabinets or I/O wiring.
• Proven reliability – Designed for 24/7 operation; customers tell us nuisance trips are rare when it’s set up correctly.
• Lifecycle flexibility – Supports widely used PR642x probes; replacements and spares are straightforward to source.
• Cost control – Extends existing rack investments instead of a full system replacement; in many cases you only swap the card and re‑verify alarms.
• Serviceability – Buffered outputs and clear status LEDs speed up troubleshooting, which usually means shorter outages.

A maintenance supervisor at a combined‑cycle plant mentioned that swapping an A6312/06 and re‑shimming the probes cut their restart time by half compared to a controller‑side reconfiguration.

Installation & Maintenance

• Panel/rack – Install in the designated MMS 19″ rack slot; ensure adequate ventilation and IP20 or better enclosure protection.
• Wiring – Use shielded cables for proximity probes; maintain single‑point grounding. Keep power and signal separated to reduce noise.
• ESD handling – Handle the card with proper ESD protection; insert firmly to seat the backplane connector.
• Configuration – Set measurement range, alarm thresholds, and latching behavior with the MMS service tools per site standards.
• Calibration – Verify probe gaps with shims; check linearity against API 670 practices. Re‑check after any bearing or seal maintenance.
• Routine checks – Inspect terminal tightness, clean vent filters, and review alarm logs quarterly. Firmware updates are uncommon for this type, but keep configuration backups.

Quality & Certifications

• CE compliance – Typically CE‑marked; conforms to relevant EMC and low‑voltage directives for industrial environments.
• RoHS/Reach – Status may vary by production lot and vintage; documentation can be provided on request.
• Manufacturing quality – Built under ISO 9001 quality systems in most cases for consistent performance.
• Warranty – 365‑day warranty from shipment.
