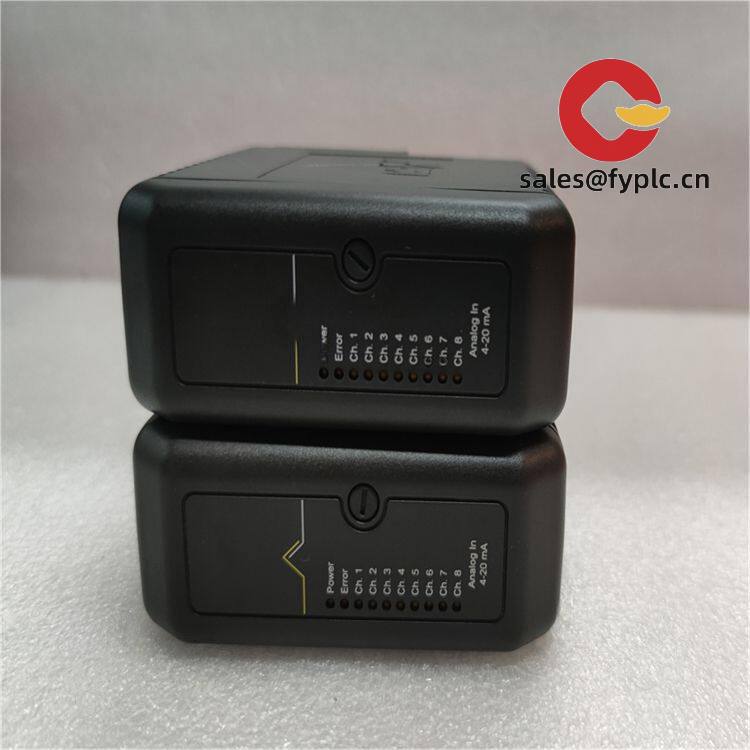

Emerson KJ3002X1-BC1 (12P0681X092) – HART Analog Input Module for DeltaV M‑series Process Control

The Emerson KJ3002X1-BC1 is an industrial-grade analog input module designed for DeltaV M-series systems. It’s built for stable 4–20 mA measurements and HART device connectivity, which in many cases means fewer marshalling headaches and faster commissioning. You might notice that it drops into a standard M‑series carrier without extra wiring tricks—handy for brownfield upgrades where downtime is tight.

Company’s Order Placement Process and Guarantees

• Warranty period: 365 days
• Delivery time: 1 week for in-stock items; no more than one month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express delivery options: FedEx, UPS, DHL

Key Features

• HART-enabled 4–20 mA inputs – Collects process values and passes HART data upstream for device diagnostics and configuration.
• DeltaV M‑series backplane integration – No external power required; plugs into standard M‑series I/O carriers for quick replacement.
• Channel health diagnostics – From my experience, field issues like open-loop and short-circuit conditions are easier to spot.
• Stable, low-noise measurement – Designed for process signals where drift or jitter can trigger unnecessary alarms.
• Service-friendly mechanics – Front access for module swap; typically no re-termination of field wiring.
• Compatibility with AMS Device Manager – Streamlines calibration and device diagnostics across the plant.

Technical Specifications

Application Fields

This module fits process plants that rely on analog transmitters and want centralized device diagnostics. You’ll typically find it in:

• Oil & Gas – wellhead pressures, separator levels, and HART valve positioners
• Chemicals & Petrochemicals – reactor temperature/pressure loops with device health monitoring
• Power Generation – boiler drum levels, feedwater flow, turbine auxiliary skids
• Water & Wastewater – plant-wide flow and quality measurements with remote diagnostics
• Pharma & Food – regulated environments where traceable transmitter status is valued

Advantages & Value

• Reliability – Emerson’s M‑series I/O is field-proven; it seems to be less sensitive to noise in mixed-signal cabinets.
• Compatibility – Native fit for DeltaV M‑series carriers, with HART data flowing to AMS Device Manager for faster maintenance.
• Cost Savings – HART passthrough often reduces handheld work in the field and minimizes unplanned trips.
• Lifecycle Support – Widely stocked and supported, which matters when you’re standardizing spares across units.

Installation & Maintenance

• Panel/Cabinet – Mount on a DeltaV M‑series I/O carrier in a ventilated cabinet; keep ambient within 0–55°C and provide clean, dry air.
• Wiring – Use shielded twisted pair for 4–20 mA; land shields at one end to avoid ground loops. Keep HART-capable devices on suitable loop resistances.
• Keying & Handling – Set the carrier keying to the AI/HART position; de-energize or follow hot-swap procedures per site policy.
• Hazardous Areas – Where required, interface through approved intrinsic safety barriers/isolators between field and cabinet.
• Routine Care – Periodically review channel diagnostics, clean dust from vented areas, and keep DeltaV/AMS software updates current.

From my experience, pairing this module with a standard M‑series carrier and the appropriate terminal blocks keeps commissioning straightforward. If you’re refreshing older cabinets, it’s typically a drop-in replacement with minimal rewiring.

Quality & Certifications

• CE-marked and UL/CSA recognized for industrial control equipment (typical for M‑series)
• RoHS-compliant design in most cases
• Manufacturer quality system aligned with ISO 9001 practices
• Warranty: 365 days coverage as stated above

Suggested Supporting Components

• DeltaV M‑series I/O carrier (DIN-rail) – the mounting base and backplane interface for the module.

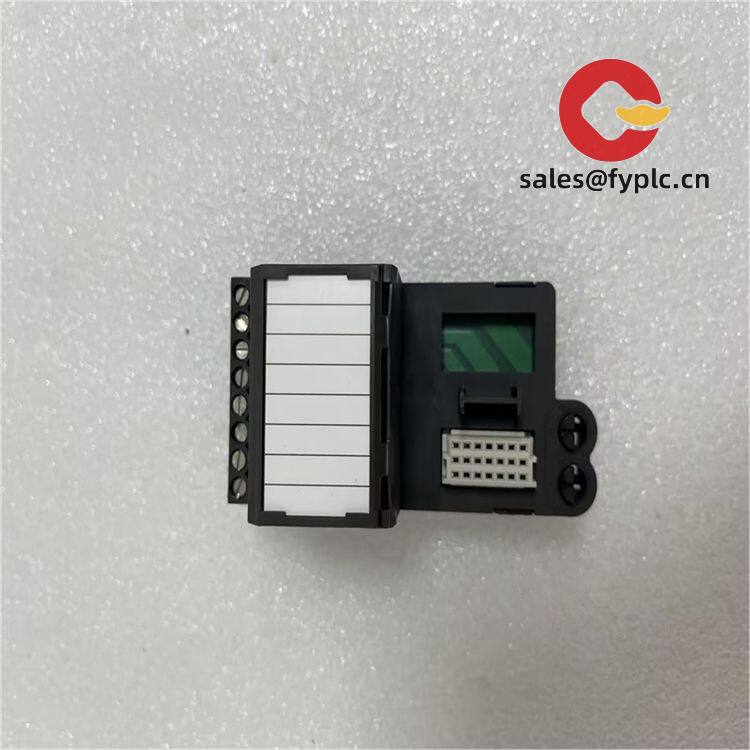

• Appropriate M‑series terminal blocks – 2‑wire/3‑wire analog terminations with HART-compatible loop design.
• Isolators/Barriers (if in hazardous zones) – maintain intrinsic safety and protect the I/O.
• Shielded twisted-pair cabling – optimized for 4–20 mA with HART communication.

Customer feedback: “Swapped the module in under 10 minutes and immediately pulled HART diagnostics into AMS. Cut our transmitter checks by half during the turnaround.”
