Description

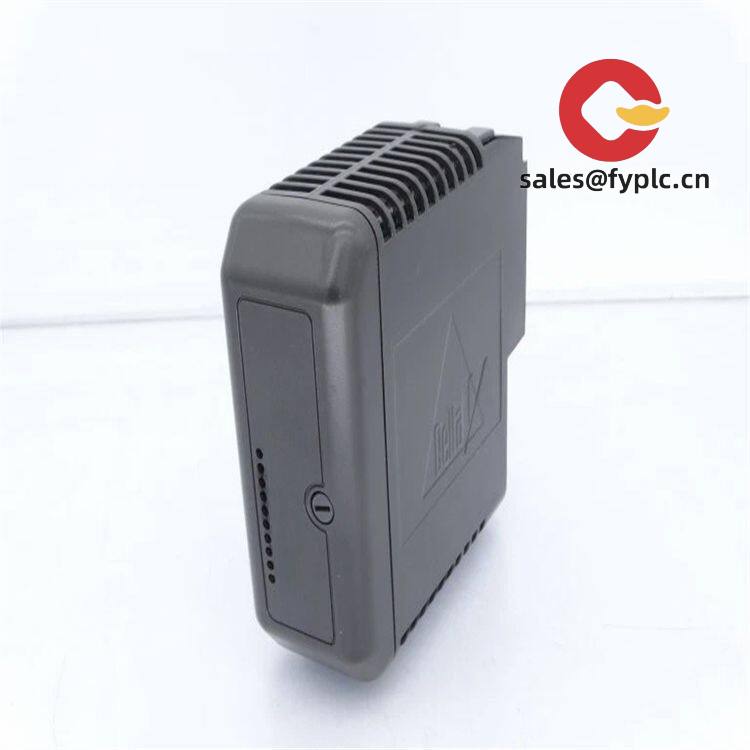

Emerson KJ3241X1-BK1 Serial Interface Card – Robust RS‑232/RS‑485 connectivity for DeltaV systems
The Emerson KJ3241X1-BK1 is a DeltaV serial interface card designed for reliable integration of third‑party serial devices into your control strategy. From my experience, it’s the straightforward choice when you need stable Modbus RTU/ASCII links or ASCII data exchange without adding gateways or extra boxes. You might notice that it drops into the familiar DeltaV M‑series carrier, so wiring and commissioning stay simple and serviceable.
Company’s Order Placement Process and Guarantees
- Warranty: 365 days
- Lead time: 1 week if in stock; no more than one month at the latest
- Payment: 50% advance payment; full payment before delivery
- Express options: FedEx, UPS, DHL
Key Features
- Dual‑channel serial connectivity – Typically provides two independent serial ports for parallel device connections, cutting down cabinet hardware.
- RS‑232 and RS‑485 support – Works with common 2‑wire/4‑wire RS‑485 networks and point‑to‑point RS‑232 instruments.
- Modbus RTU/ASCII – In many cases used as a Modbus master or slave in DeltaV, with ASCII drivers for simple text‑based devices and panels.
- Backplane powered – No external supply; it draws power from the DeltaV carrier for a cleaner cabinet layout.
- DeltaV form factor – Plugs into the M‑series carrier; field wiring lands on the DeltaV terminal block for quick swap and service.
- Diagnostics in DeltaV – Channel status and basic comms health visible in the system, which typically shortens troubleshooting time.
Technical Specifications
| Brand / Model | Emerson DeltaV / KJ3241X1-BK1 (Serial Interface Card) |
| HS Code | 853890 (Parts suitable for apparatus of heading 8537) |
| Power Requirements | Supplied via DeltaV backplane; no external power input required |
| Signal I/O Types | Serial TX/RX; RS‑232 and RS‑485 (2‑wire/4‑wire), software‑configurable termination in many cases |
| Communication Interfaces | Typically supports Modbus RTU/ASCII (master/slave) and ASCII data exchange within DeltaV drivers |
| Operating Temperature | 0 to 55°C (typical control cabinet environment) |
| Dimensions & Weight | DeltaV M‑series plug‑in card form factor; compact, lightweight module |
| Installation Method | Plugs into DeltaV M‑series carrier on DIN rail; field wiring via DeltaV terminal block |
Application Fields
You’ll typically see the KJ3241X1-BK1 used where serial smart devices need to live inside a DeltaV strategy:
- Oil & Gas – Flow computers, gas chromatographs, RTUs, pipeline instruments using Modbus RTU.
- Chemicals & Petrochem – Package skids, analyzers, dosing systems with legacy RS‑485 links.
- Power Generation – BTU meters, PLC‑based skids, heat tracing panels via ASCII or Modbus.
- Water & Wastewater – Remote telemetry, blower/VFD interfaces, panel indicators on RS‑485.
- Pharma & Life Sciences – Environmental monitoring, incubators, and OEM skids with serial comms.
Feedback from a recent user: “We swapped in the KJ3241X1-BK1 and cut our Modbus gateway count to zero. Commissioning took an afternoon, and diagnostics in DeltaV made handshakes easy to verify.”
Advantages & Value
- Reliability – Emerson’s DeltaV hardware is consistent across revisions and, in many cases, runs for years without intervention.
- Native integration – No external gateways or extra power rails; reduces panel complexity and spares.
- Lifecycle savings – Fewer devices to maintain, easier spares strategy, and faster troubleshooting in the DCS.
- Compatibility – Fits the M‑series carrier and works with common serial drivers used in DeltaV projects.
- Supportability – Global Emerson footprint and a large installed base; engineers typically know the workflow already.
Installation & Maintenance
Environment & cabinet
- Install in a ventilated control cabinet; maintain 0–55°C ambient and moderate humidity.
- Mount on the DeltaV M‑series DIN‑rail carrier with proper grounding and shielding continuity.
Wiring best practices
- Use shielded twisted pair for RS‑485; bond shield at one end to minimize ground loops.
- Apply 120 Ω termination on RS‑485 network ends; biasing as required by the topology.
- Keep RS‑232 short (often ≤15 m) and observe baud‑rate vs. cable length trade‑offs on RS‑485 (many cases up to 1200 m at lower speeds).
Safety & care
- Follow ESD precautions when handling the module.
- Power down the carrier or follow hot‑swap guidance per DeltaV documentation before removal.
Routine maintenance
- Periodically verify serial link statistics and error counters in DeltaV diagnostics.
- Review device mapping after firmware or configuration changes; back up the DeltaV database.
- Inspect terminal tightness and cable shields during planned outages.
Supporting Components (often paired)
- Emerson KJ1501X1-BC1 – DeltaV M‑series 8‑wide I/O carrier (DIN‑rail). Provides the backplane slot and power for plug‑in modules such as the KJ3241X1-BK1.
- Shielded RS‑485 cabling – Twisted pair, 120 Ω characteristic impedance; helps maintain noise immunity on longer runs.
- Surge/IS barriers (as required) – Where field device zoning or surge exposure is a concern, add appropriate protection on serial lines.
Note: Exact driver availability and channel count can vary by DeltaV version and licensing. If you share your device list and baud/format, we’ll validate the configuration before you order.
Quality & Certifications
- Manufacturer certifications typically include CE and UL/CSA listings for industrial control equipment.
- RoHS compliance applies to most recent hardware revisions.
- Warranty: 365 days (our supply guarantee).
