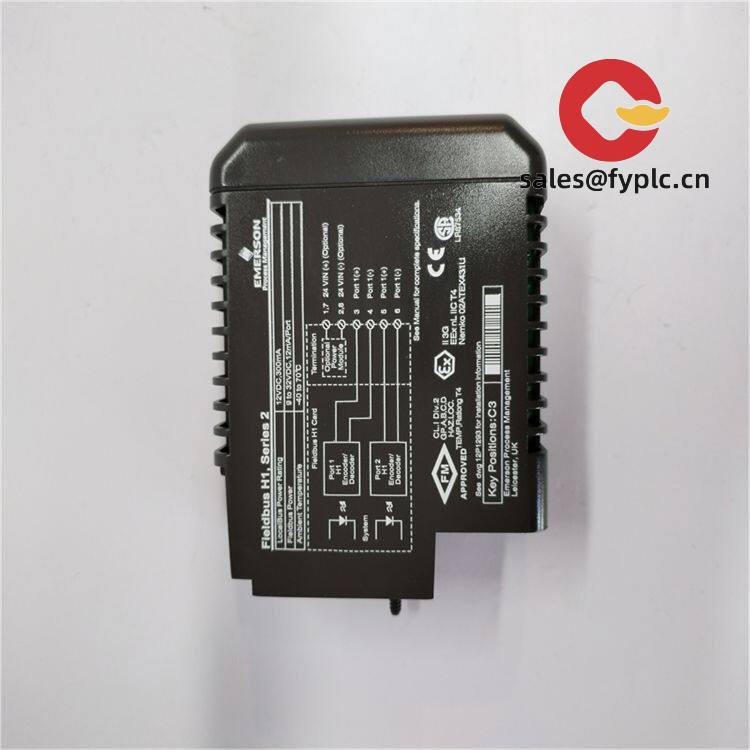

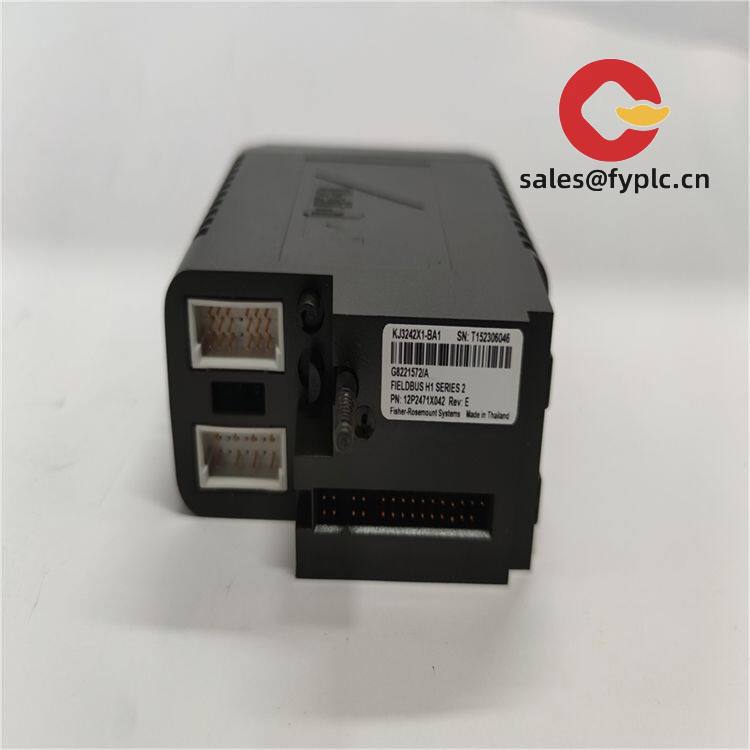

Emerson KJ3242X1-BA1 Fieldbus H1 Series 2 Module – Reliable FOUNDATION Fieldbus connectivity for DeltaV systems

The Emerson KJ3242X1-BA1 is a Series 2 Fieldbus H1 module designed for DeltaV installations that need robust, cabinet-mounted FOUNDATION Fieldbus communications. From my experience, this model is typically selected when teams want stable H1 performance, straightforward integration, and diagnostic visibility without complicating the existing I/O architecture. You might notice that it slots into the standard Series 2 carrier and simply works—two H1 segments, IEC 61158-2 compliant, with the kind of bus health and status data maintenance teams actually use.

Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week if in stock; no more than 1 month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• Two FOUNDATION Fieldbus H1 segments – Designed for 31.25 kbps H1 networks (IEC 61158-2), ideal for smart FF instruments.
• Series 2 stability and diagnostics – Improved component reliability with onboard status/health indicators that simplify troubleshooting.
• Backplane-powered – Draws power from the DeltaV carrier; no separate local power needed for the interface module itself.
• Redundancy ready – Supports redundant pairing in DeltaV architectures to minimize single-point failures.
• Hot-swappable serviceability – In many cases, maintenance can replace the module on a powered system to reduce downtime.
• Standards-aligned wiring – Works with shielded twisted-pair FF cable, segment power conditioners, and proper terminators at both ends.
• Lifecycle-friendly – Common spares strategy across Series 2 I/O lowers stocking complexity and operating costs.

Technical Specifications

Application Fields

This module fits process plants that rely on FOUNDATION Fieldbus instrument networks and want tight integration with DeltaV:

• Oil & gas (upstream skids, tank farms, gas treatment) where segment diagnostics help find wiring issues fast.
• Chemicals and petrochemicals that deploy large FF loops and prefer centralized cabinet-mounted interfaces.
• Power generation balance-of-plant, using H1 devices for valves, transmitters, and motor controllers.
• Pharmaceuticals, especially in utilities and clean-room support systems where device health visibility matters.
• Water & wastewater facilities consolidating multi-vendor FF devices into DeltaV without custom gateways.

One thing I appreciate is how predictable it is during expansions—add a conditioned segment, set your terminators, and the DeltaV diagnostics typically show you immediately whether the segment is healthy.

Advantages & Value

• Reliability – Series 2 builds are known for stable operation; fewer nuisance trips in many cases.
• Compatibility – Native DeltaV backplane interface avoids external protocol converters and the headaches that come with them.
• Lower Total Cost – Shared spares with other Series 2 I/O and reduced field wiring with H1 multi-drop can trim lifecycle costs.
• Diagnostics & Maintenance – Segment health and device status help teams locate bad splices or power issues quickly.
• Scalability – Easy to add segments during turnarounds without redesigning the control architecture.

Feedback from a maintenance supervisor at a petrochemical site: “Swapping a failed H1 card on the Series 2 carrier took minutes, and the segment came up clean—bus health looked good right away. That saved us a late-night callout.”

Installation & Maintenance

• Cabinet & environment – Mount on the DeltaV Series 2 carrier in a clean, ventilated control cabinet. Keep within 0–55 °C and avoid condensation.
• Wiring – Use shielded twisted-pair FF cable; install exactly two terminators per segment (one at each end). Maintain proper grounding and segment power conditioning.
• Power & safety – Backplane power is provided by the DeltaV system. For hazardous areas, select appropriate field barriers or intrinsically safe segment components.
• Redundancy – Where high availability is required, deploy redundant modules and segregate segment power supplies.
• Routine maintenance – Periodically review segment diagnostics in DeltaV, verify terminator integrity, check shield continuity, and keep the module/cabinet dust-free. Firmware updates, when available, should be scheduled during planned maintenance windows.

Quality & Certifications

• CE and UL/cUL compliance for industrial control equipment
• RoHS-conformant materials, as typically provided for Series 2 modules
• Manufactured under ISO 9001 quality systems
• Standard warranty: 12 months (365 days)
