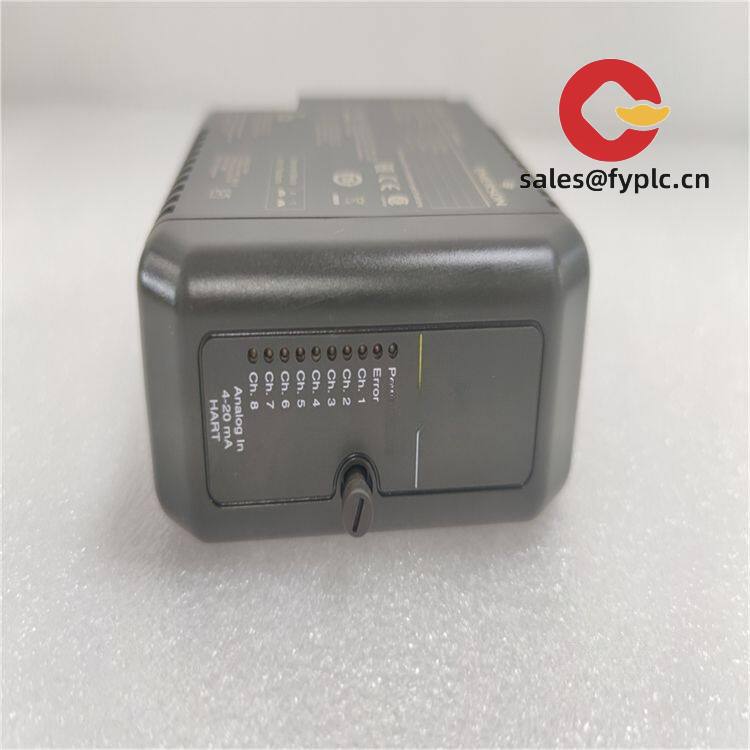

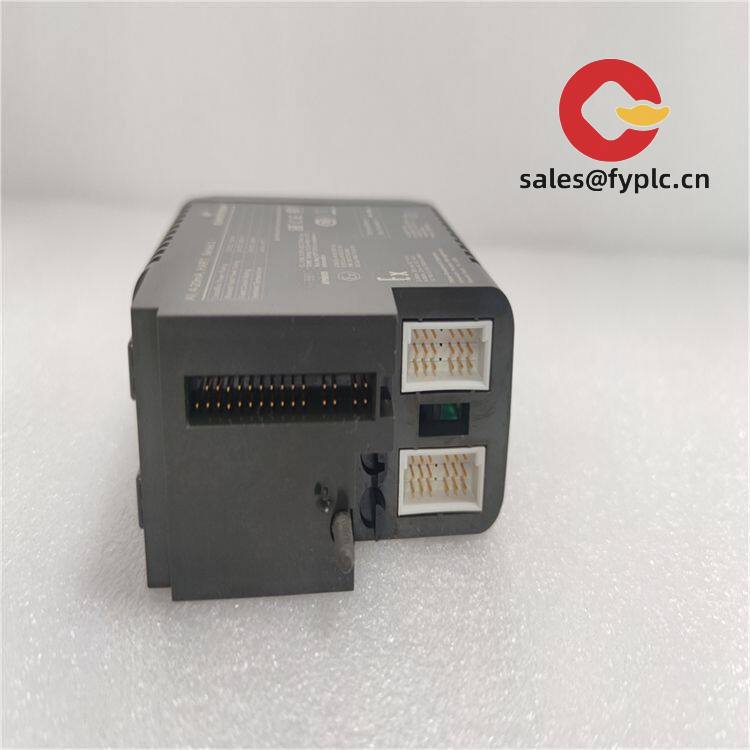

Emerson VE4003S3B1 Standard I/O Termination Block – Reliable field wiring for DeltaV S-series I/O

The Emerson VE4003S3B1 is a Standard I/O Termination Block designed for DeltaV S-series I/O. From my experience, it’s a straightforward, no-nonsense way to land field cables cleanly and keep analog and discrete signals organized on the carrier. It’s a passive block, so there’s no power draw, and it typically supports HART pass-through when paired with the right DeltaV I/O cards. You might notice that installation is quick—plug onto the S-series carrier, torque the captive screws, label your channels, done. In brownfield upgrades, that speed really matters.

Our Order Placement Process and Guarantees

• Warranty: 365 days coverage
• Lead time: In-stock items ship in about 1 week; never more than 1 month in most cases
• Payment terms: 50% advance payment; balance due prior to delivery
• Express delivery: FedEx, UPS, DHL

Key Features

• Purpose-built for DeltaV S-series: Plugs directly onto the S-series I/O carrier for a secure, repeatable connection.
• Passive termination: No power required; simply routes field signals to the I/O card.
• Clean field wiring: Screw-clamp terminals help manage analog and discrete wiring with clear channel mapping.
• HART compatible (when applicable): Supports HART pass-through with HART-capable I/O cards, which, in many cases, simplifies device diagnostics.
• Service-friendly design: Captive hardware and keyed alignment make swaps and maintenance quick, typically without disturbing the carrier.
• Robust build: Industrial-grade materials and proven workmanship for control cabinets that run 24/7.

Technical Specifications

Application Fields

Typically used across process industries where DeltaV S-series is deployed:

• Oil & Gas – wellhead skids, compressor stations, separators, and ESD panels
• Refining & Petrochem – unit I/O marshaling, analyzer shelters, interlocks
• Power & Utilities – boiler controls, BOP systems, water treatment
• Life Sciences – clean utilities, CIP/SIP skids, batch equipment
• Chemicals & Pulp/Paper – mixers, reactors, drive controls, packaging lines

Advantages & Value

• Reliability: Proven hardware with stable mechanical engagement reduces loose-connection faults.
• Compatibility: Engineered for DeltaV S-series carriers and I/O, which helps avoid fitment surprises.
• Lower lifecycle cost: Passive design means minimal failure modes and easy replacement.
• HART diagnostics: When paired with HART cards, device diagnostics can ride the same wiring—no extra hardware in many cases.
• Fast turnaround: Stock-based delivery and straightforward commissioning keep projects moving.

Installation & Maintenance

• Cabinet environment: Install in a clean, ventilated control cabinet; maintain separation for high-voltage and signal wiring.
• Mounting: Plug the termination block onto the S-series carrier; tighten captive screws to the recommended torque.
• Wiring: Use industrial-grade, properly ferruled conductors; typical field wire sizes are 0.5–2.5 mm² (20–14 AWG).
• Shielding/grounding: Terminate cable shields consistently; follow plant grounding practices to minimize noise.
• Routine checks: Periodically re-torque terminals, inspect for insulation damage, and clean dust with dry air.
• Handling: Observe ESD-safe handling even for passive blocks; avoid mechanical stress on terminal screws.

A maintenance supervisor told us they swapped several VE4003S3B1 blocks during a turnaround and shaved hours off the schedule simply because the plug-on design and channel labeling made cross-checking faster than expected.

Quality & Certifications

• Typically conforms to CE requirements for industrial control equipment
• UL/CSA recognized components ecosystem for DeltaV S-series in many deployments
• RoHS-compliant materials, as commonly supplied for process automation hardware
• Manufacturer warranty: 12 months (365 days)

Certification availability can vary by region and system configuration. If you need a specific certificate revision, we can verify it against your project documentation before shipment.
