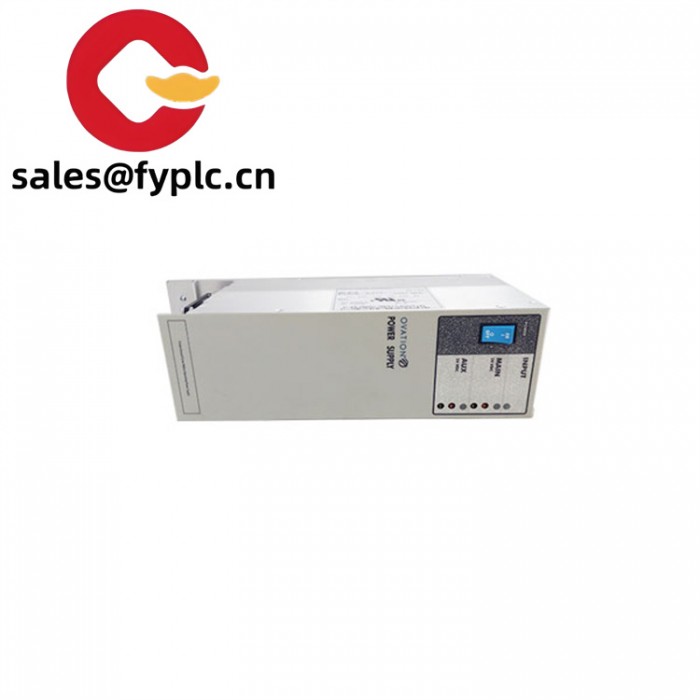

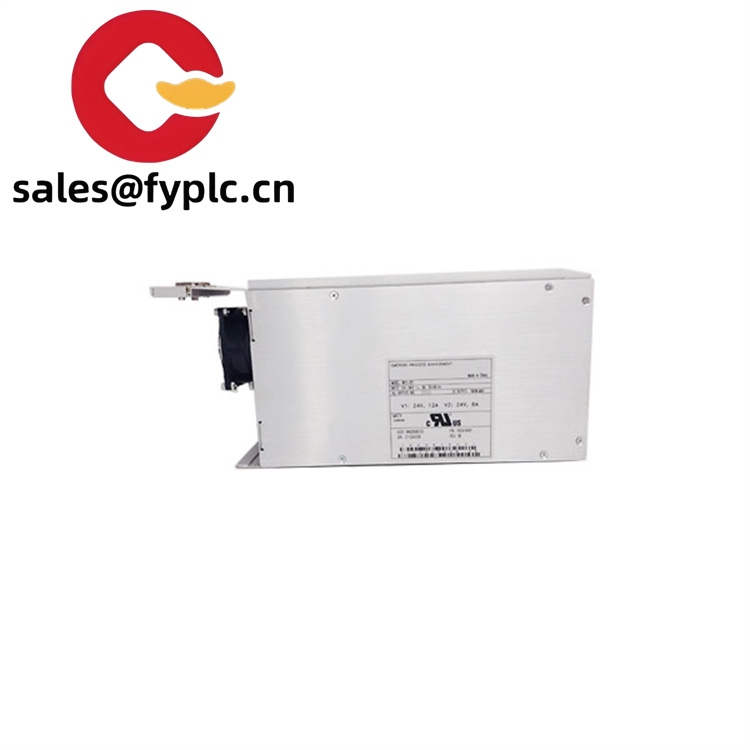

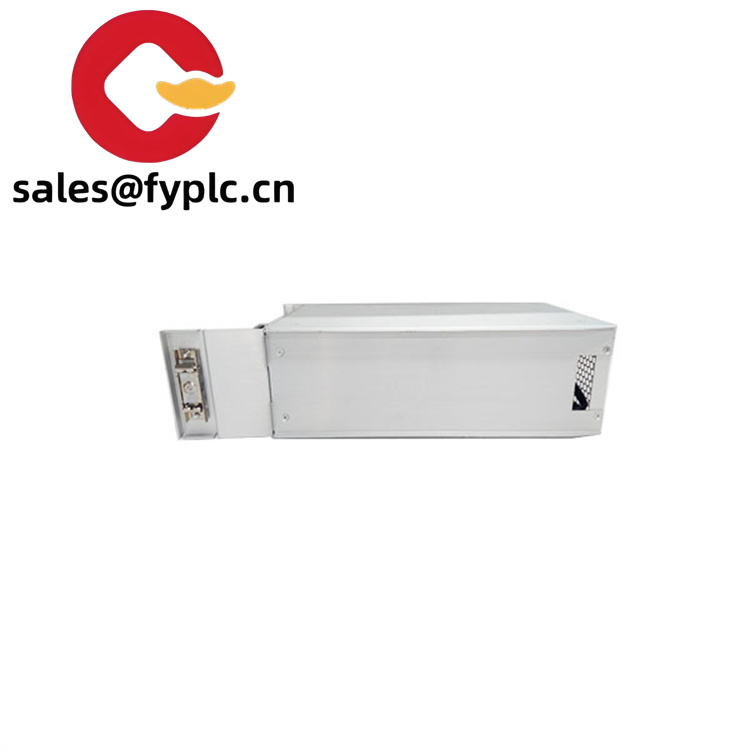

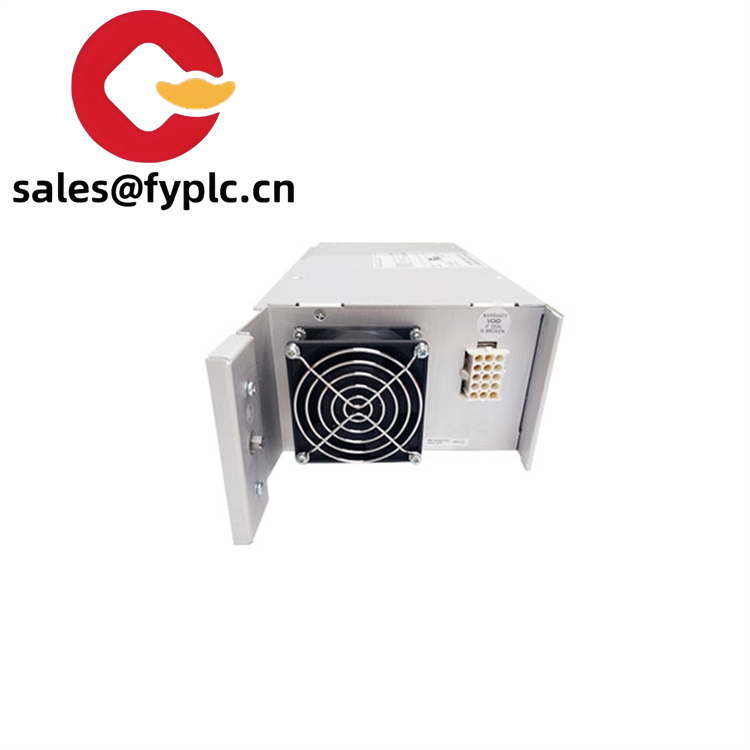

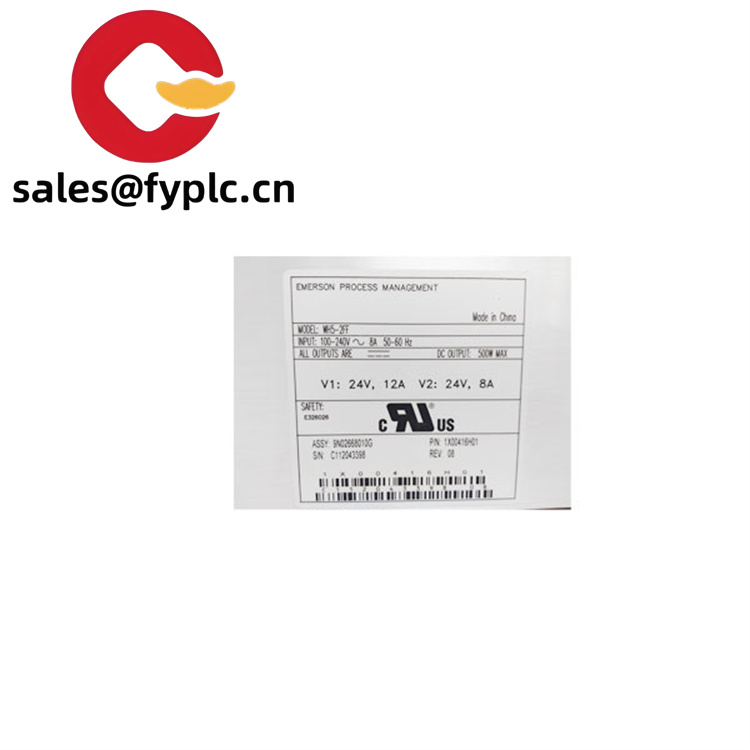

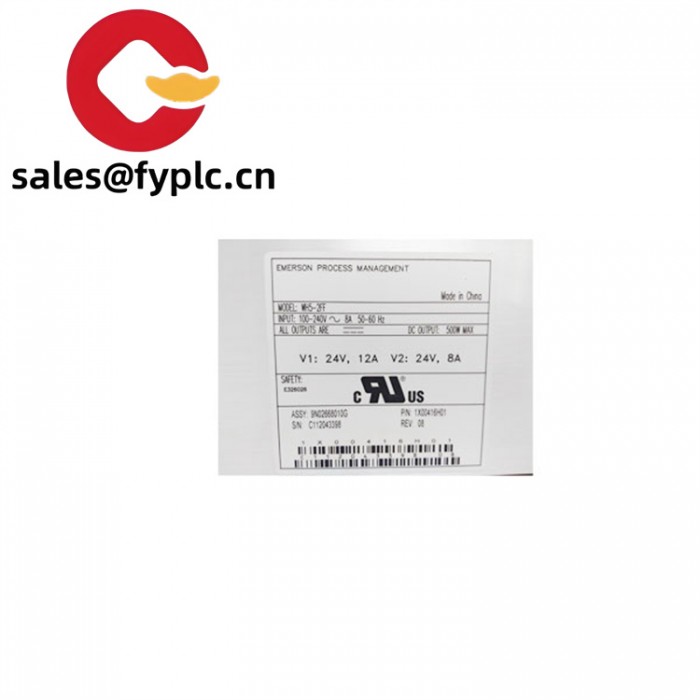

EMERSON WH5-2FF Power Supply Module Card

The EMERSON WH5-2FF is a cutting-edge redundant power supply module engineered to deliver seamless, fail-safe operation in mission-critical industrial environments. As a core component of Emerson’s Ovation™ control platform, the WH5-2FF ensures stable power distribution for automation systems across industries like oil & gas, power generation, and water treatment. Designed with dual independent power supplies and hot-swappable capabilities, this module minimizes downtime while maintaining strict adherence to international safety standards, making it ideal for applications where uninterrupted power is non-negotiable.

Label	Specification
Model Number	EMERSON WH5-2FF
Brand	EMERSON
Type	Redundant Power Supply Module
Input Voltage	100–240V AC (90–375V DC optional)
Operating Temperature	-40°C to +70°C
Output Power	500W max (24V DC, 20A main + 20A auxiliary)
Mounting	DIN rail or panel-mounted with shock-resistant enclosure
Weight	2.3 kg (compact design for space-constrained applications)
Certifications	CE, RoHS compliant, IEC 61000-6-2/6-4 (EMC immunity)
Dimensions	230 x 110 x 50 mm (modular for easy integration)
Efficiency	>85% (reduces energy consumption and heat generation)
Redundancy	Dual independent power supplies with automatic failover

The WH5-2FF redefines industrial power reliability through its dual-diode auctioneered output design, which ensures seamless power transfer between primary and secondary supplies without interruptions. This feature, combined with its hot-swappable capability, allows maintenance teams to replace faulty units while the system remains operational—a game-changer for minimizing downtime in refineries or power plants. WH5D-2FF – A dual-channel power supply module for applications requiring higher redundancy.

• 1X00781H01L – A power distribution module for scalable system expansion.
• F3236 – A 16-channel digital input module for monitoring discrete signals.
• FEIP-21 – A communication gateway enabling OPC UA connectivity for cloud-based analytics.
• UFC760BE102 – A high-speed I/O module for real-time data processing.
• HEDT300867R1 – A data interface board for advanced diagnostics and configuration.
• SPD SI 22 – A universal digital I/O module for expanding system capabilities.
