Description

ENTERASYS A2H124-24FX Extreme Ethernet Switch Module

A2H124-24FX

The ENTERASYS A2H124 – 24FX is a 24 – port switch designed for use in industrial environments. It offers a combination of Ethernet and fiber – optic connectivity options, making it suitable for a wide range of applications. With its stackable design, it can be easily integrated into larger network infrastructures, allowing for expansion as the network grows. This switch is an essential component in industrial control systems, as it enables the connection and communication between various devices such as sensors, PLCs (Programmable Logic Controllers), and other network – enabled equipment.

Label	Specification
Model Number	A2H124 – 24FX
Brand	ENTERASYS
Type	Ethernet Edge Switch
Input Voltage	110 – 240 VAC
Operating Temp	-20°C to 60°C
Communication Method	Ethernet (RJ45), 100Base – FX (MT – RJ), SFP (Mini – GBIC)
Mounting	Rack – mountable (19 – inch standard)
Weight	Gross: 3.5 kg (shipping carton with one module); Net: 2.7 kg (one module)
Certifications	[List relevant certifications if available]
Dimensions	44.1 cm (17.36 in.) W x 4.4 cm (1.73 in.) H x 21.0 cm (8.27 in.) D
IP Rating	[Specify if applicable]
Protocols Supported	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3x

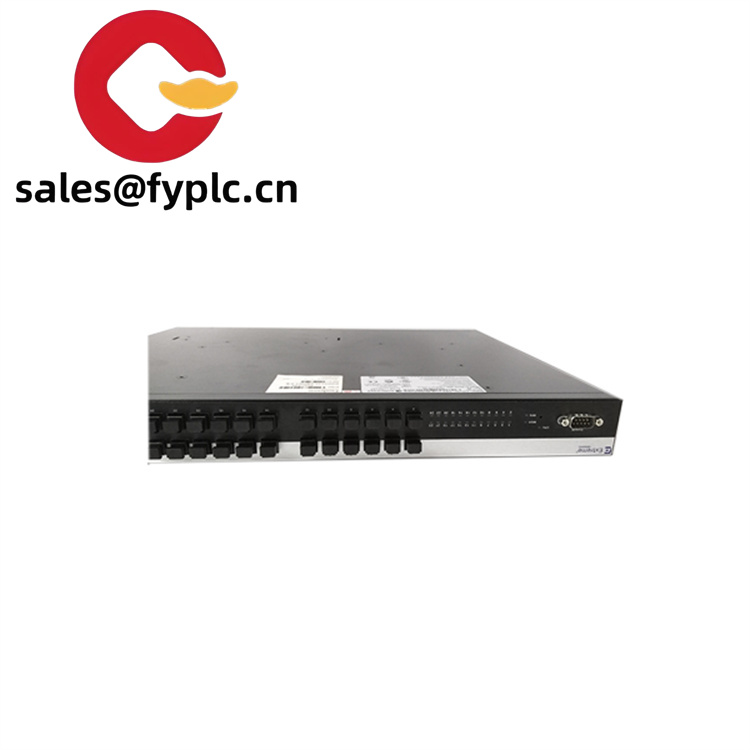

A2H124-24FX-3

Functional Strengths & Design Advantages​

The ENTERASYS A2H124 – 24FX is engineered with several functional strengths that make it a top choice for industrial applications. Its high – performance processor ensures fast data processing and forwarding, enabling seamless communication between connected devices. With support for a wide range of Ethernet standards, it can easily integrate with existing network equipment, providing excellent interoperability.​

In terms of design, the switch is built to withstand harsh industrial environments. It has a rugged enclosure that protects against dust, vibrations, and temperature fluctuations. The stackable design is a major advantage, as it allows multiple A2H124 – 24FX switches to be combined into a single logical unit. This simplifies network management and increases the overall port density, making it ideal for large – scale industrial setups. Additionally, the switch offers features like redundant power options, ensuring continuous operation even in the event of a power failure in one of the power supplies.

A2H124-24FX-3

​

Industrial Use Cases & Value Scenarios​

In industrial automation settings, the ENTERASYS A2H124 – 24FX is commonly used to connect and manage the network of devices on a factory floor. For example, in a car manufacturing plant, it can link together the various PLCs that control the assembly line robots, conveyor belts, and other automated machinery. By providing a reliable and high – speed network connection, it enables real – time monitoring and control of the production process. This helps in detecting and resolving any issues promptly, reducing downtime and increasing productivity.​

In power generation plants, the A2H124 – 24FX plays a vital role in the network infrastructure. It connects sensors that monitor parameters such as temperature, pressure, and voltage in generators and transformers. The switch ensures that the data from these sensors is transmitted accurately and in a timely manner to the control center. This allows operators to make informed decisions and maintain the stable operation of the power generation process. Overall, the ENTERASYS A2H124 – 24FX enhances process reliability in industrial environments by facilitating efficient signal communication and network management.
