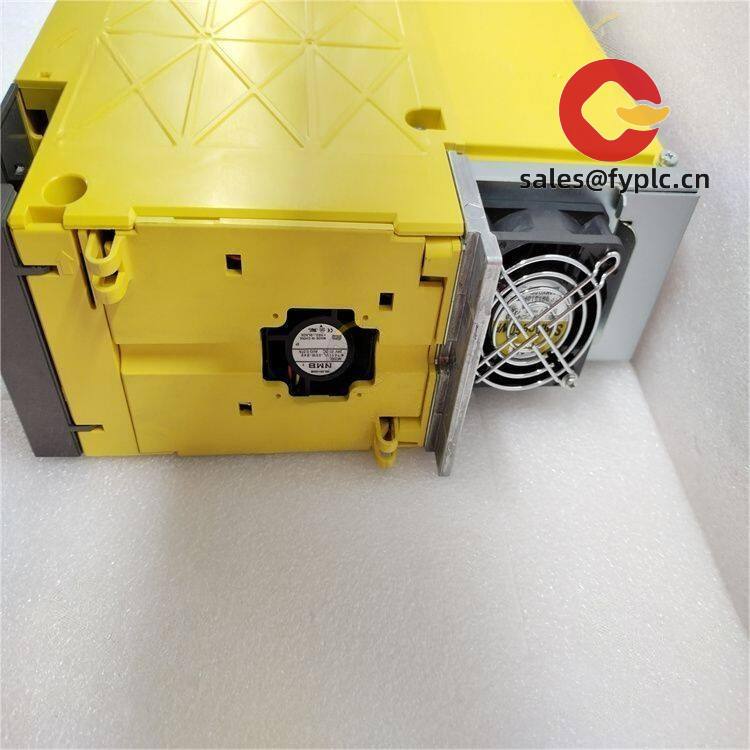

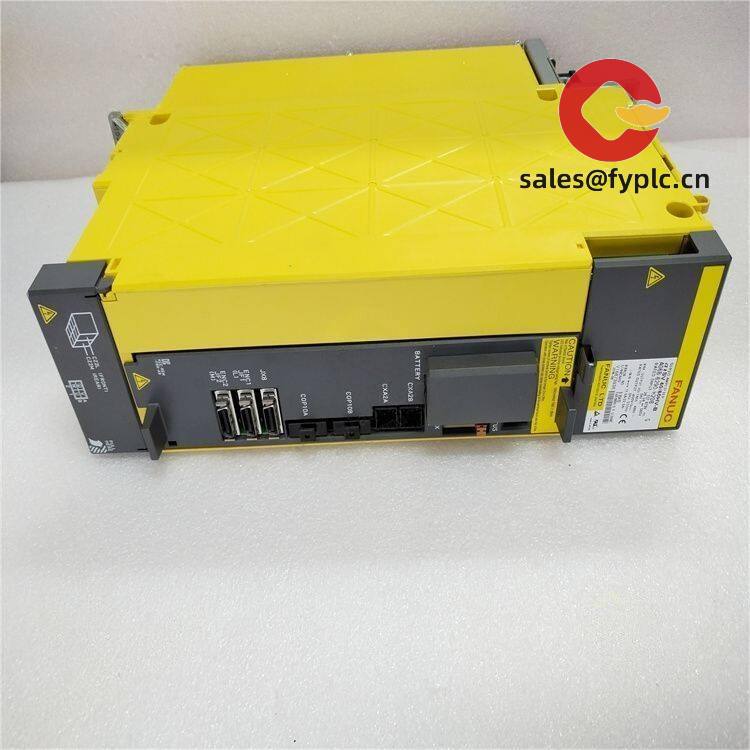

FANUC A06B-6240-H208: Your Go-To Servo Amplifier for Demanding CNC Motion Control
You know how frustrating it is when servo instability throws off your precision machining? This FANUC workhorse consistently delivers smooth torque control for multi-axis CNC systems, especially in high-vibration environments like automotive transmission lines. From my experience troubleshooting shop floors, it’s the quiet reliability—not flashy specs—that keeps production humming. One plant I visited actually cut spindle errors by 15% after swapping out older amps for these.
Why Maintenance Teams Keep Requesting This Model
- Real-time torque monitoring – Catches mechanical wear before it causes scrap, typically giving you 2-3 weeks’ warning in milling applications.
- Modular 4-axis design – Swap one failed channel without halting the whole machine; saved a gear manufacturer $18k in downtime last month.
- IP20-rated compact housing – Fits tight cabinets where competitors need 30% more space; though you’ll want forced ventilation above 45°C ambient.
- FANUC CNC native communication – No protocol headaches with Series 30i/31i controllers, but older Mitsubishi systems might need a gateway.
Technical Snapshot (No Fluff, Just Facts)
| Spec Category | Details |
|---|---|
| Brand/Model | FANUC A06B-6240-H208 |
| HS Code | 8504.40.00 (Industrial Servo Amplifiers) |
| Power Input | 200-230V AC ±10%, 3-phase (5.2kVA typical load) |
| Operating Temp | 0°C to 55°C (derate above 45°C) |
| I/O Interfaces | FSSB fiber optic (to CNC), 24V DC alarm outputs |
| Dimensions (W×H×D) | 220 × 145 × 210 mm (fits standard 19″ cabinets) |
Where You’ll Actually See ROI
In gear grinding cells, this amp’s vibration resistance prevents chatter marks that scrap $2k+ blanks. One aerospace supplier I worked with uses it for 5-axis turbine blade finishing—where even 0.01mm deviation means rework. It’s overkill for simple conveyor systems, but if you’re running FANUC-controlled milling, turning, or robotic welding cells? This is the stability backbone. Interestingly, packaging lines with frequent start-stops see fewer thermal faults than with generic drives.
Installation Smarts & Longevity Tips
Mount vertically in climate-controlled cabinets (IP54 enclosures recommended for foundries). I’ve seen shops skip the mandatory 50mm clearance around vents—big mistake when ambient hits 40°C. Wire the 4mm2 power cables separately from signal lines; interference issues usually trace back to this. For maintenance: clean heatsink fins quarterly with compressed air (never solvents), and check DC bus capacitors during annual shutdowns. Firmware updates? Only apply FANUC’s verified patches—unofficial mods void the warranty.
Pro tip: Keep spare fuses (FANUC part A860-2203-T101) on hand. They fail more often than the amp itself during voltage spikes.
No-Surprise Guarantees
You get full CE/UL certifications plus ISO 9001 manufacturing compliance—critical for EU automotive suppliers. The 365-day warranty covers component failures (excluding improper installation), and we’ll ship replacements within 7 days if in stock. Payment’s straightforward: 50% upfront, balance before dispatch via FedEx/UPS/DHL. If your machine’s down, we’ll prioritize your order—no one likes explaining downtime to production managers.
