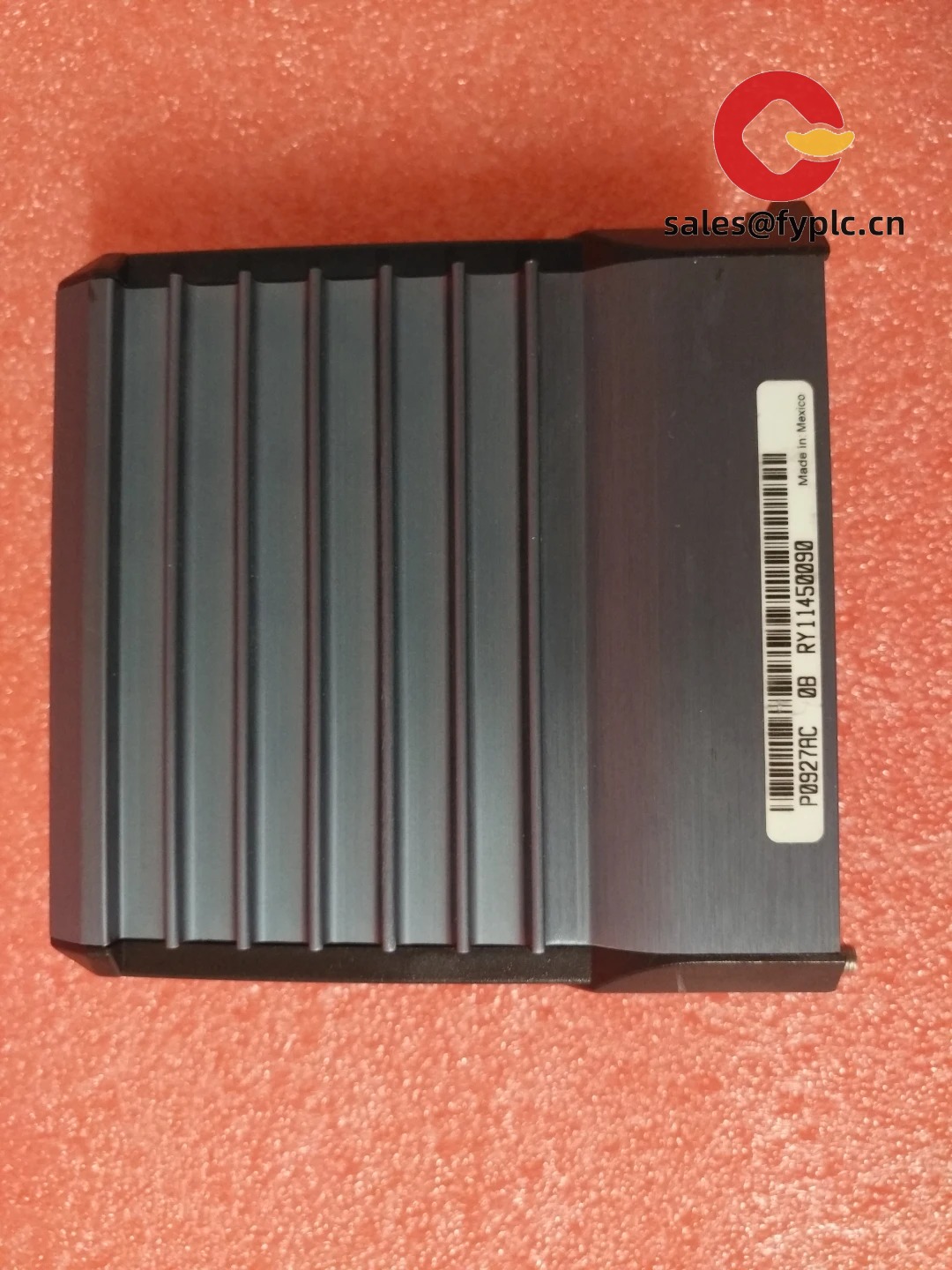

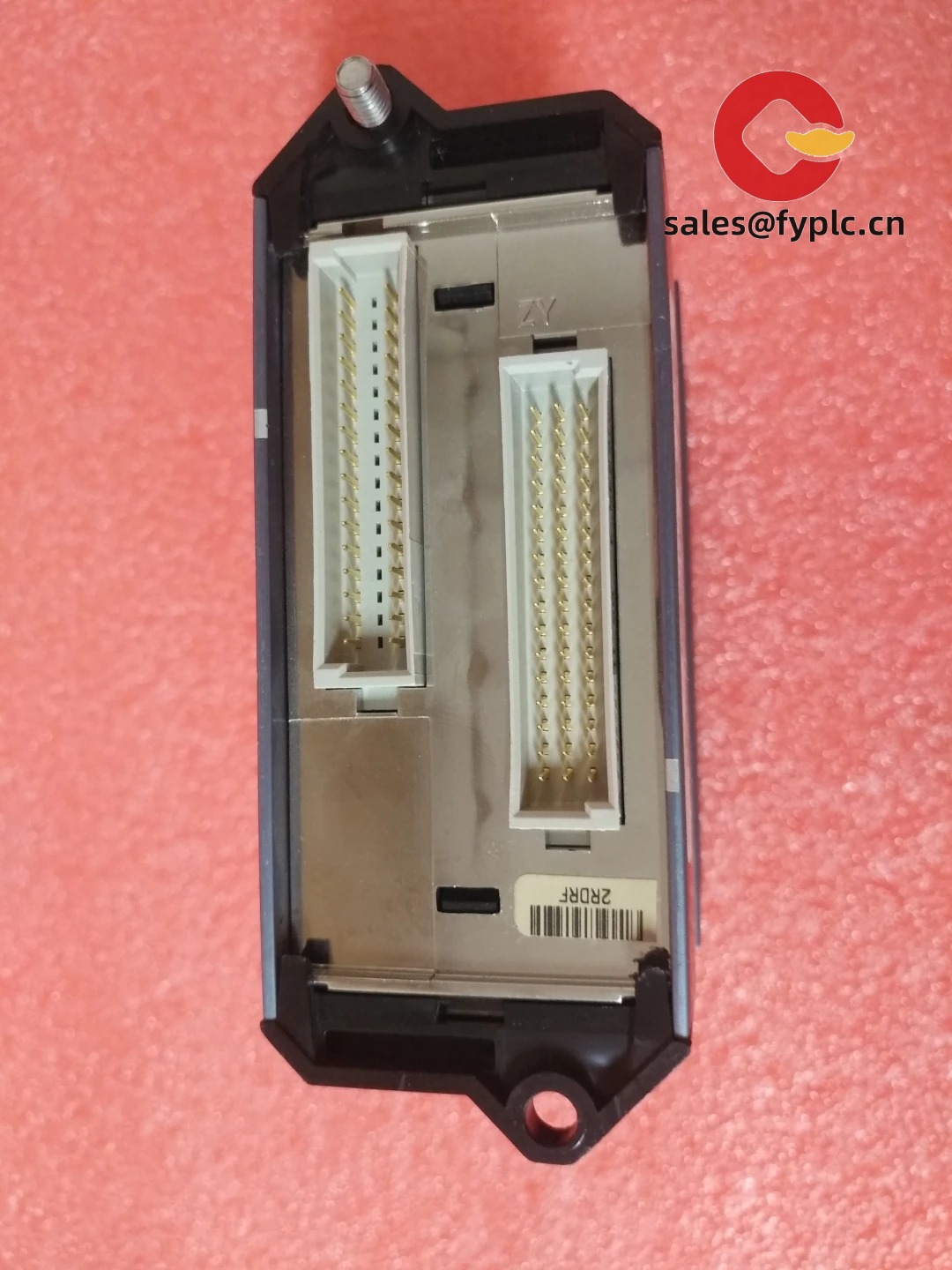

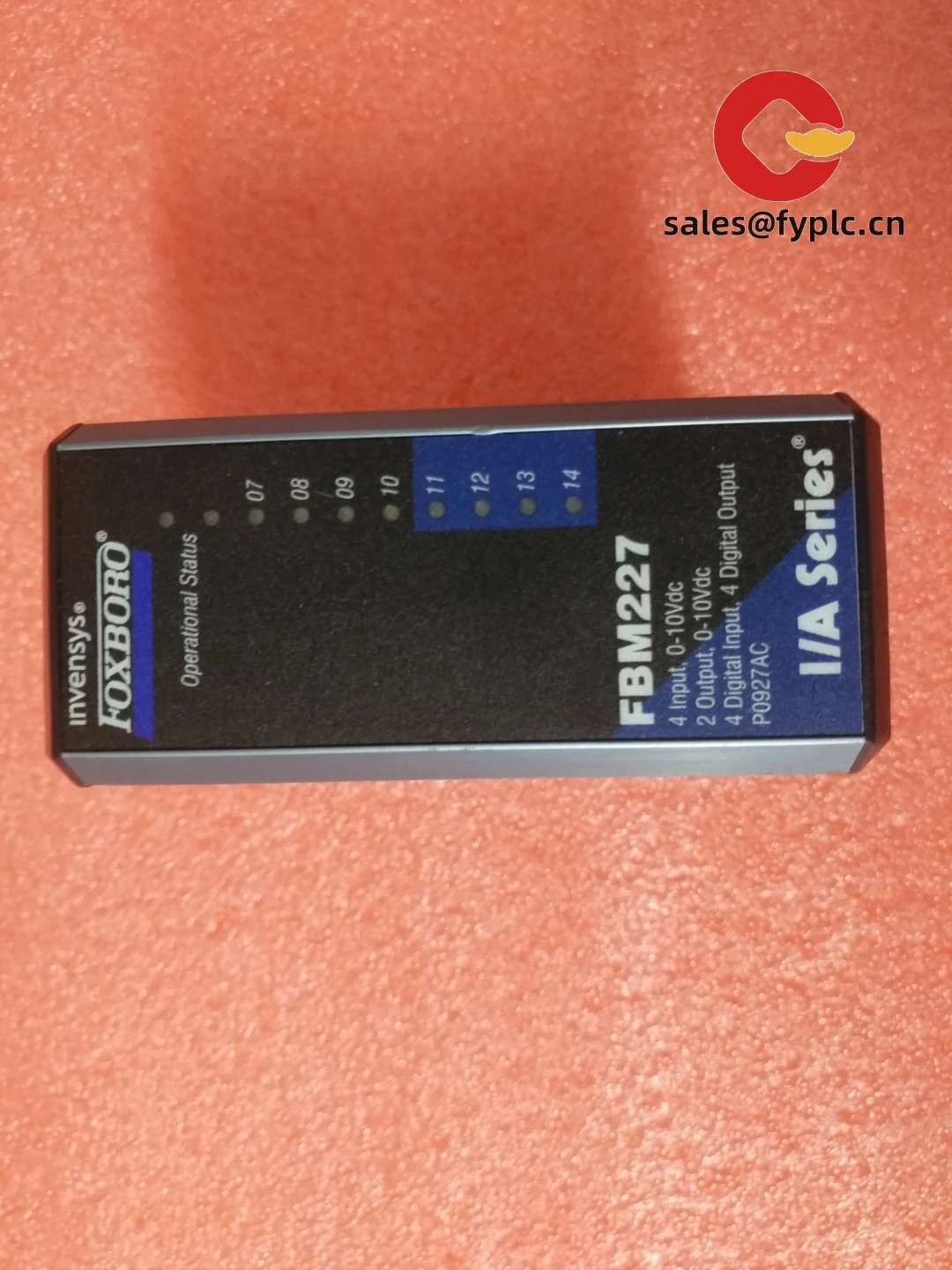

FOXBORO FBM227 (P0927AC) Control System Module – 200 Series I/A field I/O for demanding plants
The FOXBORO FBM227, catalog code P0927AC, sits in the 200 Series I/A architecture as a plug-in Fieldbus Module (FBM) for robust field signal interfacing. From my experience, this family is chosen when you need dependable, cabinet-grade I/O with isolation, clean wiring to terminal assemblies, and seamless integration to FOXBORO/Schneider Electric controllers. You might notice that it keeps the form factor and modularity plants rely on, so swap-outs and expansions are typically quick with minimal re-commissioning time.
Order Placement Process and Guarantees
- Warranty: 365 days
- Lead time: 1 week if in stock; no more than one month at the latest
- Payment: 50% advance payment; full payment prior to delivery
- Express delivery options: FedEx, UPS, DHL
Key Features
- 200 Series FBM form factor – Plugs into standard baseplates with adjacent terminal assemblies for clean, serviceable wiring.
- Module Fieldbus backbone – Communicates over the FOXBORO 200 Series Module Fieldbus via the baseplate, keeping controller integration straightforward.
- Channel isolation and protection – In many cases, FBM227 variants provide isolated channels and built-in protection to reduce field noise and faults propagating upstream.
- Hot-swappable serviceability – Typically supports on-line replacement when installed in a redundant I/A system design, minimizing downtime.
- Industrial temperature, cabinet-ready – Designed for control cabinets with stable thermal performance and EMC robustness common to FOXBORO hardware.
- Lifecycle continuity – A reliable option for installed-base extensions and maintenance programs where keeping validated I/O matters.
Technical Specifications
| Brand / Model | FOXBORO FBM227 (Catalog code P0927AC) |
| Product Type | 200 Series I/A Fieldbus Module (control system I/O) |
| HS Code | 8537.10 (Boards/panels for electric control, including programmable controllers) |
| Power Requirements | Supplied via 200 Series baseplate; typically 5 Vdc bus, low wattage draw (redundant supply supported at the baseplate) |
| Dimensions & Weight | Compact plug-in FBM housing; cabinet-friendly; weight typically under 1 kg |
| Operating Temperature | 0 to 50 °C typical cabinet environment (installation in ventilated control panels recommended) |
| Signal Input/Output Types | FBM227 variants are used for field I/O connection through terminal assemblies; channel type and count depend on the exact option set. Isolation between field and system is standard across the family. |
| Communication Interfaces | Module Fieldbus via 200 Series baseplate to the I/A Series controller infrastructure |
| Installation Method | Plugs into 200 Series baseplate with matching terminal assembly; DIN-rail or panel-mounted baseplate |
Application Fields
Plants typically deploy the FBM227 across process areas where signal integrity and uptime matter: refining, petrochemicals, specialty chemicals, power generation, and water treatment. One thing I appreciate is how it fits brownfield modernization—drop-in alongside existing FOXBORO I/A controllers with minimal wiring changes. Common use cases include compressor skids, burner management interlocks (when used with appropriate safety architecture), pump stations, and utilities where cabinetized I/O and isolation reduce nuisance trips.
Advantages & Value
- Reliability – Proven FOXBORO hardware, designed for long service life; many customers report years of continuous operation with only routine cleaning.
- Compatibility – Native fit with 200 Series baseplates, controllers, and terminal assemblies; helps preserve validated logic and wiring.
- Lifecycle cost – Minimal re-engineering during replacement or expansion, saving engineering hours and commissioning time.
- Support – Access to spares and knowledgeable technical help; firmware and diagnostics that are familiar to I/A maintenance teams.
Short note from a recent site turnaround: “Swapped three FBM227 units in one shift—didn’t touch the marshalling. Back online before night duty,” which seems to be the normal experience when the cabinets are kept clean and labeled.
Installation & Maintenance
- Cabinet and baseplate – Install on a 200 Series baseplate in a ventilated control cabinet; keep ambient 0–50 °C with adequate clearance for airflow.
- Wiring – Use the designated terminal assembly (TA) and shielded field cables where applicable. Maintain separation between power and signal to limit EMI.
- Grounding – Bond cabinet and shield drains per site standards; consistent grounding typically reduces channel noise and drift.
- Redundancy – Where process critical, pair with redundant power and controller paths; FBM swap can often be performed online in a redundant design.
- Routine care – Quarterly dust removal, check terminal torque, and review diagnostics. Apply approved firmware updates during planned outages.
- Spare strategy – Keep at least one spare FBM227 and matching TA on site for each critical cabinet to cut MTTR.
Quality & Certifications

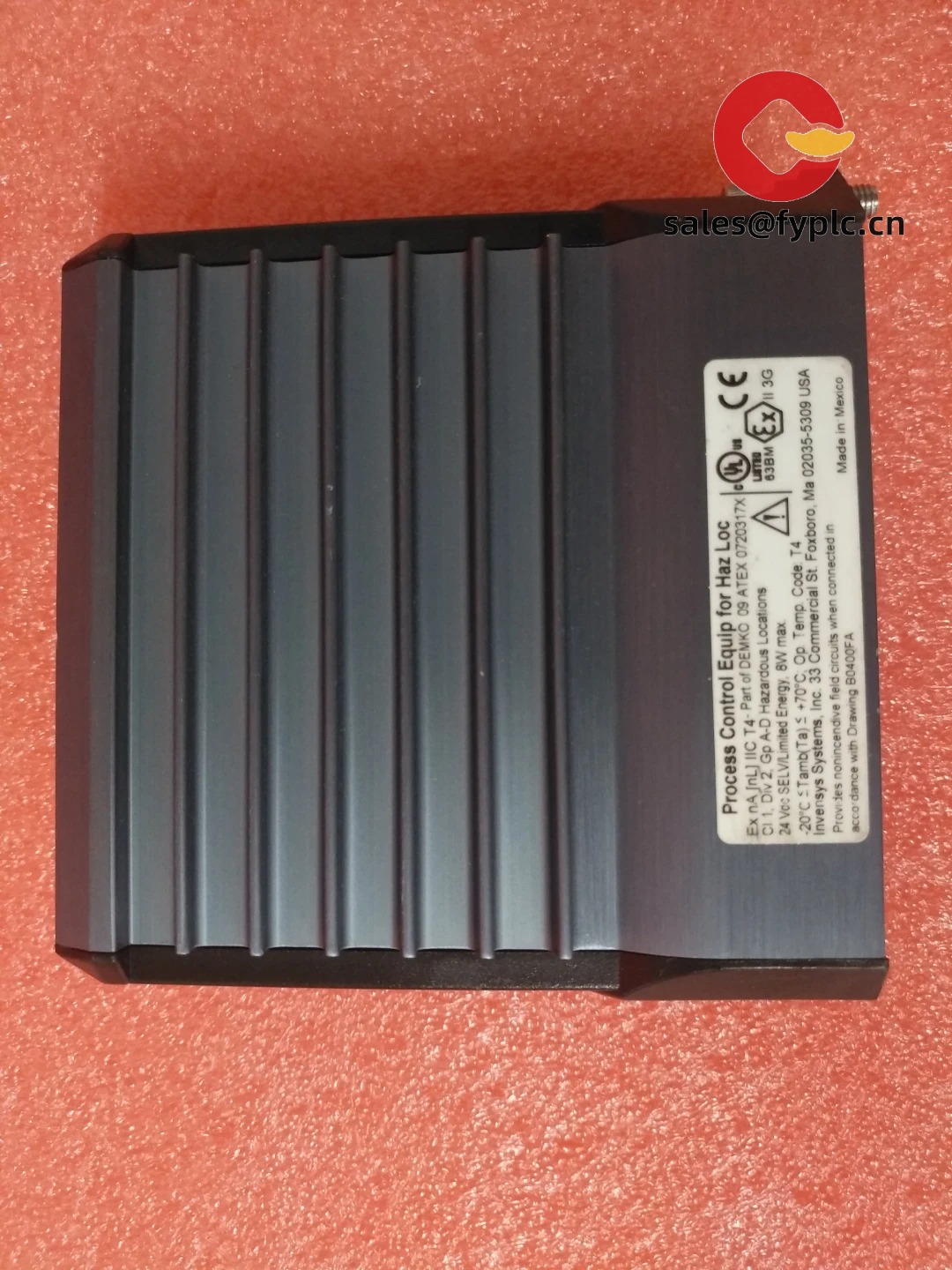

- CE marking and UL/CSA compliance are typical for the 200 Series; exact markings may vary by manufacturing lot.
- Manufactured under ISO-certified quality systems.
- RoHS conformance may differ for legacy builds; we can verify on the specific unit before shipment.
- Manufacturer’s warranty practices align with standard FOXBORO policies; our supply warranty is 365 days.
Supporting Components (for planning)

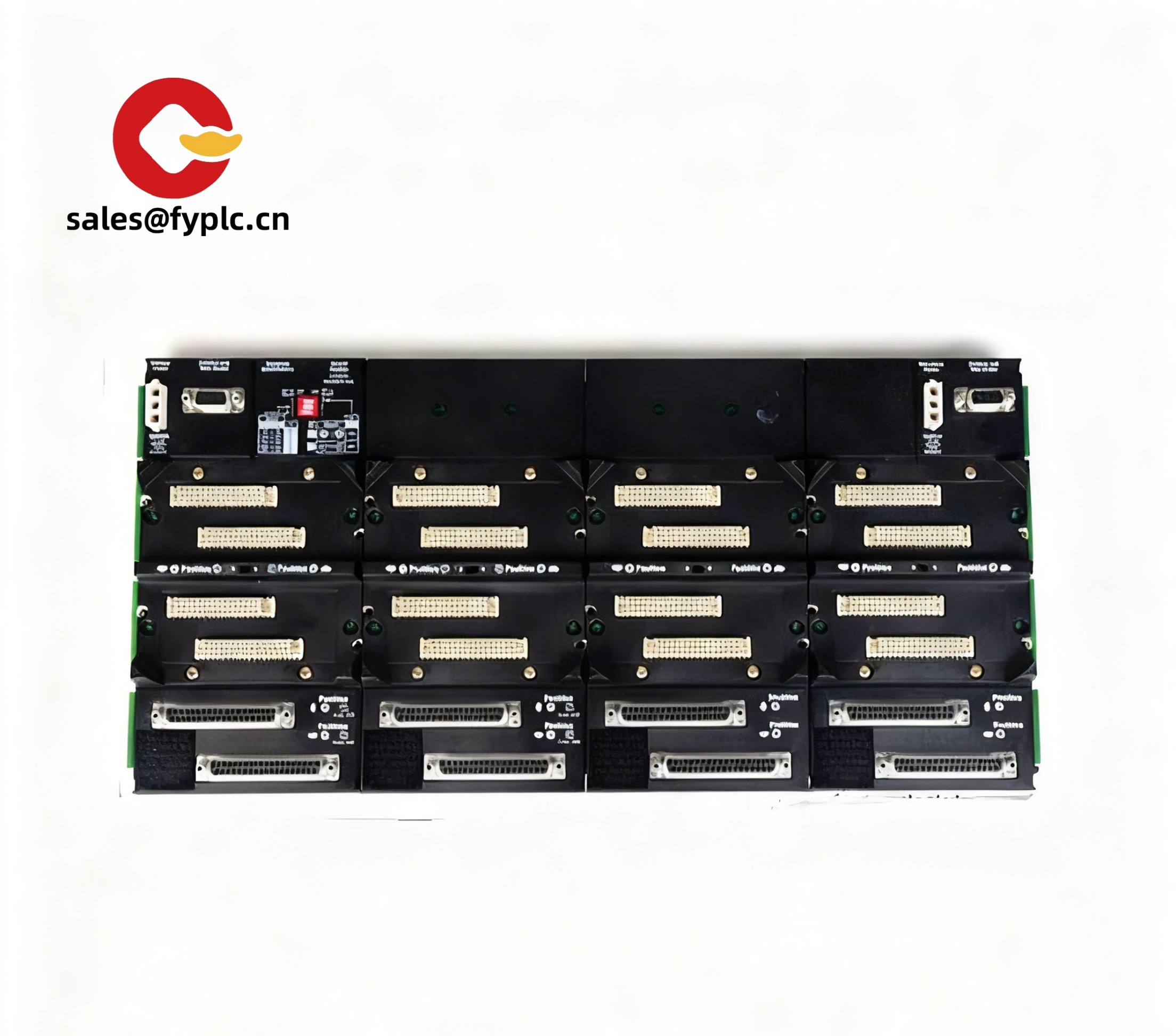

- 200 Series baseplates (DIN-rail or panel mount) with redundant power feed
- Terminal Assemblies (TA) in the P0926… family for field wiring and channel marshalling
- Shielded field cables and labeled ferrules to match the TA channel map
- Spare FBM modules, fuses, and cabinet filters for preventive maintenance
