Description

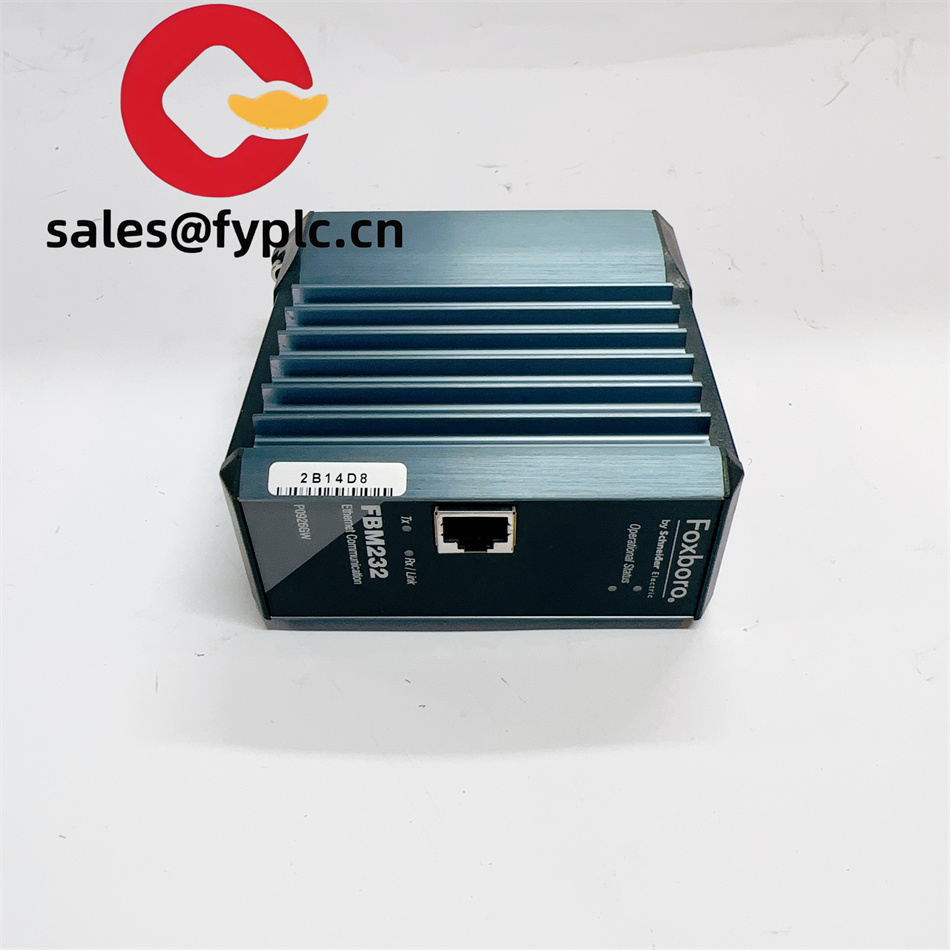

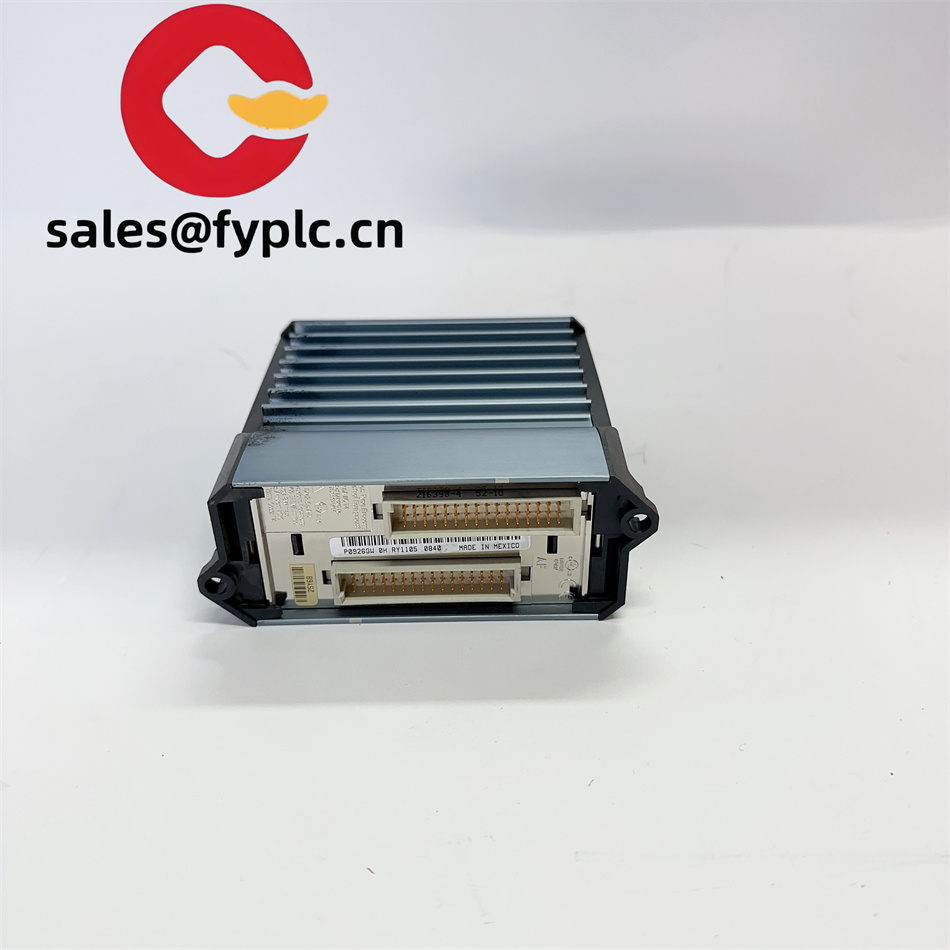

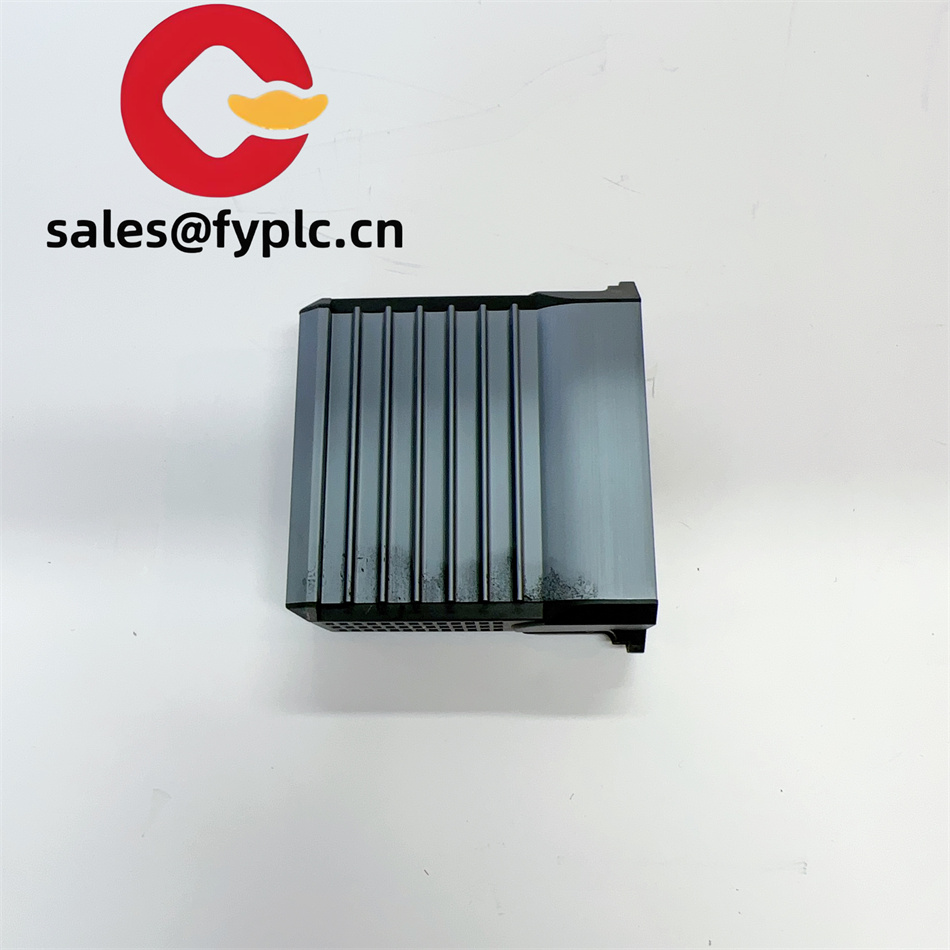

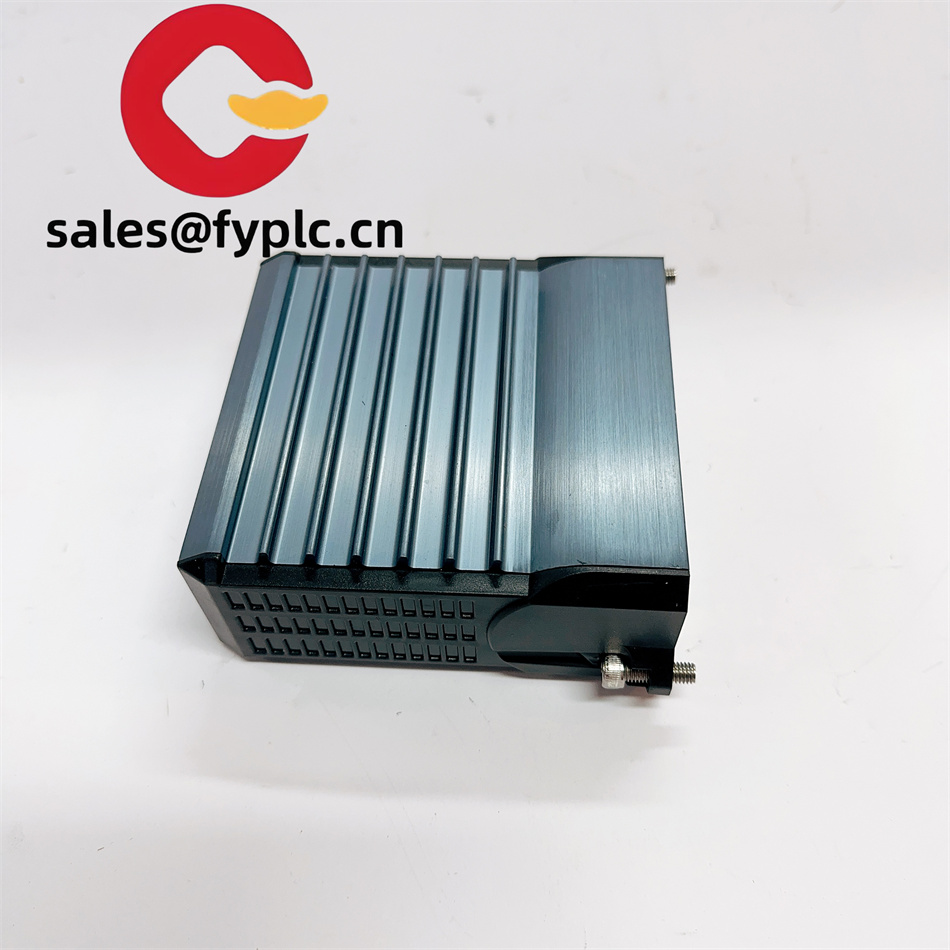

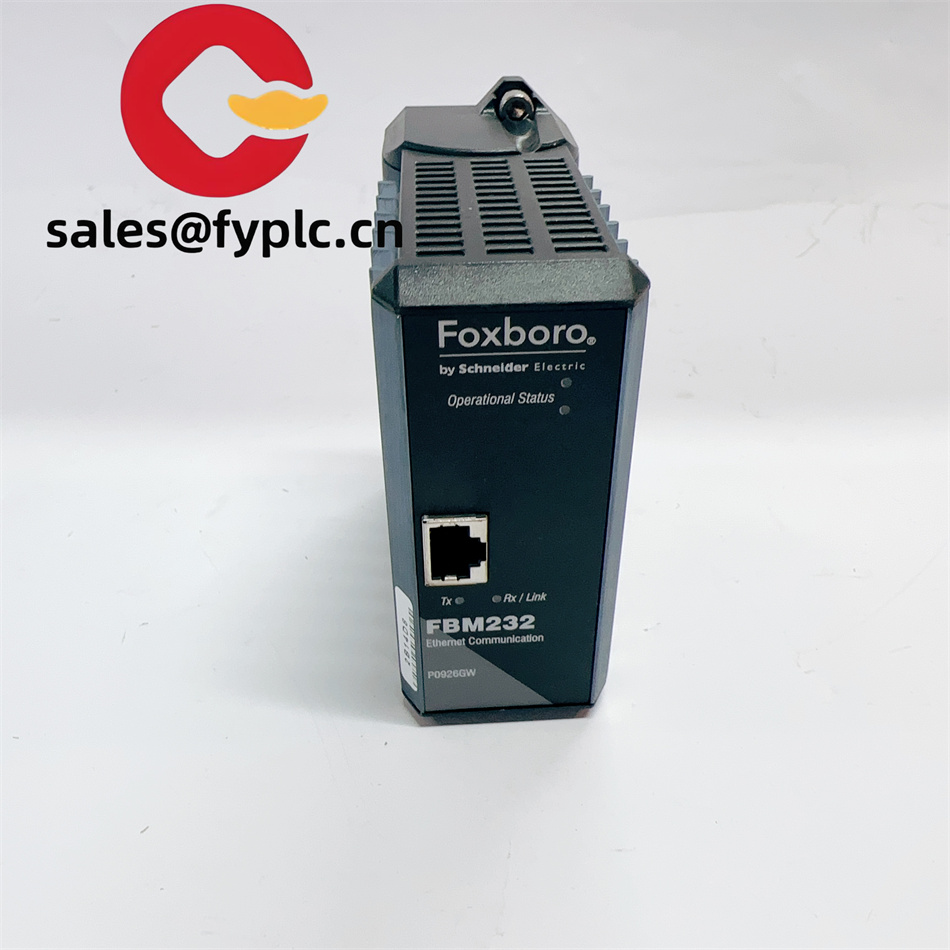

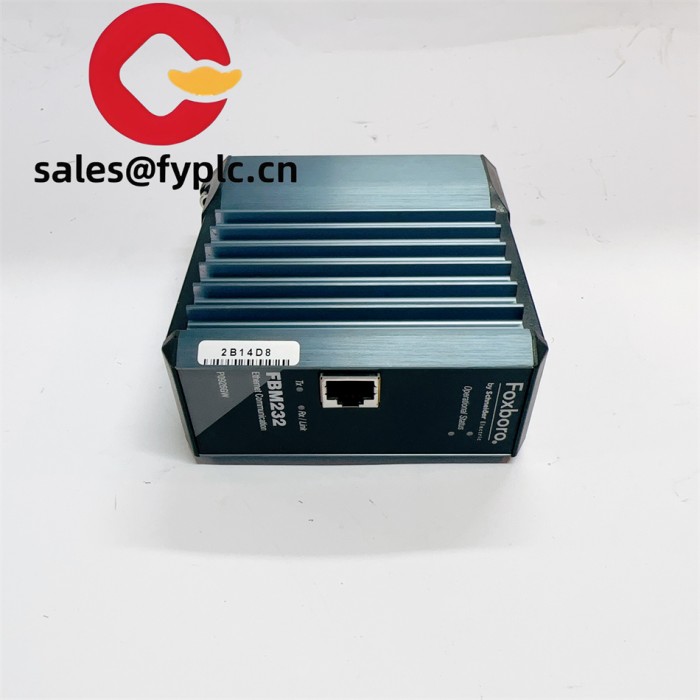

FOXBORO FBM232 P0926GW Input/Output Control Redundant Module
FOXBORO FBM232: Industrial Automation’s Robust Communication and Data Integration Hub
In the complex tapestry of industrial automation, the FOXBORO FBM232 emerges as a pivotal component, engineered to revolutionize how industrial control systems communicate and integrate data. As a Field Device System Integrator (FDSI) module developed by FOXBORO, a leader in industrial automation solutions, the FBM232 is purpose – built to address the connectivity and data – handling challenges across a wide spectrum of industries, from manufacturing and energy production to chemical processing.
At its core, the FBM232 acts as a high – speed communication bridge between field devices and the central control system. Its primary mission is to enable seamless data exchange, ensuring that information from a multitude of sensors, actuators, and other intelligent devices reaches the control system in real – time. This module is an integral part of the Foxboro I/A Series distributed control system (DCS), enhancing the system’s ability to monitor, control, and optimize industrial processes with unparalleled precision.
|
Label
|
Specification
|
|
Model Number
|
FBM232
|
|
Brand
|
FOXBORO
|
|
Type
|
Field Device System Integrator (FDSI) Module
|
|
Input Voltage
|
24 VDC
|
|
Operating Temperature
|
-40°C to +70°C
|
|
Communication Method
|
10 Mbps or 100 Mbps copper Ethernet interface; communicates with control processors via redundant 2 Mbps module fieldbus
|
|
Mounting
|
Rack – mountable
|
|
Certifications
|
Complies with relevant industrial standards for electromagnetic compatibility and environmental resilience
|
|
Dimensions
|
[Specify length x width x height dimensions]
|
|
IP Rating
|
Suitable for installation within appropriate enclosures for environmental protection
|
|
Protocols Supported
|
UDP/IP, TCP/IP, Modbus TCP/IP; can dynamically download I/O software drivers for diverse protocols
|
|
Device Connectivity
|
Can communicate with up to 64 external field devices
|
|
Data Interface Blocks
|
Supports up to 2000 Data Communication Interface (DCI) blocks
|
|
Data Update Speed
|
Event Control Block (ECB) cycle as fast as 500 milliseconds
|
The FOXBORO FBM232 boasts several distinctive functional strengths and design advantages that elevate its performance in industrial settings. Its Ethernet connectivity, available at speeds of 10 Mbps or 100 Mbps, provides a reliable and high – speed data transfer pathway. This ensures that large volumes of data, such as real – time sensor readings and control commands, can be transmitted swiftly between field devices and the control system, reducing latency and enabling instant responses to process changes.
The module’s ability to connect with up to 64 external field devices significantly expands the reach of industrial control systems. Whether it’s integrating smart temperature sensors in a manufacturing plant or flow meters in an oil refinery, the FBM232 can manage diverse devices with ease. Its support for a wide range of industrial communication protocols, facilitated by the dynamic download of I/O software drivers, eliminates compatibility issues. This means that devices from different manufacturers, each using their own proprietary protocols, can be seamlessly integrated into a unified control network.
The FBM232’s robust design is tailored to endure the harsh conditions typical of industrial environments. With an operating temperature range spanning from -40°C to +70°C, it can function reliably in extreme cold of arctic oil fields or the sweltering heat of steel manufacturing plants. The redundant 2 Mbps module fieldbus communication and 24 VDC power supply further enhance its reliability. In case of a single – point failure in the communication or power system, the FBM232 can continue to operate without interruption, minimizing downtime and safeguarding industrial operations.
The FOXBORO FBM232 has proven indispensable across numerous industries, delivering tangible benefits in each application. In the manufacturing sector, it enables real – time monitoring of production lines. By connecting to sensors that track machine performance, product quality, and material flow, the FBM232 provides manufacturers with comprehensive data. This data – driven approach allows for proactive maintenance, reducing unplanned breakdowns and increasing overall equipment effectiveness. For example, if a vibration sensor on a critical machine detects abnormal readings, the FBM232 can immediately relay this information to the control system, which can then initiate corrective actions.
In the energy industry, the FBM232 plays a crucial role in power generation plants. It integrates data from various components of turbines, generators, and substations, such as temperature, voltage, and current sensors. By accurately and promptly transmitting this data to the control system, it enables operators to optimize power generation processes, improve grid stability, and enhance the efficiency of energy production. In the event of a potential fault, like an overheating generator, the FBM232’s rapid data transfer capabilities ensure that the control system can respond immediately, preventing serious damage and power outages.
In the chemical industry, safety and precision are paramount, and the FBM232 excels in both aspects. It monitors critical process variables in chemical reactors, such as pressure, chemical concentrations, and reaction temperatures. The accurate and timely data it provides is essential for maintaining the safety of chemical processes. If a parameter deviates from the safe range, the FBM232 can trigger alarms or initiate emergency shutdown procedures, protecting personnel, equipment, and the environment.
