Description

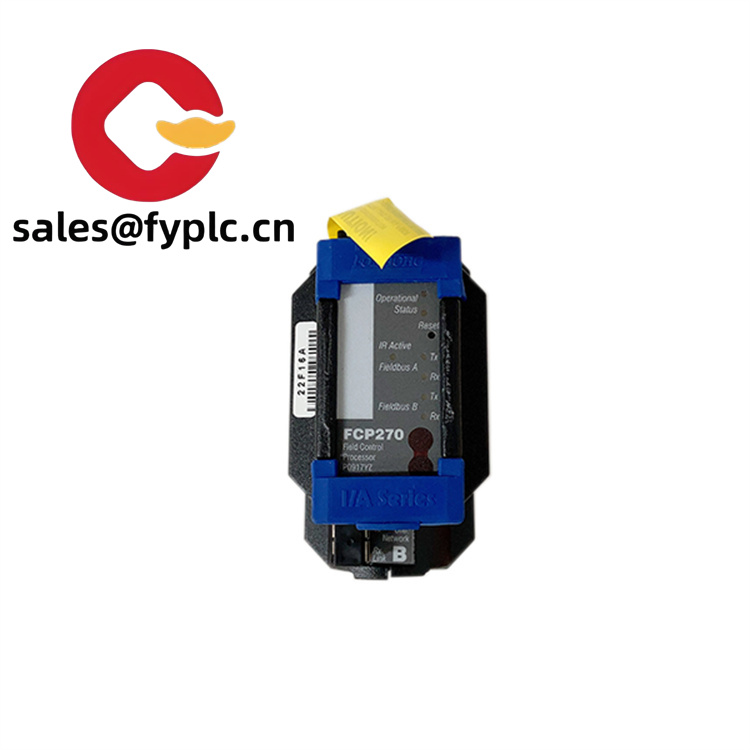

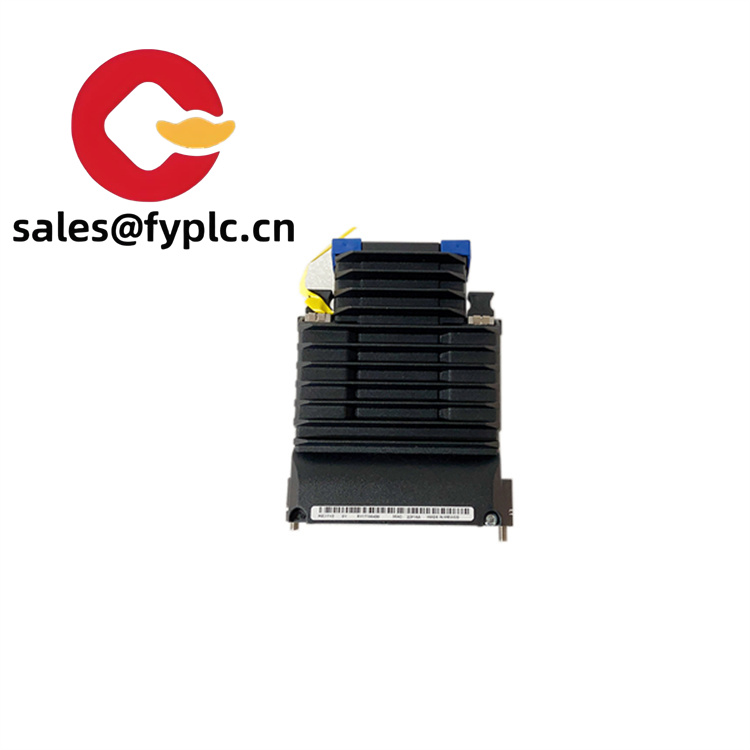

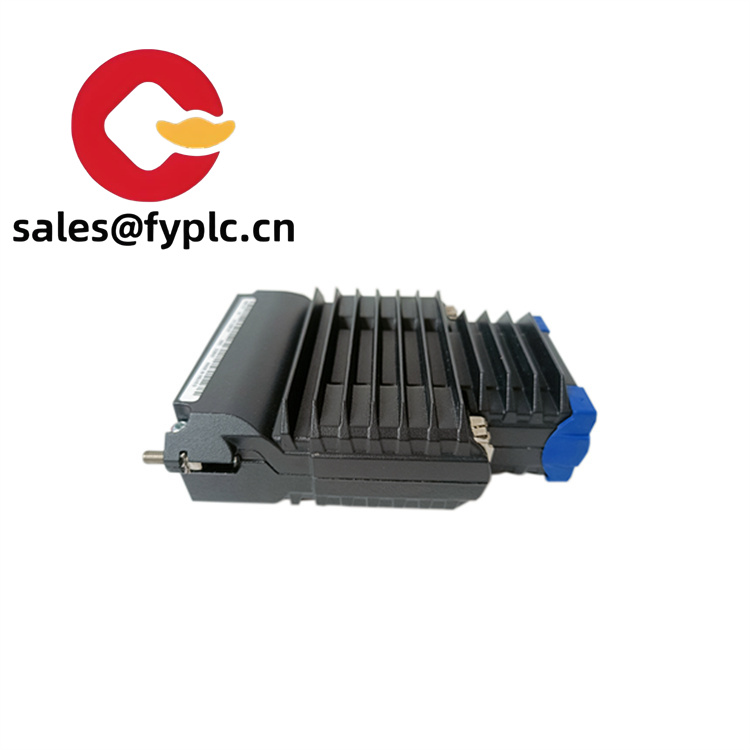

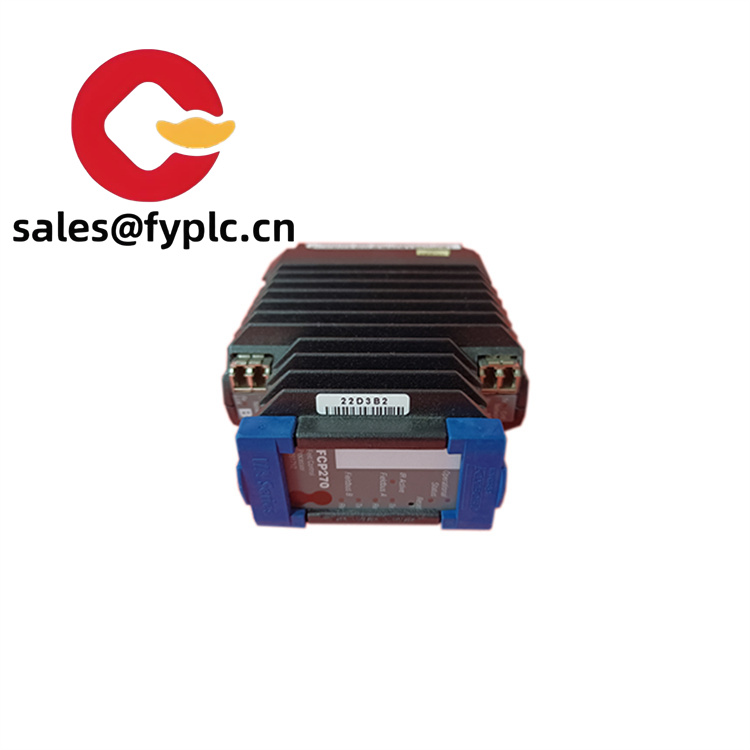

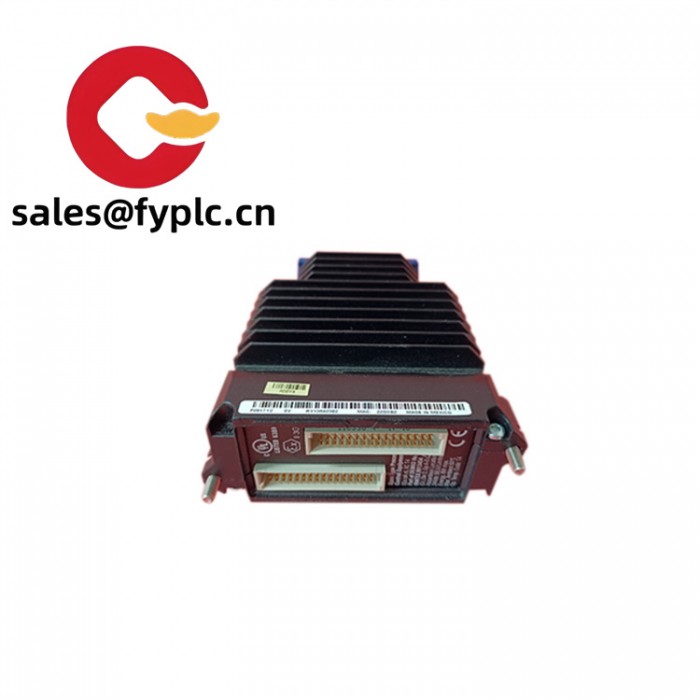

FOXBORO FCP270 fieldbus module process control system
FCP270
The FOXBORO FCP270 functions as the brain of industrial control systems. It interfaces with a wide range of field – bus modules (FBMs), sensors, and actuators, acting as the central command center. In various industrial automation scenarios, such as large – scale manufacturing plants, oil refineries, or power generation facilities, the FCP270 is indispensable. It performs regulation, logic, timing, and sequence control in tandem with connected FBMs.
| Label |
Specification |
| Model Number |
FCP270 |
| Brand |
FOXBORO |
| Type |
Field – mounted Controller Module |
| Input Voltage |
24VDC (typical value) |
| Operating Temp |
0°C to +60°C (operating); – 40°C to +70°C (storage) |
| Communication Method |
Standard fiber – optic 100 Mbps Ethernet, 2 Mbps or 268 Kbps HDLC field – bus |
| Mounting |
Device – specific 2 – or 4 – position baseplates (can be installed horizontally or vertically) |
| Weight |
0.6 kg (non – fault – tolerant module) |
| Certifications |
CE, indicating compliance with European safety, health, and environmental protection standards |
| Dimensions |
Height: 103 mm (4.04 in), 114 mm (4.5 in) with lugs; Width: 51.5 mm (2.03 in); Depth: 147 mm (5.80 in) |
| IP Rating |
Suitable for indoor use, can operate in G3 – class harsh environments |
| Protocols Supported |
Ethernet – based protocols for high – speed data transfer, HDLC for field – bus communication |
| Memory |
16 MB SDRAM, 32 MB flash memory |
FCP270
The FOXBORO FCP270 stands out prominently in real – world industrial environments due to its remarkable functional strengths and intelligent design. In terms of performance, it offers high – speed data processing capabilities. Its advanced internal architecture enables it to rapidly analyze incoming signals from numerous sensors and field devices. This quick processing ensures that control decisions are made in a timely fashion, which is crucial for maintaining the optimal operation of industrial processes. For instance, in a fast – paced manufacturing line, the FCP270 can instantaneously respond to changes in production speed or quality parameters, adjusting the operation of machinery accordingly.
The module’s build quality is top – notch. Encased in a rugged die – cast aluminum housing, the
FCP270 can withstand the harsh conditions commonly found in industrial settings. Electrical noise, temperature fluctuations, and mechanical vibrations pose no threat to its operation. Its design ensures long – term reliability, minimizing the need for frequent replacements and reducing downtime. Interoperability is another key advantage. With support for multiple communication protocols and interfaces, the
FOXBORO FCP270 can work harmoniously with a diverse range of devices from different manufacturers. This allows for easy expansion and customization of industrial control systems, as new components can be added without major compatibility issues. Operators also benefit from its user – friendly configuration options, which simplify the setup and maintenance process, further enhancing the overall efficiency of industrial operations.
FCP270
One of the most significant features of the
FCP270 is its optional fault – tolerant operation. The fault – tolerant version consists of two parallel – running modules connected to the Foxboro Evo control network via two Ethernet links. This setup ensures that even if one module experiences a hardware failure, the controller can continue to operate continuously. The two modules constantly compare their communication information at the external interfaces, and only when they agree on the data (bit – by – bit match) is the information allowed to leave the controller. This mechanism prevents the transmission of incorrect data, significantly enhancing the reliability of the system.
For more information, please click on the following link:
