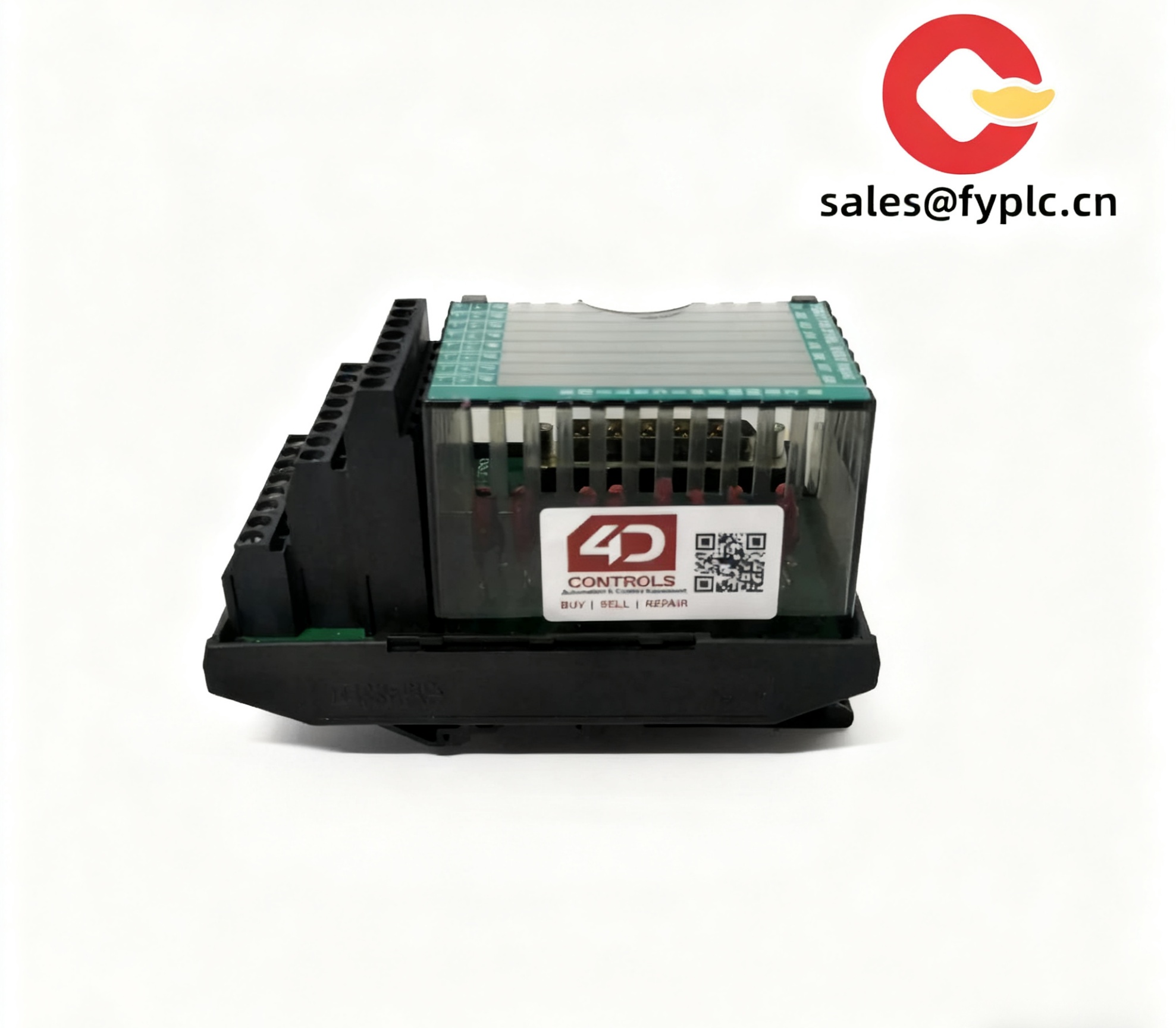

Foxboro P0926GH Communication Terminal – Reliable field termination for Foxboro DCS serial communications

The Foxboro P0926GH is a communication termination unit designed for Foxboro I/A Series and EcoStruxure Foxboro DCS installations. From my experience, it’s typically used as a clean, robust landing point for serial communication wiring between field devices and Foxboro communication FBMs/controllers. You might notice that, compared with improvised terminal strips, this dedicated terminal helps keep RS‑485/RS‑232 links stable, shields managed properly, and maintenance time down during turnarounds.

Our Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery time: 1 week for in‑stock; no more than one month at the latest
• Payment: 50% advance payment, full payment for delivery
• Express options: FedEx, UPS, DHL

Key Features

• Purpose-built termination for Foxboro comms – Provides field wiring terminations for serial communication links used by Foxboro FBM/Controller interfaces.
• Stable RS‑485/RS‑232 wiring practices – Supports differential pair landing, shield/drain handling, and clear polarity labeling to reduce noise pickup.
• DIN-rail mounting – Typically mounts on 35 mm DIN rail in standard control cabinets for fast installation and tidy cable routing.
• Passive design – No external power needed; integrates into the cabinet with minimal complexity.
• Service-friendly layout – Screw-clamp (or equivalent) terminals with clear channel markings, making loop checks and troubleshooting straightforward.
• Bus termination options – In many cases, jumpers or provisions for RS‑485 termination/bias are available to keep multi-drop networks stable.
• Drop-in spares – Compatible with Foxboro DCS architecture, easing MRO stocking and replacement without rework.

Technical Specifications

Application Fields

Plants that rely on serial networks to link analyzers, drives, smart instruments, or package skids to a Foxboro DCS. You’ll see it most in:

• Oil & Gas (wellhead and pipeline skids, compressor panels)
• Chemicals & Petrochemicals (RS‑485 networks for analyzers and VFDs)
• Power Generation (balance-of-plant subsystems and OEM packages)
• Water & Wastewater (remote panels and serial telemetry gateways)
• Pharma & Food (equipment skids and OEM machine interfaces)

A maintenance supervisor in a refinery once told us the P0926‑series terminal “saved a full shift” during a turnaround because the labeling and shield terminations made device swaps much quicker, especially on multi-drop RS‑485 loops.

Advantages & Value

• Reliability – Proper bus termination and clean grounding practices reduce intermittent comms faults that are notoriously hard to diagnose.
• Compatibility – Designed for Foxboro DCS architecture, so it typically matches wiring conventions and channel pinouts used by Foxboro comm FBMs.
• Cost Control – Faster installation and fewer nuisance trips mean measurable savings in commissioning and maintenance hours.
• Lifecycle Support – Straightforward, passive hardware is easy to stock as a spare and stable across system upgrades in many cases.
• Technical Backing – We can help verify pairing with your specific FBM module and share wiring notes that minimize crosstalk and reflections.

Installation & Maintenance

• Cabinet & mounting – Install on 35 mm DIN rail in a clean, dry, grounded enclosure. Provide ventilation to keep internal cabinet temperature within spec.
• Wiring practices – Use shielded twisted pair for RS‑485/RS‑422. Terminate shield at one end as per site EMC policy; avoid ground loops.
• Bus termination – Apply end‑of‑line termination (and biasing) at the bus ends only. If the terminal provides jumpers, set them to match the network layout.
• Separation – Route communication cables away from high‑current or VFD cables. Maintain bend radius and avoid sharp tie-wrap stress.
• Torque & labeling – Tighten to the recommended torque for screw clamps and label each drop; it seems trivial but prevents intermittent faults later.
• Routine checks – Every 6–12 months, re‑torque terminals, inspect shields/drains, clean dust, and verify continuity. Firmware updates are not applicable for passive terminals.
• Safety – De‑energize the loop where practical before servicing, and verify isolation from adjacent energized terminals.

Quality & Certifications

• Manufactured for use within Foxboro DCS environments
• Typically supplied with CE compliance; many installations also use UL/CSA-certified panels
• RoHS alignment in most recent production runs, depending on revision
• Standard 365-day warranty from us

Need confirmation against a specific FBM or a wiring diagram? Share the module model and we’ll verify P0926GH pairing and termination details before you place the order.
