Description

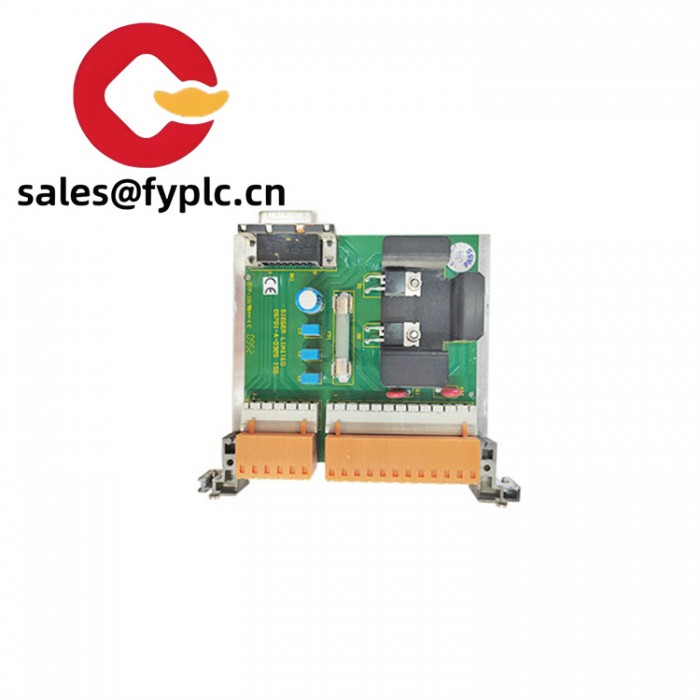

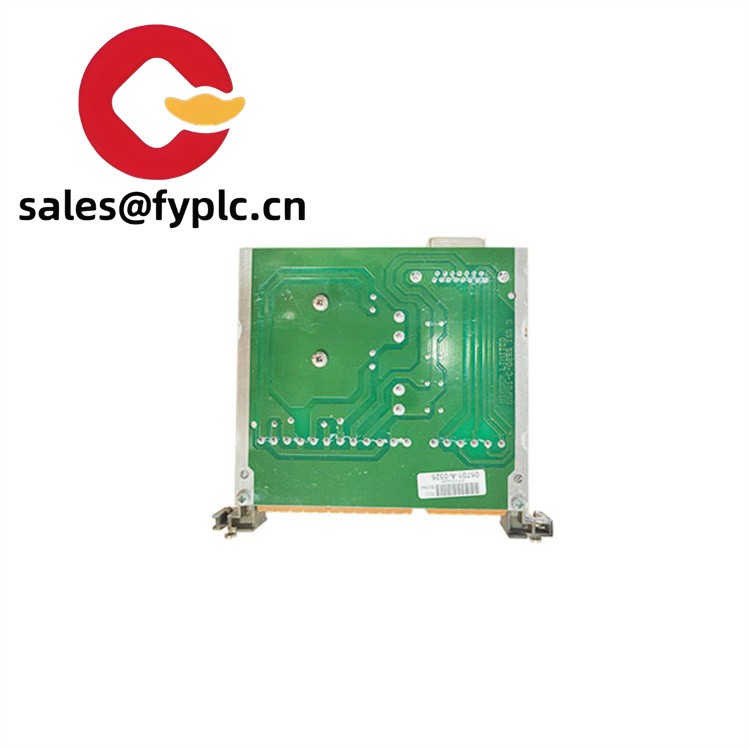

GE 05701-A-0325 Temperature Monitoring Card Analog Output Module
05701-A-0325
The GE 05701-A-0325 is engineered to serve as a critical link between the physical world of industrial processes and the digital realm of control systems. Its primary function is to measure specific physical parameters, such as pressure or force, and convert them into electrical signals that can be easily processed by controllers, HMIs, and other automation equipment. Whether integrated into a large-scale distributed control system (DCS) or a smaller machine-level control setup, the GE 05701-A-0325 plays a vital role in ensuring that industrial processes operate within desired parameters. It provides real-time insights into process conditions, enabling operators to detect anomalies early, adjust operations promptly, and maintain overall system efficiency. The GE 05701-A-0325 is thus an essential part of modern industrial automation, contributing to enhanced productivity, reduced downtime, and improved product quality.
|
Label
|
Specification
|
|
Model Number
|
05701-A-0325
|
|
Brand
|
GE
|
|
Type
|
Industrial Transducer
|
|
Measurement Range
|
0 to 300 psi (0 to 20.68 bar)
|
|
Output Signal
|
4-20 mA DC
|
|
Supply Voltage
|
12-36 VDC
|
|
Operating Temperature
|
-20°C to 80°C (-4°F to 176°F)
|
|
Accuracy
|
±0.5% full scale
|
|
Pressure Type
|
Absolute pressure
|
|
Mounting
|
1/2 NPT male thread
|
|
Weight
|
Approximately 0.3 kg (0.66 lbs)
|
|
Certifications
|
UL, CE, RoHS compliant
|
|
Protection Rating
|
IP67, suitable for harsh industrial environments
|
|
Response Time
|
≤ 5 ms
|
In terms of design, the GE 05701-A-0325 is built to withstand the harsh conditions of industrial environments. Its robust construction, featuring a stainless-steel housing, provides excellent resistance to corrosion, making it suitable for use in areas where exposure to chemicals or moisture is common, such as in chemical processing plants or wastewater treatment facilities. The IP67 protection rating further enhances its durability, as it can withstand temporary immersion in water up to 1 meter deep for 30 minutes, adding a layer of security in wet or dusty environments.
