Description

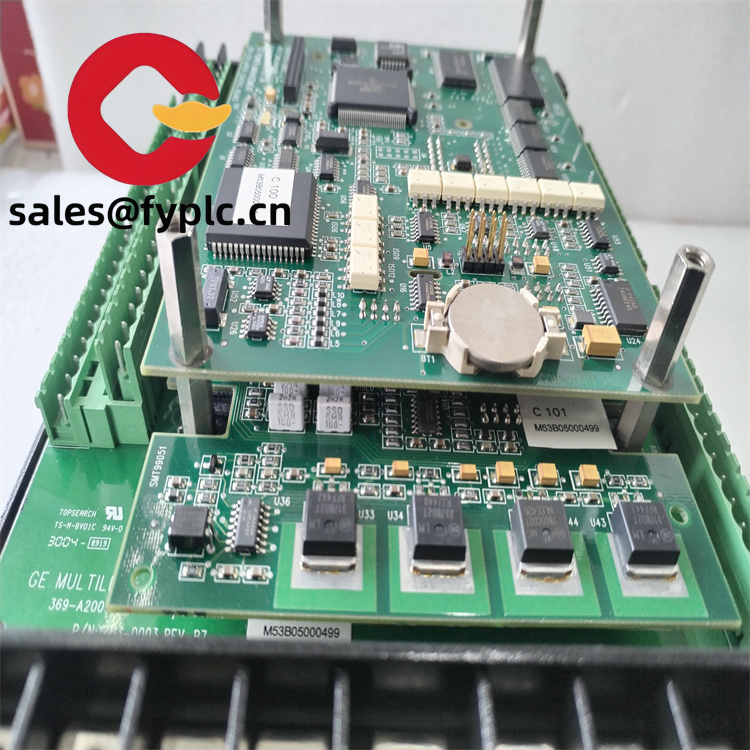

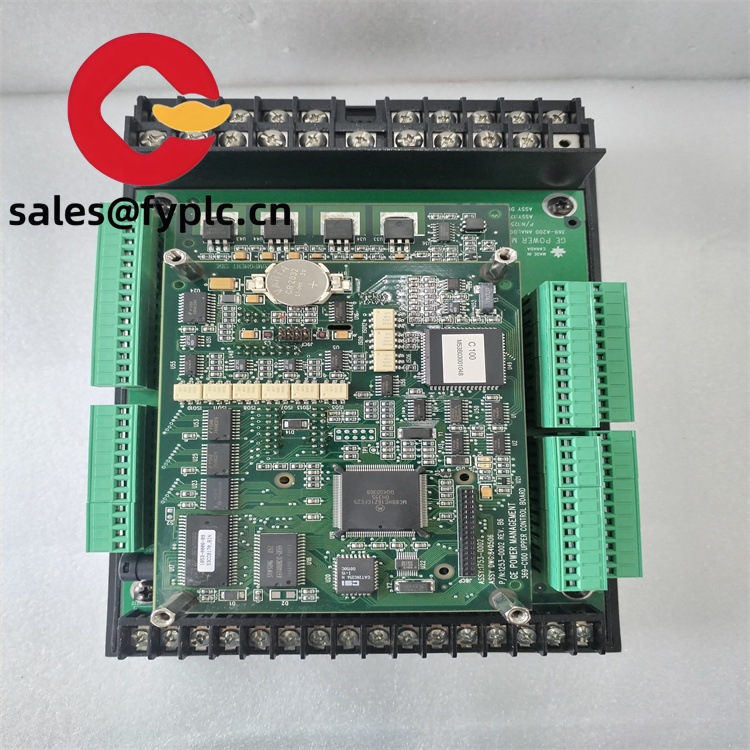

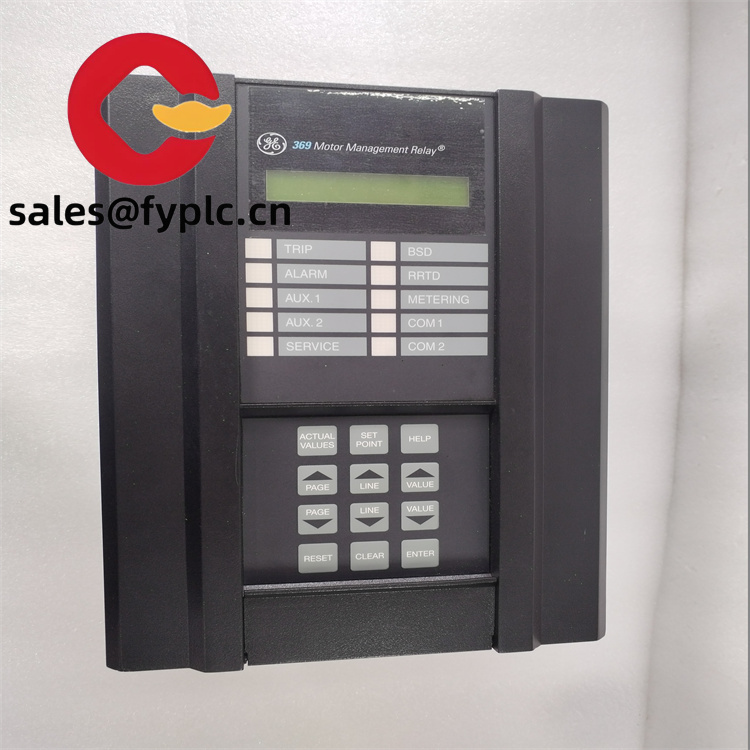

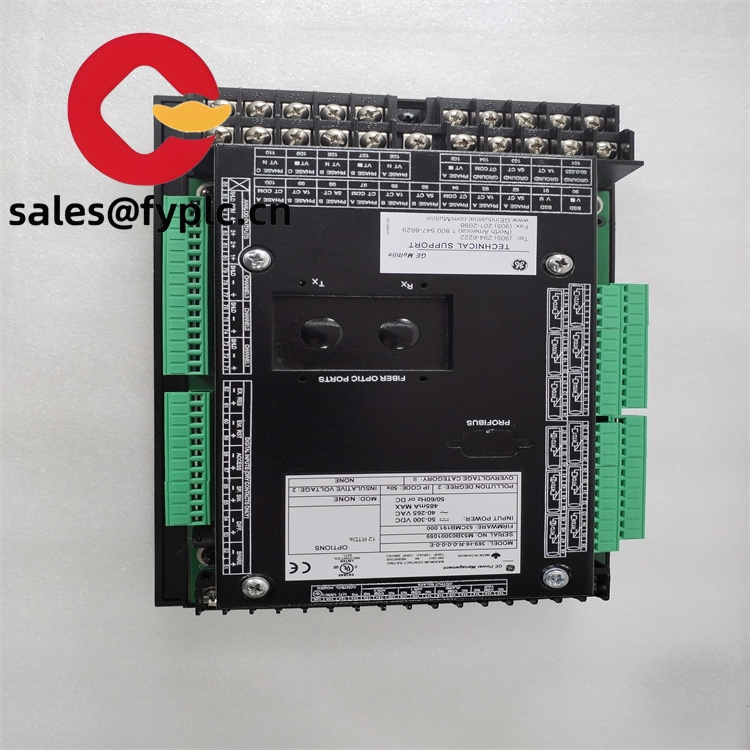

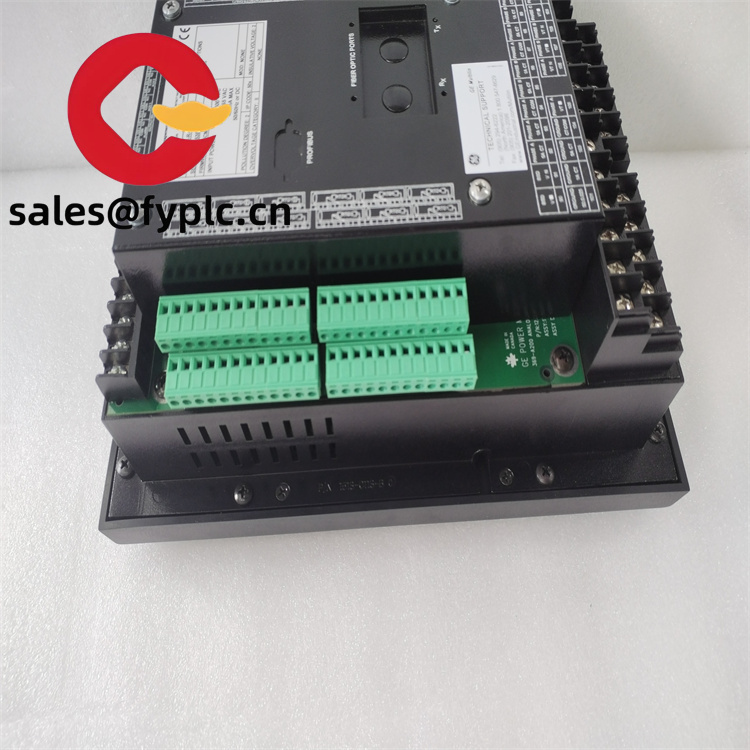

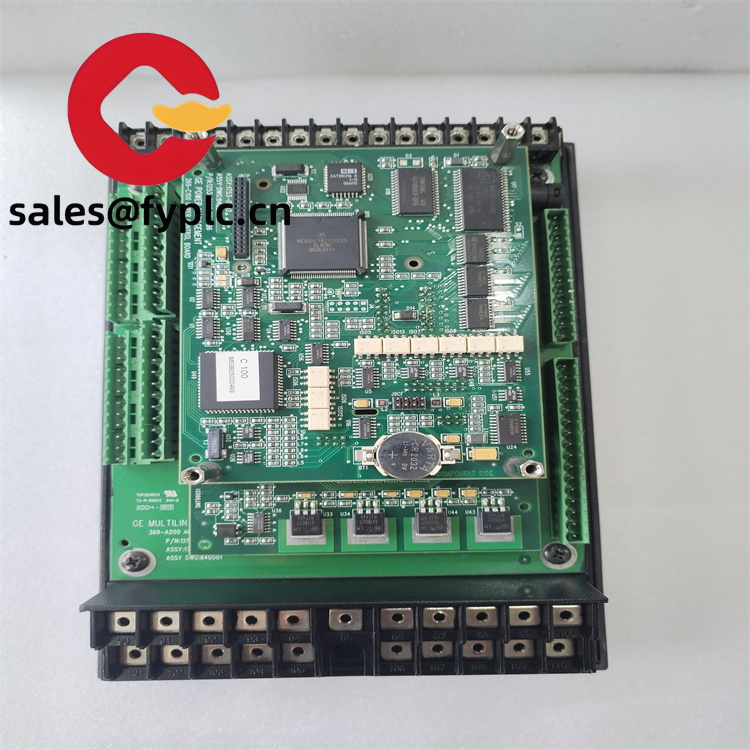

GE 369-HI-R-0-0-0-0-E Integrated Motor Management Relay

369-HI-R-0-0-0-0-E

In the realm of industrial electrical systems, reliable protection against faults and irregularities is non-negotiable. The GE 369-HI-R-0-0-0-0-E emerges as a critical component in this landscape, designed specifically as a high-integrity protective relay for medium to high-voltage electrical networks. This device serves as the first line of defense in power distribution systems, monitoring electrical parameters and initiating timely shutdowns or isolation when anomalies like overcurrent, voltage fluctuations, or phase imbalances occur.

Label	Specification
Model Number	369-HI-R-0-0-0-0-E
Brand	GE
Type	High-Integrity Protective Relay
Input Voltage	120V AC/DC, 240V AC
Operating Temp	-40°C to +70°C (-40°F to +158°F)
Communication Method	Ethernet, RS-485
Mounting	Panel mount, DIN rail compatible
Weight	1.2 kg (2.65 lbs)
Certifications	UL 508, IEC 61850, CE
Dimensions	145mm x 105mm x 75mm (5.7″ x 4.1″ x 3.0″)
IP Rating	IP20
Protocols Supported	Modbus, DNP3, IEC 61850

The GE 369-HI-R-0-0-0-0-E distinguishes itself through a combination of advanced sensing capabilities and rugged design. This relay processes electrical signals with microsecond-level precision, ensuring that even the subtlest irregularities are detected before they escalate into costly failures. Its high-integrity architecture includes redundant processing cores, eliminating single points of failure and ensuring reliable operation in mission-critical environments.

369-LI-R-0-0-0-0-E – A low-current variant optimized for secondary distribution systems with lower load demands.

369-HI-R-1-0-0-0-E – Includes advanced waveform capture for detailed post-fault analysis in complex networks.

353-A1-R-0-0 – A complementary feeder protection relay from GE’s 353 series, ideal for smaller distribution circuits.

362-HI-R-0-0-0-0-E – Focuses on transformer protection, working alongside the GE 369-HI-R-0-0-0-0-E in substation setups.

389-HI-R-0-0-0-0-E – A multi-function variant with expanded protection logic for renewable energy integration systems.

369-HI-R-0-1-0-0-E – Adds enhanced cybersecurity features, suitable for networks with strict data protection requirements.

346-R-0-0 – A legacy-compatible model that integrates with older GE protection systems, easing migration to the GE 369-HI-R-0-0-0-0-E.
