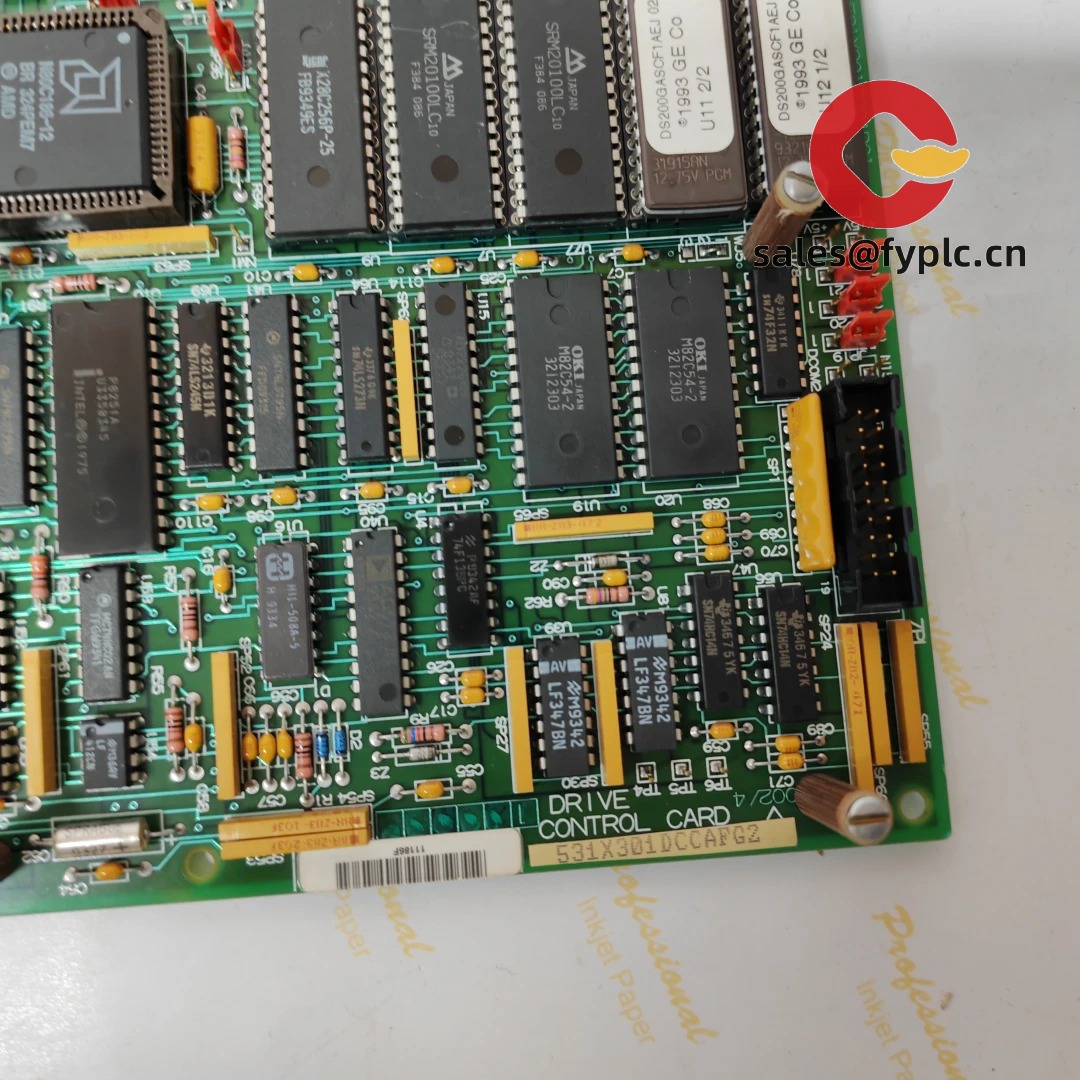

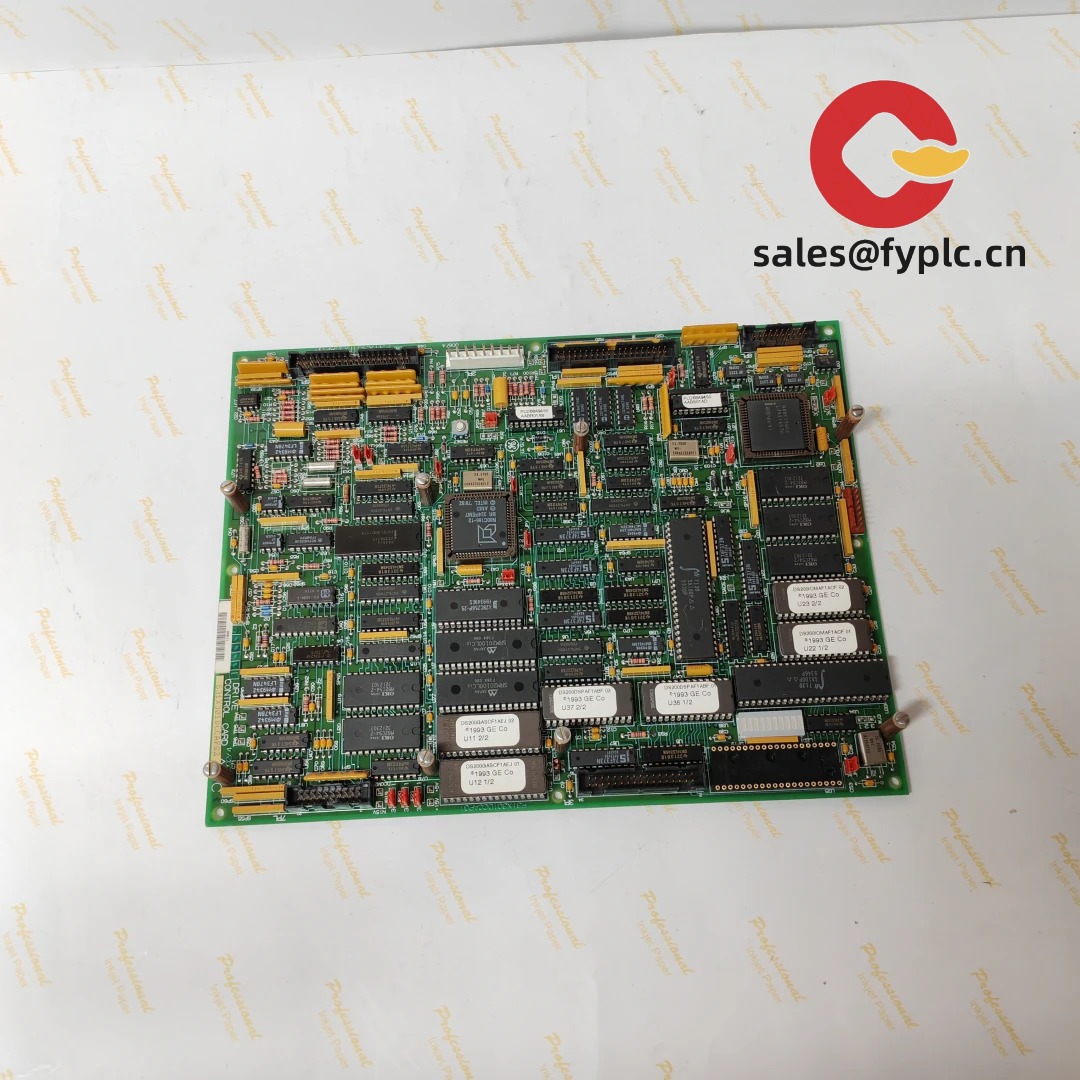

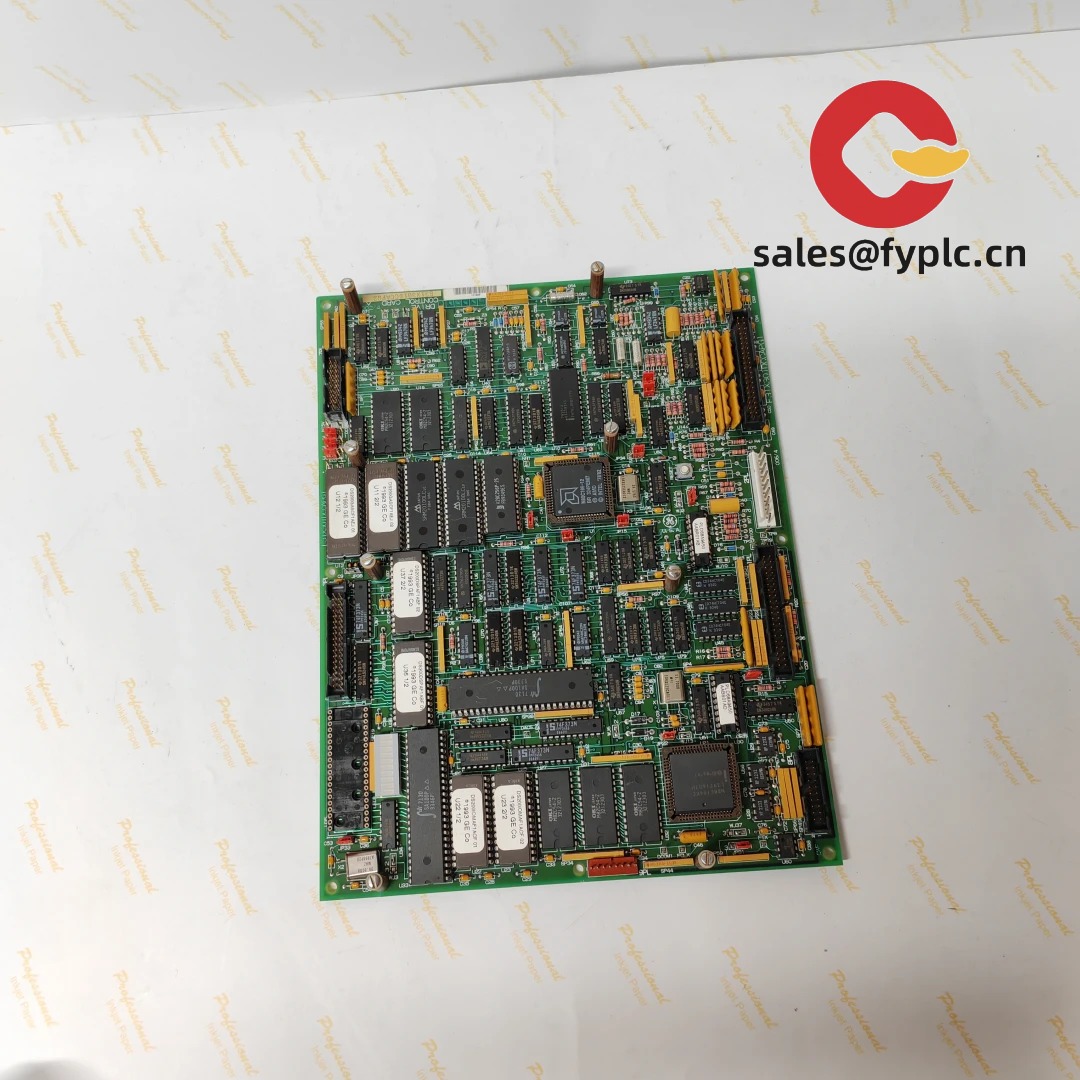

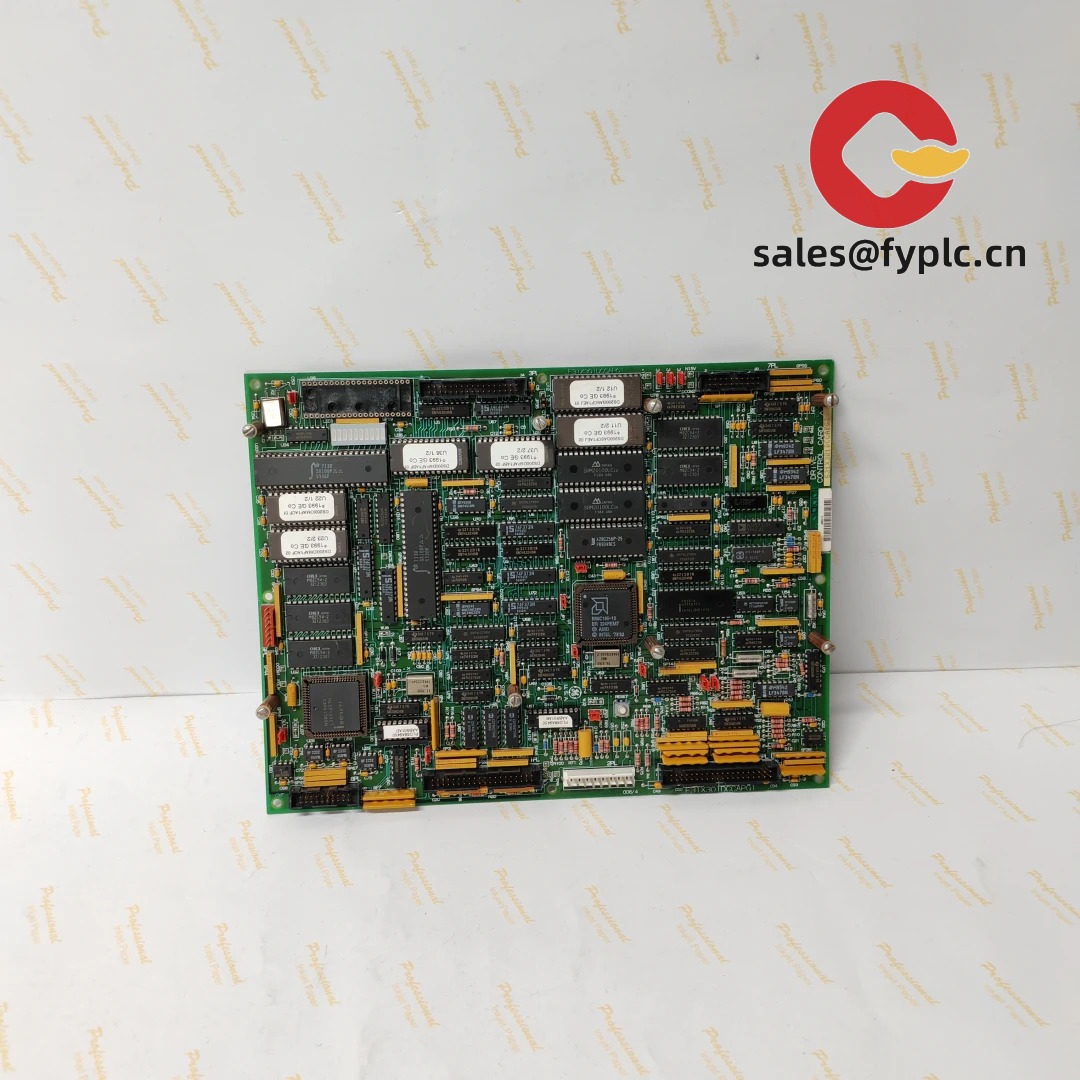

GE 531X301DCCAFG2 – Drive Control Card (DCC) Board for Legacy GE Drive/Excitation Cabinets

The GE 531X301DCCAFG2 is a drive control card from GE’s 531X series, typically found in legacy GE DC/AC drive and excitation racks. From my experience, maintenance teams keep this exact G2 variant as a like‑for‑like spare to recover a downed cabinet quickly—no cabinet rework, no new I/O maps, just seat the board, check connectors, and re‑enable. You might notice the dense analog/logic sectioning and clearly labeled headers; swaps during short outage windows are usually predictable when the variant matches the original.

Company’s Order Placement Process and Guarantees

• The warranty period is 365 days
• Delivery time: 1 week for in-stock; no more than one month at the latest
• Payment method: 50% advance payment, full payment for delivery
• Express delivery methods: FedEx, UPS, DHL
• Pre‑shipment checks: visual/label verification and basic functional checks; ESD‑safe, shock‑resistant packing

Key Features

• Like‑for‑like DCC replacement – G2 build intended to slot into existing GE 531X drive/exciter cabinets with minimal rework.
• Analog control core – Conditioned references, feedback processing (e.g., tach/encoder/voltage), and loop handling for speed/torque control.
• Relay/logic interfacing – On‑board logic and relay drive points tie cabinet interlocks and permissives together cleanly.
• Backplane powered – Draws regulated rails from the cabinet supply; no separate field power run to the board.
• Service‑friendly layout – Labeled headers and test points typically make commissioning and diagnostics faster.
• Built for 24/7 duty – Rugged PCB and components suited to electrically noisy drive enclosures.

Technical Specifications

Application Fields

You’ll typically see the 531X301DCCAFG2 wherever legacy GE drive/excitation cabinets still anchor production:

• Metals and rolling mills – stable speed/torque loops and interlocks on DC/AC drives.
• Pulp & paper – long‑run sections needing predictable analog control.
• Power generation/exciters – cabinet spares to keep excitation systems online.
• Mining and material handling – robust operation in high‑noise electrical rooms.

A maintenance engineer told me last season, “We seated the DCC board, checked the standoffs and edge connector, and the drive enabled cleanly on the first try.” That’s been my experience too when the variant code matches the original card.

Advantages & Value

• Reliability – Industrial‑grade PCB proven in 24/7 service.
• Compatibility – G2 build aligns with installed 531X systems, so engineering changes are minimal.
• Cost control – Extends life of legacy assets; defers costly platform migrations.
• Support – We can help verify interchange, jumper positions, and pre‑startup checks before your window.
• Lead‑time clarity – Practical deliveries that fit outage plans.

Installation & Maintenance

• ESD handling: Use a grounded wrist strap; handle by the edges; store in ESD‑safe packaging.
• Seating & fixation: Align guides carefully; fully engage the backplane connector; tighten standoffs evenly.
• Wiring & EMC: Keep low‑level analog leads away from motor power; maintain shield continuity.
• Commissioning: Verify jumpers/DIP settings if present; perform a dry‑run I/O and loop check; monitor status points on the host.
• Routine care: Quarterly dust cleaning, connector re‑torque, and trending of key analog references/feedbacks.

Quality & Certifications

• Manufactured to GE industrial quality standards, typically aligned with ISO 9001.
• Component‑level spare; CE/UL compliance handled at the system level in most applications.
• RoHS status may vary by build generation; confirmation available by part/serial.
• Warranty: 365 days repair/replace coverage from delivery.
