GE 531X306LCCBAG3 – LCCB Local Control Card for Legacy GE Drive & Excitation Cabinets

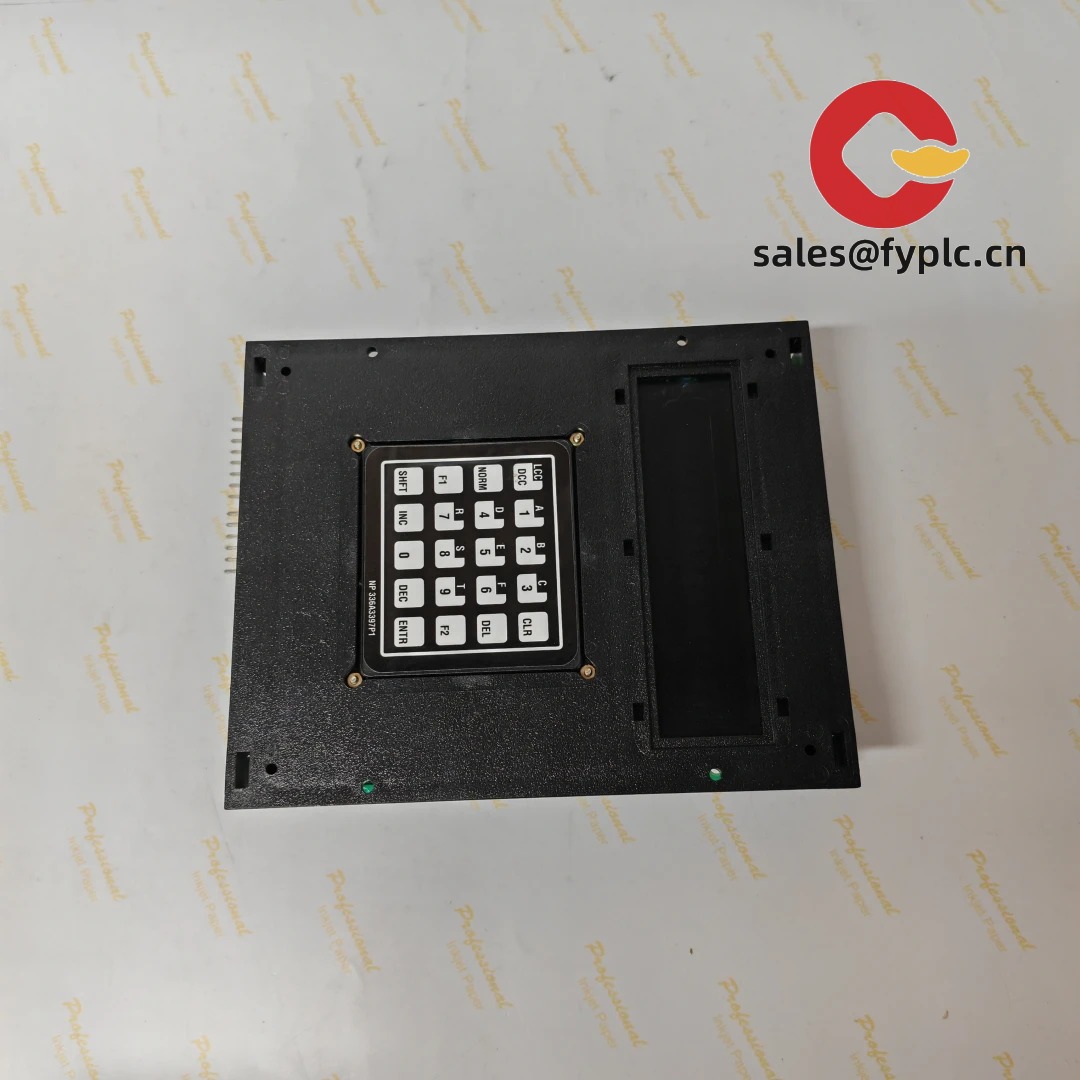

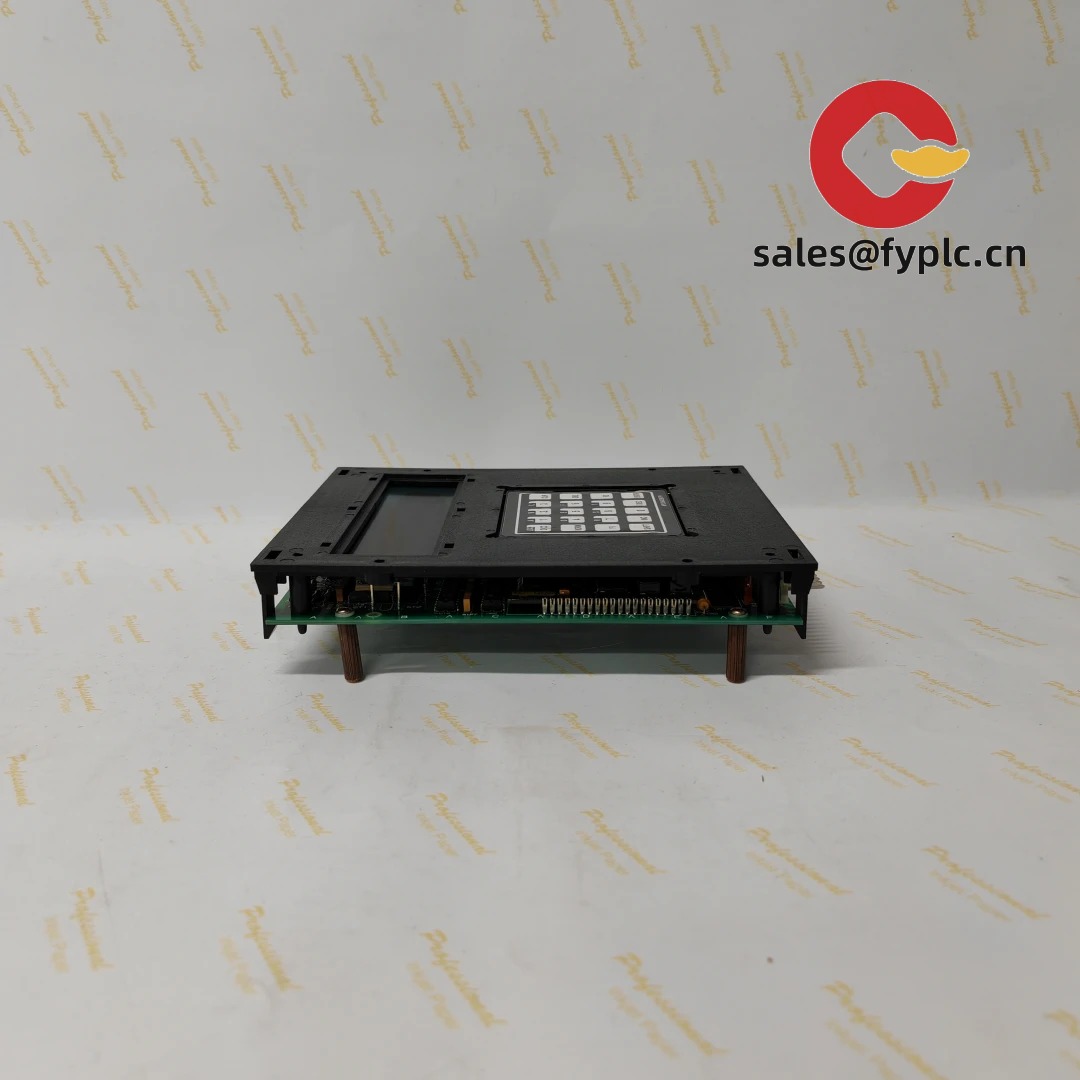

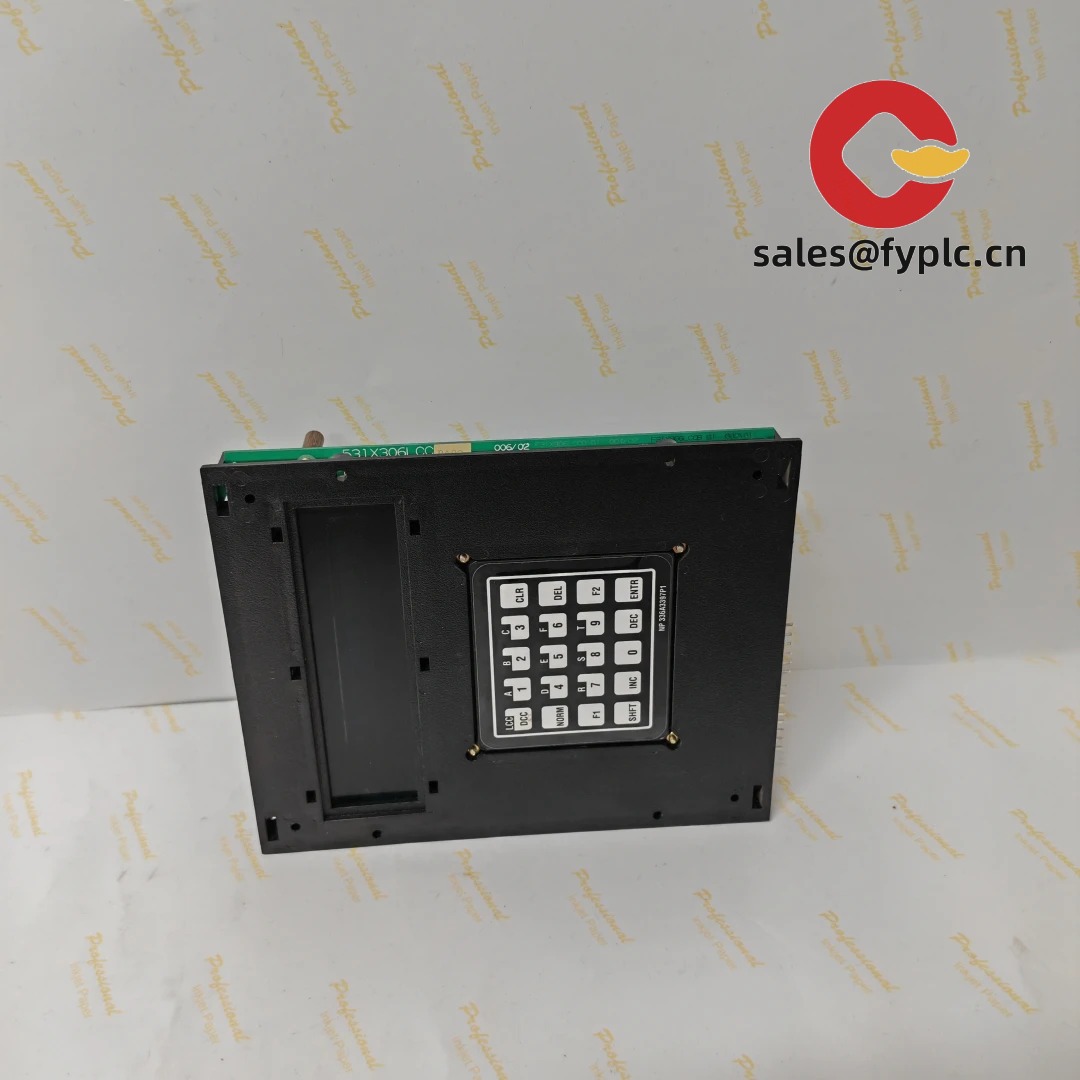

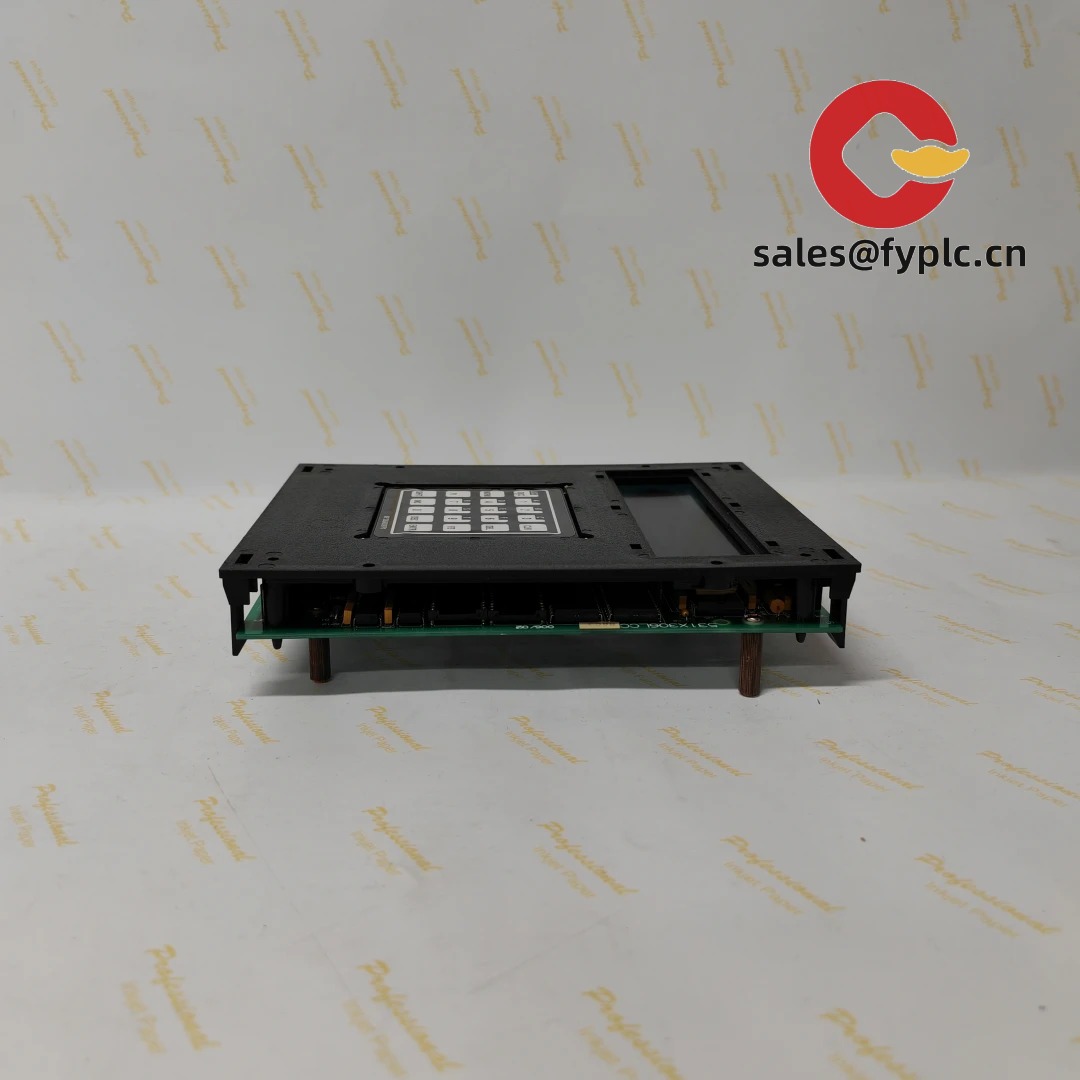

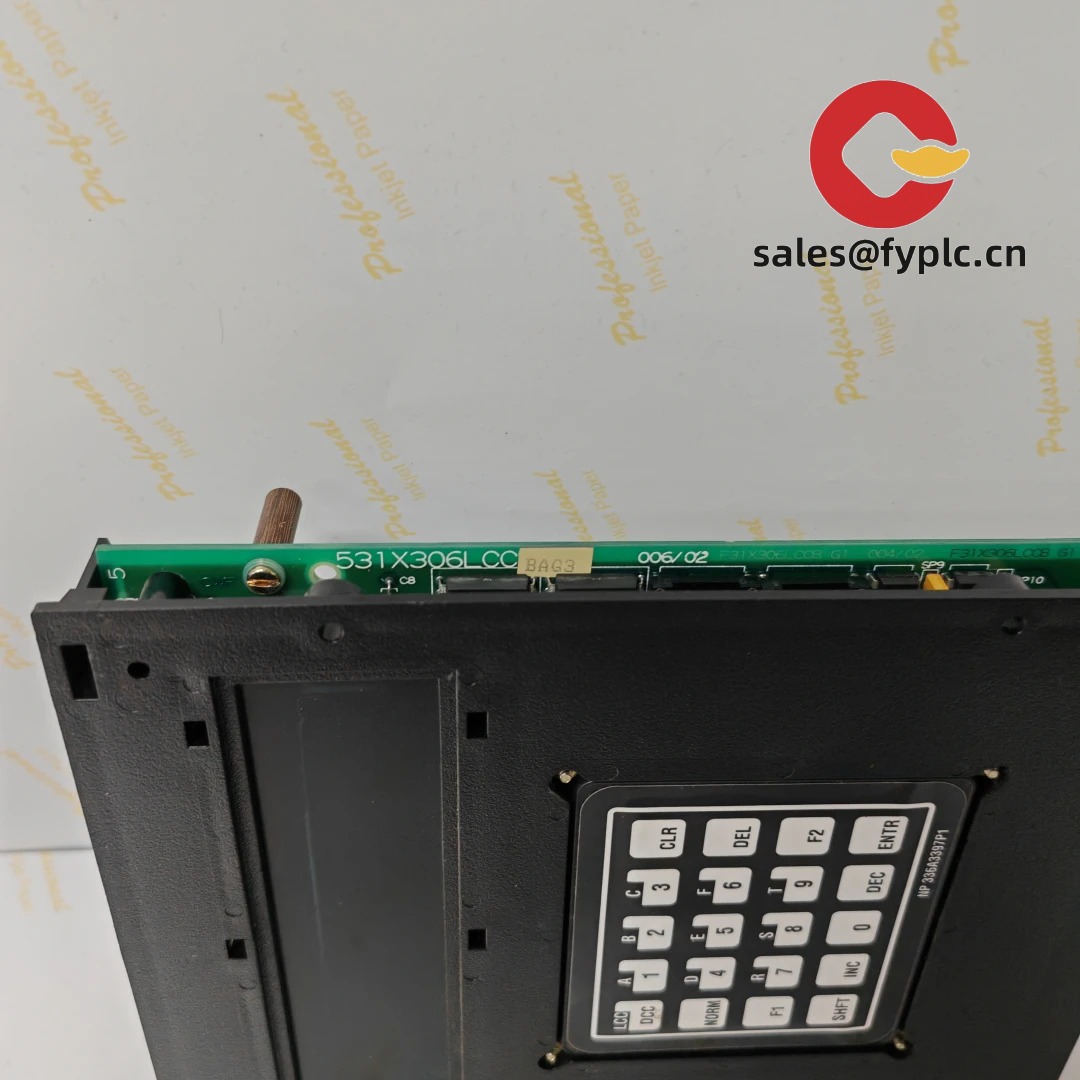

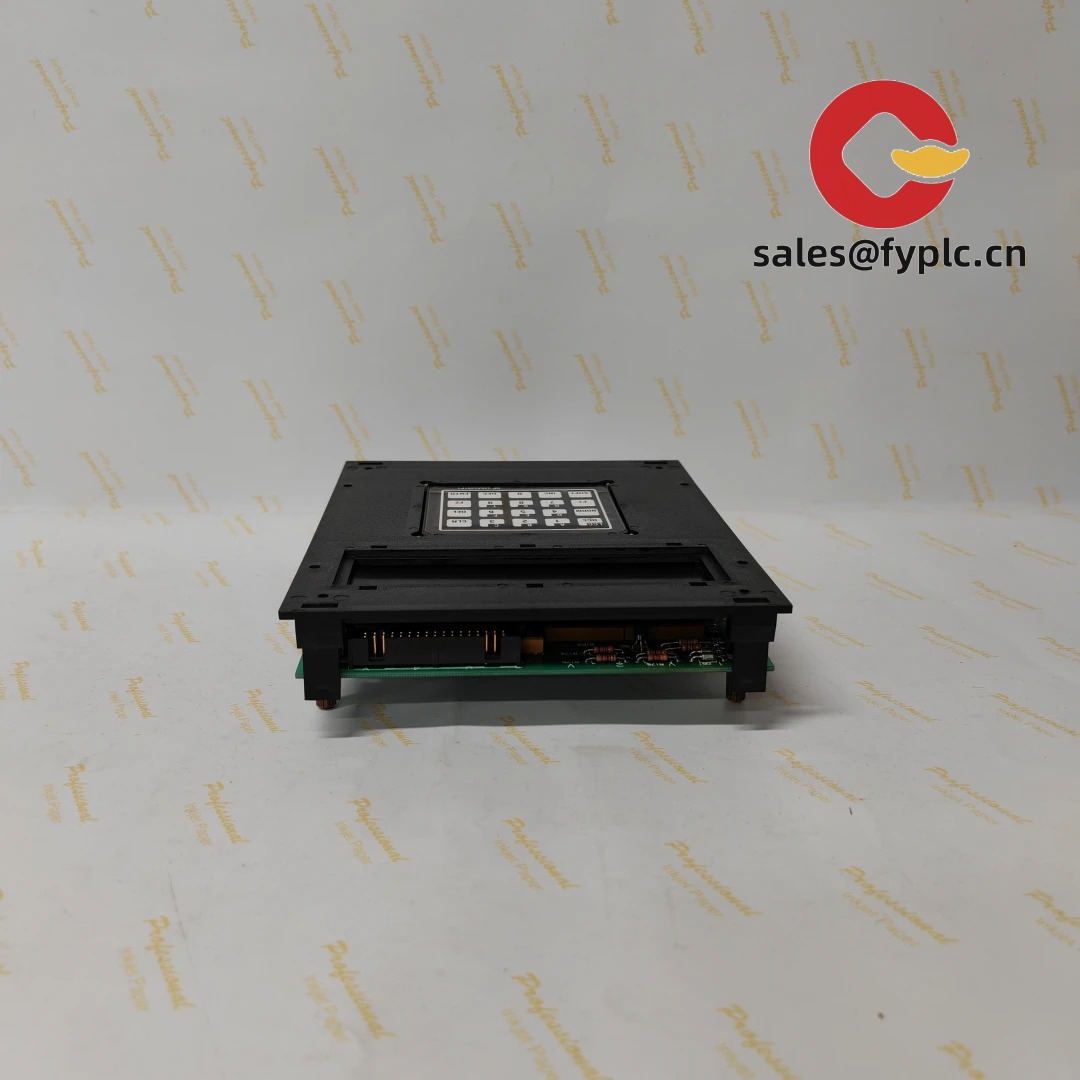

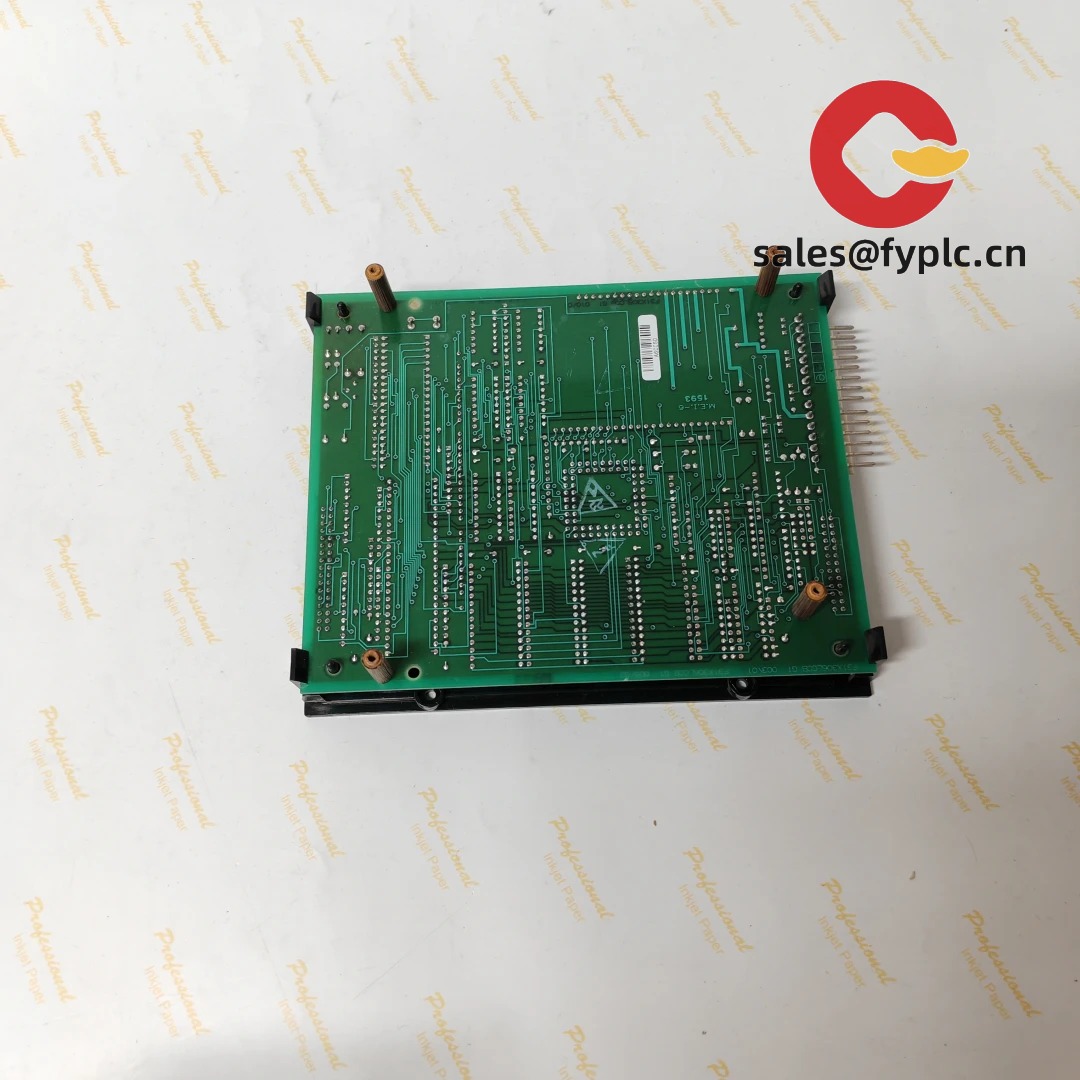

The GE 531X306LCCBAG3 is an LCCB Local Control Card from GE’s 531X series, used widely in legacy GE drive and exciter systems to process references, feedbacks, and interlocks. From my experience, plants keep this exact G3 variant as a like‑for‑like spare—seat the board, move the ribbon/backplane connectors, and you’re typically ready for enable checks without redrawing the cabinet. You might notice the dense analog/logic sections and clearly labeled headers in the photo; that layout usually makes swaps during short windows predictable and quick.

Company’s Order Placement Process and Guarantees

• The warranty period is 365 days
• Delivery time: 1 week for in-stock; no more than one month at the latest
• Payment method: 50% advance payment, full payment for delivery
• Express delivery methods: FedEx, UPS, DHL
• Pre‑shipment checks: visual/label verification and connector integrity; ESD‑safe, shock‑resistant packing

Key Features

• LCCB control core – Handles local control functions—conditioning analog references/feedbacks and coordinating interlocks.
• Backplane integration – Edge/ribbon connectors tie the card into the cabinet’s system bus and regulated power rails.
• Service‑friendly layout – Clear labeling, test points, and grouped connectors typically shorten diagnostics and swaps.
• G3 variant compatibility – Intended as a like‑for‑like replacement in 531X‑based GE drive/excitation systems to avoid engineering rework.
• Built for 24/7 duty – Robust PCB and components that hold up well in electrically noisy drive enclosures.

Technical Specifications

Application Fields

I usually see the 531X306LCCBAG3 in cabinets where uptime and predictable swaps matter more than feature changes:

• Metals rolling and processing – stable speed/torque loop control on legacy DC/AC drives.
• Pulp & paper – long‑running sections needing dependable analog/control processing.
• Power generation/exciters – keeping excitation controls online with like‑for‑like spares.
• Mining & material handling – robust operation in high‑noise electrical rooms.

A maintenance supervisor told me, “We matched the G3 board, seated the edge connector, and the drive enabled cleanly on the first try.” That seems to be the norm when wiring is tidy and the variant code lines up.

Advantages & Value

• Reliability – Industrial‑grade PCB proven in 24/7 service.
• Compatibility – G3 variant aligns with installed 531X systems, minimizing engineering changes.
• Cost control – Extends the life of legacy assets and defers platform migrations.
• Support – We can help verify interchange, jumper settings, and pre‑startup checks before your outage window.
• Lead‑time clarity – Practical deliveries and tested units that fit outage planning.

Installation & Maintenance

• ESD handling: Use a grounded wrist strap; handle by edges; store in ESD‑safe packaging.
• Seating & fixation: Align guides carefully; fully engage backplane/ribbon connectors; tighten standoffs evenly.
• Wiring & EMC: Keep low‑level analog leads separate from motor power; maintain shield continuity.
• Commissioning: Verify labeling vs. cabinet drawings; check any jumpers/DIP settings; run a dry‑run I/O and enable test.
• Routine care: Quarterly dust cleaning, terminal/connector re‑torque, and quick trending of key references.

Quality & Certifications

• Manufactured to GE industrial quality standards, typically aligned with ISO 9001.
• Component‑level spare; compliance (CE/UL) is generally handled at the system level.
• RoHS status depends on build generation; confirmation available by part/serial.
• Warranty: 365 days repair/replace coverage from delivery.
