GE 531X309SPCAJG1 – SPCA Signal/Process Control Board for Legacy GE Drive & Excitation Cabinets

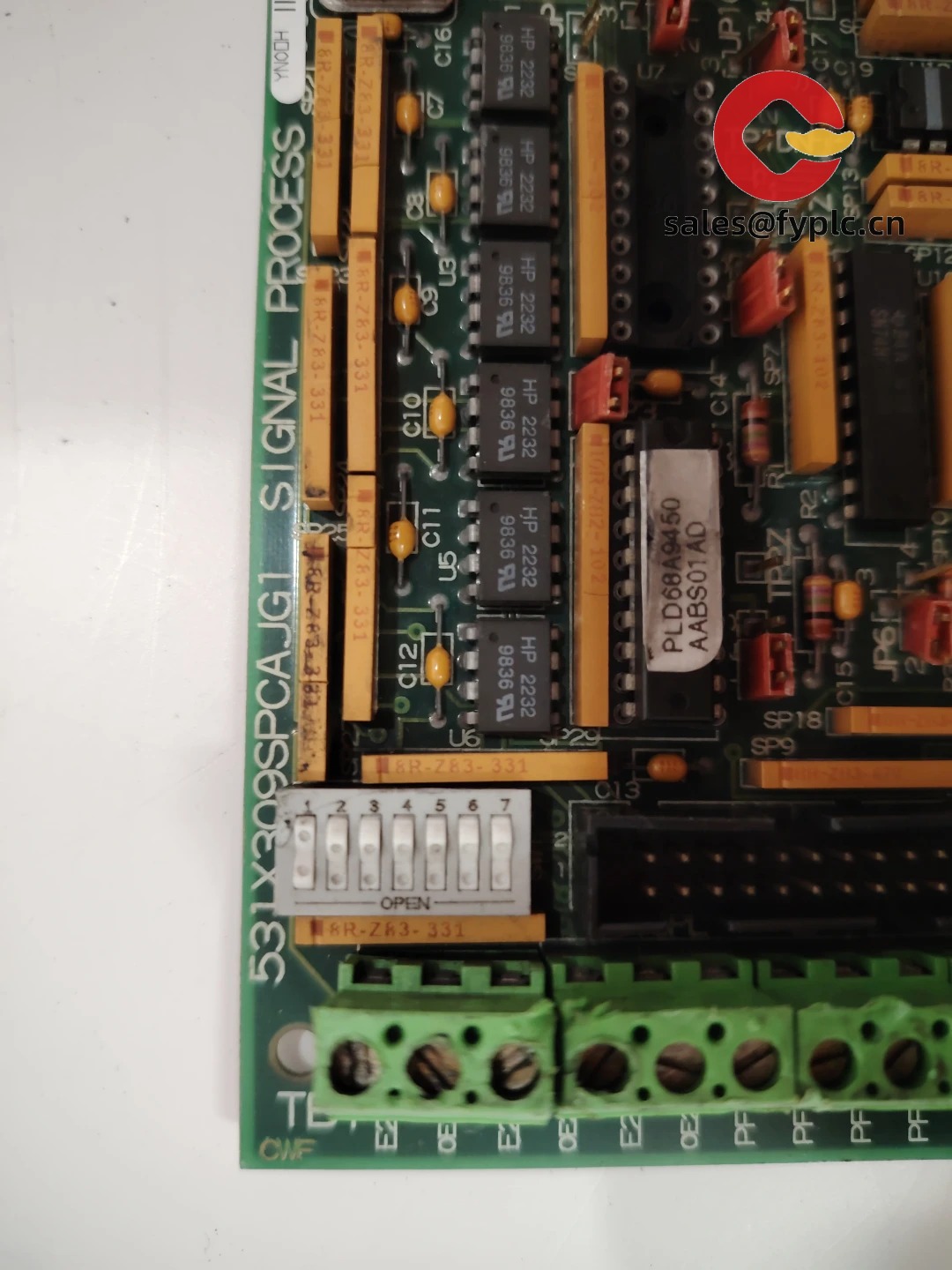

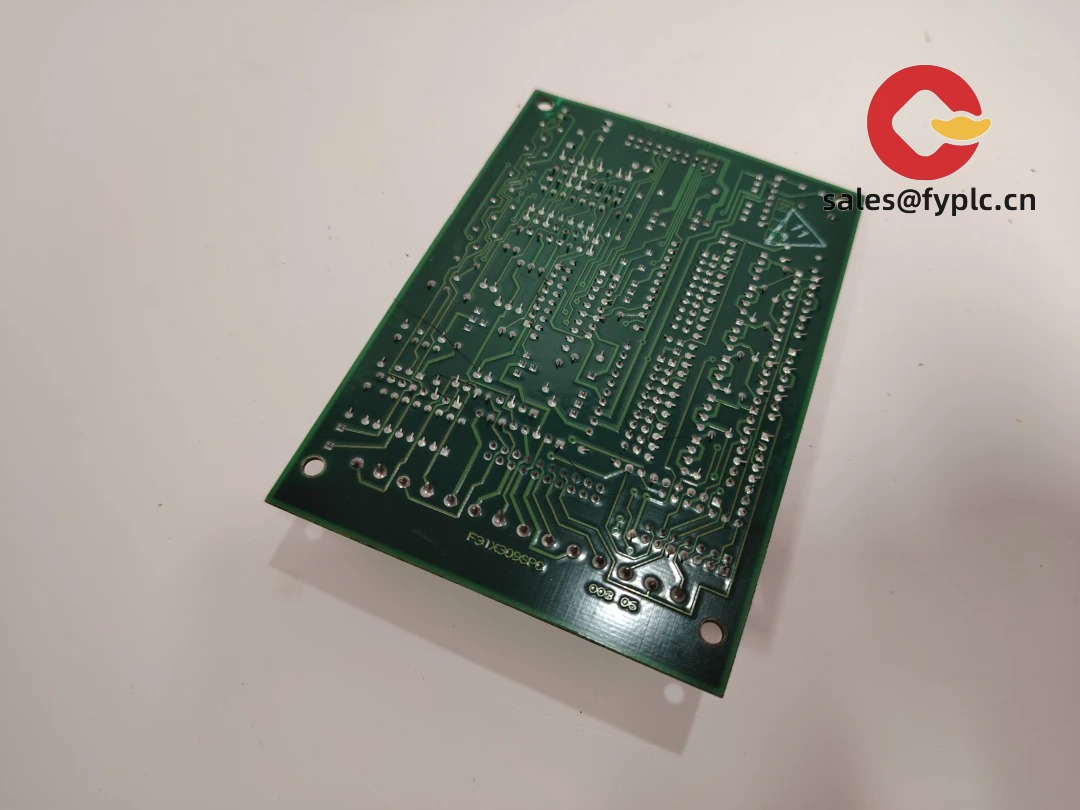

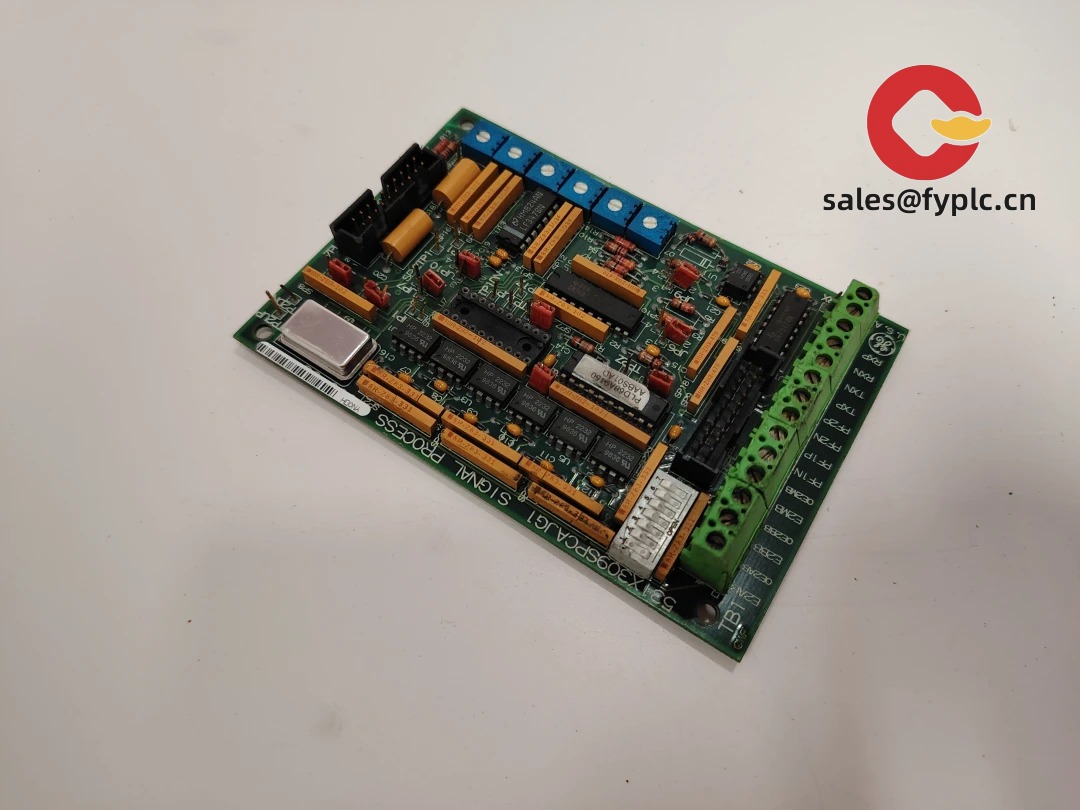

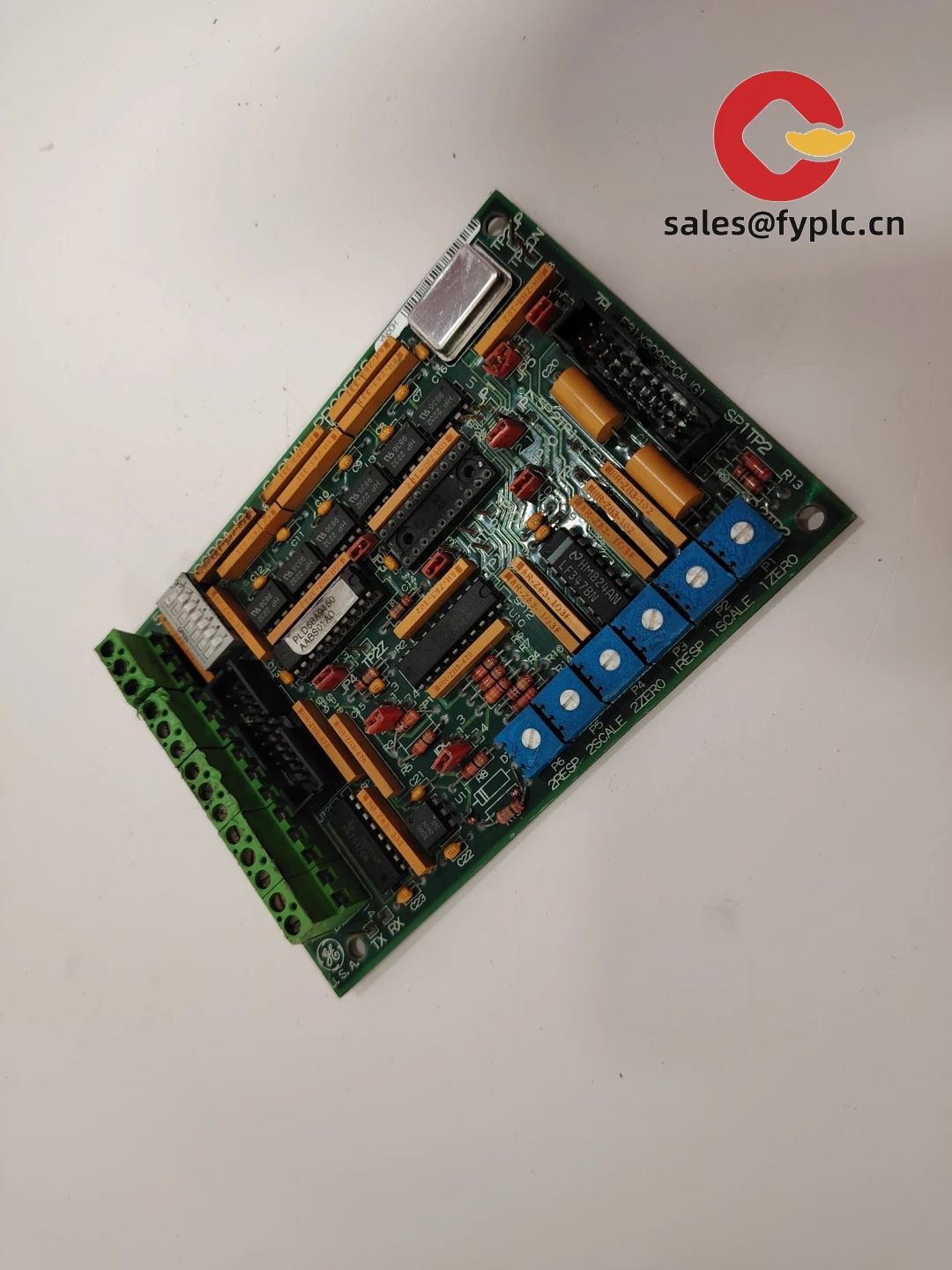

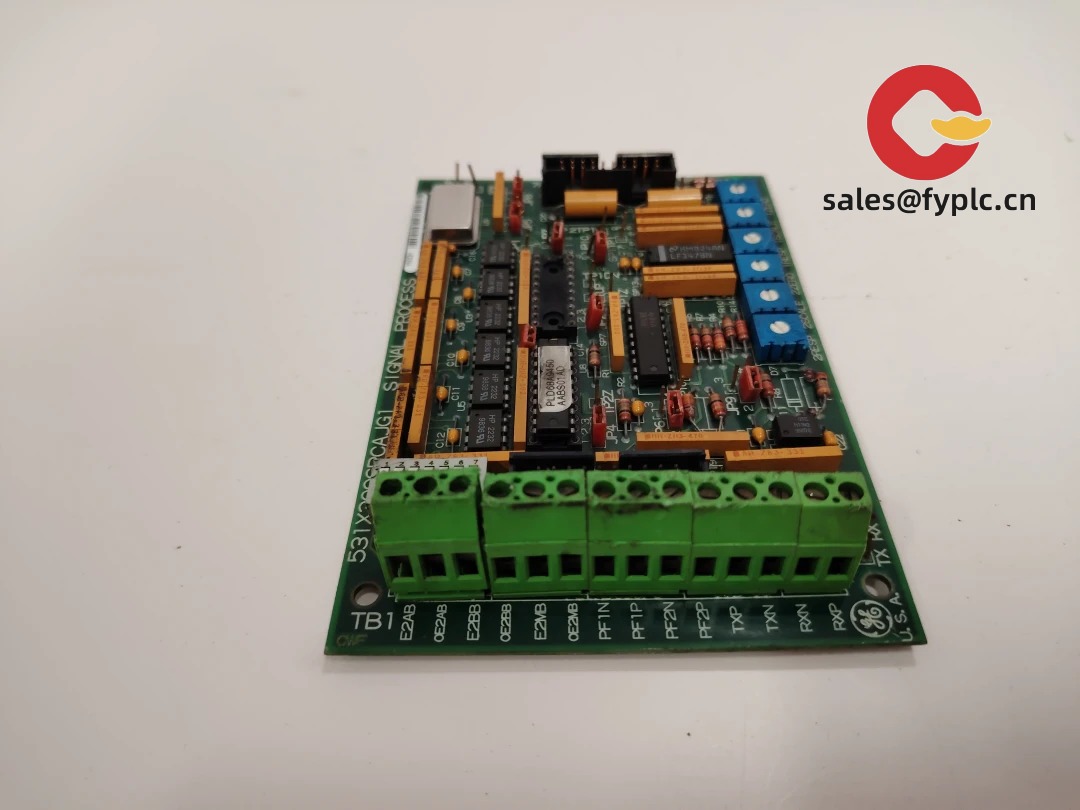

The GE 531X309SPCAJG1 is an SPCA-series control board from GE’s 531X family, used widely in legacy GE drive and exciter systems to condition analog references, process feedbacks, and coordinate interlocks with companion cards. From my experience, plants keep this exact JG1 variant on the shelf for like‑for‑like swaps—seat the board, connect the ribbon/backplane links, move any terminalized leads one‑to‑one, and the cabinet is typically ready for enable checks without redrawing wiring. You might notice the dense analog/logic sectioning and silk‑screened test points in the photos; that’s what makes maintenance predictable in tight outage windows.

Company’s Order Placement Process and Guarantees

• Warranty period: 365 days
• Delivery time: 1 week for in‑stock; no more than one month at the latest
• Payment method: 50% advance payment, full payment for delivery
• Express delivery methods: FedEx, UPS, DHL
• Pre‑shipment: visual/label verification and connector integrity check; ESD‑safe, shock‑resistant packing

Key Features

• Signal conditioning & control – Handles analog references/feedbacks and discrete interlocks for GE drive/exciter loops.
• Backplane integration – Edge/ribbon connectors tie into the cabinet’s system bus and regulated power rails.
• JG1 variant compatibility – Intended as a like‑for‑like swap in installed 531X systems to avoid engineering rework.
• Service‑friendly layout – Labeled headers and test points typically shorten commissioning and fault‑finding.
• 24/7 duty build – Robust PCB and components that hold up well in electrically noisy drive enclosures.

Technical Specifications

Application Fields

You’ll typically find the 531X309SPCAJG1 wherever legacy GE drive/excitation platforms are still the backbone of production:

• Metals and rolling mills – stable speed/torque loops and interlocks on DC/AC drives.
• Pulp & paper – predictable analog control in long‑running sections.
• Power generation/exciters – cabinet spares to keep excitation systems online.
• Mining and material handling – resilient operation in high‑noise electrical rooms.

A maintenance lead told me last month, “We matched the JG1 code, seated the edge connector, and the drive enabled cleanly on the first try.” That mirrors what I usually see when the variant lines up and the connectors are properly seated.

Advantages & Value

• Reliability – Industrial‑grade PCB proven in 24/7 service.
• Compatibility – JG1 variant aligns with installed 531X systems, minimizing engineering changes.
• Cost control – Extends legacy asset life and defers costly platform migrations.
• Support – We can help verify interchange, jumper settings, and pre‑startup checks before your outage window.
• Lead‑time clarity – Practical deliveries and tested units that fit outage planning.

Installation & Maintenance

• ESD handling: Use a grounded wrist strap; handle by edges; keep the board in ESD‑safe packaging until install.
• Seating & fixation: Align guides; fully engage backplane/ribbon connectors; tighten standoffs evenly.
• Wiring & EMC: Separate low‑level analog leads from motor power; maintain shield continuity and panel ground.
• Commissioning: Verify labeling vs. cabinet drawings; check any jumpers/DIP settings; perform a dry‑run I/O and enable test.
• Routine care: Quarterly dust cleaning, connector re‑torque, and trending of key analog references.

Quality & Certifications

• Manufactured to GE industrial quality standards, typically aligned with ISO 9001.
• Component‑level spare; compliance (CE/UL) is generally handled at the system level.
• RoHS status depends on build generation; confirmation available by part/serial.
• Warranty: 365 days repair/replace coverage from delivery.
