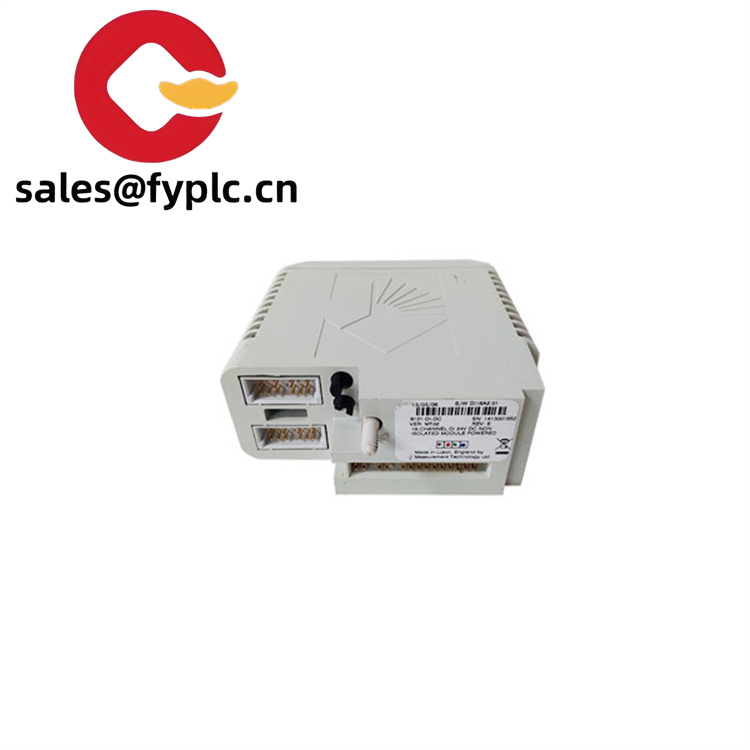

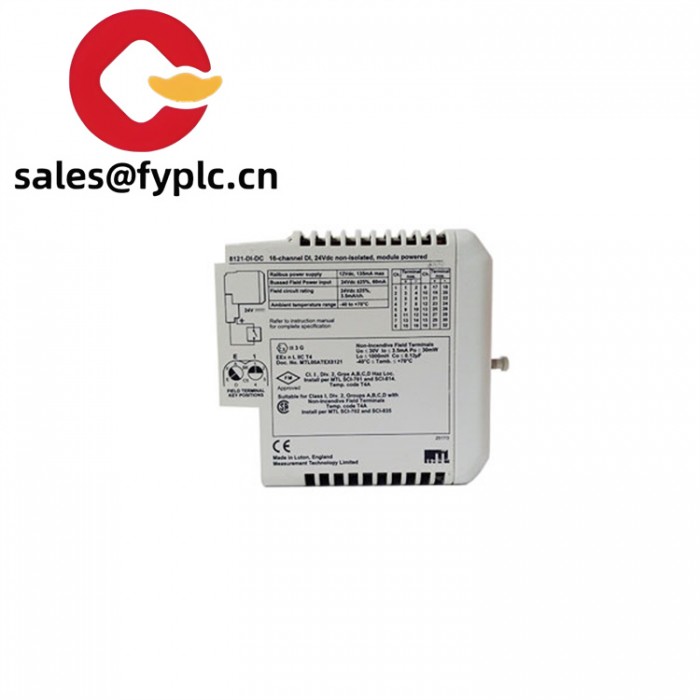

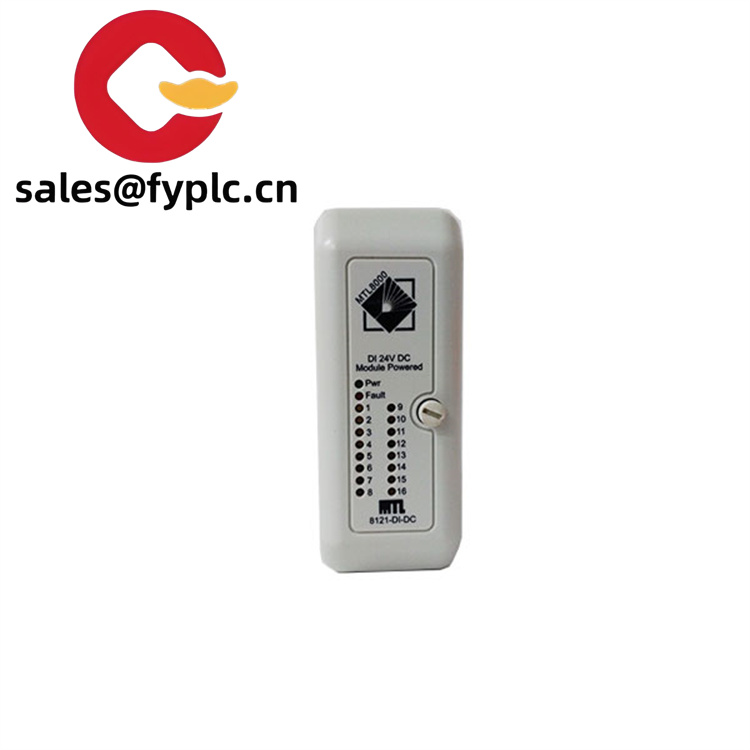

GE 8121-DI-DC/8502-BI-DP programmable controller with eight channel analog inputs
8121-DI-DC
At its core, the GE 8121-DI-DC serves as the bridge between field devices and control systems, ensuring accurate and noise-immune signal transmission. Its 16 isolated channels allow simultaneous monitoring of discrete inputs, making it ideal for applications requiring high-density I/O in compact footprints. Whether detecting the position of a conveyor belt sensor in a factory or monitoring safety interlocks in a chemical plant, this module ensures that critical binary data is captured with precision, enabling timely responses from PLCs, DCS, or SCADA systems.
| Label |
Specification |
| Model Number |
8121-DI-DC |
| Brand |
General Electric (GE) |
| Type |
16-Channel Digital Input Module (DC Input) |
| Input Voltage |
24 V DC (nominal, with 16-30 V DC tolerance) |
| Operating Temperature |
-40°C to 70°C (industrial-grade thermal resilience) |
| Communication |
Integrated with PAC8000 I/O bus (proprietary GE protocol) |
| Mounting |
DIN-rail or flat-panel mounting (compatible with PAC8000 racks) |
| Weight |
~0.5 kg (compact design for space-constrained panels) |
| Certifications |
CE, UL Listed, RoHS compliant |
| Dimensions |
100 mm (H) × 50 mm (W) × 120 mm (D) |
| Isolation |
Channel-to-channel and channel-to-system isolation (250 V RMS) |
| Response Time |
<10 ms (de-bounce filter adjustable via software) |
8121-DI-DC
The GE 8121-DI-DC differentiates itself through its rugged design and intelligent signal processing. Each of its 16 channels features optical isolation, protecting the control system from voltage spikes, ground loops, and electromagnetic interference (EMI) common in industrial settings. This isolation ensures signal integrity even in high-noise environments, such as near motors, welders, or transformers, reducing false readings and minimizing downtime.
Operators benefit from the module’s adjustable de-bounce filtering, which eliminates transient noise from mechanical switches or vibrating sensors. By configuring filter times (typically 1–100 ms) via GE’s Proficy software, users can tailor the module to their specific application, ensuring only stable, reliable signals are transmitted to the control system. This feature is particularly valuable in packaging lines or heavy machinery, where rapid mechanical movements could otherwise generate erroneous inputs.
In manufacturing automation, the GE 8121-DI-DC is essential for monitoring conveyor systems, robotic cells, and quality control checkpoints. For example, in an automotive assembly plant, the module can detect when a vehicle chassis reaches a specific workstation via limit switches, triggering the next robotic arm to activate. Its fast response time and noise immunity ensure that each input signal is captured accurately, even in the high-speed, high-vibration environment of a production line, thus maintaining throughput and reducing assembly errors.
8121-DI-DC
In energy and utilities, the module plays a critical role in supervisory control systems. At a wastewater treatment facility, the 8121-DI-DC might monitor the open/closed status of valves, pump run signals, or emergency stop buttons. By integrating with a SCADA system, the module provides operators with a real-time overview of plant status, enabling proactive maintenance and compliance with safety protocols. Its ability to withstand extreme temperatures (-40°C to 70°C) makes it suitable for outdoor installations or unconditioned control rooms, further expanding its utility in harsh environments.
Across industries, the 8121-DI-DC addresses the fundamental need for reliable, high-density digital input monitoring. By reducing signal noise and enhancing diagnostic capabilities, it strengthens the foundation of industrial control systems, contributing to improved process reliability and operational efficiency.
