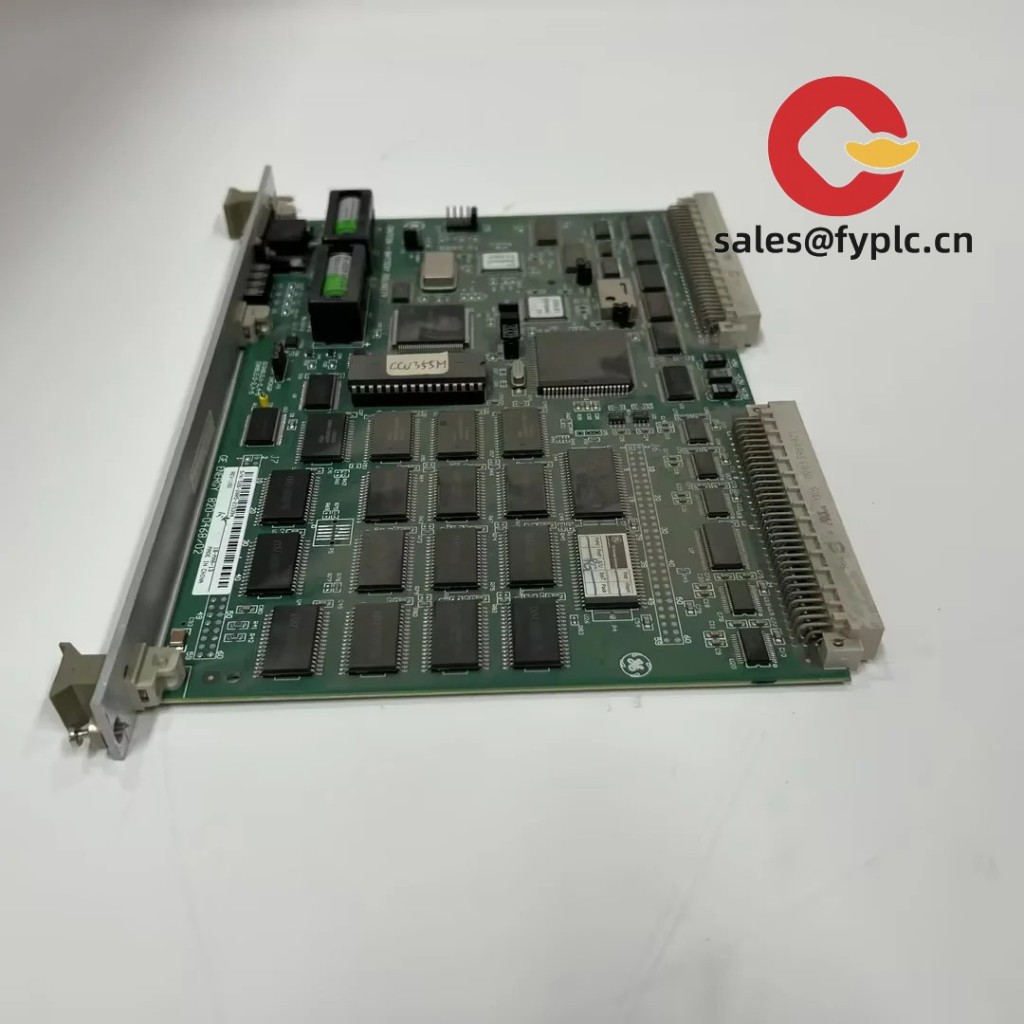

GE D20ME 526-2005-216943 – Master Ethernet Communications Module for D20 RTU Platforms

The GE D20ME (part no. 526-2005-216943) is the Ethernet communications and processing module typically used in GE D20 and related substation RTU systems. From my experience, this card sits at the heart of the D20 rack’s networking—bridging legacy serial field devices with modern SCADA over Ethernet. It’s a straightforward drop-in for D20 chassis, no external power, and it usually supports the staple utility protocols (DNP3, Modbus, and in many cases IEC 60870). You might notice that it’s often chosen for life‑extension projects where a utility wants Ethernet and protocol conversion without ripping out the entire RTU.

Our Order Placement Process and Guarantees

• Warranty: 365 days
• Lead time: 1 week when in stock; no more than one month at the latest
• Payment terms: 50% advance payment; full payment prior to delivery
• Express couriers: FedEx, UPS, DHL
• Packing & handling: ESD-safe packaging and shock-absorbing materials for transit

Key Features

• D20 rack compatible – Plug-in module designed for standard GE D20 chassis slots; no external PSU required.
• Ethernet SCADA gateway – Typically provides 10Base‑T (some revisions support 10/100) for connecting to modern control networks.
• Protocol coverage for utilities – Commonly supports DNP3 (TCP/UDP), Modbus (TCP/RTU), and often IEC 60870‑5 (‑101/‑104), enabling mixed‑vendor integration.
• Backplane serial integration – Leverages D20 backplane to aggregate serial field I/O and publish to Ethernet SCADA.
• Service/maintenance access – In many cases includes a maintenance RS‑232 interface for configuration and diagnostics.
• Rugged, substation‑grade design – Typically rated for extended temperatures and electrical noise found in substations.
• Lifecycle-friendly – Ideal for retrofit work where you keep the existing D20 I/O and upgrade communications capability.

Technical Specifications

Application Fields

Utilities and industrial operators use the D20ME to modernize communications without replacing legacy I/O. Typical scenarios include:

• Substation RTU upgrades where serial field devices need to be exposed over Ethernet SCADA
• Transmission and distribution bays consolidating DNP3 and Modbus equipment into a single RTU
• Oil & gas compressor stations and pipeline block valves with mixed serial and IP networks
• Renewable intertie points that must map legacy protection relays to DNP3/IEC over IP

“We swapped in the D20ME during a planned outage and were passing DNP3 over Ethernet within the hour. No surprises, stable comms.” — Protection & Control Engineer, T&D Utility

Advantages & Value

• Drop‑in compatibility – Works within the existing D20 ecosystem, minimizing engineering and panel rework.
• Protocol flexibility – Bridges serial fleets to Ethernet SCADA, which typically reduces polling latency and simplifies NOC routing.
• Cost control – Extends asset life; you re-use I/O, wiring, and cabinet space instead of full RTU replacements.
• Serviceability – Clear maintenance access and familiar D20 toolchains keep troubleshooting time low.
• Network modernization – Enables IP addressing, VLAN design, and centralized cyber controls that are difficult on serial-only systems.

Related Supporting Components

• GE D20 Base Chassis – Houses the D20ME and I/O modules; provides the backplane power and bus.
• GE D20 I/O Boards (e.g., digital/analog) – Interface to field signals; the D20ME aggregates and publishes their data to SCADA.
• D20 Power Supply Module – Redundant supply options are common in utility cabinets.
• GE D20MX / CPU Upgrades – For sites needing additional processing headroom or newer firmware feature sets.
• Configuration Cables & Adapters – RS‑232 service leads and Ethernet patching for commissioning.

Installation & Maintenance

• Cabinet & environment – Install in a clean, ventilated D20 rack inside an enclosure that meets utility cabinet standards; avoid condensation and corrosive atmospheres.
• Wiring & grounding – Observe ESD precautions; ensure robust panel ground; use shielded Ethernet in noisy yards where possible.
• Network setup – Assign IP addressing per site standards; validate protocol mappings (DNP3 points, Modbus registers) before energization.
• Routine maintenance – Periodic visual checks for connectors/backplane seating; scheduled config backup and, where applicable, firmware updates.
• Cyber hygiene – In most cases you should segment via VLANs, restrict services, and maintain an access log for compliance.

Quality & Certifications

• Certifications – GE D20 platform modules are typically supplied with CE and UL/cUL markings; EMC compliance suitable for substation use. RoHS status can vary by production year.
• Warranty – 365‑day warranty coverage.
• Testing – Units are typically function-tested prior to dispatch to verify comms and backplane operation.

If you need confirmation of firmware options or port configuration for the specific revision 526-2005-216943, share your target protocols and rack population—I can match it to the right build and lead time.
