Description

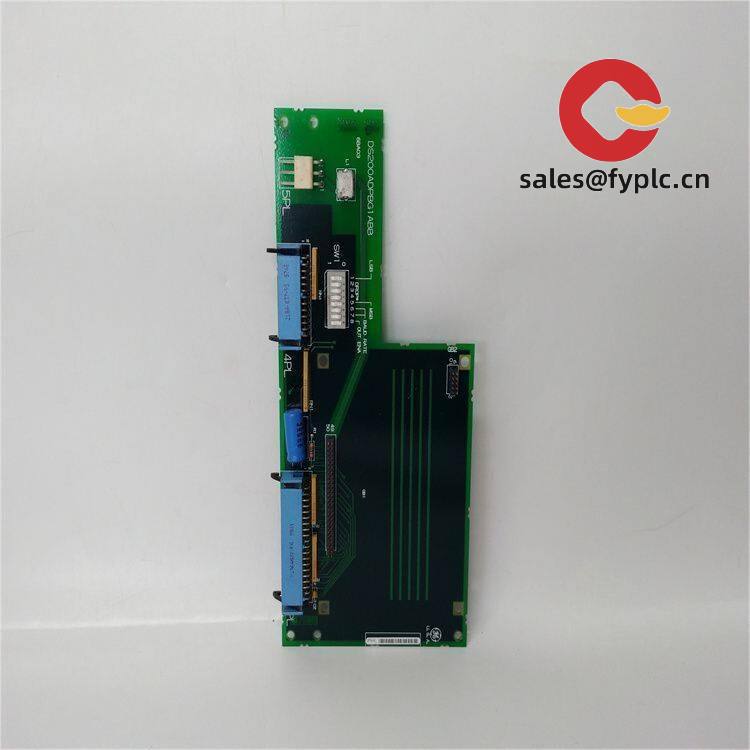

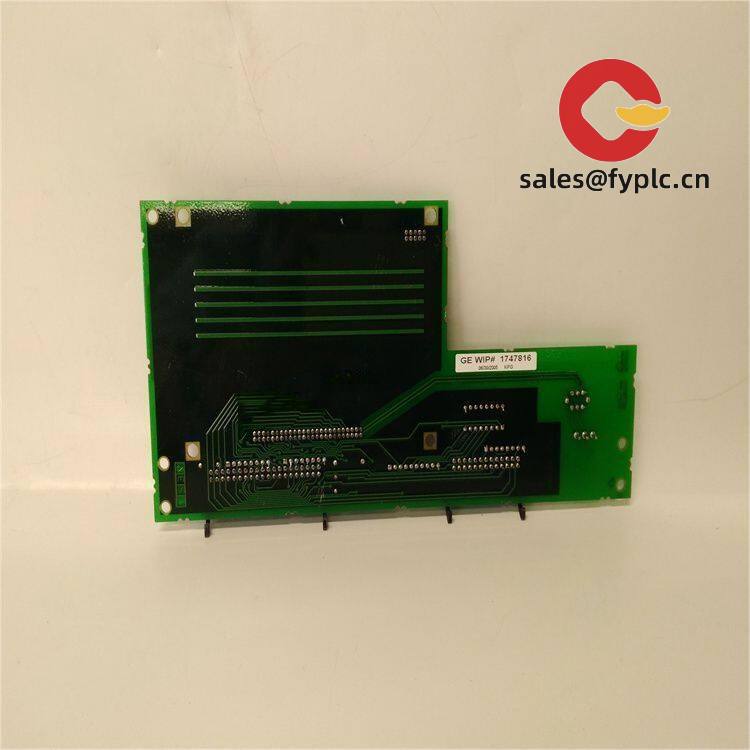

GE DS200ADPBG1ABB Genius Adapter Board – Reliable Genius Bus Interface for Mark V and GE Drive Systems
The DS200ADPBG1ABB is GE’s “ADPB” Genius adapter board, designed to bridge your control system to the GE Genius I/O bus. You’ll typically find it in GE Mark V Speedtronic panels and a range of GE drive platforms, where it provides a stable, noise‑resistant communications path to distributed Genius I/O. From my experience, it’s one of those low‑profile boards that quietly keeps the whole system talking—simple to set up, dependable once running, and rarely the source of downtime.
Company’s Order Placement Process and Guarantees
- Warranty: 365 days
- Delivery: 1 week if in stock; no more than 1 month at the latest
- Payment: 50% advance; full payment before delivery
- Express: FedEx, UPS, DHL
- Each board is professionally packed with ESD protection and function-tested prior to dispatch.
Key Features
- Genius Bus Interface – Provides a robust link to GE Genius distributed I/O (shielded twisted pair), commonly used with IC660 blocks and Genius drops.
- Backplane Powered – Draws power from the host rack; no external power supply or field PSU wiring needed.
- Noise‑resistant RS‑485 Signaling – Stable communication in high‑EMI industrial cabinets; bus speeds typically up to 153.6 kbps for Genius networks.
- Onboard Status & Setup – LED indicators for bus/health, plus DIP switches or jumpers for node address and network termination in many cases.
- Drop‑in Form Factor – Fits the standard GE DS200 board format for Mark V and GE drive control stacks.
- Revision “ABB” – Functional revision A with later artwork/BOM updates (B/B), a common, field‑proven build that seems to be widely compatible.
Technical Specifications
| Brand / Model | GE DS200ADPBG1ABB (ADPB – Genius Adapter Board) |
| HS Code | 8538.90 (Parts for industrial control apparatus) |
| Power Requirements | Supplied from host backplane (no external supply required) |
| Operating Temperature | 0 to +60 °C typical (cabinet‑mounted, forced ventilation recommended) |
| Signal I/O Types | Genius bus (RS‑485 over shielded twisted pair), onboard status LEDs, DIP switch/jumper configuration |
| Communication Interfaces | Genius trunkline connection via pluggable terminal/screw terminal; backplane interface to host controller |
| Installation Method | Plug‑in DS200 PCB; fixed with standoffs, ribbon/backplane connectors; field wiring to Genius trunkline |
| Form Factor | DS200 board format (board‑level component for GE Mark V / GE drives) |
Application Fields
This board is used wherever GE Genius I/O networks need to be integrated with a Mark V or GE drive control system. You might notice it most in:
- Power generation (gas/steam turbine control with Mark V cabinets)
- Metals and mining (rolling mills, hoists, material handling)
- Oil & gas (compressors, pumping skids, process interlocks)
- Pulp & paper and chemicals (distributed I/O drops across large plants)
- General industrial drives where remote Genius I/O blocks are preferred
Field note: A maintenance supervisor told us, “Swapping the DS200ADPBG1ABB took under an hour. Once the node address and termination were set, the Genius network recovered immediately. That saved us a late‑night callout.”
Advantages & Value
- Drop‑in replacement: Matches the DS200 footprint and connectors—minimal rewiring, which typically shortens downtime.
- Proven compatibility: Works with common Genius I/O drops (e.g., IC660 series) widely deployed in legacy and mid‑life plants.
- Cost control: Extends asset life without forcing a network migration; avoids unplanned upgrades.
- Serviceability: LED diagnostics and straightforward DIP settings help maintenance teams verify bus health quickly.
- Supply assurance: Stock‑based fulfillment whenever possible with clear lead times and a full‑year warranty.
Installation & Maintenance
- Cabinet conditions: Install in a clean, ventilated control cabinet. Keep ambient within 0–60 °C and avoid condensation.
- ESD handling: Use grounding straps and ESD bags. Handle by edges; avoid touching components.
- Wiring: Use shielded twisted pair for the Genius trunkline. Ground shield at one end to reduce ground loops.
- Termination & addressing: Enable line termination at the physical ends of the network only. Set node address per site convention via DIP switches.
- Routine checks: Inspect connectors quarterly, verify shield continuity, and confirm LED status patterns during walkdowns.
- Firmware/settings: Parameters are typically hardware‑set (DIP/jumpers); no field firmware update is usually required.
Quality & Certifications
- Built for GE industrial environments; conforms to GE system safety and EMC practices when installed as part of the original system.
- CE and UL compliance typically applicable at the system level; RoHS status may vary on legacy units (many are exempt in industrial control).
- Supplied with a 365‑day warranty and functional testing report on request.
Common Supporting Components (for Planning)
- Genius I/O blocks: IC660 series remote I/O drops used across many plants; the DS200ADPBG1ABB provides the trunkline interface to these nodes.
- Genius bus controllers (PLC side): IC693/IC697 BEM modules in Series 90 systems, where applicable in mixed installations.
- GE Mark V / drive controller boards: DS200 control stack boards that host and power the ADPB for integrated operation.
