GE DS200SLCCG1AEE – LAN/Serial Communication Card for GE Drives and Excitation Systems

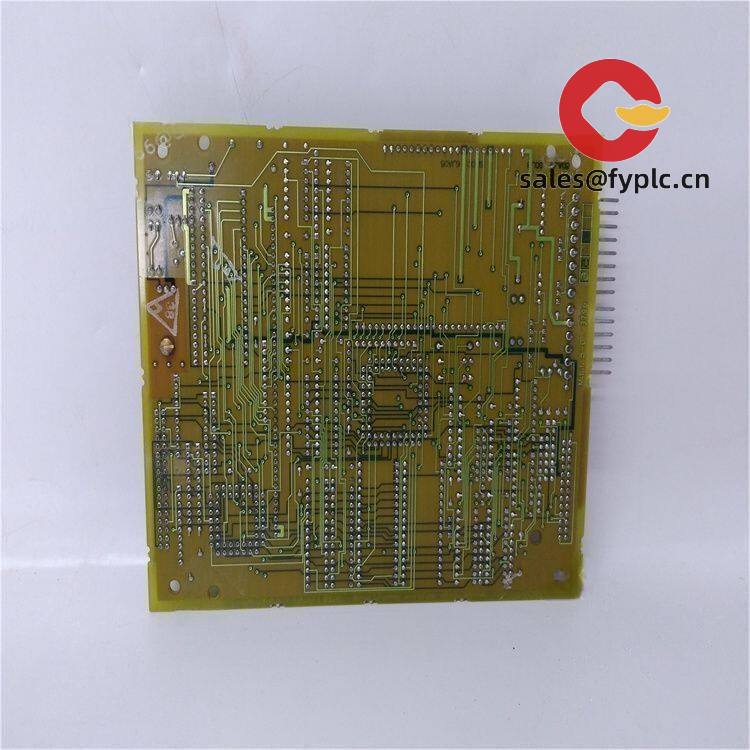

The DS200SLCCG1AEE is a GE communication card designed to provide LAN and serial links for legacy and current GE drive platforms such as DC2000, AC2000, and EX2000, as well as related control racks. From my experience, this board is often the cure for intermittent “COMM FLT” alarms, loss of drive LAN, or unstable RS‑485 links after a cabinet retrofit. You might notice that it integrates neatly with the main control board (commonly DS200SDCC) and exposes both serial channels and a drive LAN interface—firmware determines the exact protocol set.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery time: 1 week if in stock; no more than one month at the latest
• Payment terms: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• Drive LAN interface – Provides the GE drive LAN channel (often ARCNET/DLAN+ depending on installed firmware) for coordination with the main control processor.
• Dual serial channels – Typically supports RS‑232/RS‑485 for HMIs, engineering tools, or third‑party gateways; selectable via on‑board jumpers/DIP switches.
• Direct integration with DS200SDCC – Ribbon connectors mate to the control board backplane, simplifying wiring and reducing noise pickup in most cabinets.
• Field‑configurable – Addressing, termination, and baud rate usually configured by DIP and jumpers, so on‑site adjustments are straightforward.
• Service-friendly diagnostics – On‑board status LEDs help technicians pinpoint link loss, baud mismatch, or bus errors without a laptop.
• Form/fit for GE drives – Mounting holes and connectors align with DC2000/AC2000/EX2000 frames, reducing downtime during swaps.

Technical Specifications

Application Fields

This board typically serves as the communication backbone in:

• DC2000/AC2000 variable speed drives where HMI/PLC connectivity and drive‑to‑drive LAN messaging are required
• EX2000 excitation systems for synchronous machines, enabling control network links and serial maintenance access
• Retrofit projects replacing legacy comms cards while keeping the existing SDCC control board
• Plants integrating third‑party PLCs over RS‑485 (Modbus RTU is common in many cases) with simple addressing and termination

One thing I appreciate is how forgiving this card is with cabinet noise when the grounding and shield terminations are done right; a utility client reported their “LAN LOSS” events disappeared after correcting the RS‑485 shield bond and setting the correct termination jumper.

Advantages & Value

• Reliability – Mature GE design; spares are stable and, in most cases, drop‑in with existing firmware configuration.
• Compatibility – Pairs natively with DS200SDCC and common GE drive racks; avoids custom adapters or re‑engineering.
• Lower lifecycle costs – Quick swap and easy on‑board addressing help reduce downtime and commissioning hours.
• Technical support – Settings are well‑documented, and parameter checks (baud/parity/termination) can be verified in minutes on site.

Installation & Maintenance

• Environment – Install in a sealed drive cabinet meeting IEC/UL enclosure standards; provide ventilation to keep ambient within 0–60 °C.
• Wiring – Use twisted‑pair shielded cable for RS‑485; ground the shield at one end only (typically the cabinet) to avoid loops. Verify termination resistors via jumpers.
• ESD precautions – De‑energize the cabinet, discharge stored energy, and handle the board with a grounded wrist strap. Avoid flexing the PCB during mounting.
• Configuration – Record existing DIP/jumper positions before removal. Match baud, parity, and address to the PLC/HMI. For LAN, confirm node address and media type.
• Routine checks – Inspect connectors quarterly for looseness/oxidation; clean with dry air. Review fault logs for COMM errors; update firmware only when required and validated.

Quality & Certifications

• Manufactured under ISO 9001 quality systems (GE production)
• UL/CE compliance is typically asserted at the complete drive/system level
• RoHS status varies by production lot for legacy boards; confirm if you have site restrictions
• Standard warranty: 365 days

If you’re replacing a failed DS200SLCC variant, share a photo of the current jumpers and the connected ports (DB9s and LAN lead). It seems to speed up configuration and helps us ship a unit that matches your site settings with minimal tweaks.
