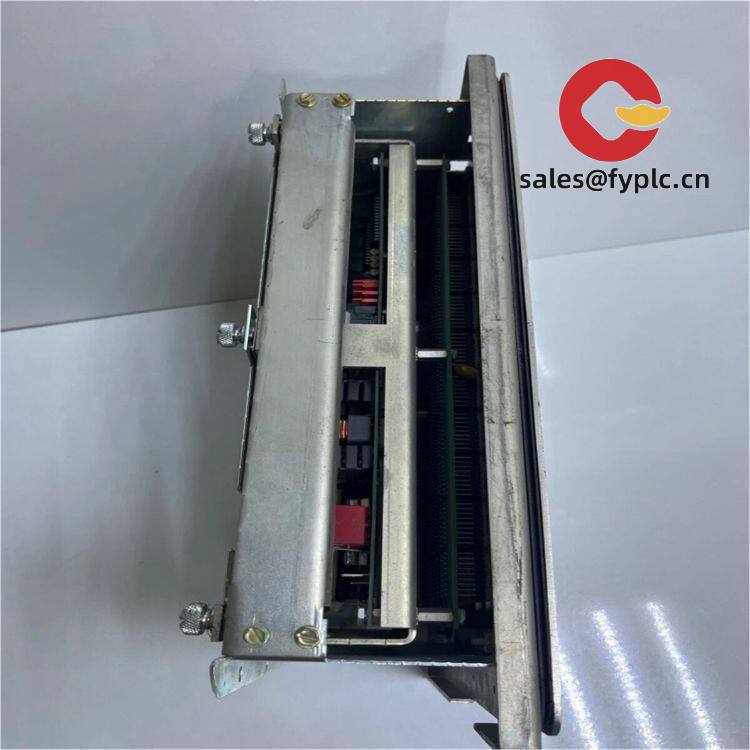

GE DS3800HSCG1E1F Processor Module for Speedtronic Mark IV Turbine Control

The GE DS3800HSCG1E1F is a processor module designed for the Speedtronic Mark IV control platform. In many cases, it functions as a core logic/processing card that coordinates sequence control, internal communications, and supervisory diagnostics within the Mark IV rack. From my experience with installed bases, this board is favored as a dependable drop‑in spare—no rewiring, no cabinet changes—just a clean swap and a functional test.

You might notice that GE’s DS3800-series cards are built for longevity: robust connectors, stable logic power, and straightforward serviceability. Typical users keep one on the shelf to shorten outage windows on gas or steam turbine units.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery time: 1 week for in-stock; no more than one month at the latest
• Payment: 50% advance payment, full payment for delivery
• Express delivery: FedEx, UPS, DHL
• Each board is visually inspected and electrically tested where applicable before shipment, with ESD-safe packaging.

Key Features

• Mark IV compatibility – Purpose-built for GE Speedtronic Mark IV racks; supports legacy turbine logic without re-engineering.
• Backplane power and signaling – Draws regulated DC from the Mark IV backplane and exchanges timing/logic signals via the system bus.
• Deterministic control – Stable processing of sequence logic, interlocks, and diagnostic routines for consistent turbine start/stop behavior.
• Service-friendly design – Gold-finger edge connector, front-edge indicators/test points, and a standard puller handle make swaps fast during outages.
• Proven field history – Thousands of Mark IV sites still rely on DS3800-series processor and I/O modules for daily operation.

Technical Specifications

Brand / Model	GE DS3800HSCG1E1F (Processor Module, Speedtronic Mark IV)
HS Code	8538.90 (Parts suitable for electrical control panels/boards; final classification depends on destination country)
Power Requirements	+5 VDC via Mark IV backplane (typical); board-level consumption is low, usually under 10 W
Dimensions & Weight	Standard DS3800 plug-in card; approx. 300 × 230 mm; ~0.5 kg (board only, typical)
Operating Temperature	0 to +60 °C (typical control cabinet environment)
Signal I/O Types	Backplane digital logic bus; status LEDs/test points at the front edge (varies by revision)
Communication Interfaces	Proprietary Mark IV backplane interface; no external field wiring on the board itself
Installation Method	Plug-in module for GE Mark IV rack; mates to gold-finger backplane connector; tool-less extraction handle
Revision	G1E1F (board revision identifier)

Application Fields

The DS3800HSCG1E1F is typically installed in:

• Gas and steam turbine controls using GE Speedtronic Mark IV
• Power generation plants (simple cycle, combined cycle)
• Oil & gas compressor stations and mechanical drive applications
• Industrial cogeneration units with legacy Mark IV cabinets

One maintenance lead told me, “We swapped the HSCG during a planned stop; it booted with our existing logic set and we were back spinning in under an hour.” That’s the kind of low-drama replacement most teams want during peak demand season.

Advantages & Value

• True drop‑in replacement – Maintains Mark IV architecture; avoids costly retrofit projects.
• Minimized downtime – Fast card exchange shortens outage windows and startup recovery.
• Compatibility assurance – Supports existing logic/EPROM sets and backplane signals in most cases.
• Cost control – Extends the service life of legacy assets while planning future upgrades on your timeline.
• Technical support – Assistance with part identification, revision cross-check, and pre-shipment testing reports when requested.

Installation & Maintenance

• Cabinet & environment – Install in the original Mark IV rack, inside a clean, dry, ventilated cabinet. Typical ambient 0–60 °C, non-condensing.
• ESD handling – Use a grounded wrist strap; handle by edges; keep the protective sleeve on until the moment of insertion.
• Seating & connectors – Align the guide rails, insert evenly, and confirm the gold fingers fully mate with the backplane. Do not force the card.
• Power-up checks – After installation, verify status LEDs and perform system self-tests. Confirm sequence logic integrity before returning to service.
• Routine care – Quarterly dust removal with dry, oil-free air; annual visual inspection for oxidation, cracked solder joints, or swollen components.
• Logic/firmware – If your site keeps updated EPROM/logic images, label and store backups; verify checksums after any chip replacement.

Quality & Certifications

• Manufacturing pedigree – Produced under GE’s quality system for the Speedtronic Mark IV platform.
• Certifications – Legacy hardware; CE/UL typically applicable at the system level not the individual spare card. RoHS exemptions may apply for service parts.
• Warranty – 12 months coverage (365 days) against functional defects under normal use.
• Traceability – Serial/revision recorded on test report when available.

Commonly Paired Mark IV Modules (for Planning)

If you are refreshing spares, teams typically evaluate adjacent cards at the same time. Examples include:

• DS3800HROR – Relay output module for trip/relay driving
• DS3800HIMA – Analog input module for process variables
• DS3800NTCF – Thermocouple input conditioning module
• DS3800HMPK – Microprocessor/logic controller board variant

If you’d like, share your current cabinet tag numbers or a photo of the rack label. I can cross-check DS3800HSCG1E1F against your installed revision and recommend a tested spare set that matches your configuration.
