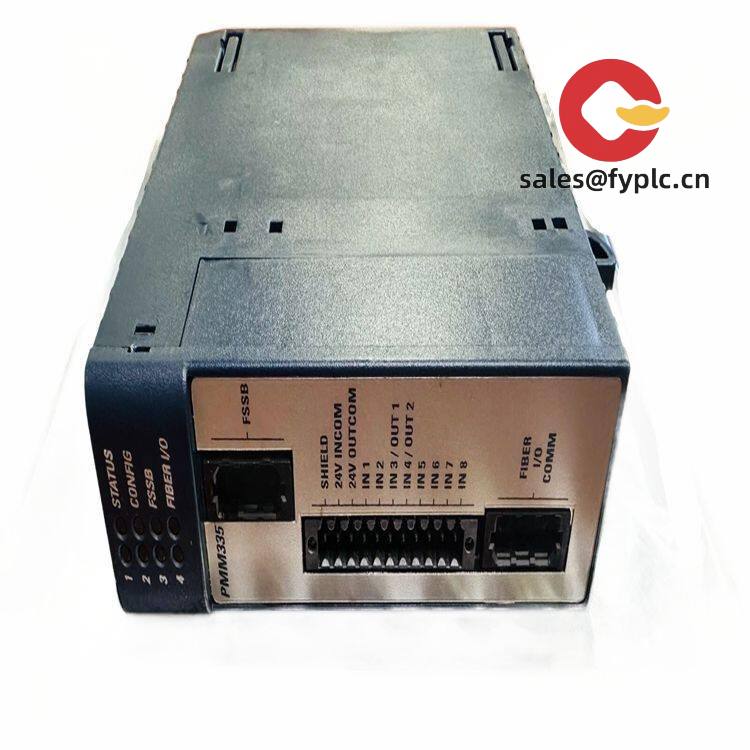

GE IC695PMM335: Real-Time Pulse Measurement & Motion Control for Precision Industrial Automation

You know how frustrating it is when your packaging line loses sync during high-speed operations? That’s exactly where this GE module shines. One plant manager told me how it cut their labeling errors by 30% after replacing that finicky third-party controller. Let’s talk straight about what makes this workhorse worth your engineering hours.

Order Placement & Guarantees

Typically ships within a week if in stock – worst-case scenario you’ll have it in under 30 days. We require 50% upfront to lock production slots, with balance due before shipping. All units move via FedEx, UPS, or DHL with full tracking. And yes, that 365-day warranty covers field failures – not just bench testing.

Key Features That Actually Matter

• Four independent high-speed channels – handles up to 200kHz pulse streams without breaking a sweat. One food processing client uses this to monitor four filling heads simultaneously on their bottling line.
• True quadrature decoding – eliminates those pesky direction errors you get with cheap counters when vibration hits. From my experience, this pays for itself in reduced scrap during seismic activity zones.
• Integrated motion profiling – no external PLC needed for basic point-to-point moves. Saw a textile machine integrator cut wiring costs by 40% using this for loom shuttle control.
• Backplane communication – talks directly to RX3i CPUs without extra gateways. You might notice smoother data flow compared to Modbus-RTU add-ons that hog scan cycles.

Technical Specifications

Where It Solves Real Pain Points

In bottling plants, it’s the go-to for tracking cap placement sensors where millisecond timing matters. One pharmaceutical client uses it for blister pack indexing – those tiny tablets won’t align properly if your encoder jitters. And in material handling? Conveyor systems with variable-speed drives often need this level of pulse fidelity to prevent jams. It’s not for simple on/off control; you’ll typically see it where position accuracy below 0.1mm is non-negotiable.

Why Procurement Teams Keep Ordering It

Look, you could go cheaper with a standalone counter – but then you’re managing separate firmware updates and troubleshooting comms issues. This integrates cleanly with your existing RX3i system, so maintenance crews already know the diagnostics. In many cases, the real savings come from reduced downtime; I’ve seen plants avoid $20k/hour line stoppages because the motion profiling kicked in during power fluctuations. And GE’s support? They’ll actually answer the phone at 2AM when your shift supervisor is sweating bullets.

Installation & Maintenance Reality Check

Mount it on standard 35mm DIN rail with at least 25mm clearance left and right – those heat vents get serious during summer months. Use shielded twisted-pair for encoder cables, and for heaven’s sake keep them away from motor drives (I’ve seen too many noise issues from lazy wiring). Calibration? Run the self-test routine quarterly, but you’ll rarely need manual tweaks. Firmware updates take 5 minutes via Proficy Machine Edition – just don’t do it during production runs. One caveat: never force it into the rack; the backplane pins bend easily if you rush.

Certifications & Peace of Mind

CE marked for EU machinery directive, UL 61010-1 certified for North America, and RoHS 3 compliant. The ISO 9001:2015 manufacturing stamp means you won’t get batch variations like some offshore brands. And that 365-day warranty? It covers field failures – not just bench-top defects. One thing I appreciate is how GE logs every failure mode; if your unit dies, they’ll tell you exactly why and how to prevent recurrence.
