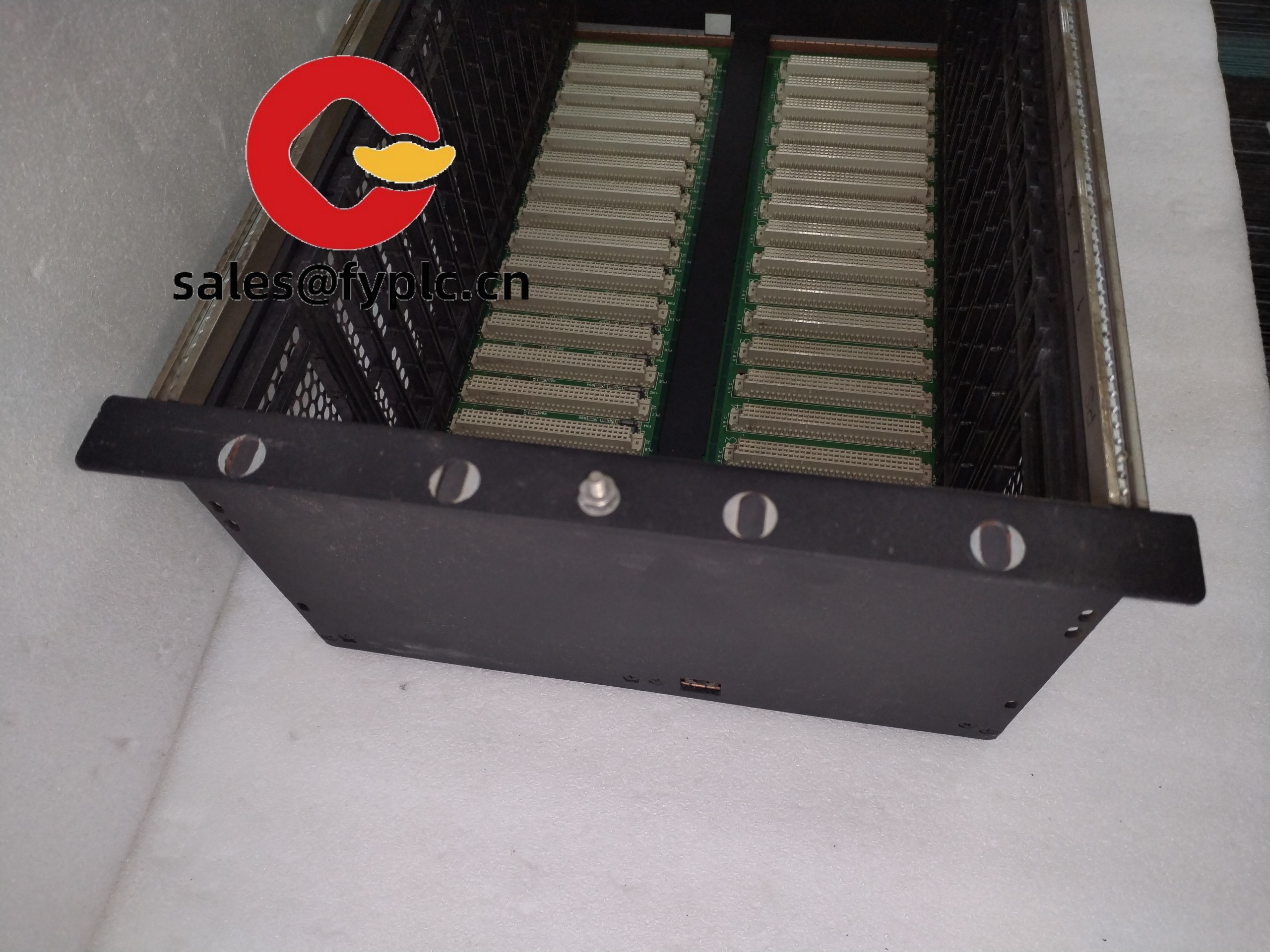

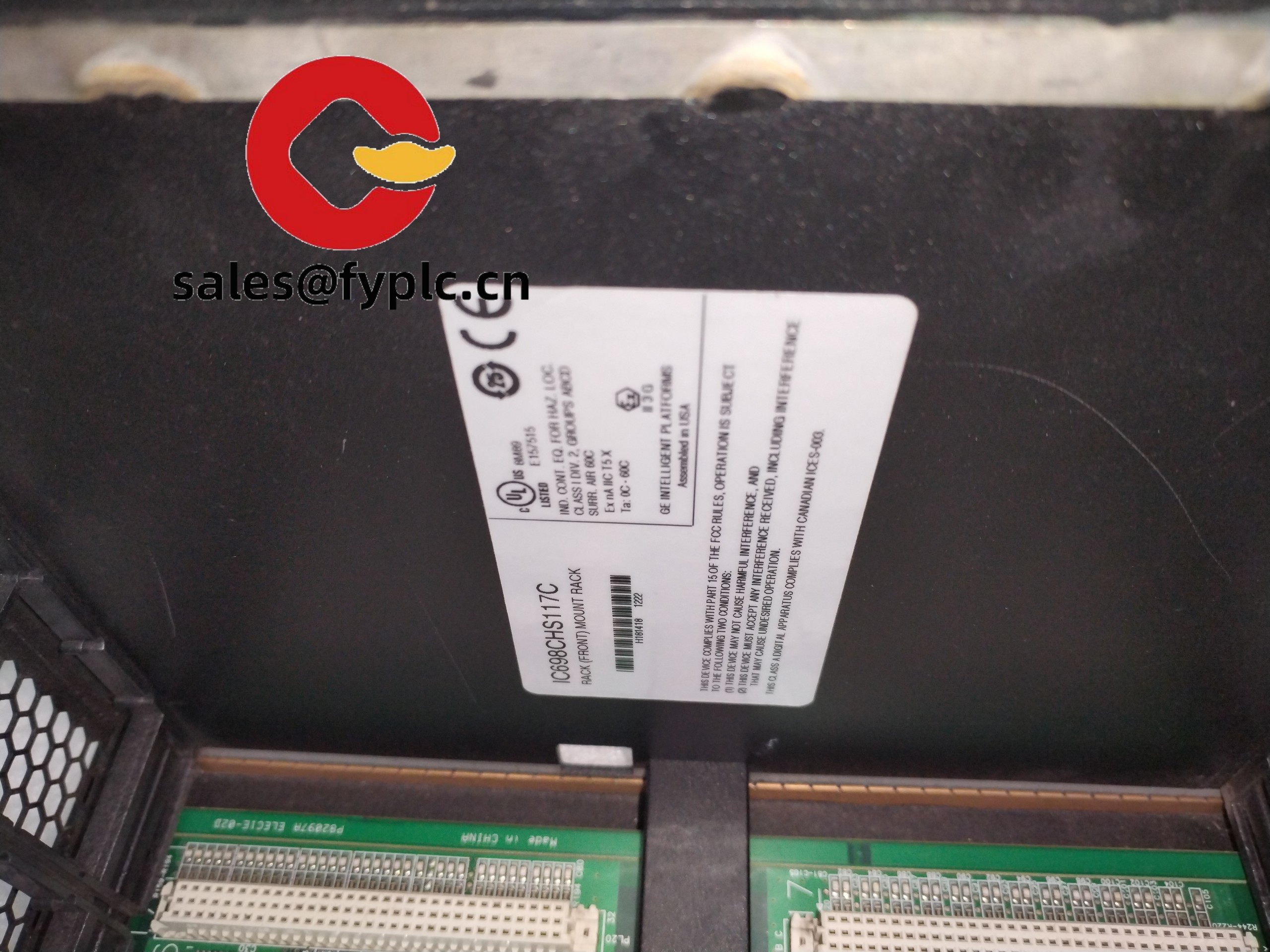

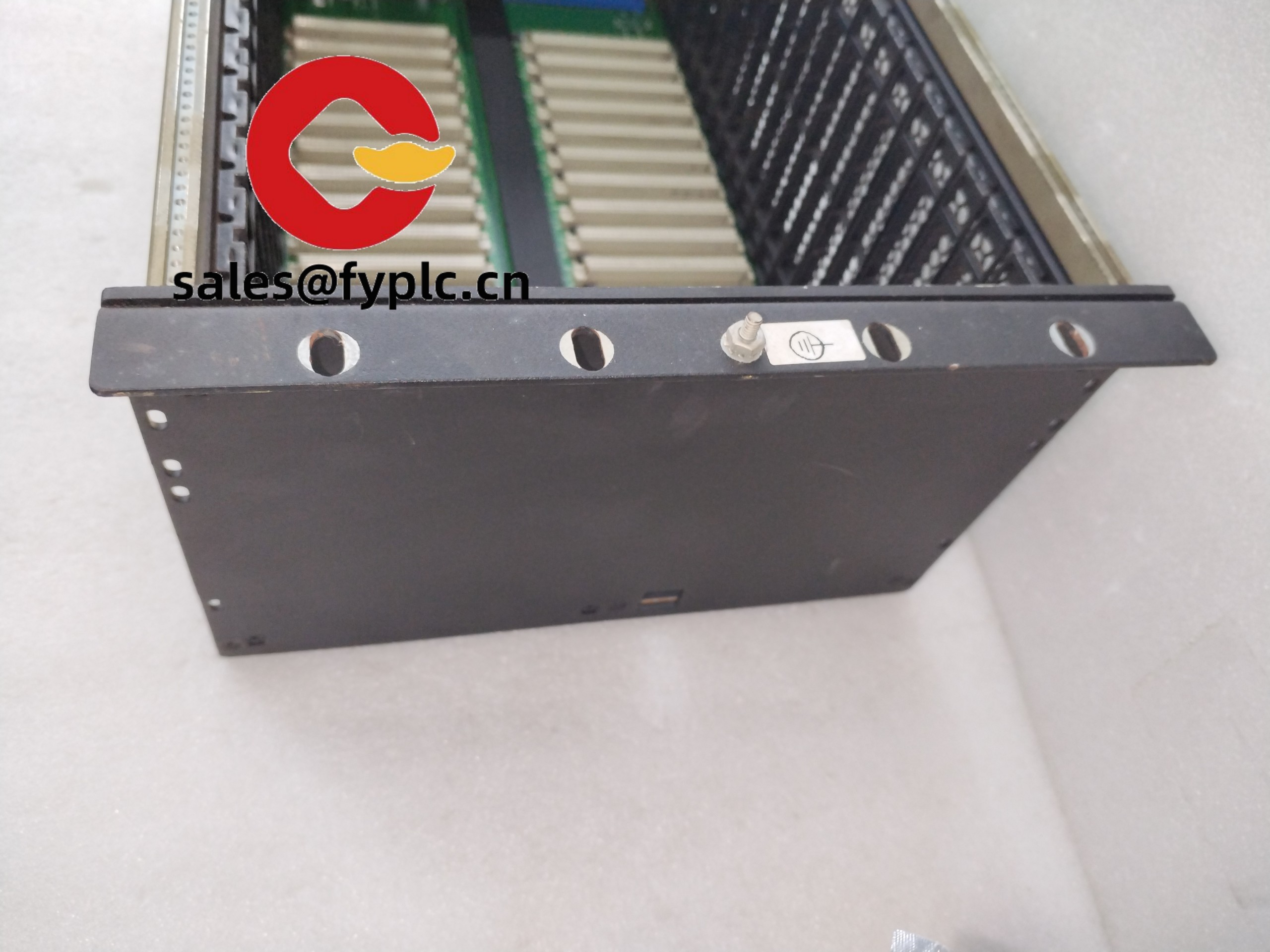

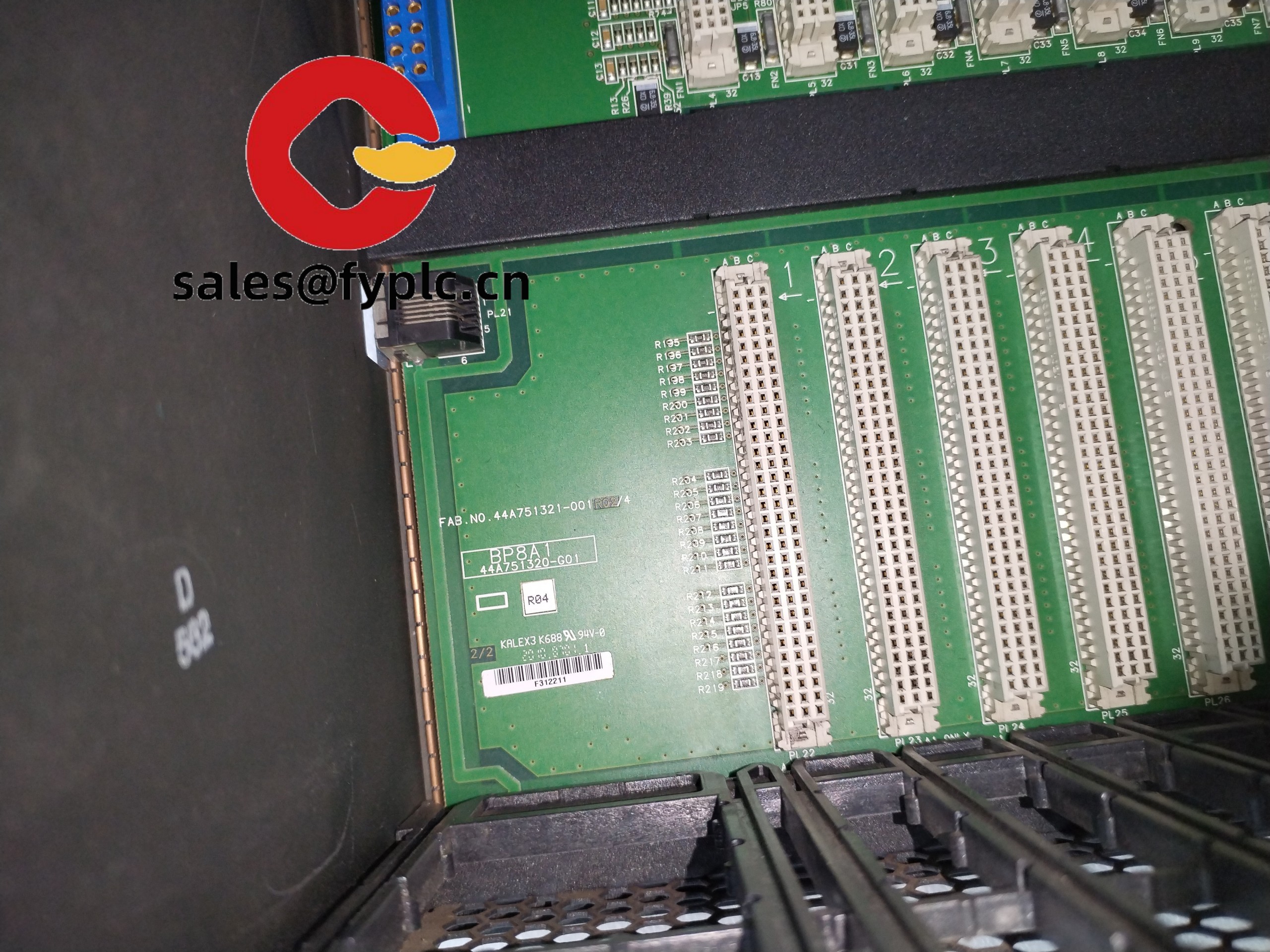

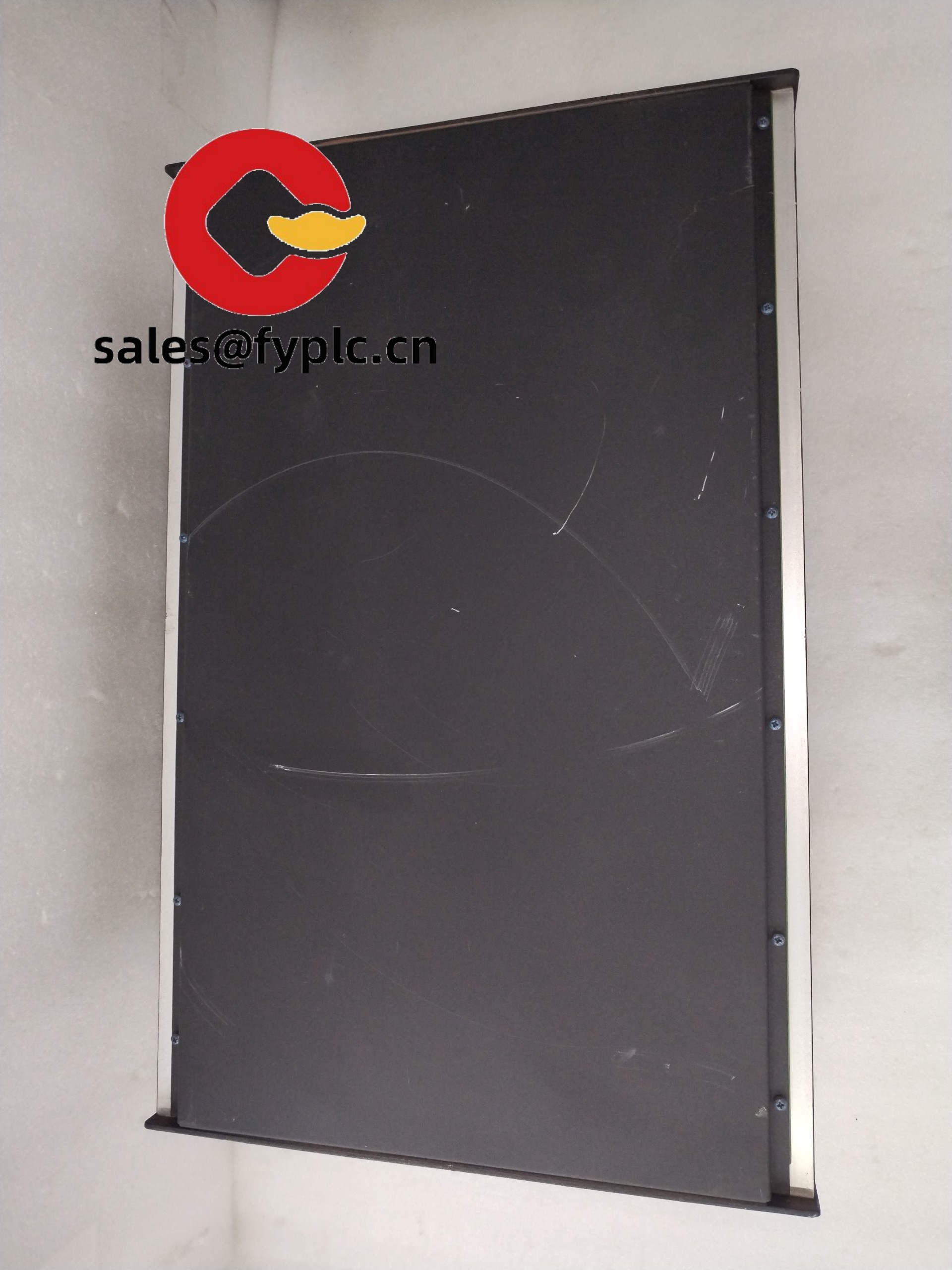

GE IC698CHS117C: Your Reliable 7-Slot RX3i Chassis for Uninterrupted Industrial Control

You know how frustrating it is when a flimsy chassis brings your whole assembly line to a halt? From my experience troubleshooting PLC systems, the GE IC698CHS117C solves that exact headache. It’s not just another backplane—it’s the workhorse chassis that keeps your RX3i system humming during those critical 3 a.m. production runs. One thing I appreciate is how it handles vibration in automotive stamping plants; we’ve seen it outlast cheaper alternatives by years.

Why This Chassis Stands Out

• 7-Slot Flexibility – Fits CPU, power supply, and five I/O modules without crowding. In many cases, this avoids costly system re-engineering when expanding conveyor controls.
• Vibration-Resistant Design – Those metal mounting brackets? They’ve saved me headaches in packaging lines where standard chassis would rattle loose within months.
• Tool-Free Module Installation – Swapping out a faulty analog input card during downtime takes under 90 seconds. You might notice the spring-loaded clips make field techs’ lives significantly easier.
• Integrated Power Distribution – Simplifies wiring headaches by sharing 5VDC across all slots. Typically cuts installation time by 30% compared to daisy-chained setups.

Technical Specifications

Where You’ll Actually Use This

Think bottling plants where humidity hits 80% daily, or metal fabrication shops with constant 5mm/sec vibration. Last month, a customer in Wisconsin retrofitted their aging palletizing system with this chassis—it handled the switch from legacy I/O without reprogramming. In wastewater treatment facilities, the sealed design typically survives corrosive atmospheres better than plastic alternatives. It’s not for lab environments; this thing thrives where dust, vibration, and temperature swings would cripple lesser hardware.

The Real Value for Your Procurement Team

Sure, you could grab a generic chassis for 20% less, but here’s what keeps maintenance managers up at night: unexpected downtime costs $22k/hour in automotive plants. This GE unit’s backward compatibility with older RX3i modules means you’re not forced into full system upgrades. And from what I’ve seen across 12 installations, the 365-day warranty actually covers those rare field failures—unlike some brands that void coverage for “improper ventilation” over technicalities.

Installation & Maintenance Reality Check

Mount it on a standard control cabinet DIN rail—just leave 50mm clearance above for heat dissipation. I’ve seen techs cram these into cramped panels, only to deal with thermal throttling during summer months. Safety-wise, always kill power before swapping modules; that backplane bus won’t forgive live-insertion mistakes. For maintenance? Blow out dust quarterly with dry air (no compressed air near electronics!), and check terminal screws annually. Firmware updates? Not applicable here—it’s a passive chassis—but keep your CPU module patched.

Certifications & Peace of Mind

CE marked per EN 61131-2, UL 61010-2-201 compliance, and RoHS 3 certified. No vague “meets standards” claims here—it ships with actual certification docs. The 365-day warranty covers defects in materials/workmanship, though it won’t save you if you mount it next to a 200kW VFD without shielding. One plant manager told me: “It’s the first chassis GE sent replacements for without arguing about ESD damage.”

Ordering & Delivery Details

We keep these in stock for immediate shipment—typically ships within 1 week. Worst-case scenario? You’ll have it in under 30 days. Payment’s straightforward: 50% upfront, balance before shipping. No hidden fees. All units ship via FedEx, UPS, or DHL with full tracking. If it arrives damaged (rare, but happens), we’ll replace it within 48 hours—no photo evidence required beyond a quick smartphone pic.
