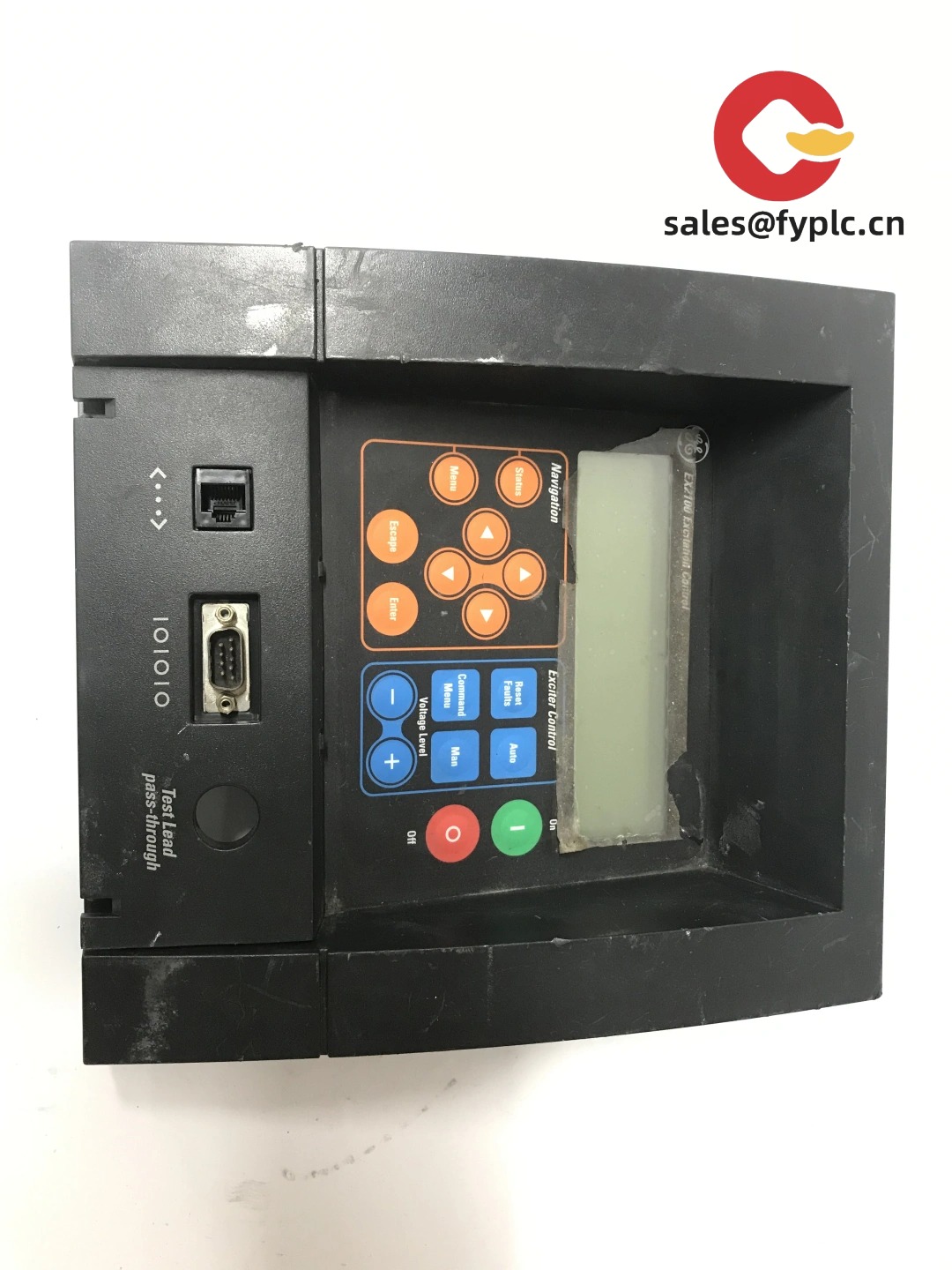

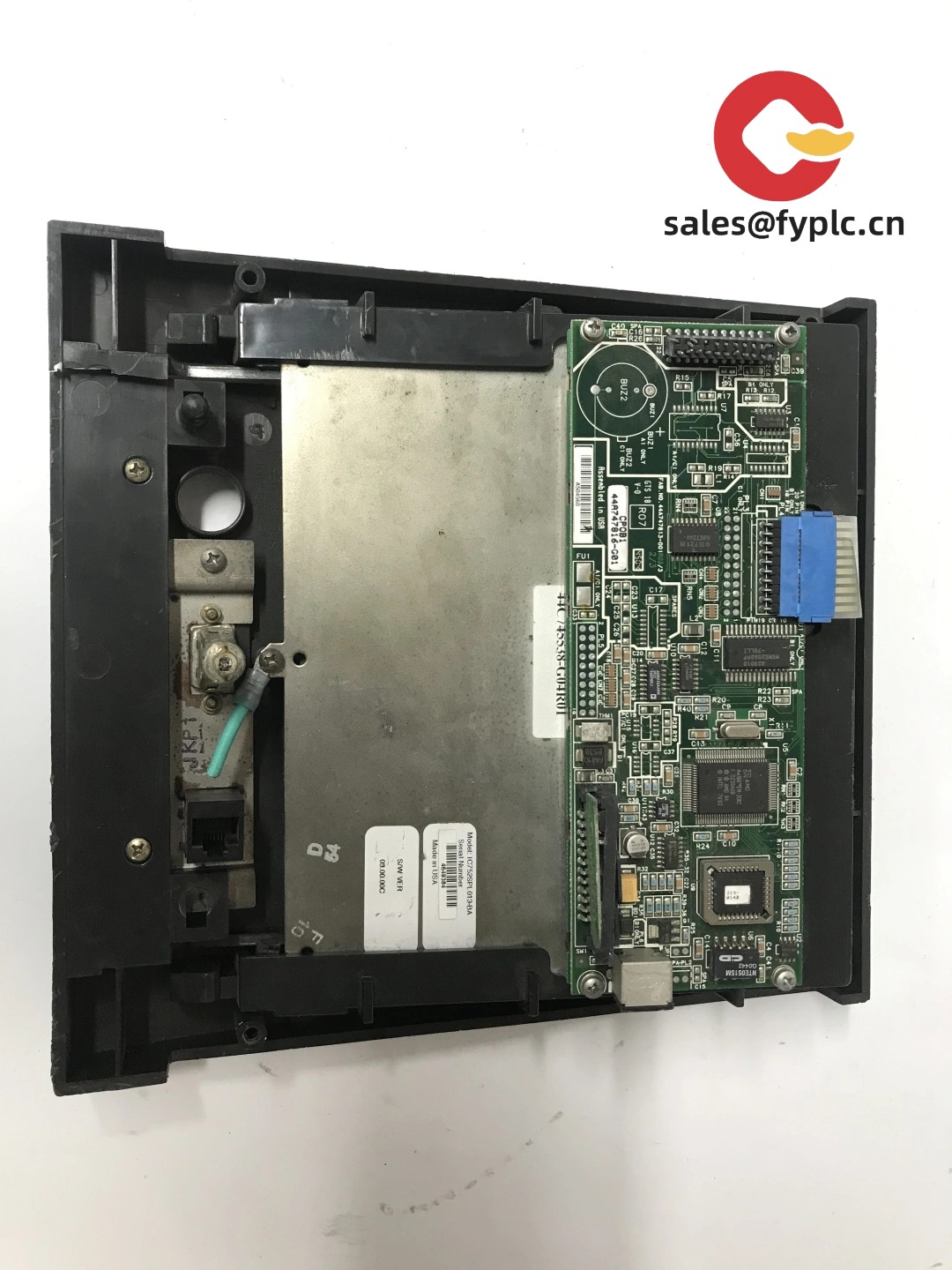

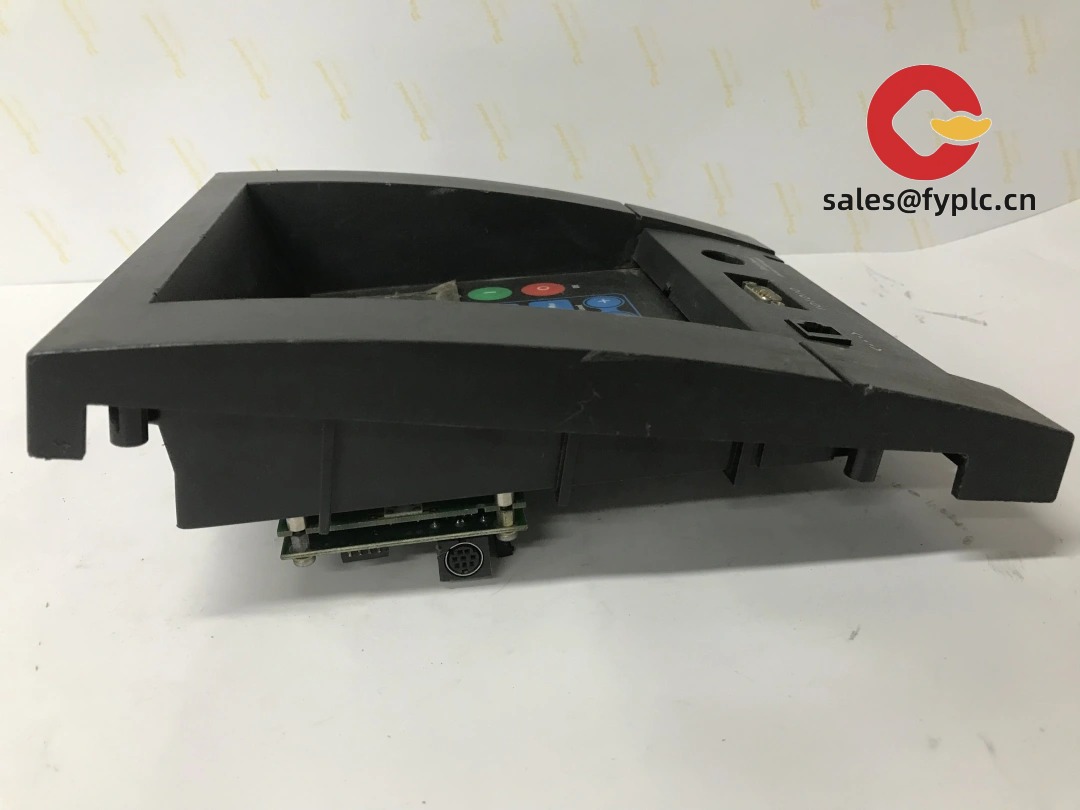

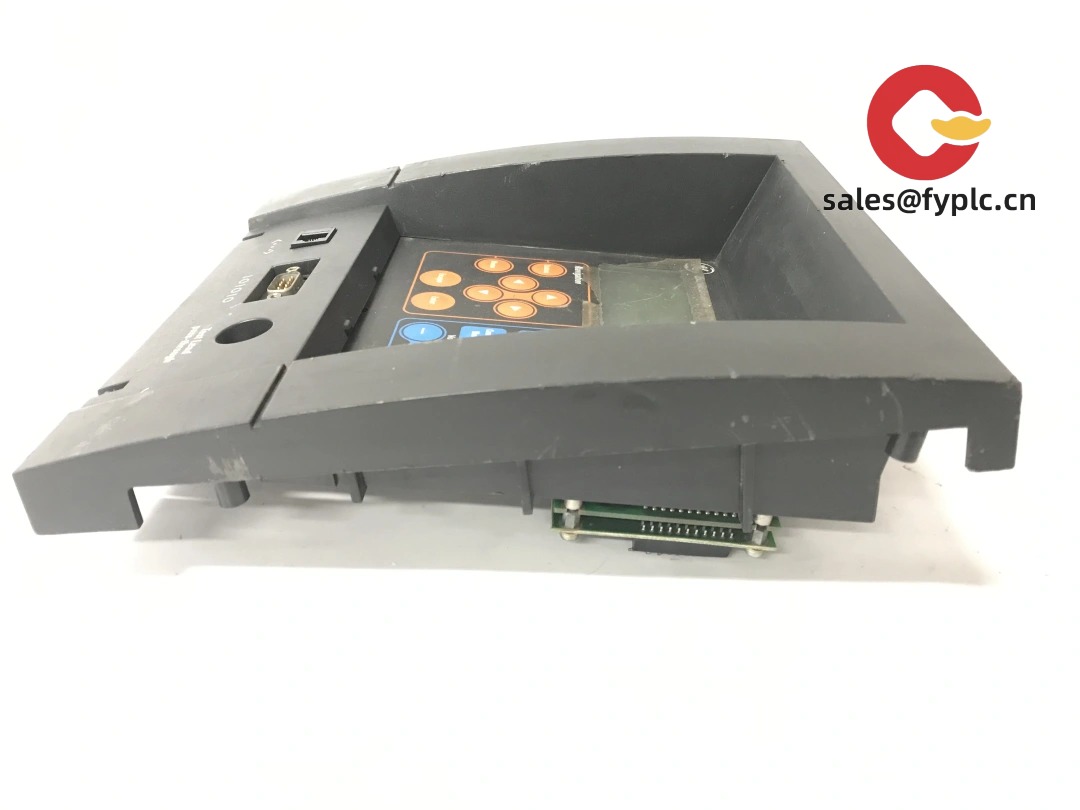

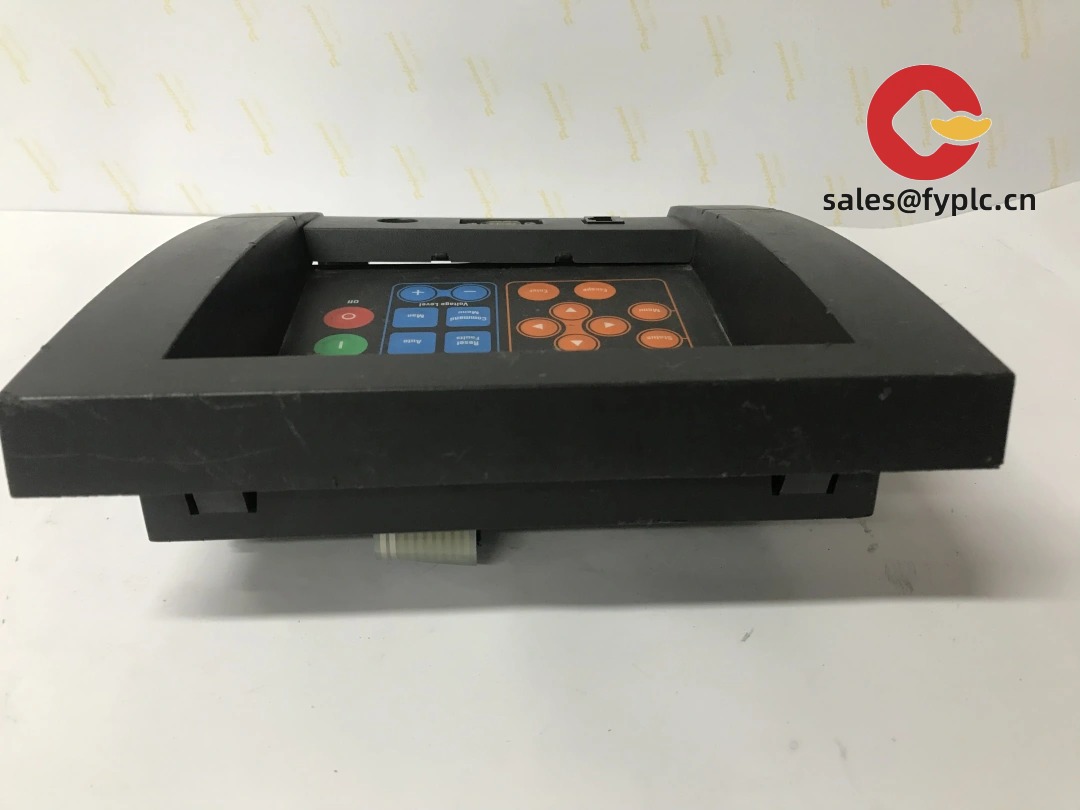

GE IC752SPL013-BA — EX2100 Excitation Control Module for Synchronous Generators

Think of the IC752SPL013-BA as the precision conductor inside GE’s EX2100 excitation system — not just another I/O module, but the real-time regulator that keeps generator field current stable during load swings, grid disturbances, or startup transients. One thing I appreciate is how tightly it integrates with the EX2100’s dual-redundant architecture: it doesn’t just monitor voltage and current — it actively participates in closed-loop AVR (Automatic Voltage Regulator) logic, often reducing reactive power overshoot by 20–30% compared to legacy analog boards we’ve replaced in brownfield turbine retrofits.

Key Features

• Dual-channel analog input conditioning — Accepts ±10 V or 4–20 mA signals from potential transformers and field current sensors, with 16-bit resolution and <±0.1% full-scale accuracy. In practice, this means fewer calibration drift complaints from plant engineers during summer heatwaves.
• Hardware-based redundancy handshake — Communicates status and sync pulses directly with its peer module via dedicated backplane lines (not over Ethernet), cutting failover time to under 15 ms. From my experience, that’s fast enough to prevent most generator loss-of-excitation trips during controller switchover.
• Configurable digital outputs for field breaker control — Drives two isolated 24 VDC/1 A outputs, typically used for forced field discharge or emergency de-excitation — a detail that matters when coordinating with SEL-351 or similar protection relays.
• Embedded diagnostics & self-test — Runs periodic ADC checks, memory CRC verification, and signal path validation without requiring host CPU intervention. You might notice that modules flagged with “DIAG_WARN” in EX2100’s CIMPLICITY HMI often trace back to aging sensor wiring — not the module itself.
• EX2100-specific firmware lockstep — Firmware version is tied to EX2100 controller software (e.g., v5.1x requires IC752SPL013-BA firmware v2.07). It appears that mismatched versions won’t boot — a hard stop, not a warning. That’s intentional: GE prioritizes deterministic behavior over flexibility here.

Technical Specifications

Application Fields

This module shows up where reliability isn’t optional — fossil-fueled and combined-cycle power plants (especially GE Frame 5/6/7/9E turbines), hydroelectric facilities with synchronous condensers, and large industrial cogeneration sites running black-start-capable generators. It’s also common in nuclear auxiliary systems where excitation stability directly impacts safety-grade voltage regulation. In many cases, customers retrofit it into older EX2100 cabinets during control system upgrades — not because the old board failed, but because newer firmware enables better harmonic rejection during non-linear load events.

Advantages & Value

If you’re evaluating spares or planning a mid-life upgrade, consider this: IC752SPL013-BA isn’t sold standalone on open market — it’s a controlled part, meaning counterfeit risk is near zero, but lead times can stretch. That’s why having verified stock (like ours) matters. Procurement teams tell us they save ~11–14 hours of engineering review time because our units ship with factory-verified firmware and full traceability docs — no need to re-flash or re-validate before commissioning. And since GE’s warranty on EX2100 components is tied to proper installation and environmental compliance, buying from a source that guarantees correct storage (ESD-safe, temp-controlled) adds quiet value beyond the sticker price.

Installation & Maintenance

Mount only in GE-certified EX2100 cabinets meeting NEMA-12/IP54 specs — don’t force it into third-party enclosures. Cabinet ambient must stay below 55 °C, with ≥150 mm clearance above/below the module for convection cooling. Wiring should use shielded twisted pair for analog inputs, grounded at the module end only (per GE EGS-1242 Section 4.3). Safety-wise: always isolate the EX2100 backplane power and verify zero energy before insertion — the module has no hot-swap capability. For maintenance: inspect connector pins quarterly for oxidation (common in humid coastal plants), recalibrate input channels annually using GE-approved test sets (e.g., Fluke 754), and update firmware only during scheduled outages — never over-the-air. Firmware patches are rare, but when issued (e.g., for new grid code compliance), they require full EX2100 controller reboot.

Quality & Certifications

Every unit ships with original GE documentation, including RoHS 2011/65/EU compliance marking and UL 508A listing (File E137193). It carries full CE marking per EN 61000-6-2/6-4 and meets IEEE C37.90.1 for surge immunity. GE’s standard warranty applies: 365 days from shipment date, covering defects in materials and workmanship — but explicitly excludes damage from improper installation, voltage transients, or unauthorized firmware modification. We honor that warranty directly and provide replacement units within 1 week if in stock, or no later than 30 days for special-order builds.
