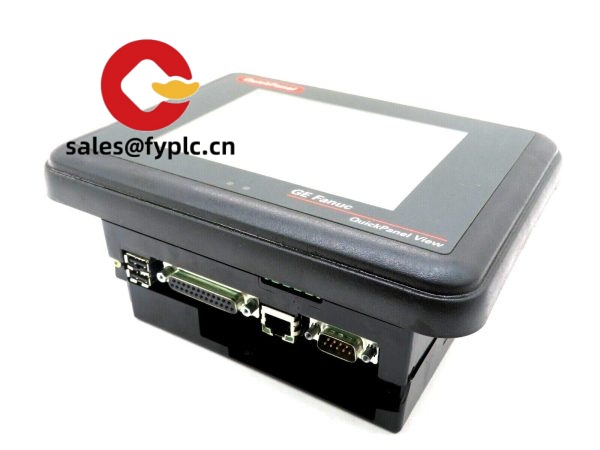

GE IC754VSL06CTD-ML QuickPanel HMI – 6-inch color touchscreen for reliable machine visualization

The GE IC754VSL06CTD-ML is a compact QuickPanel View HMI designed for operators who need a clear, responsive 6-inch interface in tight panels. From my experience, this model hits a sweet spot for packaging lines, pump stations, and small cells where you want Ethernet plus serial connectivity without overbuilding the hardware. You might notice that the “VSL” family typically indicates a slim, panel‑mount design with a resistive touchscreen, color TFT display, and 24 VDC power. The “-ML” suffix is commonly associated with multi-language resources, which makes sense for sites running mixed-language UIs or exporting equipment.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Lead time: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express options: FedEx, UPS, DHL

Key Features

• 6-inch color TFT with resistive touch – Clear QVGA-class graphics that remain readable on the floor; works well with gloved hands in most cases.
• 24 VDC industrial power – Typically 18–30 VDC input, making it straightforward to drop into standard control cabinets.
• Versatile connectivity – 10/100 Ethernet plus serial (RS‑232/485) cover common PLCs and drives; a practical mix for brownfield upgrades.
• Slim panel-mount form factor – Saves depth in crowded enclosures; front face usually maintains NEMA 4/4X, IP65 when properly gasketed.
• Driver-rich platform – Supports GE SRTP, Modbus TCP/RTU, and other popular drivers; useful when you’re bridging mixed vendors.
• “-ML” multi-language capability – In many cases this suffix indicates enhanced language packs/fonts, handy for global deployments.
• Designed for uptime – Solid-state architecture; no local I/O to fail, and firmware updates are typically straightforward.

Technical Specifications

Related or Supporting Products

• GE IC754VSL06CTD (non-ML variant) – Similar hardware; typically without the enhanced multi-language pack.
• GE IC754VSL10CTD – 10-inch version for larger screen area; useful when you need more objects on a single page.

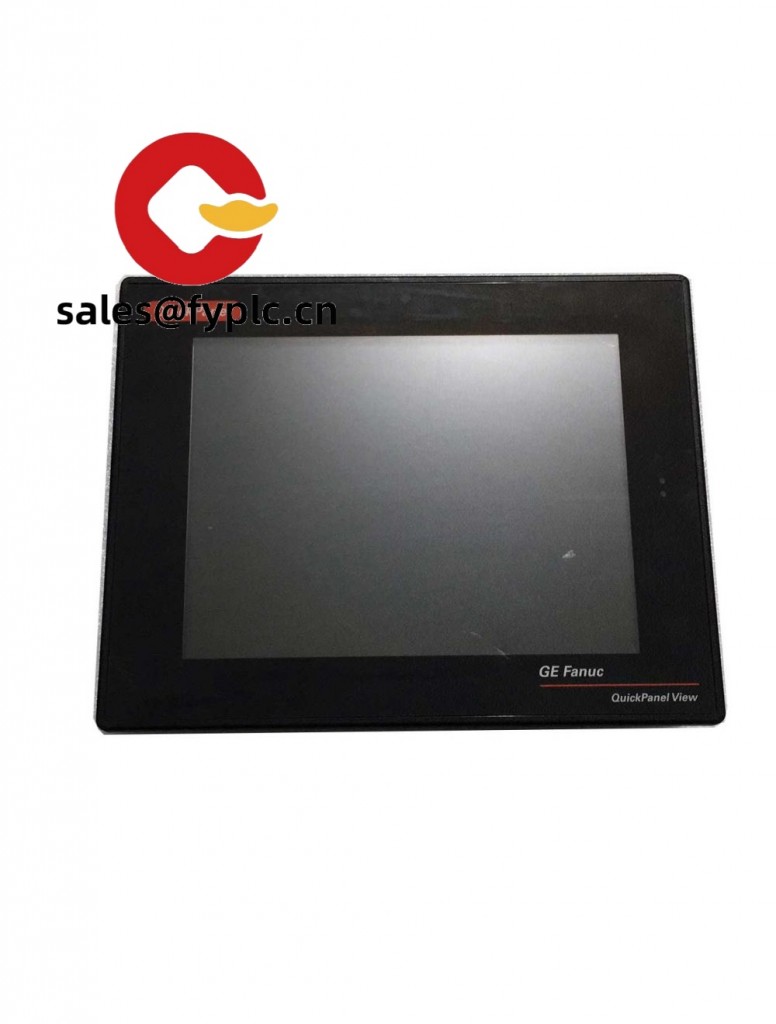

• GE IC754VSL12CTD – 12-inch option, higher resolution and bigger viewing distance in noisy lines.
• GE RX3i (IC695 series) PLC – Common pairing over Ethernet SRTP; straightforward tag mapping from HMI to PLC.
• VersaMax PLC (IC200 series) – Often integrated via Ethernet or serial Modbus RTU for compact machines.
• Industrial switches (managed, 10/100) – For segregated HMI/PLC networks; QoS and IGMP help with multicast traffic.

Installation & Maintenance

• Cabinet and mounting: Use a flat panel door with proper cutout and the supplied gasket; torque the clips evenly to maintain NEMA/IP rating. Allow space for cable bend radius and a service loop.
• Ventilation: Provide passive airflow or a filtered fan if ambient exceeds 40 °C; avoid direct sunlight on the bezel to reduce heat load.
• Wiring: Power from a regulated 24 VDC supply; bond the bezel ground to the panel. Keep Ethernet away from VFD leads; use shielded serial cables for RS‑485.
• Safety: De-energize before servicing. In most cases you’ll want transient protection on 24 V lines and an Ethernet surge protector in high-noise environments.
• Routine maintenance: Clean the bezel and screen with lint-free wipes (no solvents). Back up the project to USB and a server. Check for firmware updates during scheduled downtime; recalibrate touch if operators report drift.

Quality & Certifications

• CE and UL/cUL for industrial control equipment (typical for this series)
• RoHS compliant components
• Manufacturer warranty terms apply; we support a 365-day warranty on supply
