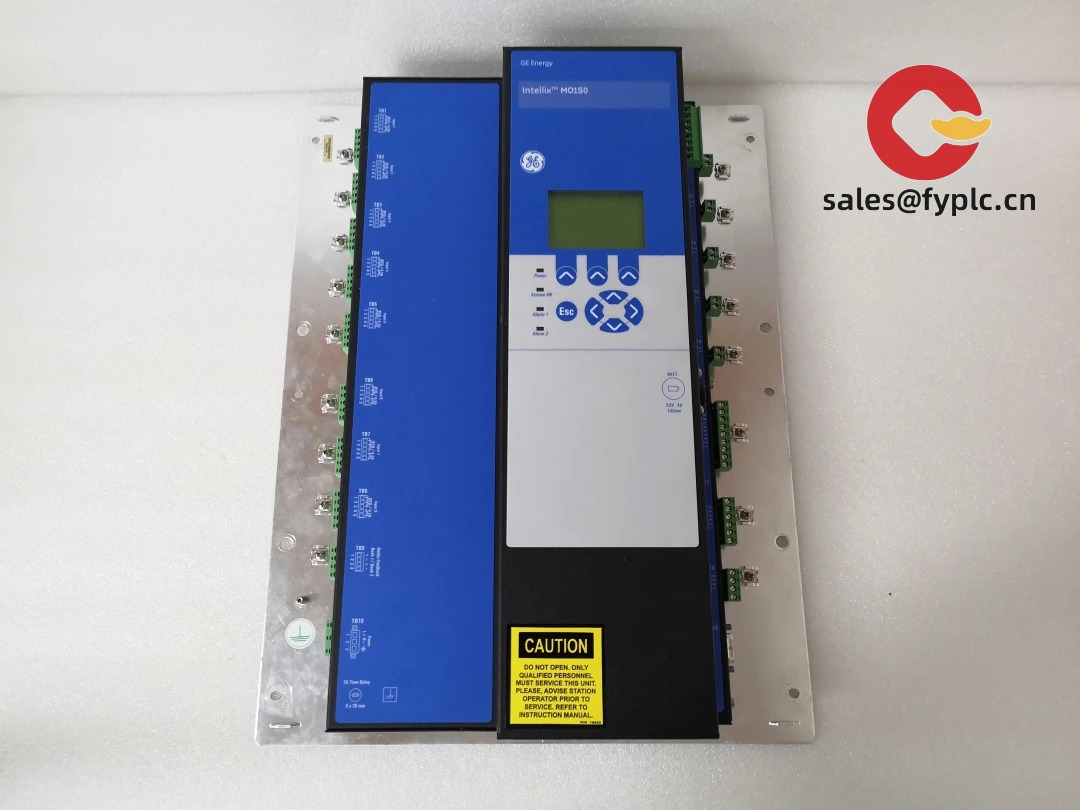

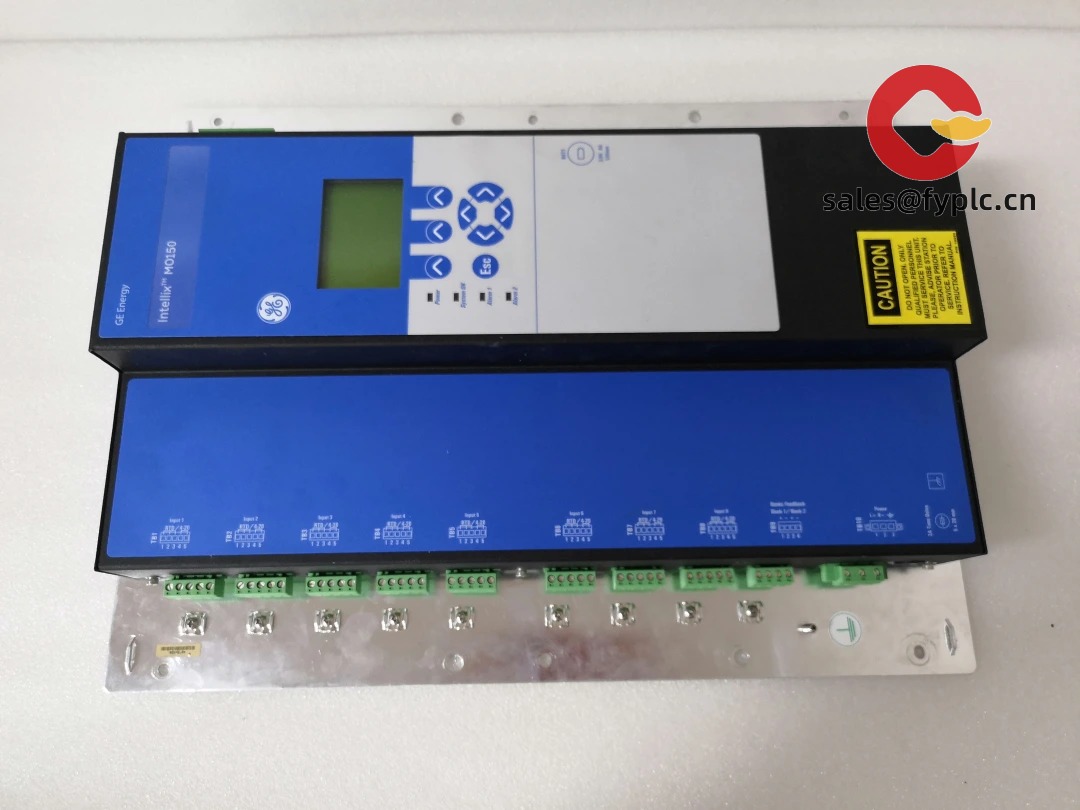

GE Intellix MO150 – Online Moisture-in-Oil Monitoring for Power Transformers and Oil-Filled Equipment

The GE Intellix MO150 is built for real-time tracking of moisture in transformer oil. From my experience, this compact monitor gives maintenance teams the data they actually use—water activity in oil (aw), oil temperature, and calculated relative saturation—so trending is clear and alarms are meaningful. You might notice that it’s often installed on an existing drain or sampling valve, which typically means minimal downtime and no complicated retrofit.

Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week for in-stock items; no more than one month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express Options: FedEx, UPS, DHL

Key Features

• Real-time moisture-in-oil insight – Measures water activity (aw) and oil temperature to calculate relative saturation (%RS), giving early warning before insulation risk escalates.
• SCADA/DCS friendly – Typically supports 4–20 mA outputs and RS‑485 (Modbus RTU) for straightforward integration into existing systems.
• Configurable alarms – Threshold-based relay outputs help trigger timely field checks or load adjustments when moisture rises quickly.
• Rugged, utility-grade build – Designed for substation environments; enclosure is typically weather-resistant for outdoor tanks.
• Simple installation – Often mounted via a 1/2″ NPT or similar valve connection; in many cases no oil draining is required when using an isolation valve.
• Low maintenance – Stable calibration and minimal upkeep; trending rather than frequent recalibration is what most users rely on.

Technical Specifications

Notes: Values above reflect common configurations for utility installations; specific options may vary slightly by variant and region.

Application Fields

• Power transformers (GV, HV/MV substations) for continuous moisture trend monitoring
• Shunt reactors and large inductors with oil-paper insulation
• On-load tap changer (OLTC) compartments where moisture spikes can precede contact issues
• Oil-filled switchgear and bushings (when a valve port is available)
• Industrial oil systems using mineral insulating oil, by agreement with engineering standards

Advantages & Value for Procurement

• Reliability: GE’s Intellix line is widely used in utilities; the MO150 seems to be a steady choice for long-term outdoor service.
• Compatibility: Standard 4–20 mA and Modbus RTU simplify integration with DCS/SCADA, RTUs, and data gateways.
• Predictive maintenance: Trending %RS typically reveals moisture ingress or seal problems earlier than periodic lab sampling alone.
• Lower lifecycle cost: Minimal calibration needs and quick installation reduce total cost compared with frequent manual sampling.
• Support & spares: Accessories like valve adapters, sunshields, and RS‑485 converters are easy to source, keeping downtime short.

A utility maintenance lead told us they initially installed one unit on a critical 230 kV transformer. The seasonal increase in %RS matched ambient humidity peaks and a minor gasket leak—small detail, but it guided them to schedule a targeted fix instead of a broader overhaul.

Installation & Maintenance

• Mounting: Valve-mount on a lower-side drain or sampling port; use an isolation/ball valve to allow hot-tap installation in many cases.
• Panel/Cabinet: If a junction box is used, aim for NEMA 4X / IP65 with good ventilation; avoid direct solar loading where possible (sunshield recommended).
• Wiring: Use shielded twisted pair for RS‑485; ground shields at one end; segregate from high-voltage leads; confirm 24 VDC polarity before power-up.
• Safety: Follow lockout/tagout, depressurize the valve if required, and verify oil temperature/pressure before opening ports.
• Routine care: Check cable glands and seals quarterly; wipe external surfaces clean; verify alarm thresholds in SCADA after firmware or configuration updates.
• Calibration: Field recalibration is seldom needed; annual verification against plant reference data is typically sufficient unless process conditions change.

Quality & Certifications

• Conforms to CE requirements for industrial environments
• RoHS-compliant materials, based on common GE Grid practices
• Manufactured under ISO 9001 quality systems (typical for GE Grid Solutions facilities)
• Manufacturer’s standard warranty typically 12 months; we provide a 365-day warranty on supply

Helpful Accessories & Integration Options

• Valve adapter kits (1/2″ NPT, 3/4″ NPT, or M20) for different tank ports
• Weather sunshield and mounting bracket for outdoor tanks
• RS‑485 to Ethernet gateways for central data acquisition
• Surge protection modules for substation-grade transient immunity
