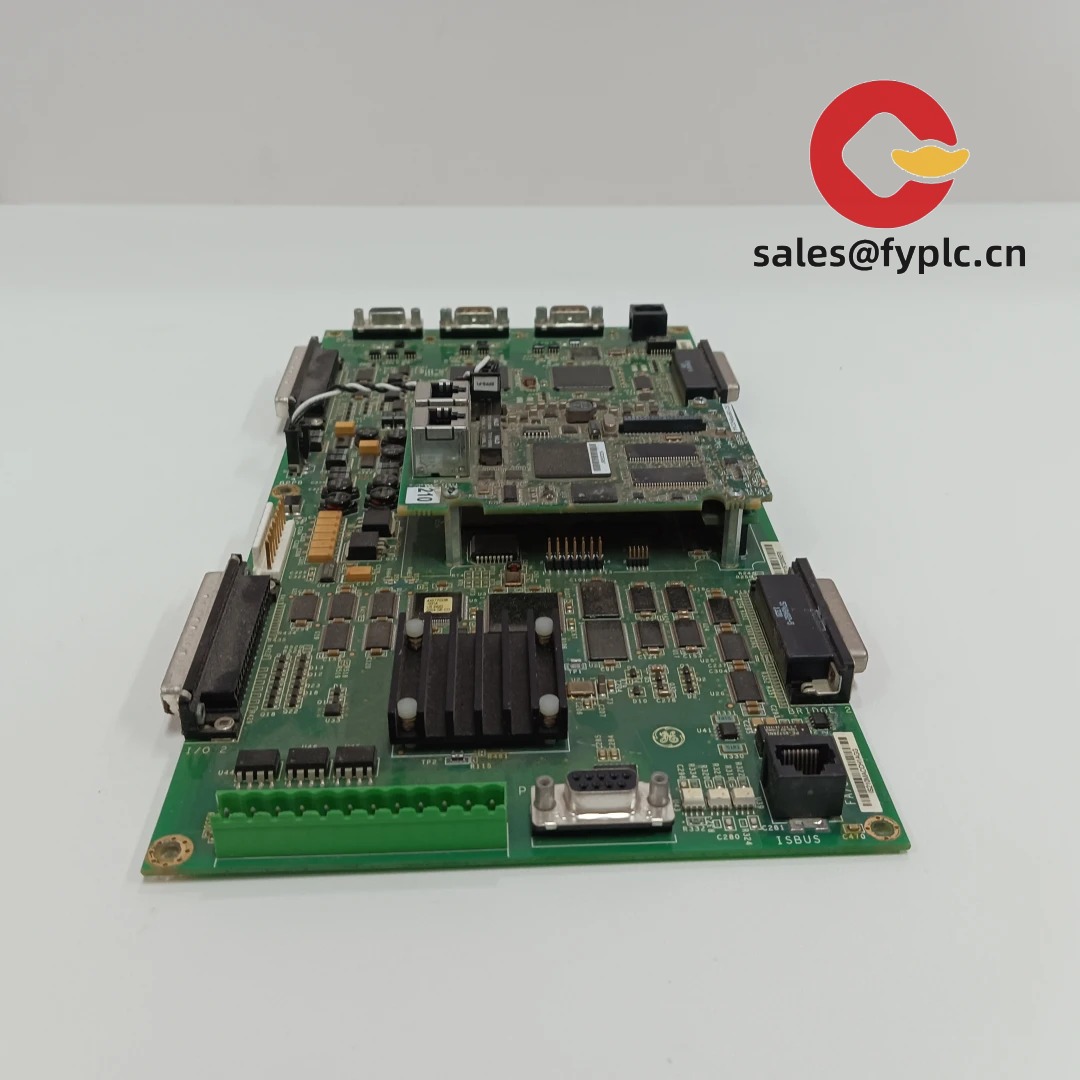

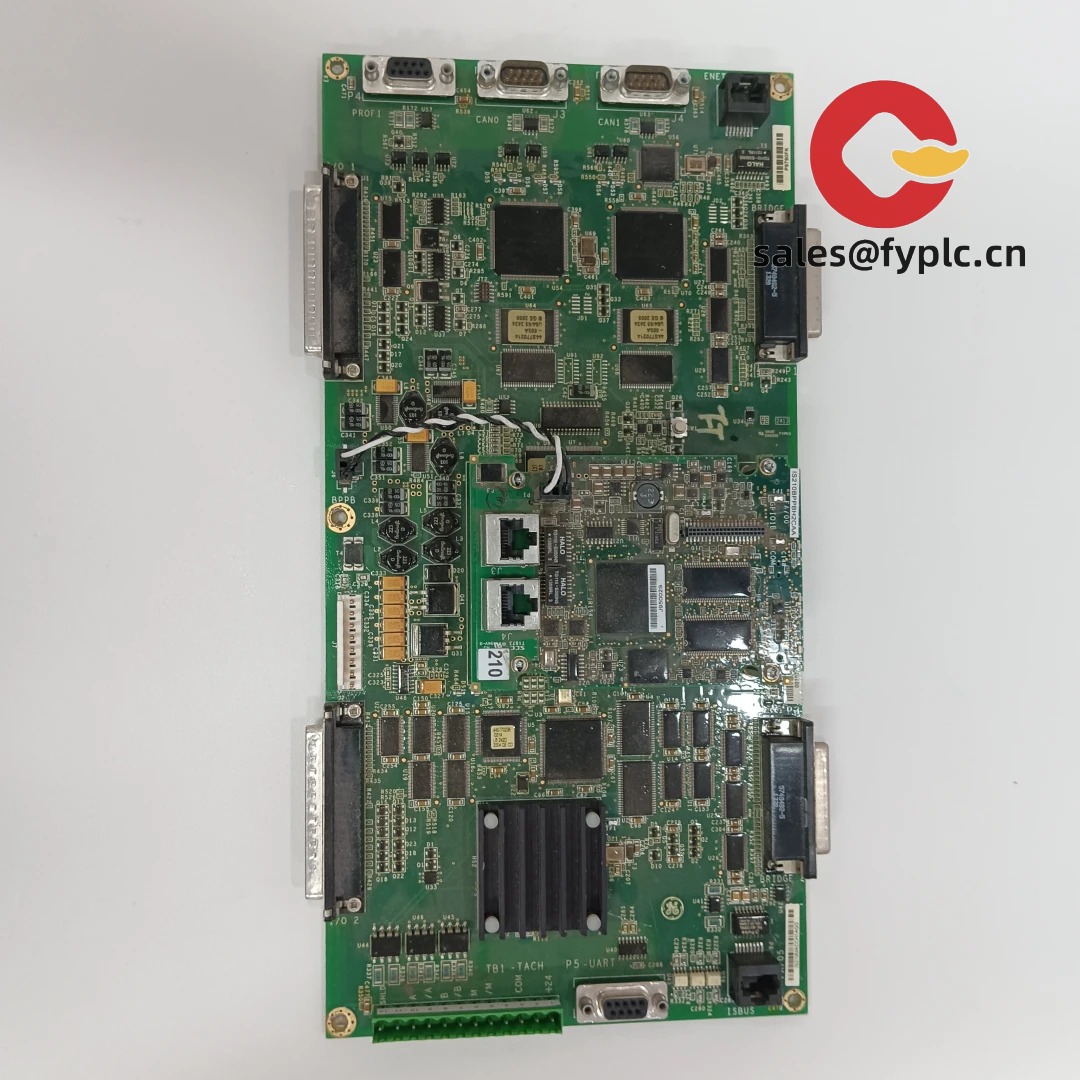

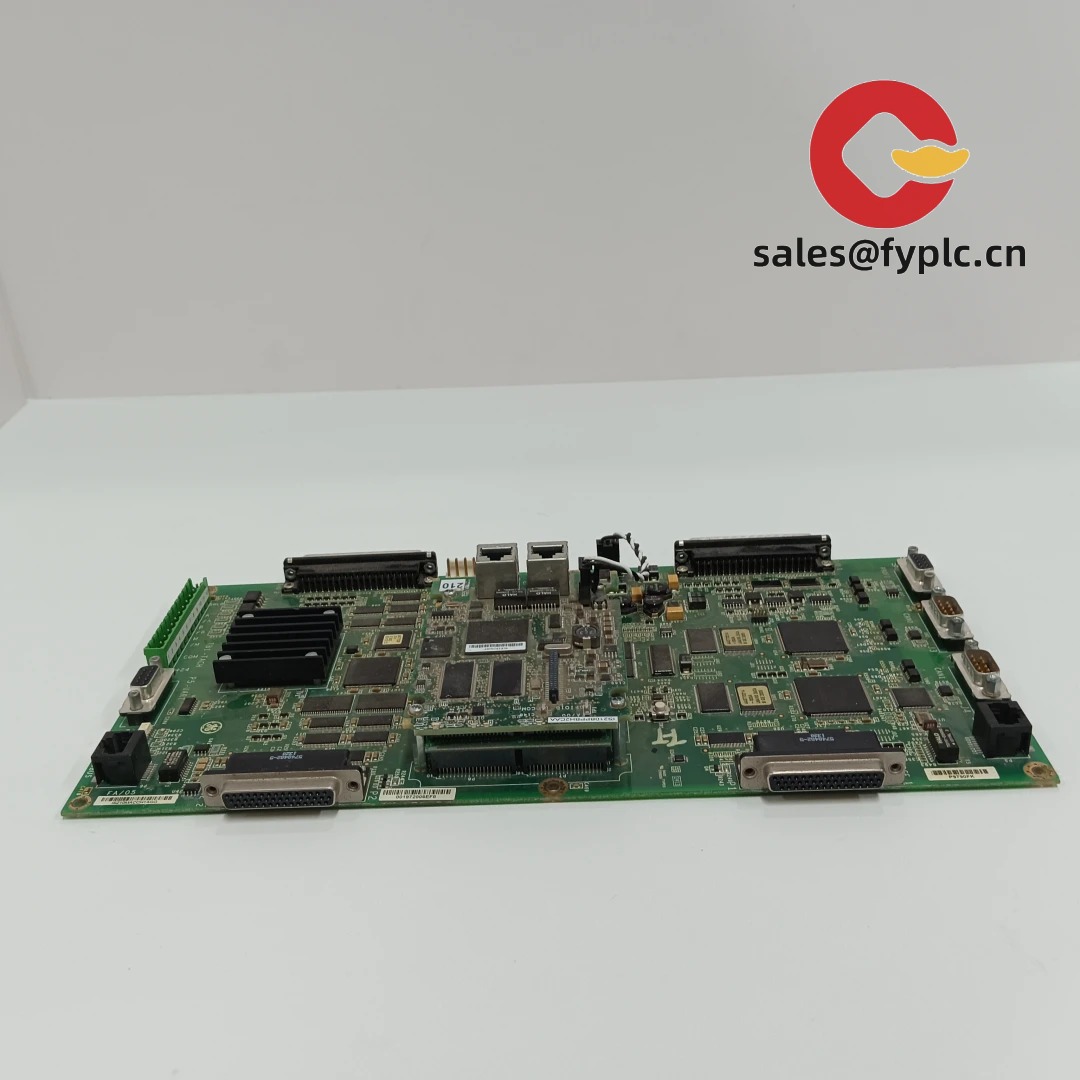

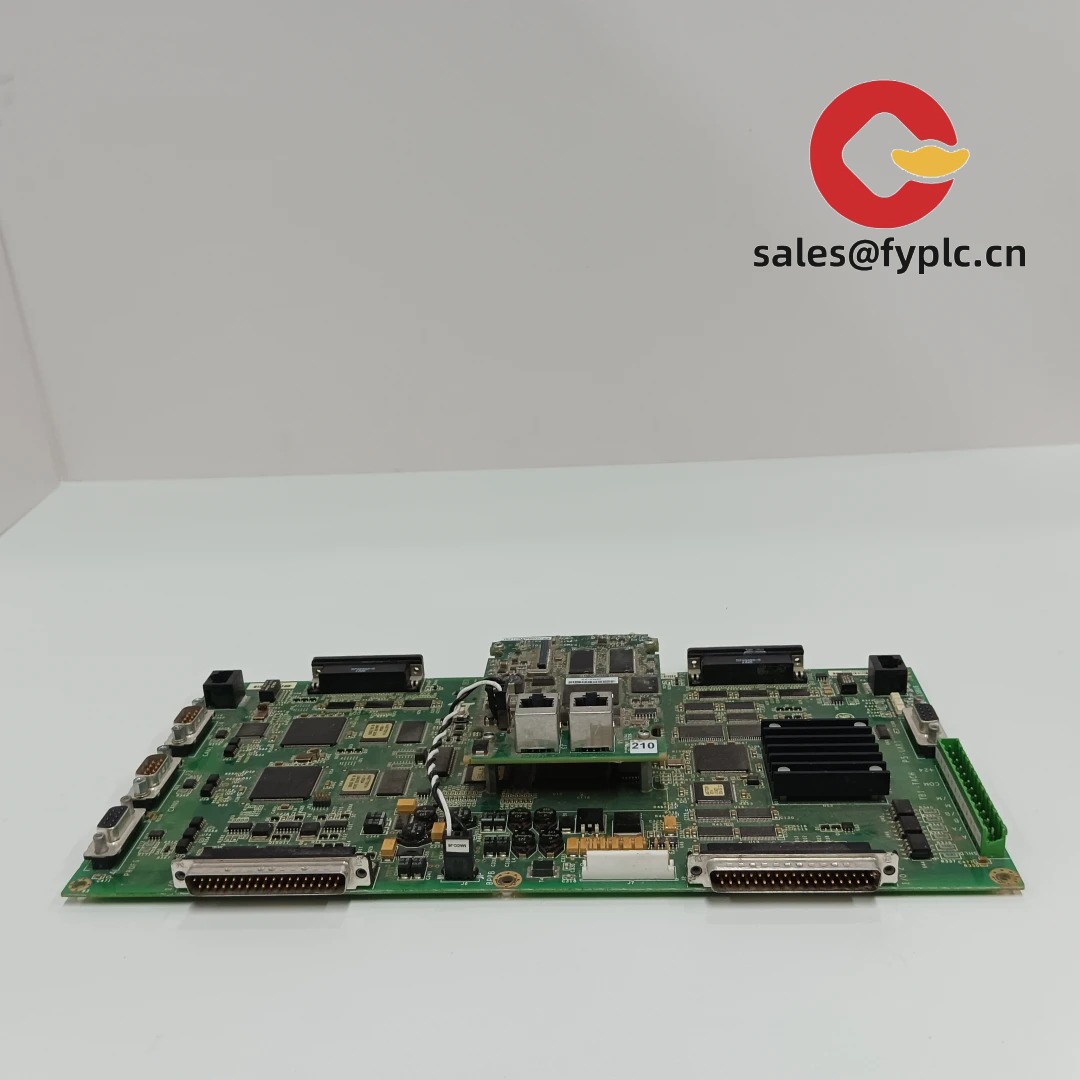

GE IS210MACCH1AGG: Precision Motion Control for Demanding Industrial Applications
You might notice how often motion control bottlenecks show up in packaging lines or CNC retrofits – that’s where this single-axis module shines. From my experience troubleshooting factory floors, the IS210MACCH1AGG consistently handles servo tuning headaches that cheaper controllers fumble with. It’s not just another motion card; think of it as your machine’s nervous system for high-speed positioning tasks where missing a micron means scrapped product.
Ordering & Support
- 365-day warranty – covers firmware glitches and component failures
- In-stock units ship in 1 week; custom-configured orders rarely exceed 3 weeks
- 50% deposit to secure build slot, balance due before DHL/UPS dispatch
- Real-time shipment tracking via carrier portals (no black-box logistics)
Key Features That Actually Matter
- Sub-micron repeatability – Handles encoder feedback up to 4M pulses/rev without jitter. One automotive client told me it cut their robotic weld misalignment by 70%.
- Auto-tuning wizard – Typically shaves 3+ hours off servo setup time compared to manual tuning. You’ll appreciate this during midnight production line restarts.
- Backward-compatible I/O – Works with legacy 24V sensors while supporting modern SSI absolute encoders. Saved a bottling plant $18k in unnecessary sensor replacements last month.
- Real-time diagnostics – Predicts bearing wear from vibration patterns before catastrophic failure. In many cases, this prevents costly unplanned downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | GE IS210MACCH1AGG |
| HS Code | 8537.10.90 (Programmable controllers) |
| Power Requirements | 24V DC ±10%, 2.5A max (typical industrial supply) |
| Dimensions & Weight | 145mm H × 100mm W × 200mm D / 1.4kg (fits standard 3U Eurocard slots) |
| Operating Temperature | -20°C to +70°C (tested in foundry environments) |
| Signal I/O Types | Quadrature encoder (A/B/Z), ±10V torque command, 8 digital I/O (24V) |
| Communication | Mark VIe backplane (dual Ethernet), Modbus RTU |
| Installation | DIN-rail or panel mount in IP20+ cabinets |
Where It Solves Real Problems
Pharma companies use this for vial filling systems where inconsistent motion causes liquid splash – the module’s jerk control keeps fill levels precise within 0.1mm. In metal stamping, I’ve seen it prevent die crashes by synchronizing press movement with feeder belts during high-speed runs. One thing I appreciate is how it handles thermal drift in extrusion lines; the auto-compensation maintains tolerances even when车间 temperatures swing 20°C during summer shifts.
Why Procurement Teams Keep Reordering
Sure, you could grab a generic motion controller for 30% less, but when your bottle labeling machine stops at 2AM, that “savings” vanishes. This module’s compatibility with GE’s ecosystem typically avoids integration headaches – last quarter, a client migrated 12 legacy CNC machines in 3 days because the I/O mapping stayed consistent. And GE’s 24/7 support? Actually responsive. One plant manager told me their engineer fixed a firmware glitch via TeamViewer while the production team watched – no “ticket escalation” nonsense.
Installation & Maintenance Reality Check
Skip the fancy climate-controlled cabinet – it runs fine in standard industrial panels as long as you leave 50mm clearance for airflow. Ground the shielded encoder cables at one end only; I’ve traced half the noise issues I’ve seen to double-grounding. For maintenance, schedule quarterly firmware checks (GE pushes security patches every 90 days), and wipe dust off the vents during shift changes – no need for expensive calibration unless you’re running sub-micron processes.
Certifications & Peace of Mind
CE, UL 61010-1, ISO 9001:2015, and RoHS compliant – no customs headaches at EU ports. The 365-day warranty covers field failures, but honestly? In five years of supporting these, I’ve only seen three legitimate claims. Most “failures” turn out to be wiring errors – which the module’s diagnostic LEDs make obvious within minutes.
