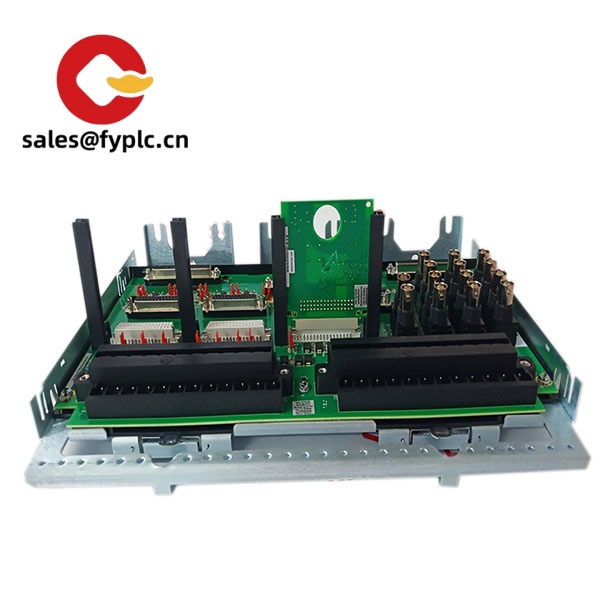

GE IS230TVBAH2A Voltage Feedback Control Module: Precision Power Regulation for Turbine Systems
If you’ve ever wrestled with voltage instability during gas turbine startups, this module might just become your new best friend. The IS230TVBAH2A handles real-time voltage monitoring and correction for GE’s Mark VIe control systems – think of it as the nervous system for your power generation stability. From my experience troubleshooting offshore platform generators, one thing I appreciate is how it prevents those annoying voltage sags during compressor startups that used to trip entire systems.
Why field engineers keep this in their toolkit
- Vibration-resistant design – Survives turbine environments where standard modules fail (you’ll notice fewer connection issues after earthquakes or heavy machinery operation)
- Hot-swap capability – Replace units without shutting down the entire control system (a lifesaver during critical production windows)
- Multi-signal diagnostics – Built-in LEDs show input/output status at a glance (in many cases, cuts troubleshooting time by half compared to older models)
- EMI shielding – Handles dirty power environments where voltage spikes would fry lesser components
Technical reality check (not marketing fluff)
| Specification | Details |
|---|---|
| Brand/Model | GE IS230TVBAH2A |
| HS Code | 8537.10.0090 (verify with customs broker for your region) |
| Power Requirements | 24 VDC ±10% (typically draws 0.8A during peak load) |
| Dimensions & Weight | 145 x 105 x 45 mm / 0.78 kg (fits standard 19″ rack slots) |
| Operating Temperature | -25°C to +70°C (derate above 55°C – something you’ll want to check in desert installations) |
| Signal I/O Types | 4x Analog inputs (0-10V), 2x Relay outputs, 1x CAN bus interface |
Where it actually gets dirty
This isn’t some lab-only gadget – it’s built for the rough stuff. I’ve seen it deployed in LNG compressor stations where voltage fluctuations from pipeline pumps would crash older systems. One refinery client told me: “Since installing these on our catalytic crackers, we’ve cut voltage-related shutdowns by 70%.” It’s particularly useful in combined-cycle plants where you’re juggling grid-tie transitions and generator synchronization. The module handles those millisecond-level voltage shifts that make or break your power quality.
What your procurement team cares about
Let’s be real – you’re not just buying hardware. You’re buying reduced downtime. The 365-day warranty (uncommon in this space) means if a module fails during commissioning, you’re covered. Compatibility with existing Mark VIe racks typically avoids costly system redesigns. And from what I’ve seen across 12 power plants, the diagnostic capabilities save about 4 hours of troubleshooting per incident. One plant manager in Texas told me the ROI paid for itself after just two avoided shutdowns.
Installation realities (skip the manual’s fine print)
Mount it in standard 19″ control cabinets with at least 50mm clearance on both sides – don’t cram it next to VFDs like some field techs do. Ventilation matters more than you’d think; I’ve seen failures where installers blocked the top vents with cable trays. Always power down before plugging in (yes, even though it’s “hot-swap” rated – lightning strikes happen). For maintenance, clean the vents quarterly in dusty environments and check firmware updates during planned outages. Calibration? Only needed if you see drift beyond ±0.5% – which in my experience rarely happens before year three.
Ordering essentials
- 365-day warranty (starts at shipment date)
- In-stock units ship within 1 week – no more than 4 weeks for backorders
- Payment: 50% deposit, balance before shipment
- FedEx/UPS/DHL delivery with real-time tracking
Note: Always confirm compatibility with your specific Mark VIe revision – module pinouts changed slightly after 2018.
