The GE PCIE-5565-PIORC acts as a bridge between distributed systems, allowing real-time data replication across multiple nodes via high-speed fiber-optic networks. Its reflective memory architecture ensures that any write operation to local SDRAM is instantly mirrored across all connected nodes, eliminating the need for complex software protocols or CPU intervention. With support for data rates up to 170 MB/s and dynamic packet sizing (4–64 bytes), it efficiently handles both small control signals and large data blocks, making it suitable for applications ranging from PLC synchronization to large-scale simulation networks. Its PCIe Gen 2 interface provides robust bandwidth for host communication, while hot-swappable design and redundant power inputs enhance operational continuity in 24/7 environments.

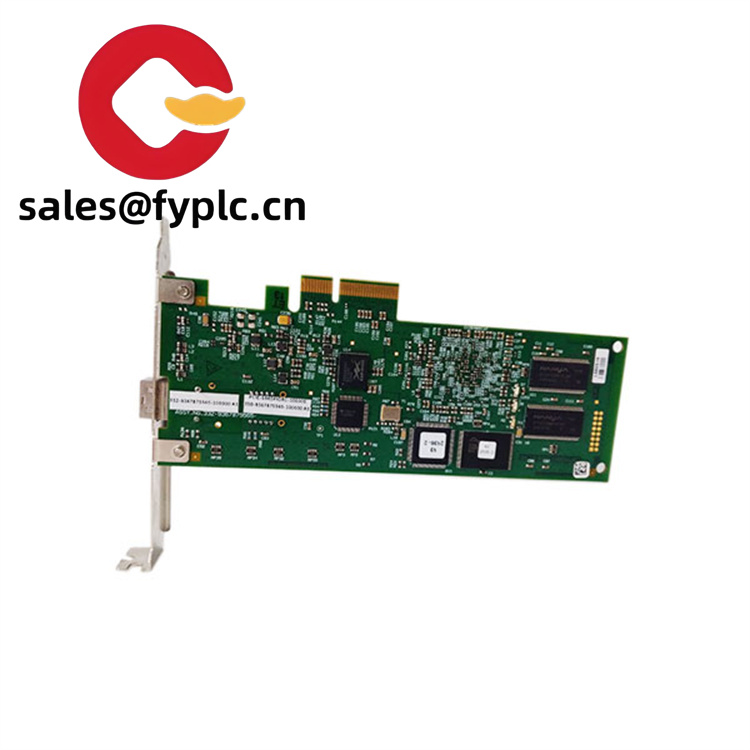

PCIE-5565-PIORC

The GE PCIE-5565-PIORC redefines industrial communication through its unique reflective memory technology. By leveraging a dedicated fiber-optic network, it achieves sub-microsecond latency (typically 0.4–1 μs per node), ensuring real-time synchronization critical for applications like flight simulators and nuclear reactor control systems. Its hardware-accelerated data replication eliminates software overhead, freeing CPU resources for other tasks. The module’s galvanic isolation and error-checking mechanisms (parity and CRC) protect against electromagnetic interference (EMI) and data corruption, making it suitable for noisy industrial environments.

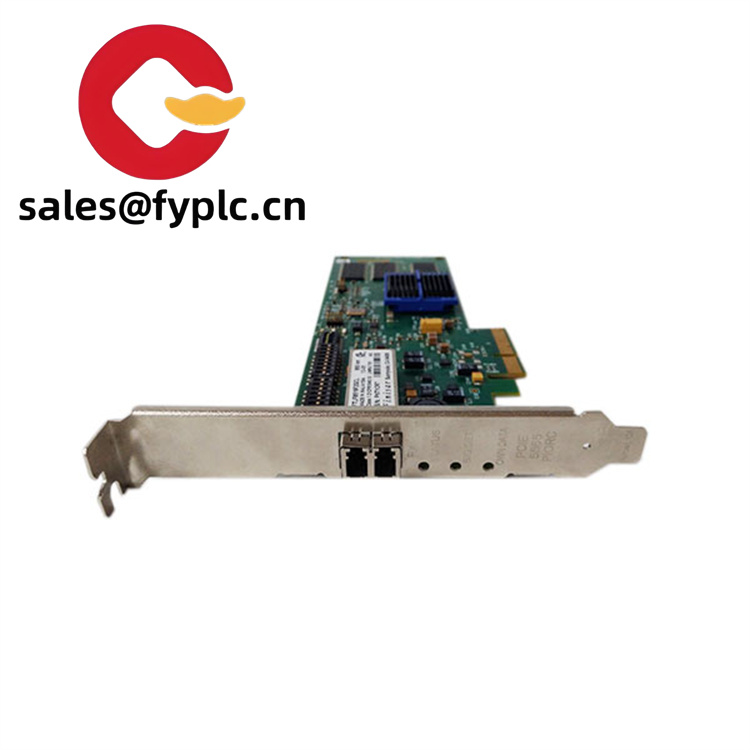

PCIE-5565-PIORC

Compatible and Related Models

• PCI-5565PIORC – A PCI-based variant with similar functionality, suitable for legacy systems requiring 32-bit bus compatibility .
• PMC-5565PIORC – A PMC form factor module for embedded systems, often paired with CPCI backplanes in ruggedized industrial PCs .
• CPCI-5565PIORC – A CompactPCI version with enhanced thermal management, ideal for high-density control cabinets .
• VME-5565PIORC – A VMEbus-compatible model for retrofitting older industrial automation systems .
• ACC-5595 – A reflective memory hub that extends network scalability, supporting up to 256 nodes in a star topology .
• VMIC-5565 – A multi-protocol gateway that bridges reflective memory networks with Ethernet/IP and PROFIBUS DP .
• GE Proficy Historian – A software suite for data logging and analytics, optimized for use with the PCIE-5565-PIORC .
• NI cDAQ-9188 – A compactDAQ chassis that integrates with the PCIE-5565-PIORC for distributed data acquisition .
