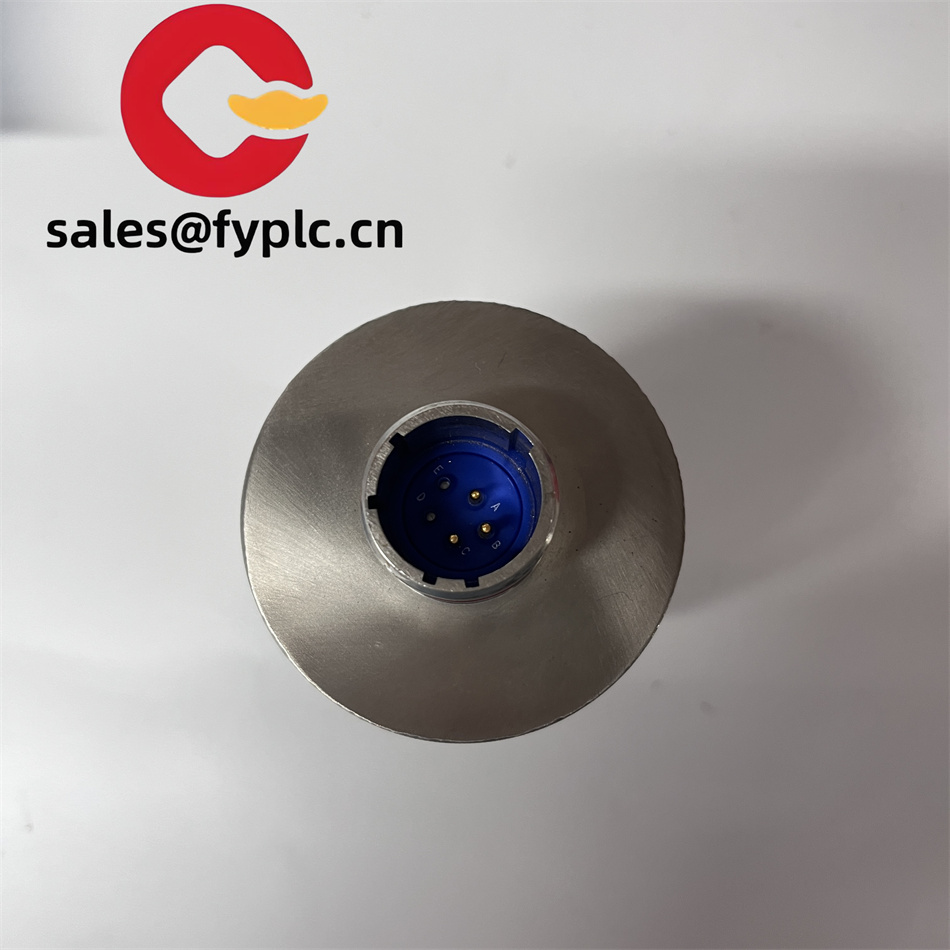

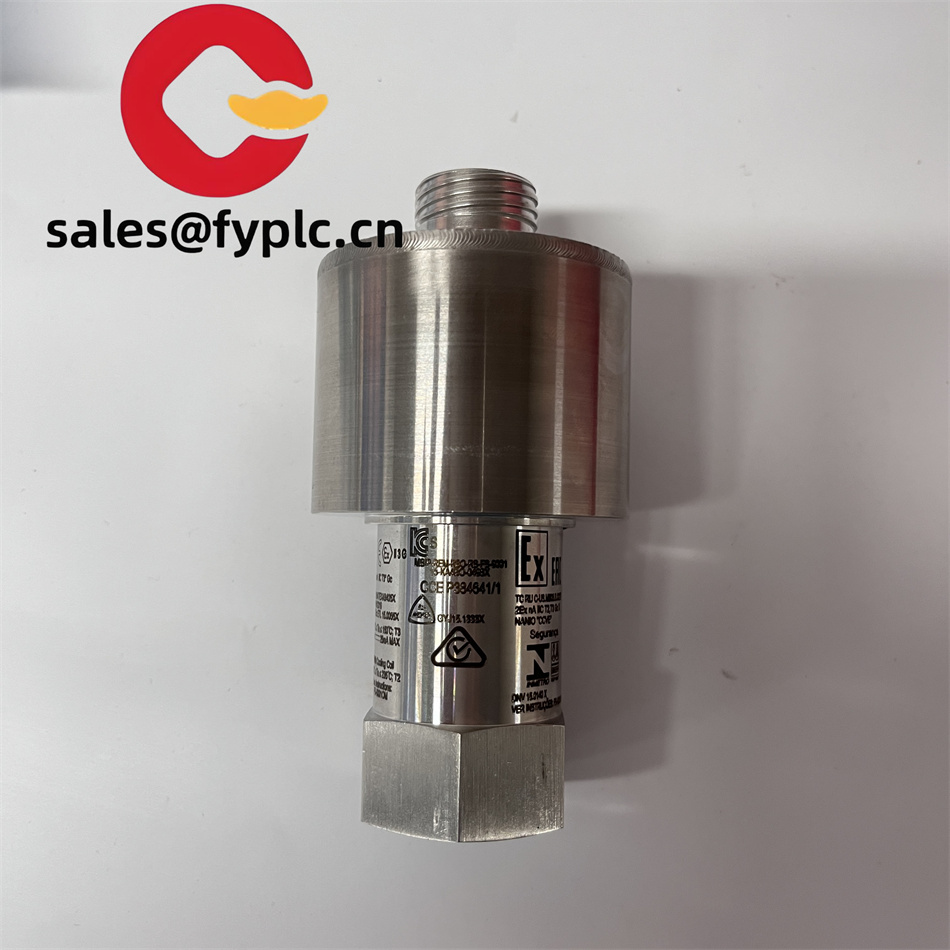

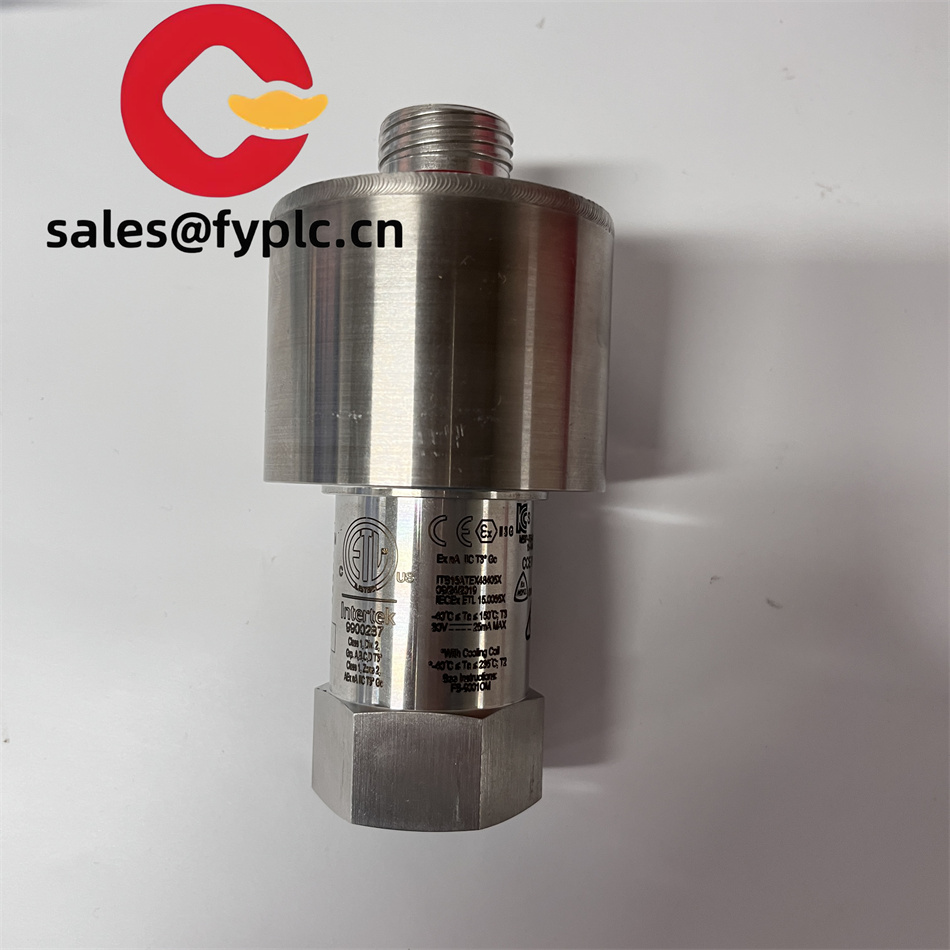

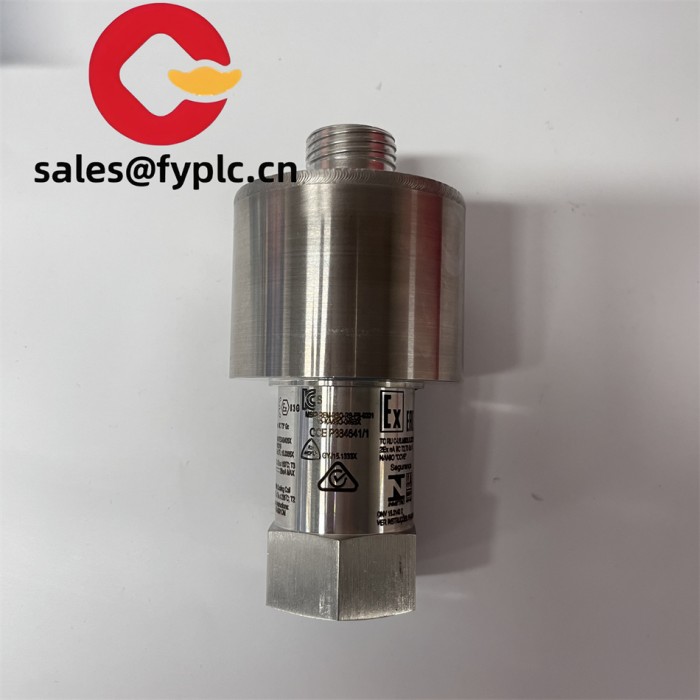

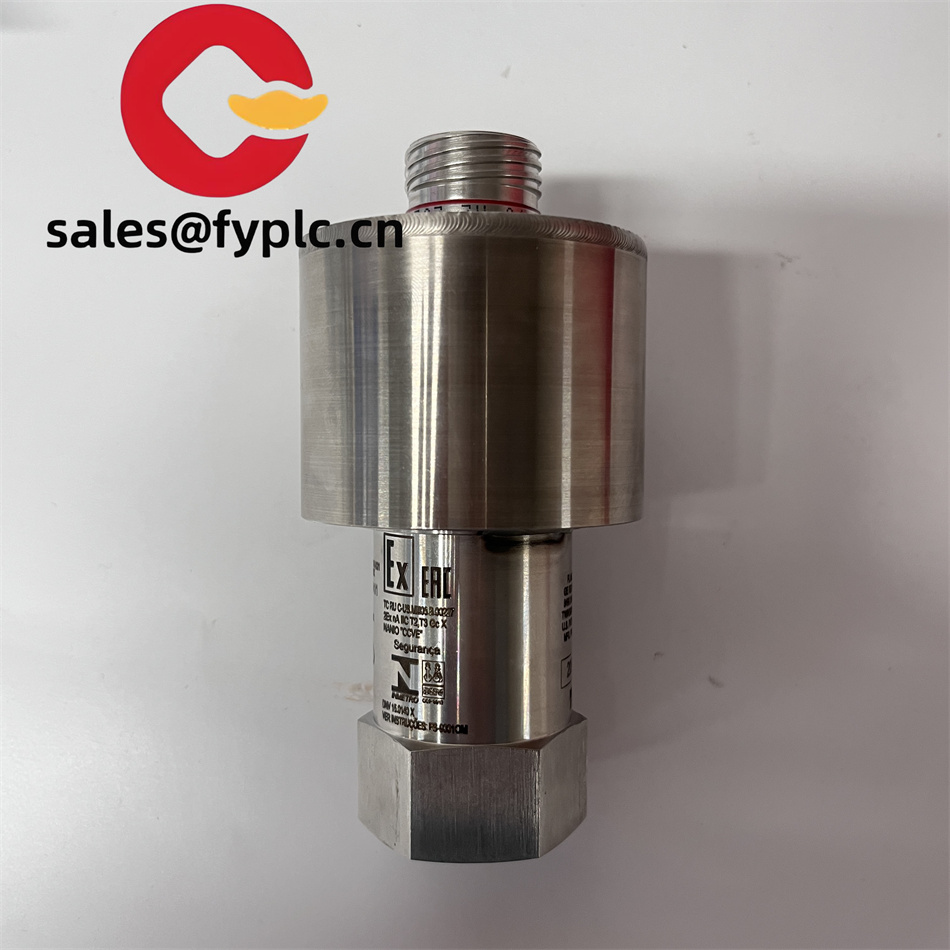

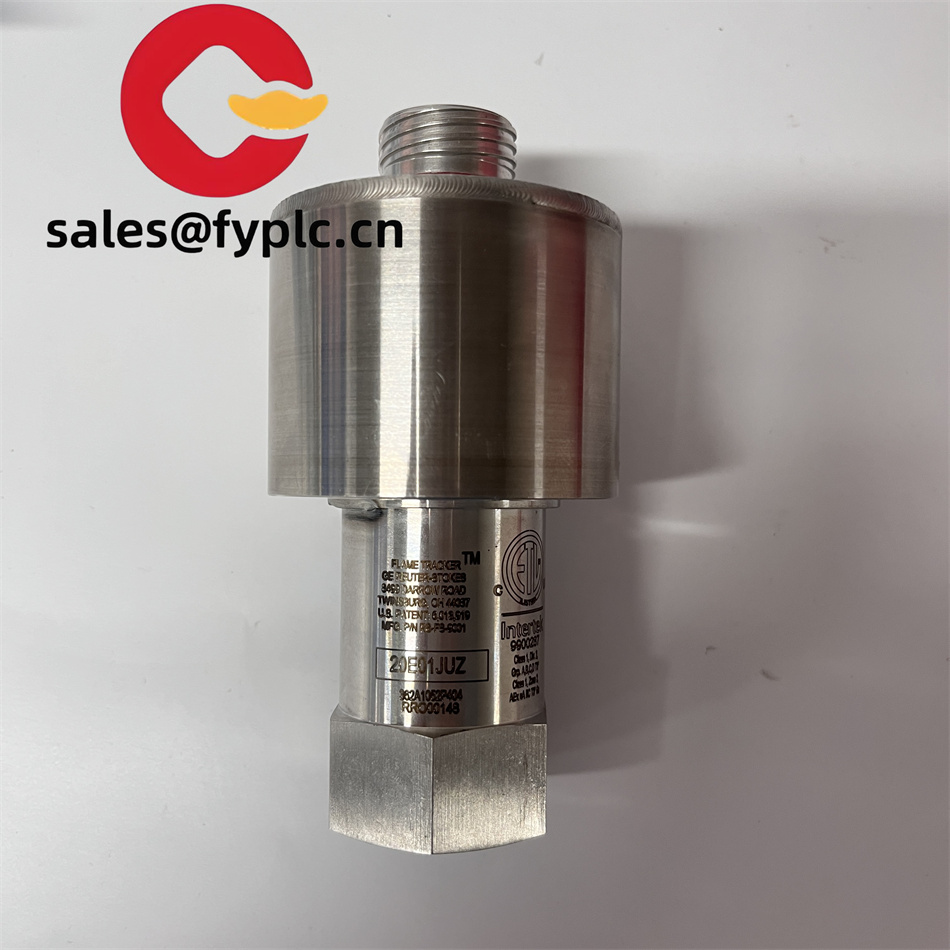

GE RS-FS-9001 362A1052P404 Flame Sensor Detector
In the complex and demanding realm of industrial operations, safety is of utmost importance. One critical aspect of ensuring a safe industrial environment is the reliable detection of flames. This is where the GE RS – FS – 9001 from General Electric steps in. The GE RS – FS – 9001 is a high – performance flame detector designed to meet the rigorous needs of various industrial applications.
Whether it’s in the oil and gas industry, where the risk of fire and explosion is ever – present, or in iron smelting plants with their high – temperature processes, the GE RS – FS – 9001 plays a pivotal role. It’s an essential component within industrial control systems, providing real – time monitoring of flame conditions. By accurately detecting flames or high – temperature gases, it enables the implementation of safety measures, such as sounding alarms and triggering control signals. This helps prevent potential disasters, safeguarding both personnel and valuable industrial assets.
|
Label
|
Specification
|
|
Model Number
|
RS – FS – 9001
|
|
Brand
|
General Electric
|
|
Type
|
Flame Detector
|
|
Sensor Material
|
Silicon Carbide (SiC)
|
|
Output Signal
|
4 – 20 mA
|
|
Operating Temperature Range
|
Wide, suitable for high – temperature industrial environments
|
|
Window Material
|
Sapphire (transparent to UV light)
|
|
Hazardous Area Certification
|
Yes
|
|
Mounting Options
|
Multiple options available for different installation scenarios
|
|
Weight
|
[Specify weight if available]
|
|
Dimensions
|
[Length] x [Width] x [Height] (mm)
|
|
Detection Speed
|
High – speed detection for quick response
|
The GE RS – FS – 9001 is engineered with several features that make it stand out in real – world industrial settings. Its use of silicon carbide (SiC) as the sensor material endows it with remarkable characteristics. SiC offers high – speed detection capabilities, ensuring that flames are detected almost instantaneously. This quick response time is crucial in industrial scenarios where every second counts. Additionally, the sensor provides high sensitivity, allowing it to detect even the faintest of flames or minute changes in high – temperature gas levels. The high reliability of the SiC sensor means that the GE RS – FS – 9001 can be trusted to operate consistently, even in the most challenging and complex industrial conditions.
The build quality of the GE RS – FS – 9001 is top – notch. It has a sapphire window that not only allows for the detection of ultraviolet (UV) radiation from flames but also has the ability to withstand the extreme high temperatures and pressures commonly found in industrial applications. The lens within the detector is designed to focus the light precisely onto the silicon carbide photodiode, which is housed in a hermetic package. This design protects the internal components from dust, moisture, and other contaminants, further enhancing the detector’s durability and reliability.
In industrial use cases, the GE RS – FS – 9001 has proven its worth time and time again. In gas turbine applications, it serves as a vigilant sentinel, constantly monitoring the flame status. By providing real – time data on the presence and stability of the flame, it ensures the safe and efficient operation of gas turbines. Any deviation from normal flame conditions is promptly detected, allowing for corrective actions to be taken before a potentially catastrophic event occurs. This not only improves the overall process reliability but also reduces the risk of costly downtime.
In the oil and gas industry, the GE RS – FS – 9001 is used in various processes, such as refining and pipeline operations. It helps in maintaining the safety of these operations by detecting any unwanted flames or high – temperature gas leaks. In iron smelting plants, where the environment is harsh and temperatures are extremely high, the GE RS – FS – 9001 can operate effectively, providing reliable flame detection and contributing to the safe operation of the plant.
There are several related models that are part of the GE flame detection product family. GE RS – FS – 9002 offers enhanced sensitivity in low – light industrial environments, making it suitable for applications where the flame may not produce a strong visual signal. GE RS – FS – 9001 – Pro has additional diagnostic features, allowing for more in – depth monitoring of the detector’s performance and easier troubleshooting. GE RS – FS – 9001 – Mini is a compact version, ideal for installations where space is at a premium, without sacrificing the core flame – detection capabilities. GE RS – FS – 9001 – XT is designed to withstand even more extreme environmental conditions, such as high humidity and corrosive atmospheres. GE RS – FS – 9001 – Wireless enables wireless communication of flame – detection data, providing greater flexibility in installation and data transfer.
When it comes to setting up the GE RS – FS – 9001, proper installation is key to its optimal performance. During installation, ensure that the detector is mounted in a location where it has an unobstructed view of the area to be monitored. Consider factors such as the direction of flame propagation and potential sources of interference. The mounting should be secure to prevent vibrations from affecting the detector’s accuracy. Also, pay attention to the electrical connections, following the provided wiring diagrams carefully to ensure proper power supply and signal transmission.
For long – term operation, regular inspections are recommended. Check the sapphire window for any signs of damage or contamination, as this can affect the detector’s ability to detect UV radiation. Inspect the electrical connections periodically to ensure they are tight and free from corrosion. Monitor the output signal of the detector to ensure it is within the expected range. If any anomalies are detected, refer to the user manual or contact GE’s technical support for guidance on troubleshooting.
General Electric stands firmly behind the GE RS – FS – 9001 in terms of warranty and support. The product comes with a comprehensive warranty, reflecting the company’s confidence in its durability and reliability. With a global support network, customers can access technical assistance at any time. Extensive documentation, including installation guides, user manuals, and troubleshooting guides, is available to help users make the most of the GE RS – FS – 9001. In addition, remote support options are provided, allowing GE’s experts to diagnose and resolve issues without the need for an on – site visit in many cases. This commitment to customer assurance and long – term reliability makes the GE RS – FS – 9001 a trusted choice for industrial flame – detection applications.
