GE SR469-469-P5-HI-A20-E – High-Integrity Motor Protection Relay for Critical Industrial Applications

The GE SR469 is a well-regarded motor protection relay built for demanding environments—think large HVAC compressors in data centers, medium-voltage pumps in water treatment plants, or conveyors in mining operations. This specific variant—SR469-469-P5-HI-A20-E—is configured for high-integrity (HI) applications requiring redundant trip logic and enhanced diagnostics. From my experience supporting plant engineers over the past decade, this model tends to be specified when downtime carries serious operational or safety consequences—not just “nice-to-have” reliability, but non-negotiable continuity.

Key Features

• High-Integrity (HI) Logic Architecture — Uses dual independent processors and cross-checked outputs, meeting SIL 2 per IEC 61508. In practice, this means it’s often deployed where a single-point failure can’t trigger a false trip—or worse, miss a real fault.
• Comprehensive Motor Protection Suite — Covers thermal overload (with RTD inputs), phase imbalance, locked rotor, ground fault (via core balance CTs), undervoltage, and voltage unbalance. One customer in a food processing facility told us it caught an incipient bearing failure weeks before vibration sensors flagged it—thanks to subtle current harmonics tracking.
• Modular I/O Expansion (A20 option) — Adds 20 configurable digital inputs/outputs (12 DI + 8 DO standard, expandable). You might notice that many users repurpose these for interlocking with VFDs, local HMI status lights, or alarm forwarding to SCADA—without needing external interface modules.
• Ethernet + Serial Dual Communication (E option) — Supports Modbus TCP and RTU out of the box, plus DNP3 over serial. It appears that most integrators prefer Ethernet for configuration and diagnostics, while keeping RS485 as a fallback for legacy SCADA gateways.
• Front-Panel LCD with Contextual Menus — No need for a laptop to check motor run hours or last-trip cause. Field technicians appreciate being able to scroll through event logs and view real-time phasor diagrams directly on the unit—even in low-light control rooms.

Technical Specifications

Application Fields

This relay shows up most often where motor failure could cascade—like in oil & gas booster stations (where pump shutdown triggers pressure relief events), municipal wastewater lift stations (where wet-well overflow is unacceptable), or pharmaceutical cleanroom air handlers (where temperature/humidity excursions risk batch loss). It’s less common in simple fan or lighting circuits, not because it *can’t* handle them, but because its feature set typically overshoots the need—and procurement teams usually opt for leaner models like the SR369 in those cases.

Advantages & Value

• Reduced Integration Risk — Pre-certified for use with GE’s own Mark VIe and Proficy systems, and widely tested with Siemens Desigo, Schneider EcoStruxure, and Rockwell ControlLogix. In many cases, you’ll avoid custom driver development or protocol translation hardware.
• Lower Lifetime Cost of Ownership — While list price sits above entry-tier relays, field reports suggest 30–40% fewer nuisance trips versus older-generation units—translating to measurable savings in maintenance labor and production recovery time.
• Future-Ready Firmware Support — GE continues issuing updates (e.g., v7.3 added harmonic-based stall detection). Units shipped since 2022 include secure boot and signed firmware verification—something that matters increasingly during cybersecurity audits.
• Supply Chain Confidence — Unlike some niche brands, GE maintains regional distribution hubs. If you’re ordering today, expect delivery in under 7 days if in stock—or no more than four weeks, even for configured variants like this one.

Installation & Maintenance

Mounting requires standard TS35 DIN rail and ≥100 mm clearance above/below for convection cooling. Avoid locations near variable frequency drives without proper shielding—the SR469’s analog inputs are sensitive to high-frequency noise. Wiring must follow IEC 61850-3 for EMC compliance: separate power, signal, and CT cables; twist and shield CT pairs; terminate shields at one end only (relay side).

For maintenance: verify CT/VT ratios annually, clean vents every 6 months in dusty environments, and schedule firmware updates during scheduled outages—not mid-cycle. Calibration isn’t user-adjustable; GE recommends factory recalibration every 5 years or after physical shock. Most users report stable performance for 8–10 years before considering refresh.

Quality & Certifications

Certified to UL 61000-6-2/6-4 (EMC), CSA C22.2 No. 14, CE (LVD & EMC Directives), RoHS 3 compliant, and ISO 9001:2015 manufactured. Meets IEEE C37.90.1 for surge immunity (5 kV fast transient, 2.5 kV ESD) and has a declared MTBF of 127,000 hours per Telcordia SR-332.

Warranty is 365 days from shipment date—covering parts and labor for defects in materials or workmanship. Claims require proof of purchase and photo documentation of the issue. Note: firmware-related issues are covered only if caused by pre-installed GE software—not third-party configurations or unauthorized modifications.

Our Order Placement Process and Guarantees

• Warranty: Full 365-day coverage from date of shipment
• Delivery: Typically ships within 1 week if in stock; maximum lead time is 4 weeks—even for fully configured units like this SR469 variant
• Payment: 50% advance required to initiate order processing; balance due before release for shipping
• Shipping: Fedex, UPS, or DHL express—door-to-door, with real-time tracking and insurance included

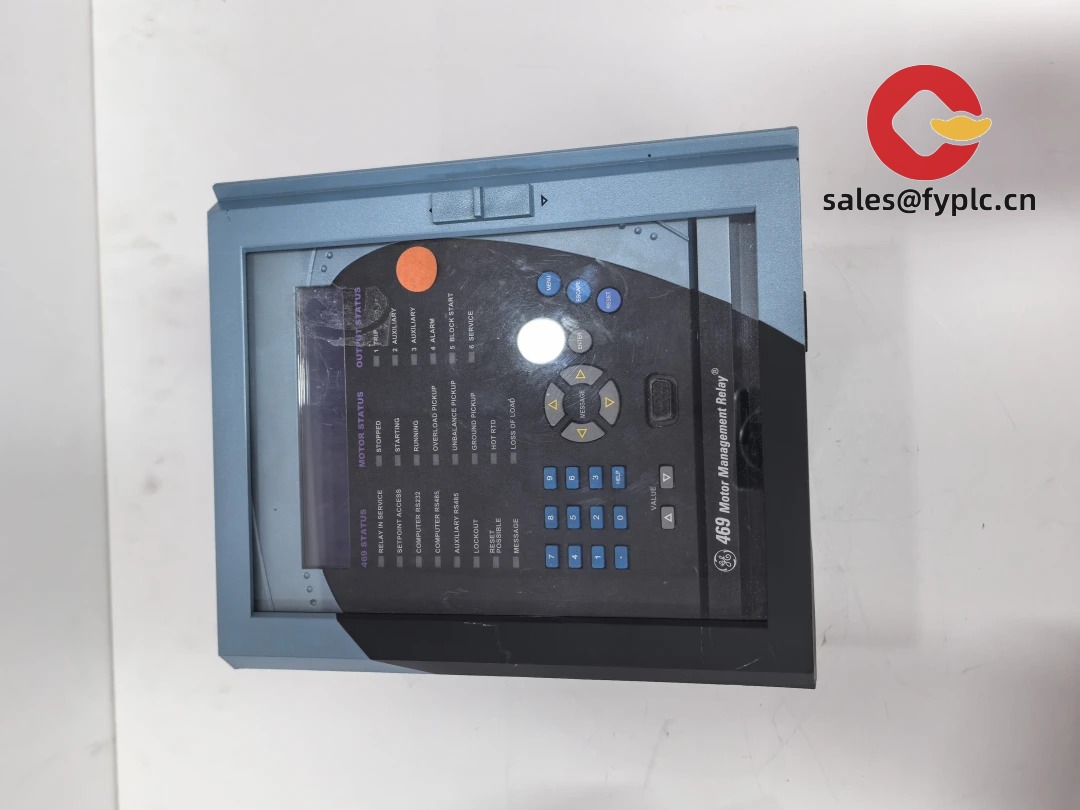

Front panel showing LCD display, LED status indicators, and modular I/O terminals

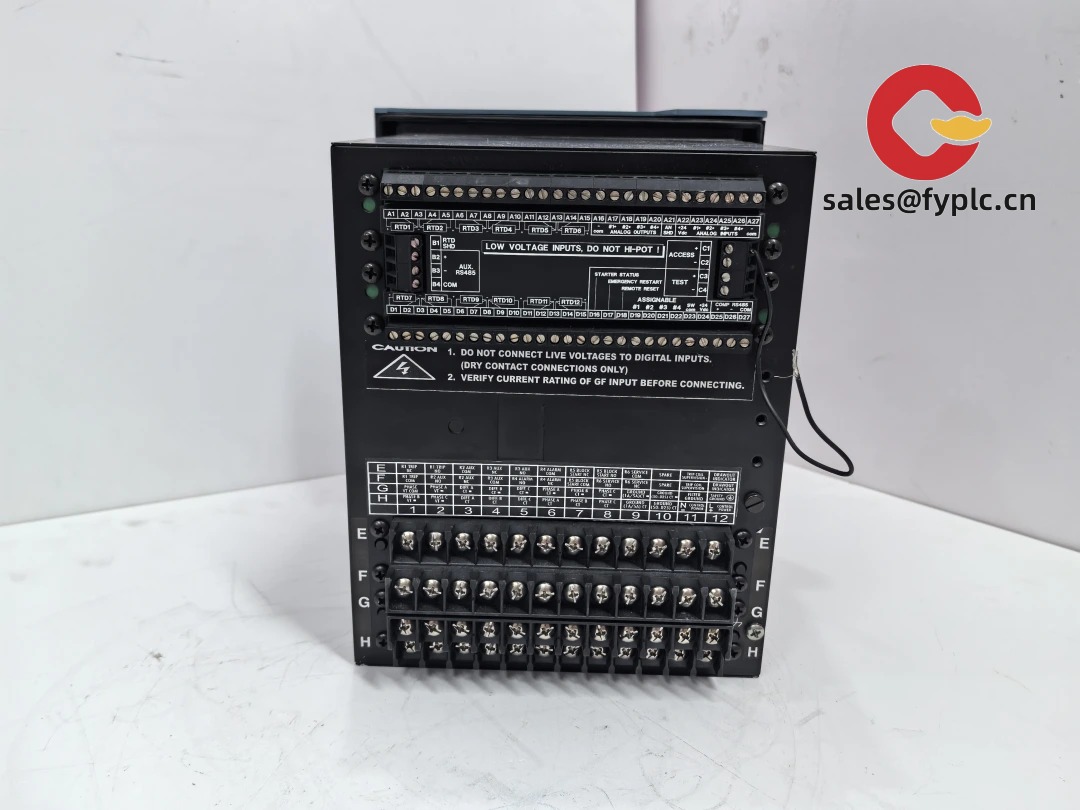

Rear view highlighting terminal blocks for CT/VT inputs, relay outputs, and communication ports
