Description

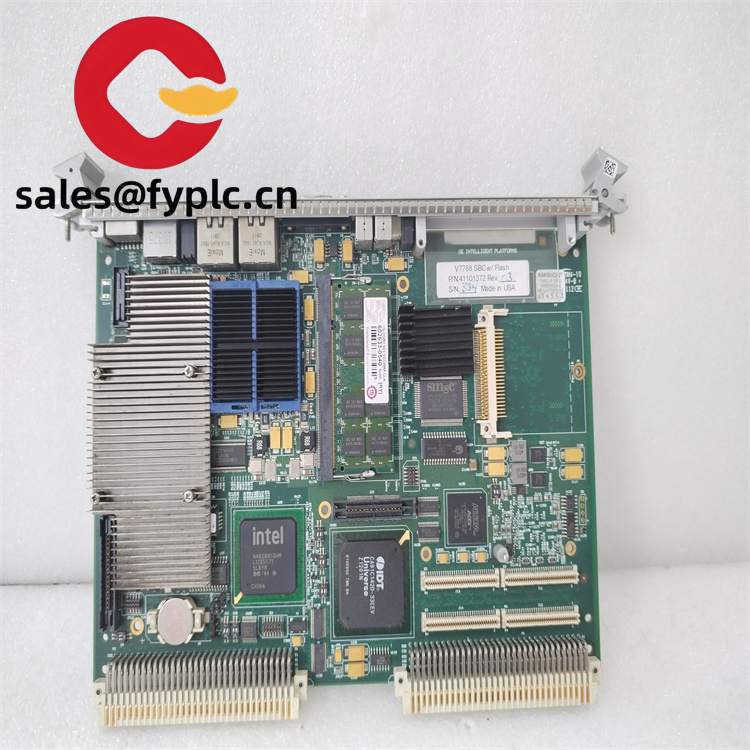

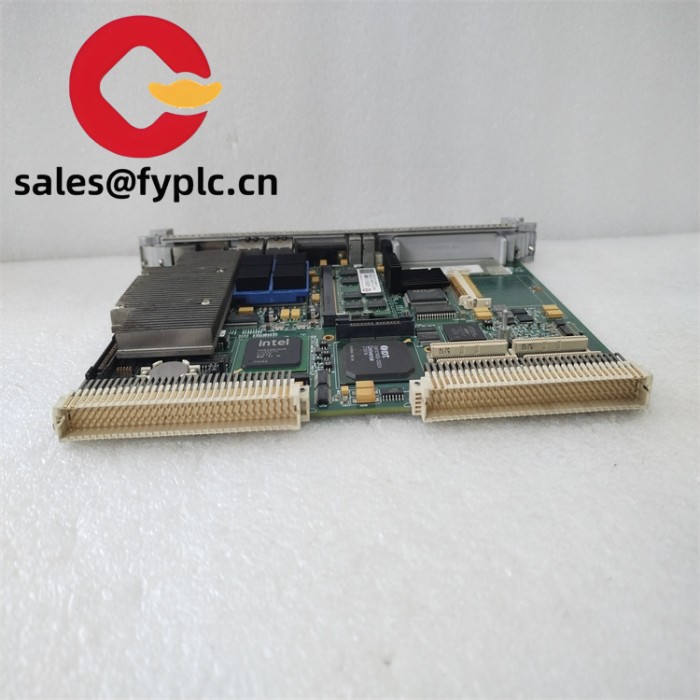

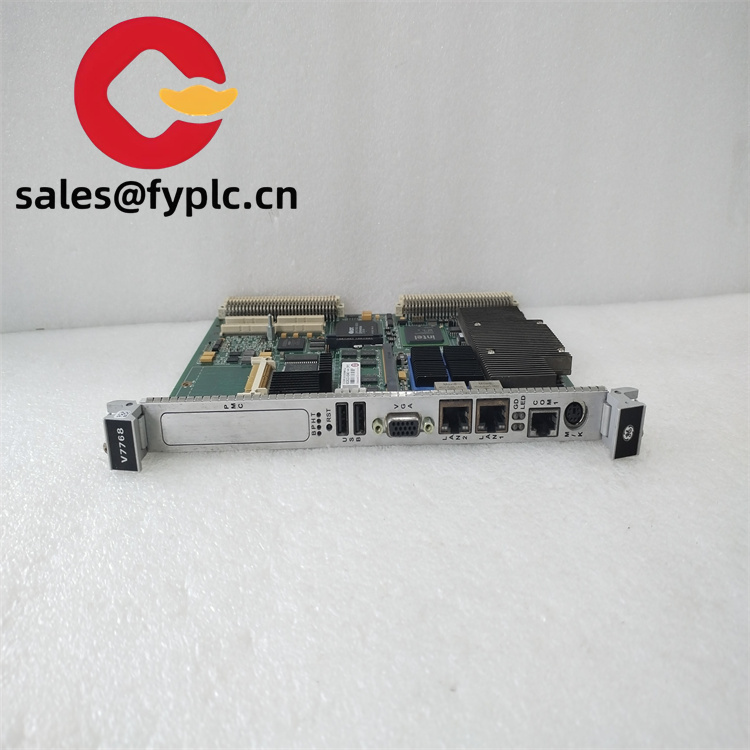

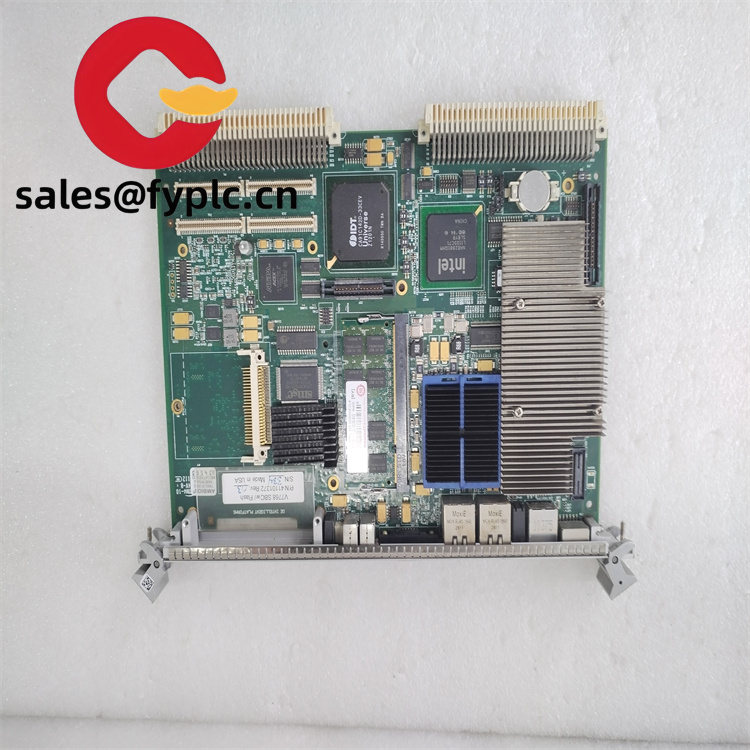

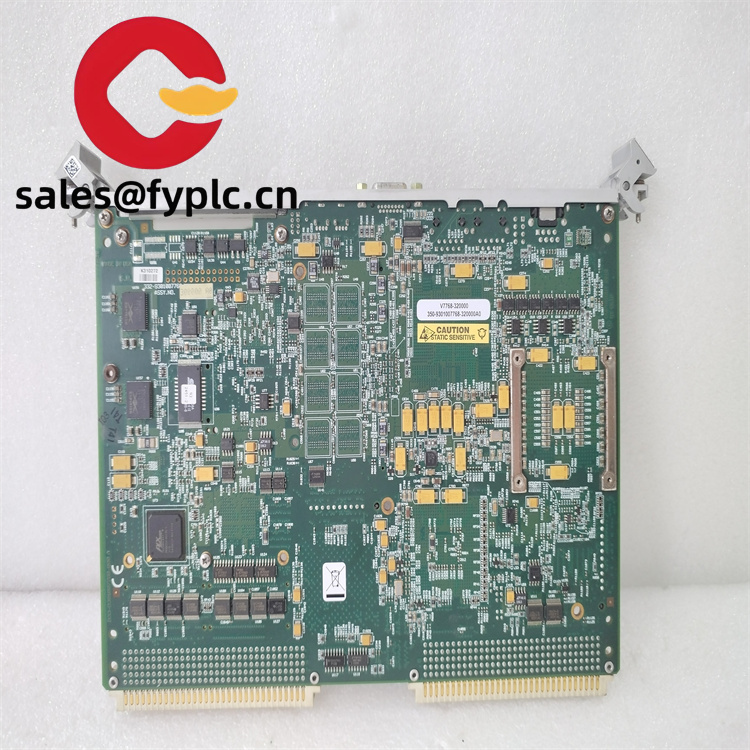

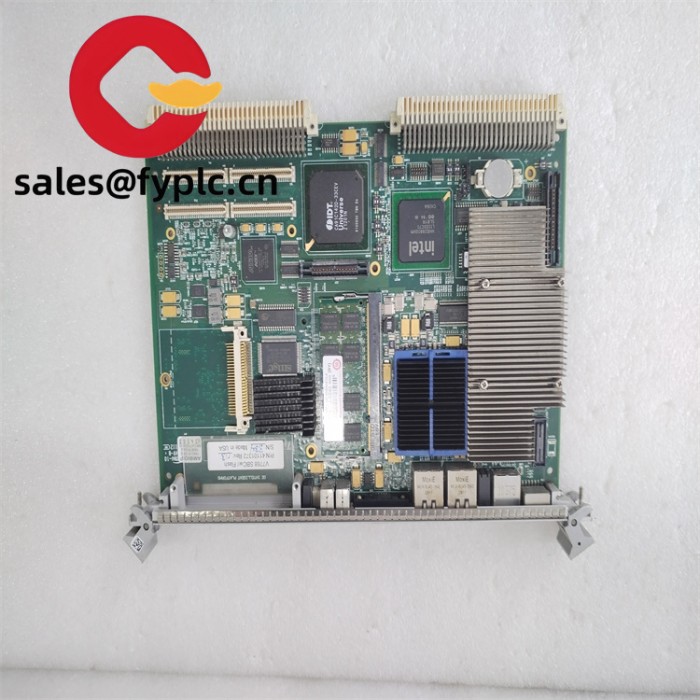

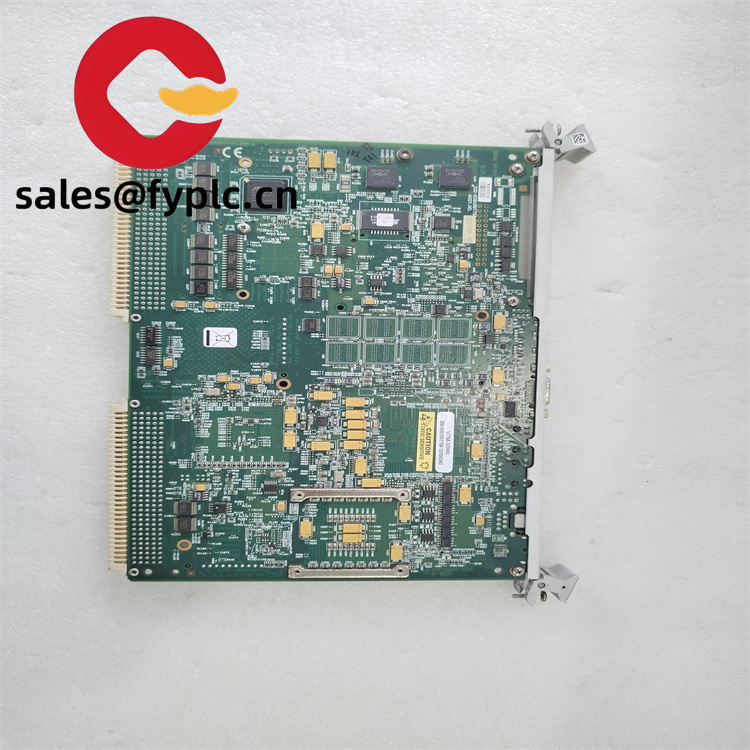

GE V7768-320000 onboard computer processor module

The GE V7768-320000 is a ruggedized VMEbus single-board computer (SBC) engineered to deliver advanced computing power and reliability in mission-critical industrial environments. As part of GE’s V7768 series, this module serves as a cornerstone for real-time control, data acquisition, and system integration across industries such as power generation, oil and gas, and smart manufacturing. Designed to handle complex algorithms and interface with diverse sensors and actuators, the GE V7768-320000 combines robust hardware with flexible software support, making it an ideal choice for engineers seeking scalable automation solutions.

Label	Specification
Model Number	V7768-320000
Brand	GE
Type	VMEbus Single-Board Computer
Processor	Intel Core 2 Duo (2.16 GHz) or Celeron M (1.07 GHz)
Memory	Up to 2 GB DDR2 SDRAM
Storage	8 GB Bootable CompactFlash
Input Voltage	+5 VDC (±5%) and +12 VDC (±10%)
Operating Temp	0°C to 70°C (Celeron M) / 0°C to 55°C (Core 2 Duo)
Communication	Dual Gigabit Ethernet, USB 2.0, Serial Ports
Mounting	VMEbus Backplane (6U Form Factor)
Weight	2.5 kg
Certifications	CE, UL, CSA
IP Rating	IP40 (Front Panel Protection)
OS Support	Windows XP, VxWorks, Linux

The GE V7768-320000 stands out for its ability to balance raw processing power with industrial-grade resilience. Its Intel Core 2 Duo processor handles real-time control loops and data-intensive tasks, while the built-in PMC expansion slot allows engineers to add specialized  for applications like high-speed data acquisition or advanced motion control. The module’s dual Gigabit Ethernet ports enable seamless integration with industrial networks, supporting protocols like PROFINET and Modbus TCP for interoperability with third-party devices.

Compatible and Related Models

• V7768-320001 – A variant optimized for gas turbine control, offering specialized I/O for turbine health monitoring.
• PMC237CM1/V – A PMC expansion board that adds high-speed analog I/O for precision measurement tasks.
• V7750 – A compact VMEbus SBC for space-constrained applications requiring lower power consumption.
• V7770 – A dual-slot VME module with enhanced thermal management for high-performance computing clusters.
• 6ES7 214-1AG40-0XB0 – A Siemens S7-1200 CPU that integrates with the GE V7768-320000 in hybrid automation setups.
• GE RX3i – A PAC platform that shares software compatibility with the GE V7768-320000 for unified engineering workflows.
