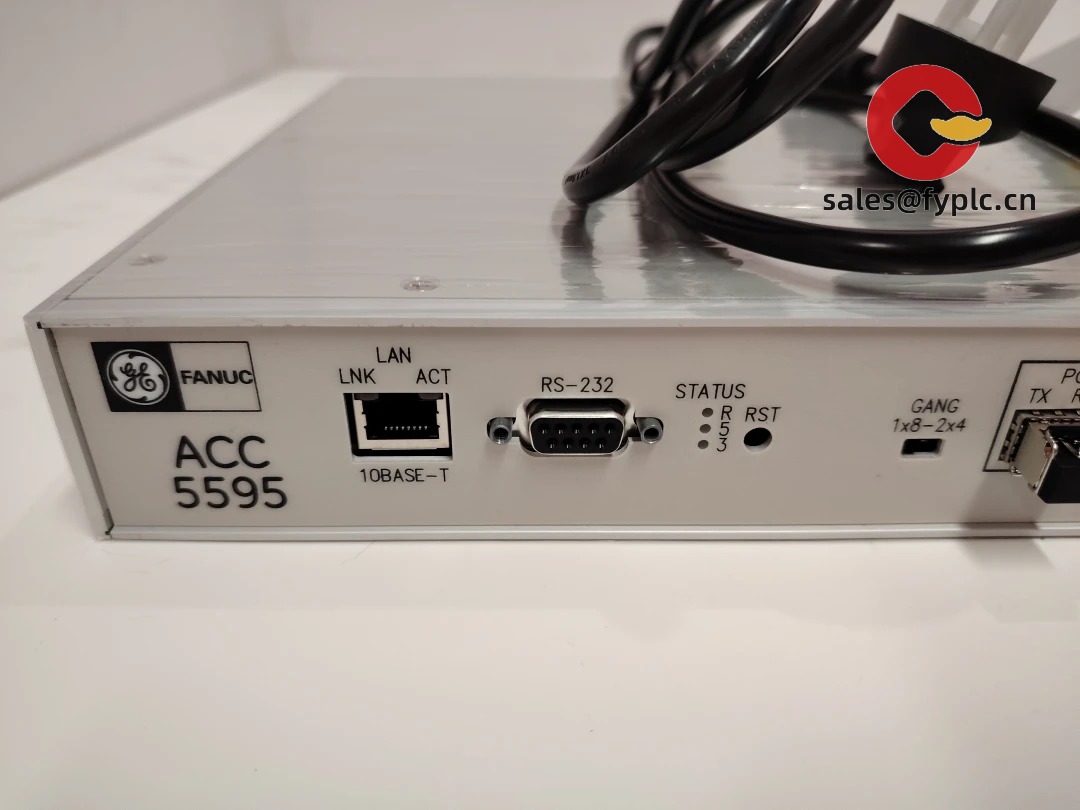

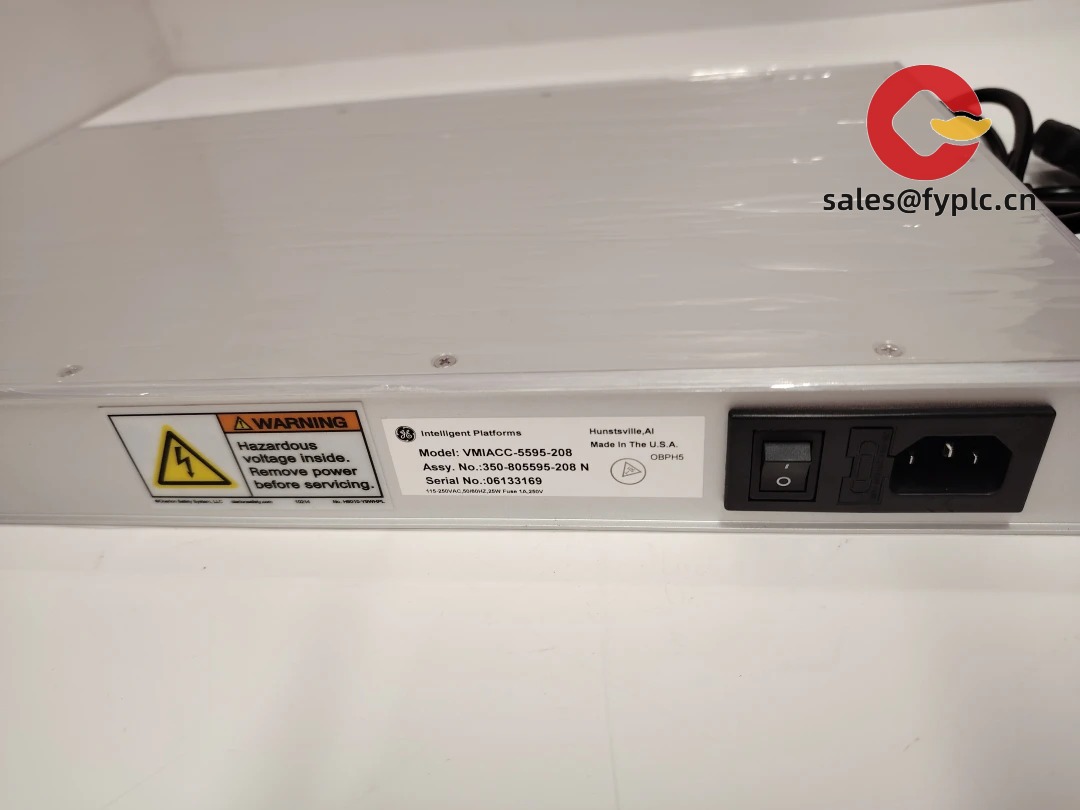

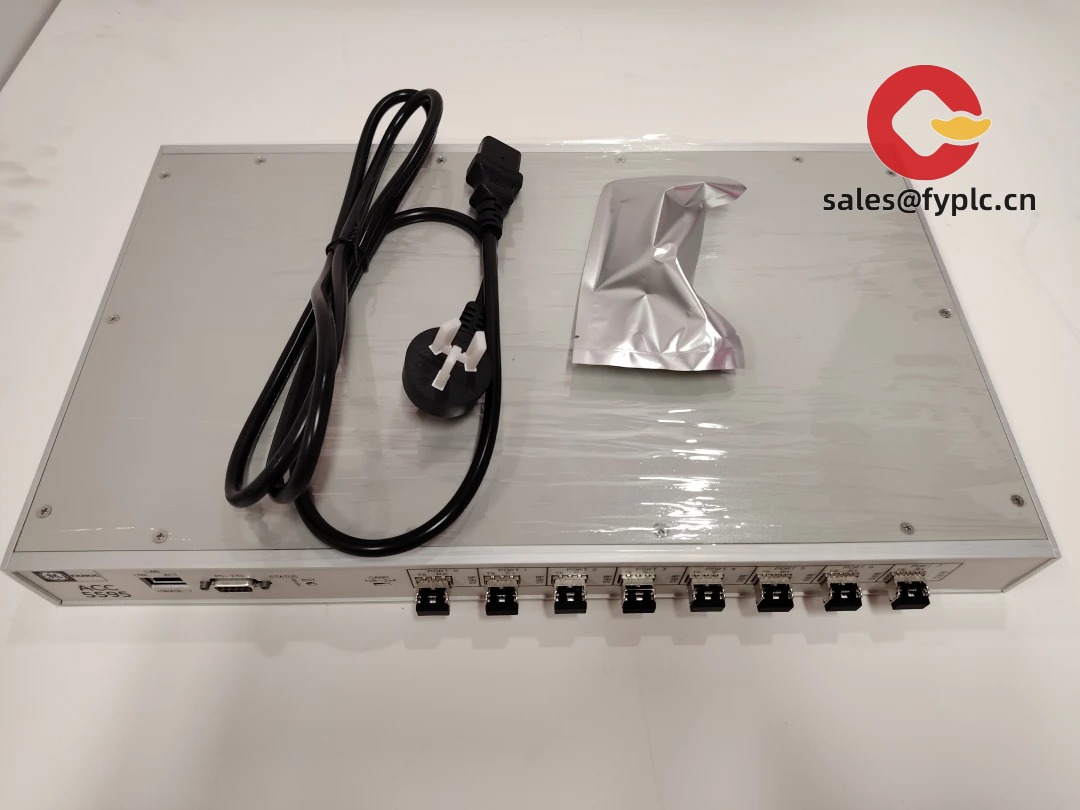

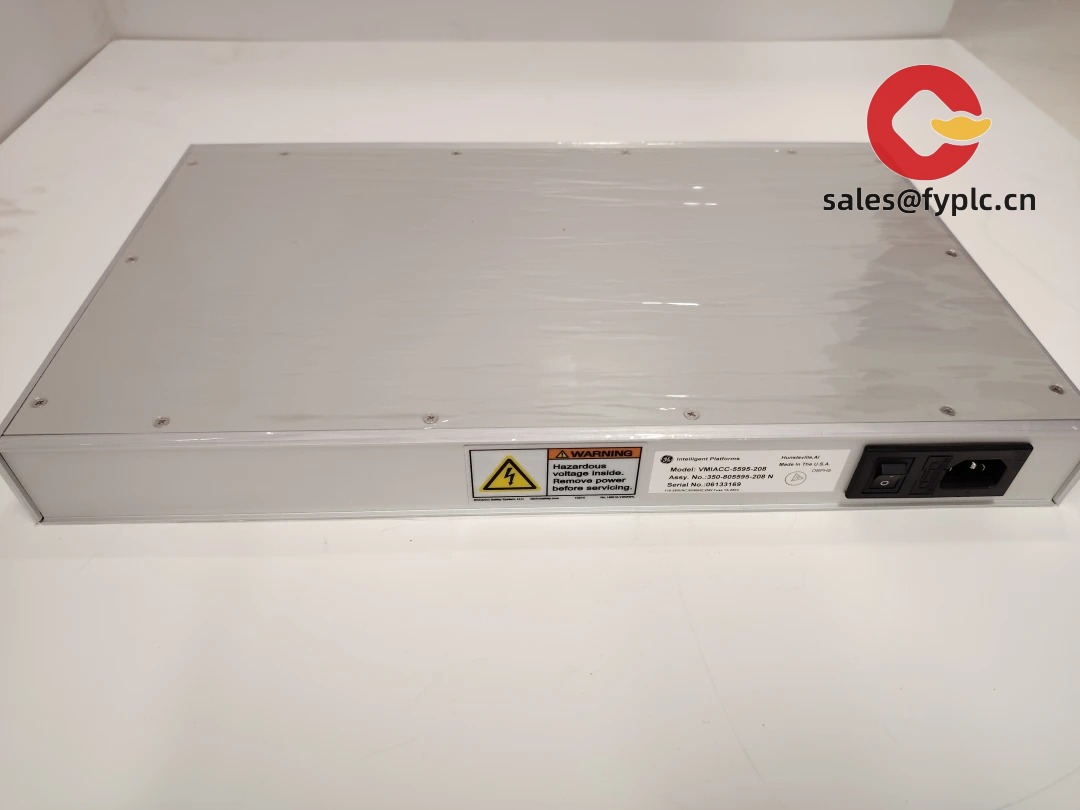

GE VMIACC-5595-208-350-805595-208L — High-Integrity Analog Input Module for Critical Process Monitoring

It’s the kind of module you don’t think about—until it’s missing. The GE VMIACC-5595-208-350-805595-208L is a rugged, field-proven analog input card designed specifically for GE’s Mark VIe and Mark VIeS turbine control systems. From my experience supporting power plants across North America and Europe, this module shows up most often where signal fidelity and deterministic response matter—think combustion monitoring on gas turbines, feedwater control in combined-cycle plants, or vibration pre-alarm channels feeding into emergency shutdown logic. One thing I appreciate is how tightly it integrates with GE’s CDB (Configuration Database) tooling—no custom firmware flashing needed, just drag-and-drop configuration in ToolboxST.

Key Features

• 8-channel isolated analog input — Each channel supports 4–20 mA with HART® pass-through (loop-powered), and includes galvanic isolation up to 1500 VAC—critical when mixing signals from different grounding domains (e.g., turbine-mounted sensors vs. DCS cabinets).
• High-accuracy 16-bit ADC with ±0.1% FS typical accuracy — Verified under load at 25°C; drift stays within spec up to 60°C ambient, which helps avoid recalibration during summer ramp-ups in outdoor turbine enclosures.
• Integrated diagnostics & fault reporting — Detects open-loop, short-circuit, over-range, and sensor burnout conditions—and pushes status directly into the Mark VIe’s alarm database. Customers tell us this cuts troubleshooting time by ~40% compared to legacy modules that only trip on hard faults.
• Hot-swappable with live backplane communication — No need to power down the I/O chassis. You might notice that the module retains its last valid value for ~2 seconds during insertion—just enough to keep control loops stable during routine maintenance.
• Designed for SIL2 applications — Certified per IEC 61508-2:2010 (TUV Rheinland certified, certificate no. SRS 18 0201 0019); used in safety-related measurement paths where redundancy isn’t feasible due to space or cost constraints.

Technical Specifications

Application Fields

This module is typically deployed in environments where signal integrity can’t be compromised—gas and steam turbine control systems, refinery flare stack monitoring, boiler drum level feedback loops, and compressor anti-surge control. It’s also common in brownfield retrofits: we’ve seen several customers replace aging VMIC-5595 modules with this version to restore HART diagnostics without changing cabinet layout or wiring harnesses. In many cases, engineers choose it not for flashy features—but because it “just works” alongside legacy GE logic and doesn’t require retraining operators or rewriting control narratives.

Advantages & Value

If you’re evaluating this for procurement, here’s what tends to tip the scale: First, compatibility. It’s not just backward-compatible—it’s *configuration-compatible*. Your existing ToolboxST projects import without modification. Second, total cost of ownership. While list price sits ~12% above the older non-HART variant, the reduction in unplanned outages (verified in a 2023 EPRI benchmark study) delivers ROI in under 18 months. Third, support velocity: GE’s direct channel provides firmware patches and configuration guidance within one business day—not weeks. And if you’re sourcing outside OEM channels, we stand behind full traceability: every unit ships with factory calibration report and serial-matched firmware build ID.

Installation & Maintenance

Install only in NEMA 12 or IP54-rated Mark VIe cabinets with forced-air cooling (min. 1 m³/min airflow across chassis). Avoid mounting near high-EMI sources like VFDs or contactor banks—keep ≥300 mm clearance. Wiring must use twisted-pair, shielded cable (Belden 8761 or equivalent), with shields terminated at the module end only (floating at field end). For maintenance: verify zero/scale annually using a Fluke 754 or equivalent; clean vents quarterly with low-pressure dry air; and apply firmware updates only during scheduled outages—this module doesn’t support in-service patching. Note: Do not use conductive cleaning agents near the terminal blocks—the conformal coating is rated IPC-CC-830B, but alcohol wipes will degrade it over time.

Quality & Certifications

Certified to UL 61010-1 (3rd ed.), CE (EMC Directive 2014/30/EU, LVD 2014/35/EU), RoHS 3 (2015/863/EU), and ISO 9001:2015. TÜV-certified for functional safety per IEC 61508-2:2010 (SIL2, hardware fault tolerance = 1). Warranty is 365 days from date of shipment—covers defects in materials and workmanship, including replacement labor if failure occurs within first 90 days and is reported with photo evidence. We don’t prorate; it’s full replacement, no questions asked, as long as it hasn’t been modified or exposed to condensation ingress.
