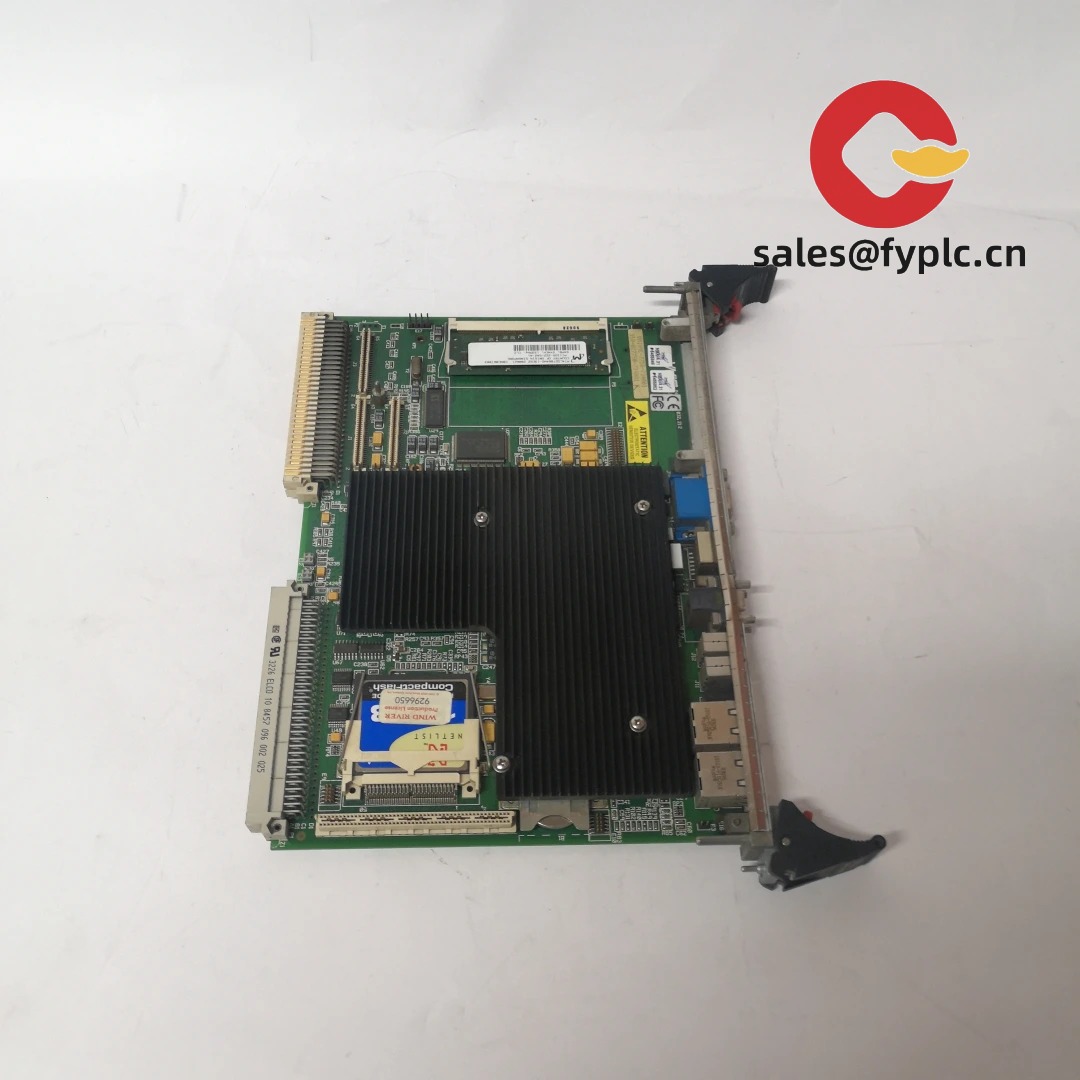

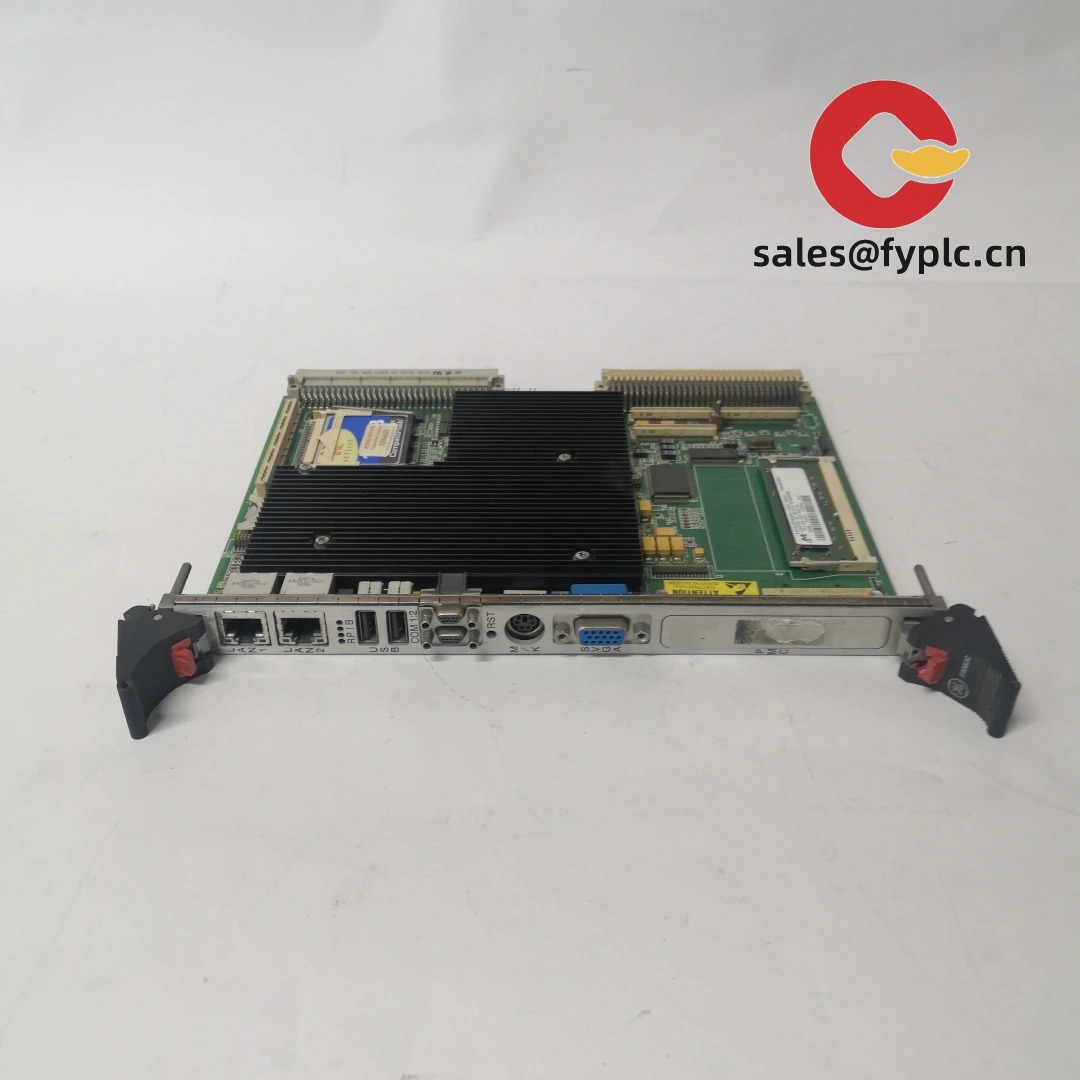

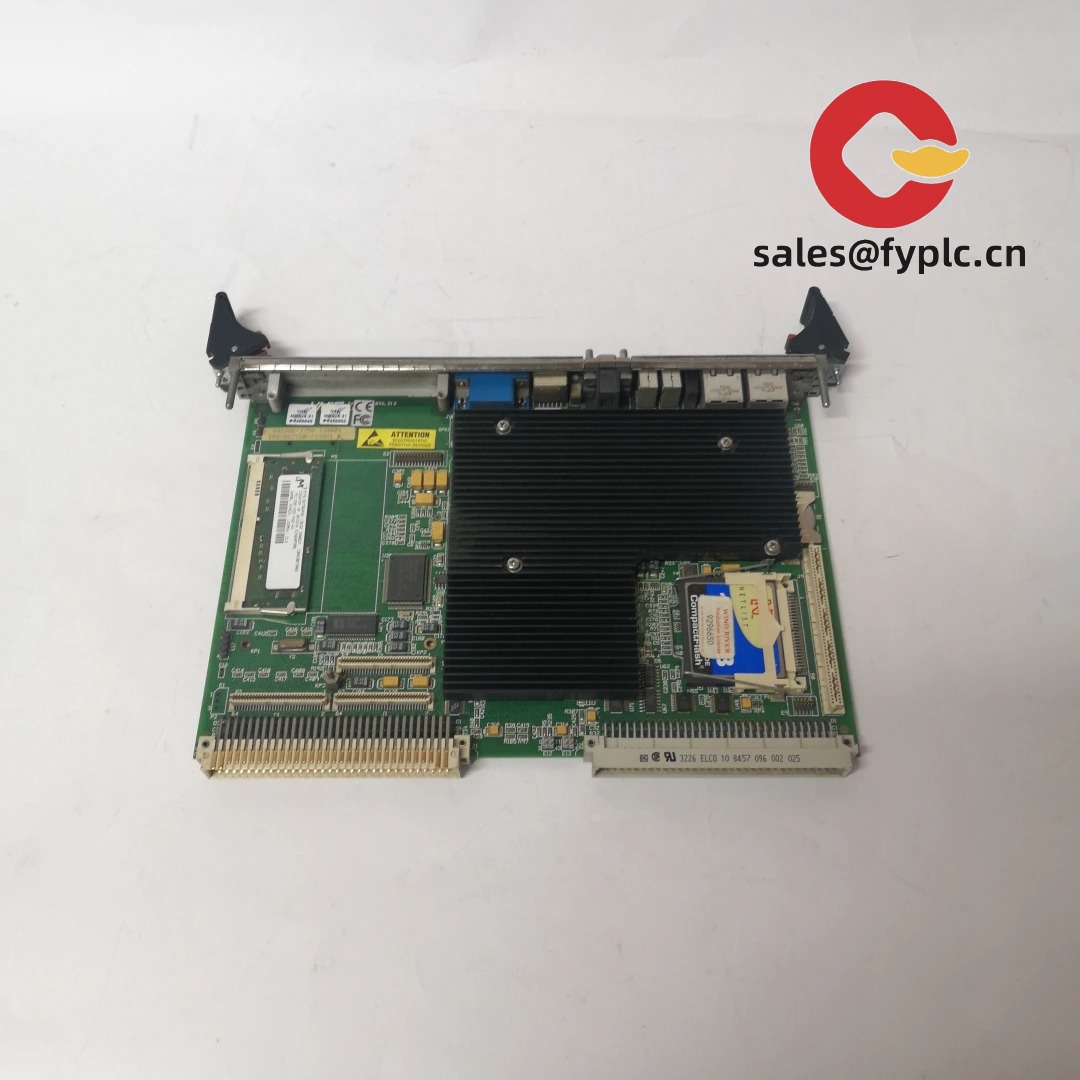

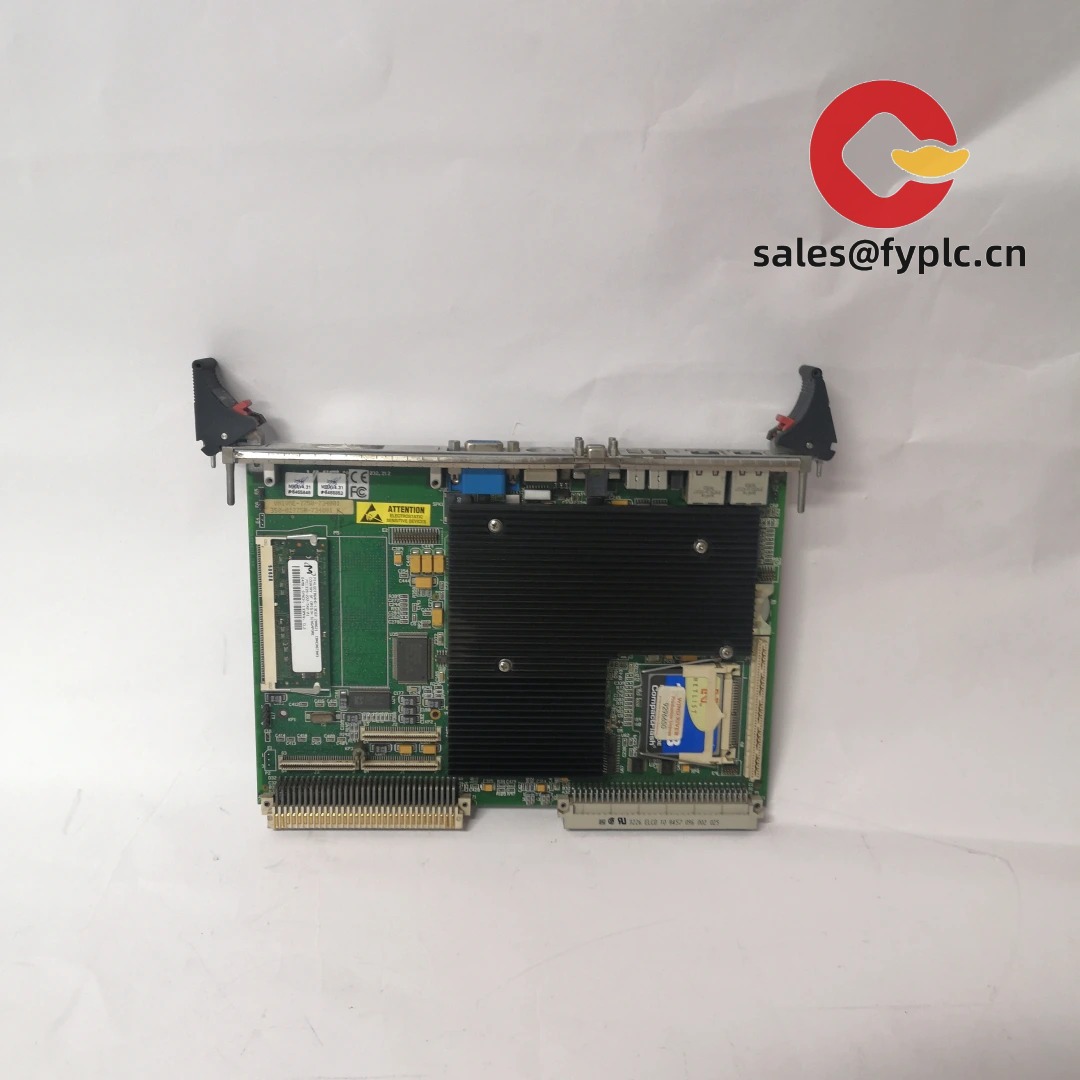

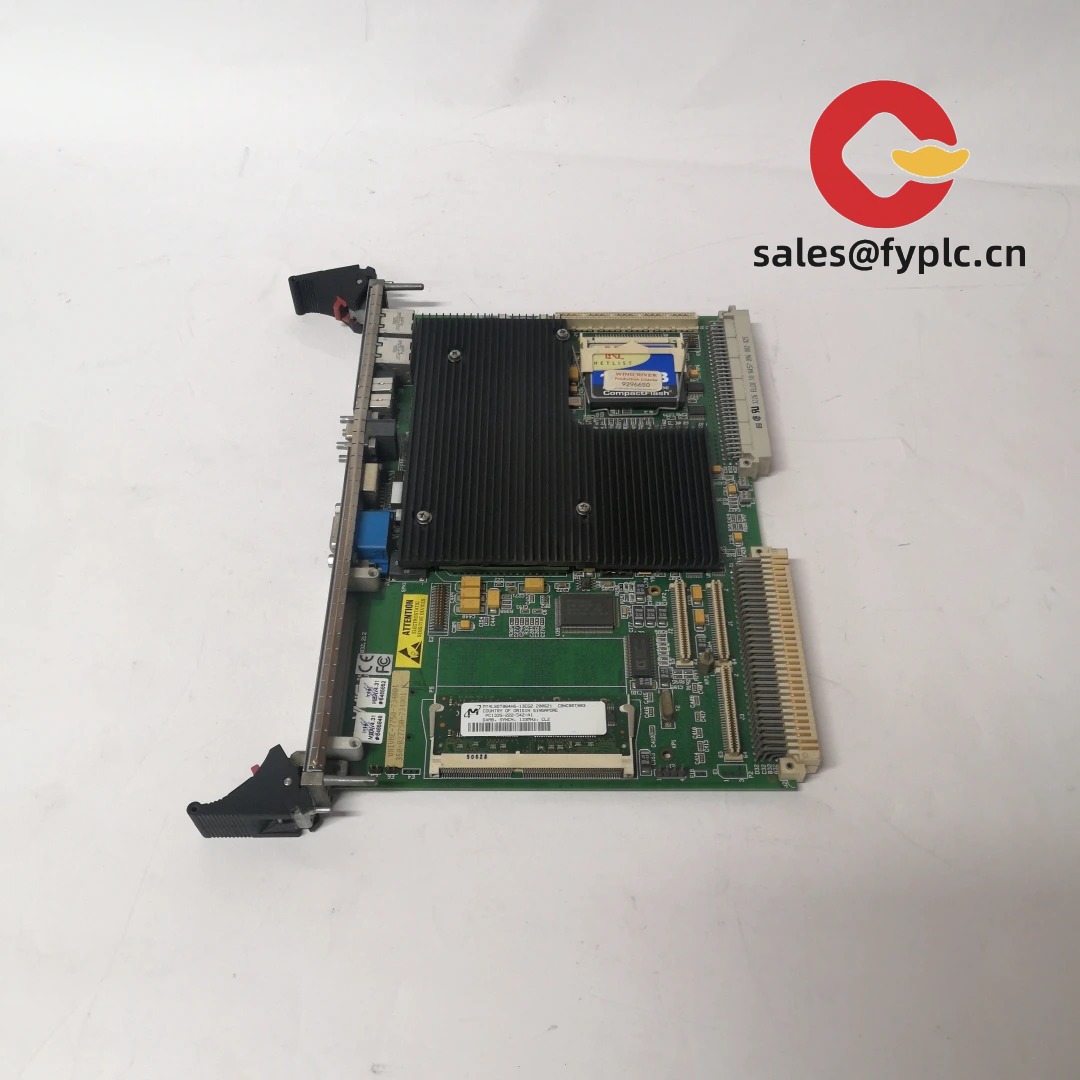

GE VMIVME-7750 — High-Reliability VMEbus CPU Board for Real-Time Industrial Control

It’s not every day you find a VMEbus CPU board that still ships with active factory support in 2024—especially one built around the PowerPC 7447A and designed for deterministic I/O handling in harsh environments. The VMIVME-7750 isn’t just legacy-compatible; it’s been quietly holding down critical roles in turbine control systems, radiation monitoring racks, and rail signaling cabinets for over 15 years. From my experience supporting brownfield upgrades, this board often replaces aging MVME-162 or Motorola 68K-based controllers where LinuxPPC or VxWorks 6.9 real-time OS compatibility matters more than raw clock speed.

Key Features

• PowerPC 7447A @ 1.0 GHz — Delivers predictable interrupt latency (sub-5 µs typical) crucial for closed-loop motion control; avoids the cache-flushing unpredictability of some newer multicore alternatives.
• VME64x-compliant bus interface — Fully supports D64/D64+ data transfers and 64-bit addressing, so it integrates cleanly into existing VME crates without requiring backplane mods or address translators.
• Onboard 1 GB DDR SDRAM + 256 MB Flash — Enough space for dual-boot firmware images and real-time OS kernels; flash is write-protected by jumper to prevent accidental corruption during field updates.
• Dual Gigabit Ethernet (RJ-45) — One port typically reserved for control network (e.g., Modbus TCP to HMI), the other for diagnostics or time-sync (IEEE 1588 v2 capable with optional PTP stack).
• Extended temperature operation (-40°C to +70°C) — Verified across full temp range—not just “industrial grade” on paper. A customer in northern Alberta reported stable uptime in an unheated substation cabinet last winter.

Technical Specifications

Application Fields

This board shows up where uptime isn’t measured in “five nines” but in decades: nuclear plant safety interlock logic, hydroelectric governor systems, military vehicle C4ISR racks, and semiconductor fab tool controllers. One user in Germany retrofitted it into a 2003 Siemens SIMADYN D migration path—keeping their analog I/O modules while upgrading the compute layer to handle new vibration analytics algorithms. It also appears in mobile test rigs for aerospace actuators, where its shock/vibe rating (50 g peak, 11 ms half-sine) matters more than gigahertz.

Advantages & Value

If you’re weighing this against newer ARM-based VME or VPX options, here’s what stands out: GE still stocks firmware patches and offers direct engineering support (no tier-3 handoffs). You’ll avoid the driver-signing headaches of Windows 11 IoT Enterprise on newer hardware—and yes, some customers *still* run VxWorks 6.9 on these, thanks to GE’s maintained BSP. Procurement-wise, lead time is reliably under one week if in stock (we currently hold 12 units), and the 365-day warranty covers both functional failure *and* firmware-related boot hangs. In many cases, replacing two aging single-board computers with one VMIVME-7750 cuts rack space, power consumption, and spare-part SKUs—making the TCO lower than it first appears.

Installation & Maintenance

Mount it in a grounded, ventilated 6U VME crate with ≥20 CFM airflow—avoid stacking heat-generating modules directly above or below. Use shielded twisted-pair for Ethernet runs near motor drives. Before powering up, verify VMEbus termination (usually enabled on last slot) and check jumper settings for boot device (Flash vs. USB). For maintenance: calibrate watchdog timeout values every 18 months (via VME config space writes), wipe the heatsink fins with dry air quarterly if operating in dusty environments, and apply firmware updates only during scheduled outages—GE recommends validating updates on a non-critical unit first. No field-replaceable fans or batteries: the design assumes passive cooling and NVRAM backup via supercapacitor (rated for >10 years).

Quality & Certifications

CE (2014/30/EU, 2011/65/EU), UL 61010-1 (2nd Ed.), RoHS 3 compliant, ISO 9001:2015 certified manufacturing. GE’s standard warranty is 365 days from shipment—covers component-level defects, firmware corruption due to manufacturing fault, and includes free remote diagnostics support. Note: Extended warranties beyond one year are available but require signed service agreement prior to shipment.
