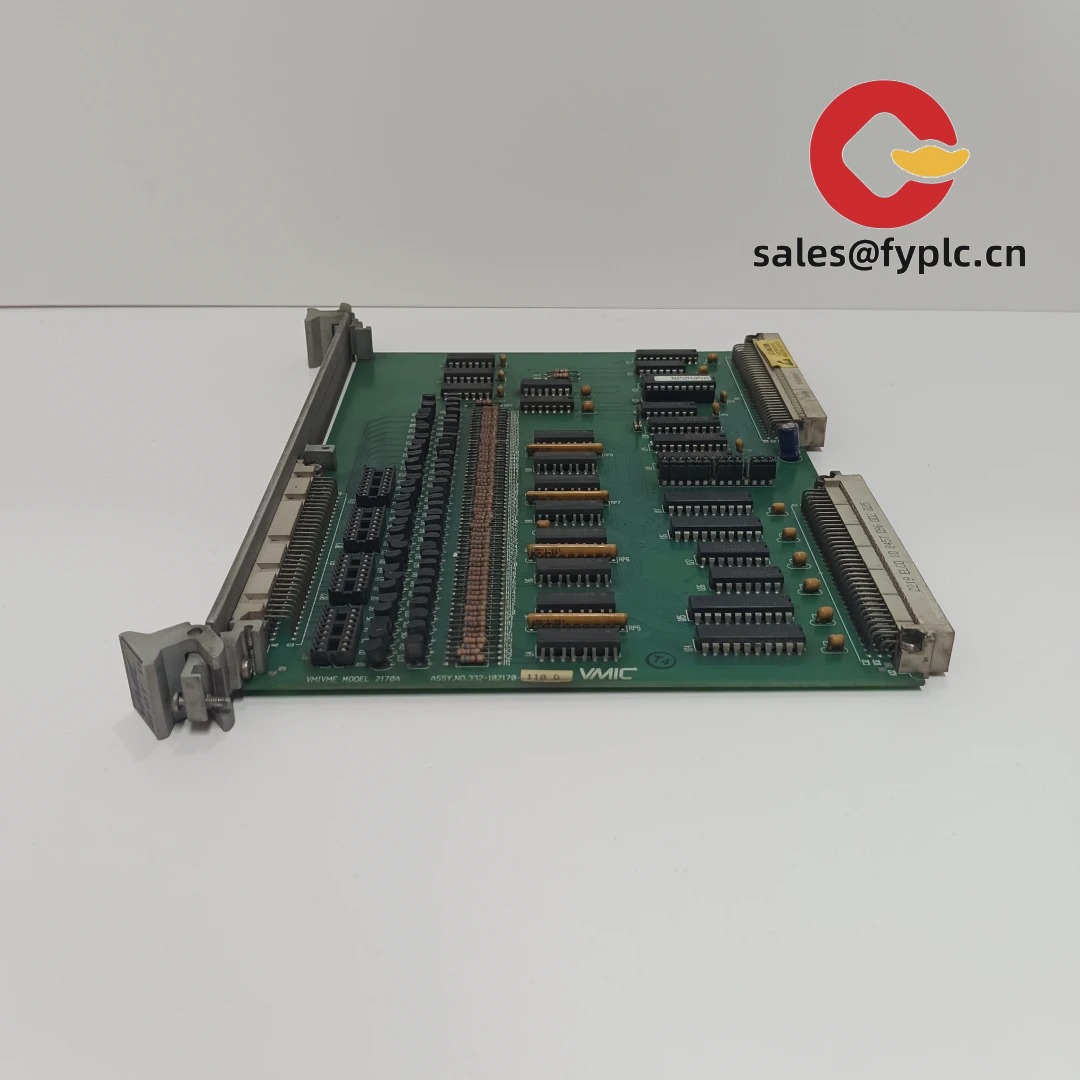

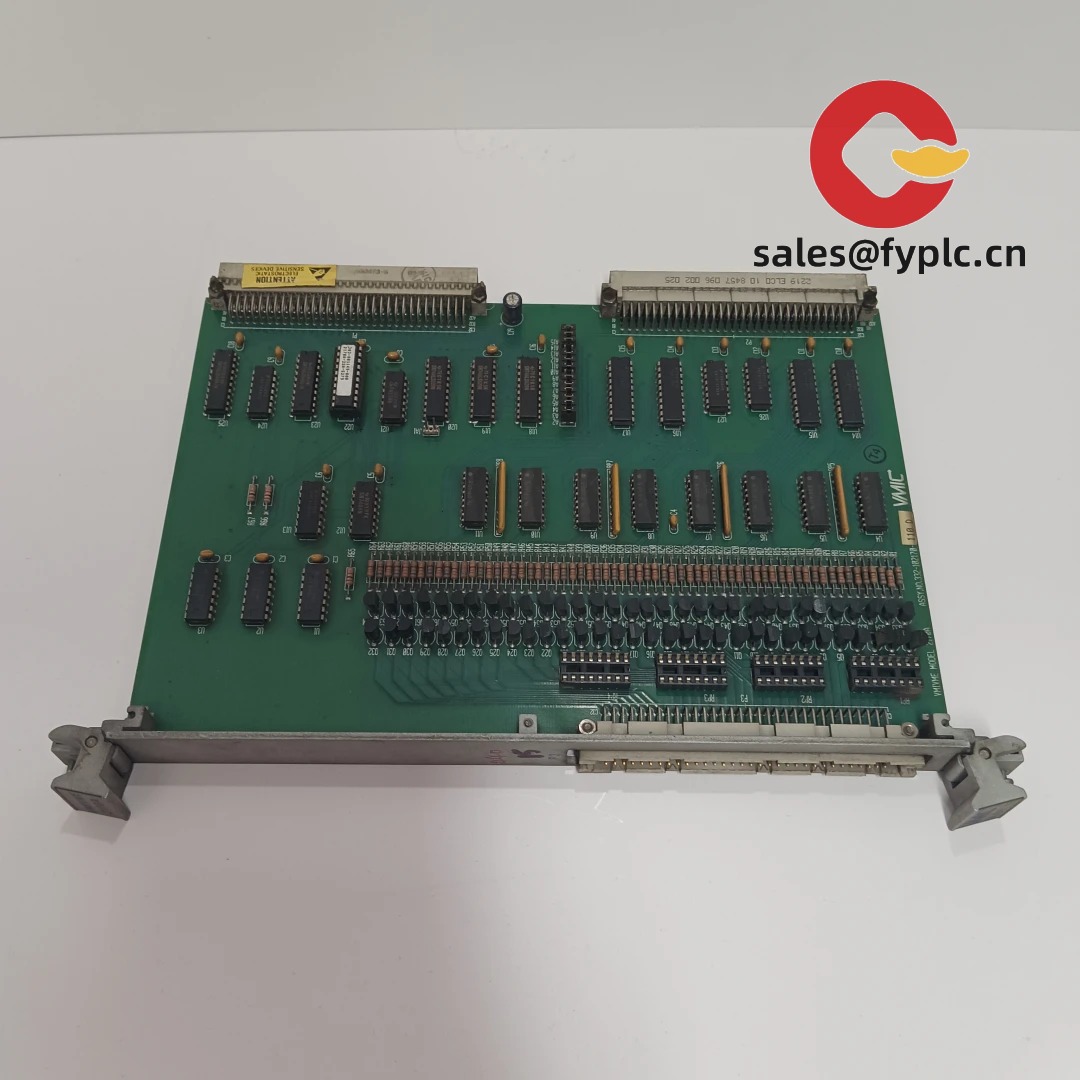

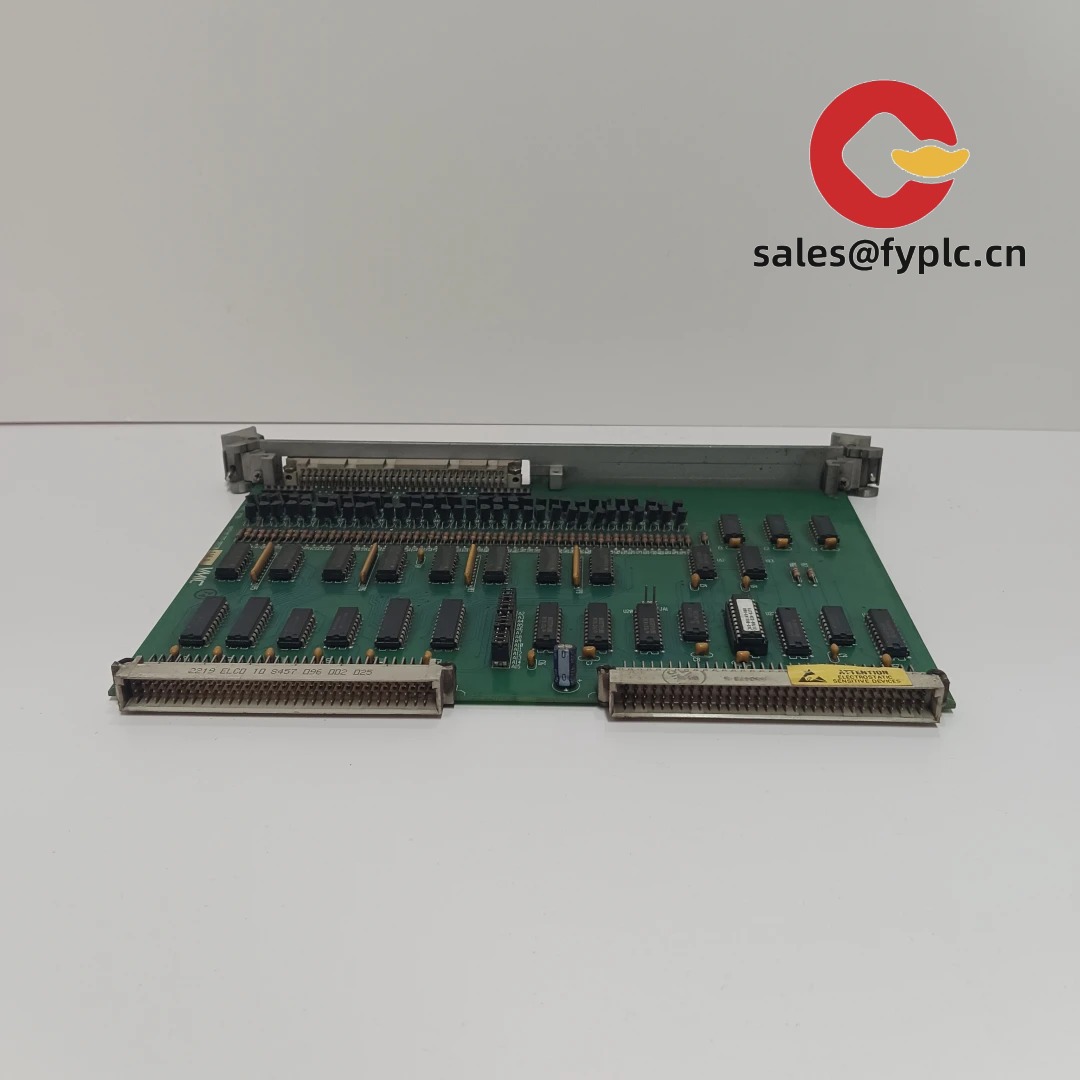

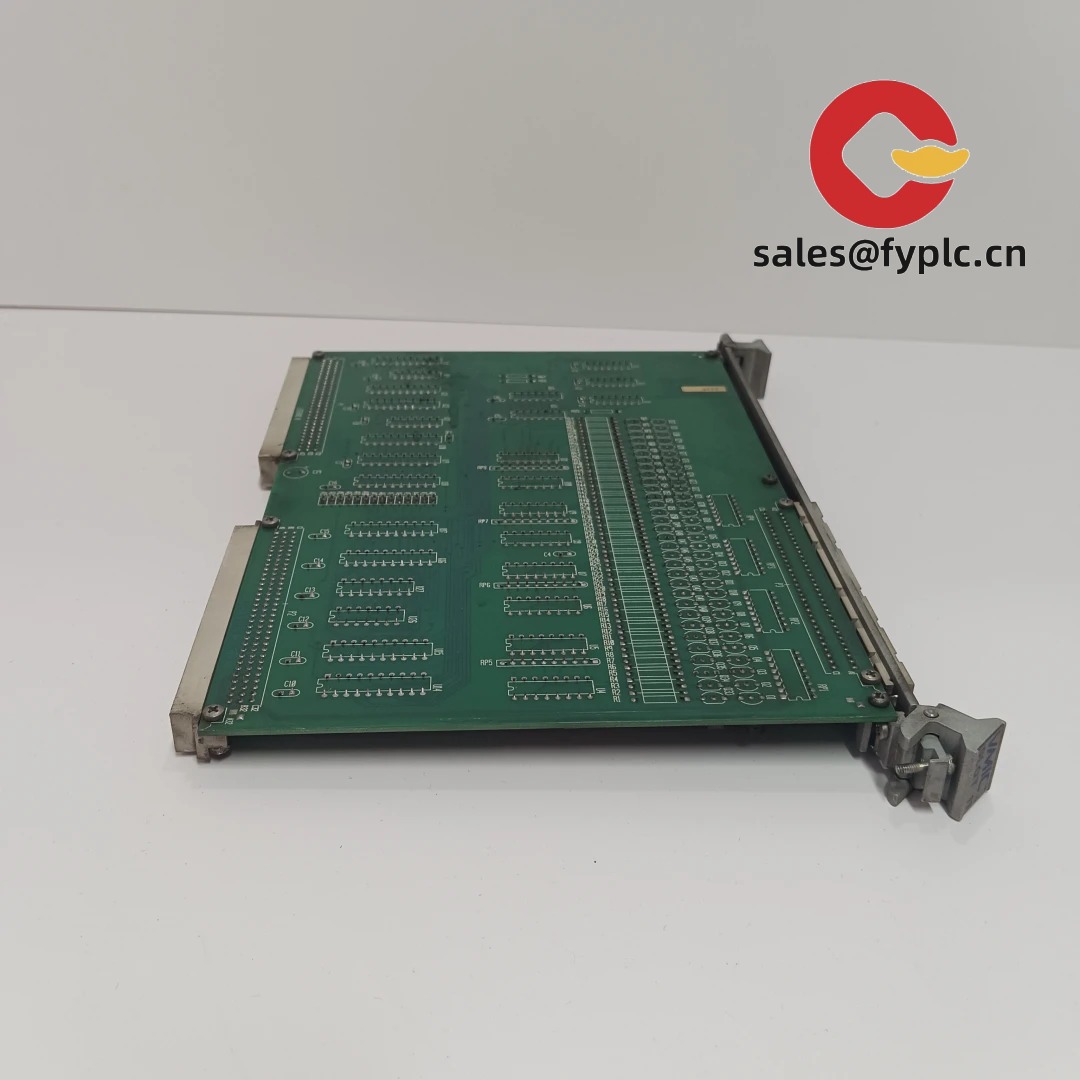

GE VMIVME2170A — High-Reliability VMEbus Analog Input Module for Harsh Industrial Environments

Let’s cut to the chase: if you’re pulling analog sensor data from turbines, hydraulic test benches, or legacy process control racks—and need deterministic timing, noise immunity, and field-proven uptime—the VMIVME2170A isn’t just another VME card. It’s one of GE Fanuc’s more resilient analog input modules from the late 2000s, still widely deployed in nuclear auxiliary systems, aerospace ground test stands, and heavy-duty manufacturing lines where replacing the entire backplane isn’t an option.

One thing I appreciate is how it handles real-world signal integrity—especially with its differential inputs, programmable gain (±10 V down to ±100 mV full scale), and onboard 16-bit ADC. You might notice that unlike some newer USB-based DAQs, this module doesn’t drift under thermal cycling or EMI spikes—something a customer in Ohio told me after running it continuously for 4.7 years in a vibration-prone engine dyno cell.

Key Features

• 16-channel single-ended or 8-channel differential analog input: Flexible configuration via DIP switches—no software reflash needed to switch modes.
• Programmable gain & offset per channel group: Lets you mix thermocouple signals with 4–20 mA loop outputs on the same module (with appropriate signal conditioning).
• VMEbus slave interface (A16/D16, A24/D16, A32/D32 compatible): Works in most legacy VME chassis—including Motorola MVME-series and Force CPU-based systems—without requiring bus arbitration firmware updates.
• Onboard calibration memory (EEPROM): Stores user calibration coefficients, so recalibration persists across power cycles and hot swaps.
• Isolated analog front-end (opto-isolated trigger & status lines): Helps prevent ground loops in distributed sensor networks—critical when integrating with PLCs or RTUs sharing common earth references.

Technical Specifications

Application Fields

This module shows up where legacy meets reliability: turbine monitoring in power plants (especially in GE Bently Nevada-integrated cabinets), flight simulator motion control feedback loops, and high-precision servo tuning rigs in automotive R&D labs. In many cases, engineers keep it around not because it’s flashy—but because its behavior is predictable, its driver support (VxWorks, LynxOS, and older Windows NT/XP VME drivers) is documented, and spare parts are still available through certified industrial resellers. One customer in Germany recently used six of these alongside a VMIC 5565 reflective memory module to synchronize analog capture across three separate VME crates—no jitter complaints in over 18 months.

Advantages & Value

From a procurement standpoint, the VMIVME2170A delivers value where modern alternatives often fall short: compatibility with installed VME infrastructure (no costly backplane upgrades), long-term obsolescence management (GE’s component cross-reference program covers most passives and ASICs), and straightforward lifecycle costing. While it won’t replace PCIe-based high-speed DAQs for >100 kS/s applications, it typically reduces integration risk in brownfield sites—cutting engineering hours by 30–50% compared to retrofitting new architecture. And yes—it’s still supported by third-party calibration labs across North America and EU, with traceable NIST documentation available on request.

Installation & Maintenance

Install only in VME chassis meeting IEEE 1014 compliance, with adequate forced-air cooling (≥20 CFM across the slot). Avoid mounting adjacent to high-current switching modules—thermal crosstalk can affect offset stability. Wiring should use twisted-pair shielded cable, with shields grounded at the module end only. For maintenance: verify calibration annually (or after any mechanical shock event), clean gold fingers with isopropyl alcohol every 24 months, and check VMEbus termination resistors if you see address decode errors. Firmware updates aren’t applicable—the module is hardware-configured—but driver patches for newer OS versions are occasionally released by GE’s industrial support portal.

Quality & Certifications

The VMIVME2170A carries CE marking (EMC Directive 2014/30/EU, LVD 2014/35/EU), UL 508 listing for industrial control equipment, and RoHS 2011/65/EU compliance. It was originally manufactured under ISO 9001:2000 (now superseded, but production controls remain aligned with current GE Fanuc quality protocols). Warranty is 365 days from shipment—covers defects in materials and workmanship, including replacement of failed EEPROM or op-amp stages. We don’t refurbish units ourselves, but all units shipped are bench-tested for channel linearity, timing jitter, and bus arbitration response before dispatch.
