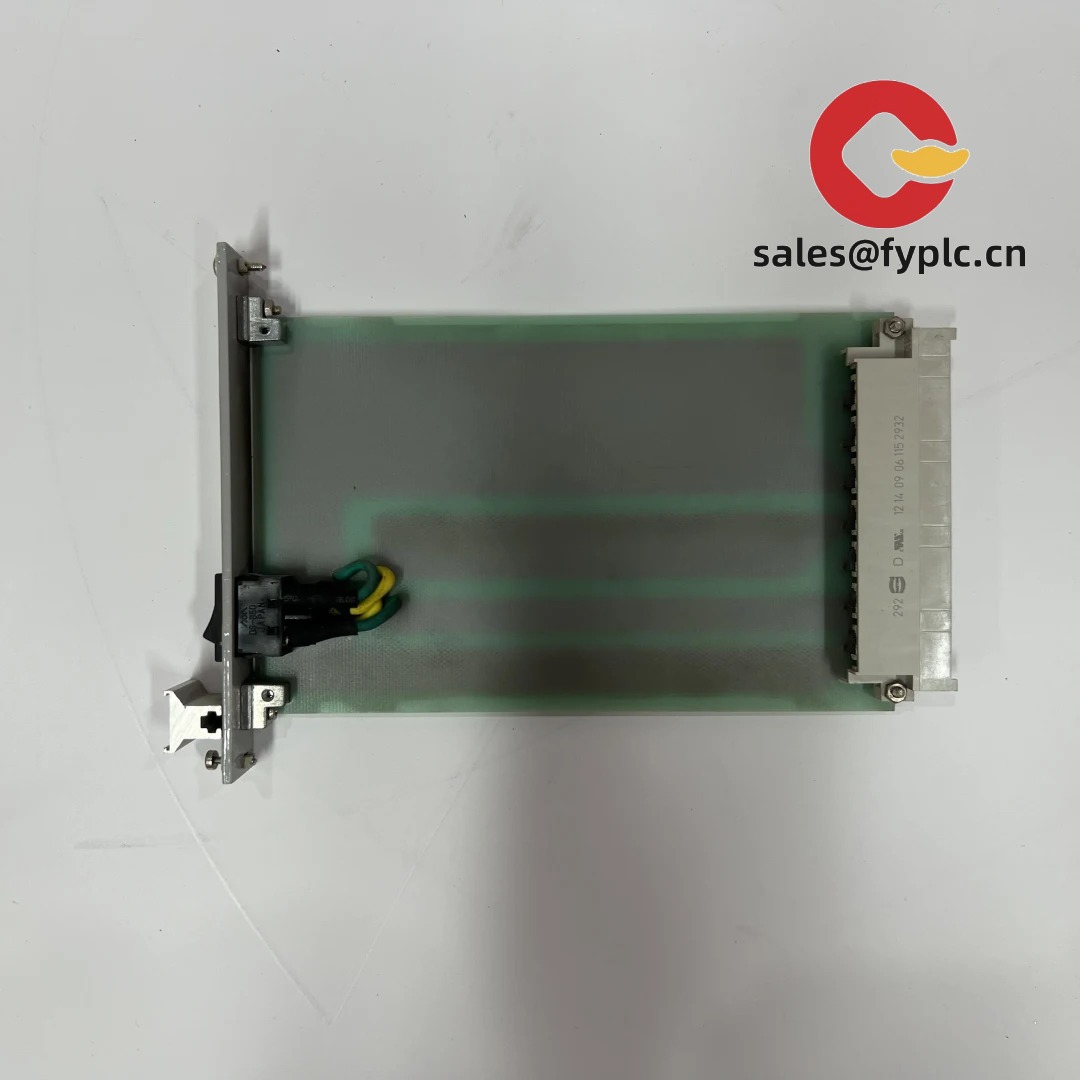

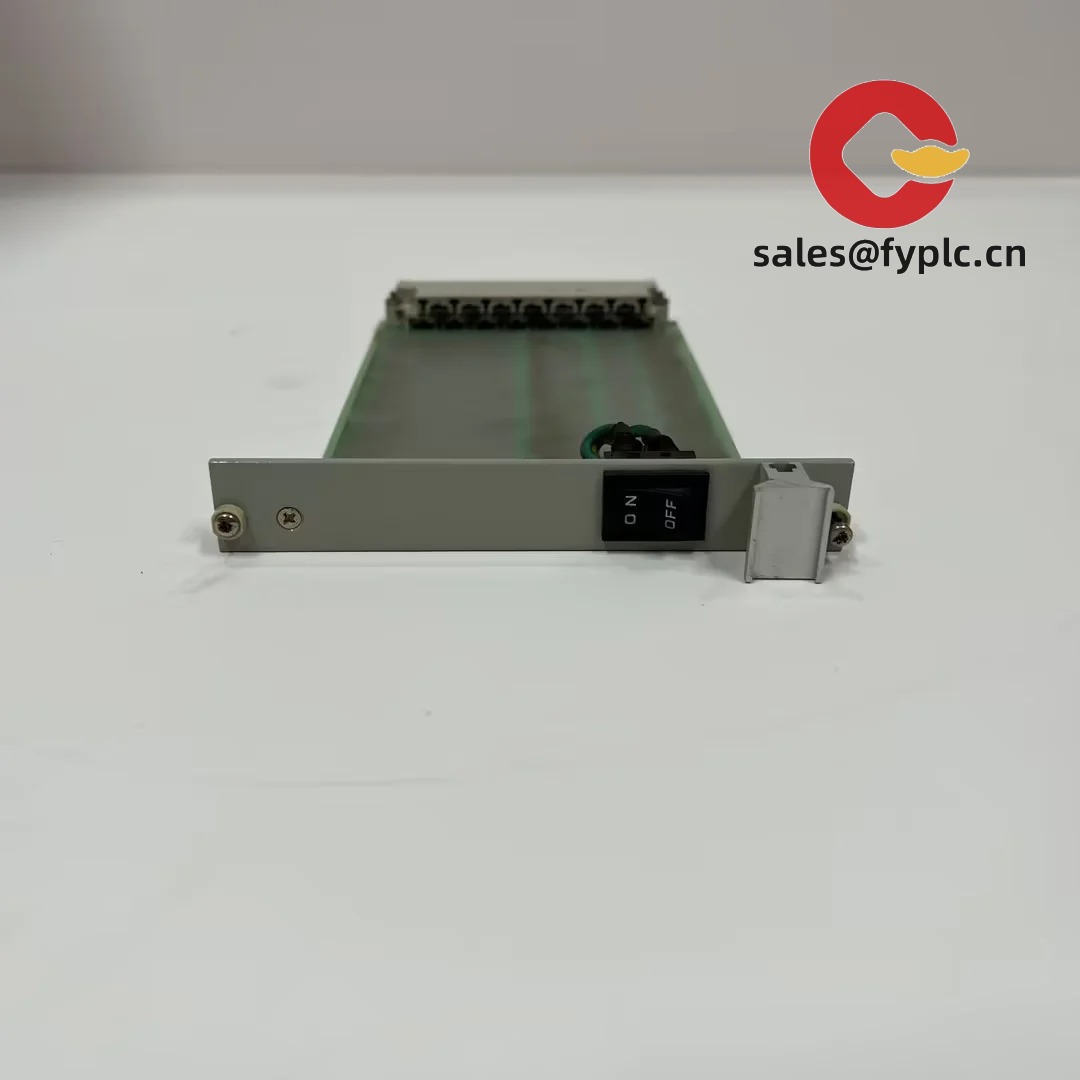

GE WEA13-13-2508-21001 — High-Integrity Analog Input Module for Critical Process Monitoring

GE’s WEA13-13-2508-21001 is a ruggedized 16-channel analog input module designed specifically for the WESM (Wurldtech Embedded Safety Manager) and Mark VIeS control platforms — commonly deployed in power generation, oil & gas, and chemical processing facilities where signal integrity and functional safety aren’t optional. From my experience supporting retrofits at combined-cycle plants, this module shows up most often when legacy analog cards hit end-of-support or start drifting beyond calibration tolerance during extended runtime.

You might notice that unlike generic 4–20 mA modules, the WEA13-13-2508-21001 includes built-in channel-level diagnostics (open-circuit, over-range, under-range), redundant isolation, and SIL 2 compliance per IEC 61508 — which matters when your DCS needs to distinguish between a real process fault and a failed sensor wire. One thing I appreciate is how cleanly it integrates with GE’s CIMPLICITY HMI: no custom OPC wrappers needed, just native tag mapping through ToolboxST.

Key Features

• 16 isolated analog inputs — Each channel supports 4–20 mA, 0–20 mA, or ±10 V signals, with individual galvanic isolation (2500 V_RMS) to prevent ground-loop noise in high-E_MI environments.
• SIL 2 certified — Validated for use in safety instrumented functions up to SIL 2 (per IEC 61508-2:2010), with hardware fault tolerance (HFT) = 1 and safe failure fraction (SFF) > 90%.
• Self-diagnostics & channel health reporting — Detects wiring faults, sensor disconnects, and out-of-range conditions in real time — logged directly into the controller’s diagnostic buffer, not just via LED blink codes.
• Hot-swappable with firmware rollback — Can be replaced under power without disturbing adjacent modules; firmware version is retained across swaps, avoiding configuration mismatches after maintenance.
• Extended temperature resilience — Rated for continuous operation from −20 °C to +70 °C — a practical advantage in turbine halls or offshore analyzer shelters where cabinet cooling is intermittent.

Technical Specifications

Application Fields

This module typically appears in safety-critical loops where analog inputs feed into burner management systems (BMS), emergency shutdown (ESD) logic solvers, or turbine overspeed protection. In many cases, users deploy it alongside GE’s WEA13-13-2508-21002 (the matching analog output variant) to close feedback loops on valve positioners or damper actuators. We’ve seen it used in ammonia synthesis compressors — where even a 0.5% current drift could misrepresent suction pressure and trigger unnecessary trips.

Advantages & Value

If you’re evaluating alternatives — say, third-party clones or newer Ethernet-based I/O — keep in mind that compatibility isn’t just about pinout. The WEA13-13-2508-21001 avoids firmware mismatch risks because GE validates every revision against the Mark VIeS controller OS. That means fewer “why won’t it go into RUN mode?” calls at 2 a.m. during commissioning. Procurement-wise, it’s also a known quantity for audit teams: UL 61010-1, CE (EMC & LVD), and RoHS 3 compliance are all documented in the Type Test Report (TTR-WEA13-2508-21001 Rev C). And since it shares the same physical footprint and power profile as earlier WEA13 variants, spares inventory stays lean — no need to stock multiple DIN-rail adapters or supplemental power supplies.

Installation & Maintenance

Install only in GE-certified cabinets meeting NEMA 12/IP54 minimum (especially important if mounted near steam tracing lines). Ensure ≥50 mm clearance above/below for convection cooling — we’ve seen thermal derating kick in when stacked four-deep without forced ventilation. Wiring must use shielded twisted-pair (18–22 AWG), with shields terminated at the module end only — floating at field terminations. For maintenance: calibrate annually using a Fluke 754 or equivalent (GE recommends traceable 4-point ramp test), wipe heatsinks quarterly with non-linting cloth, and check firmware version before any major controller OS upgrade — v3.2.1 or later is required for full SIL 2 functionality. Firmware updates are delivered via ToolboxST; never force-update using generic GE .bin files.

Quality & Certifications

Certified to UL 61010-1 (2nd Ed.), CE (2014/30/EU & 2014/35/EU), RoHS 3 (2015/863/EU), and IEC 61508-2:2010 (SIL 2). Manufactured under ISO 9001:2015 at GE’s Greenville, SC facility. Comes with a standard 365-day warranty — covering parts and labor for defects in materials or workmanship. Note: Warranty does not extend to damage caused by improper installation, voltage transients, or use outside published environmental specs.
