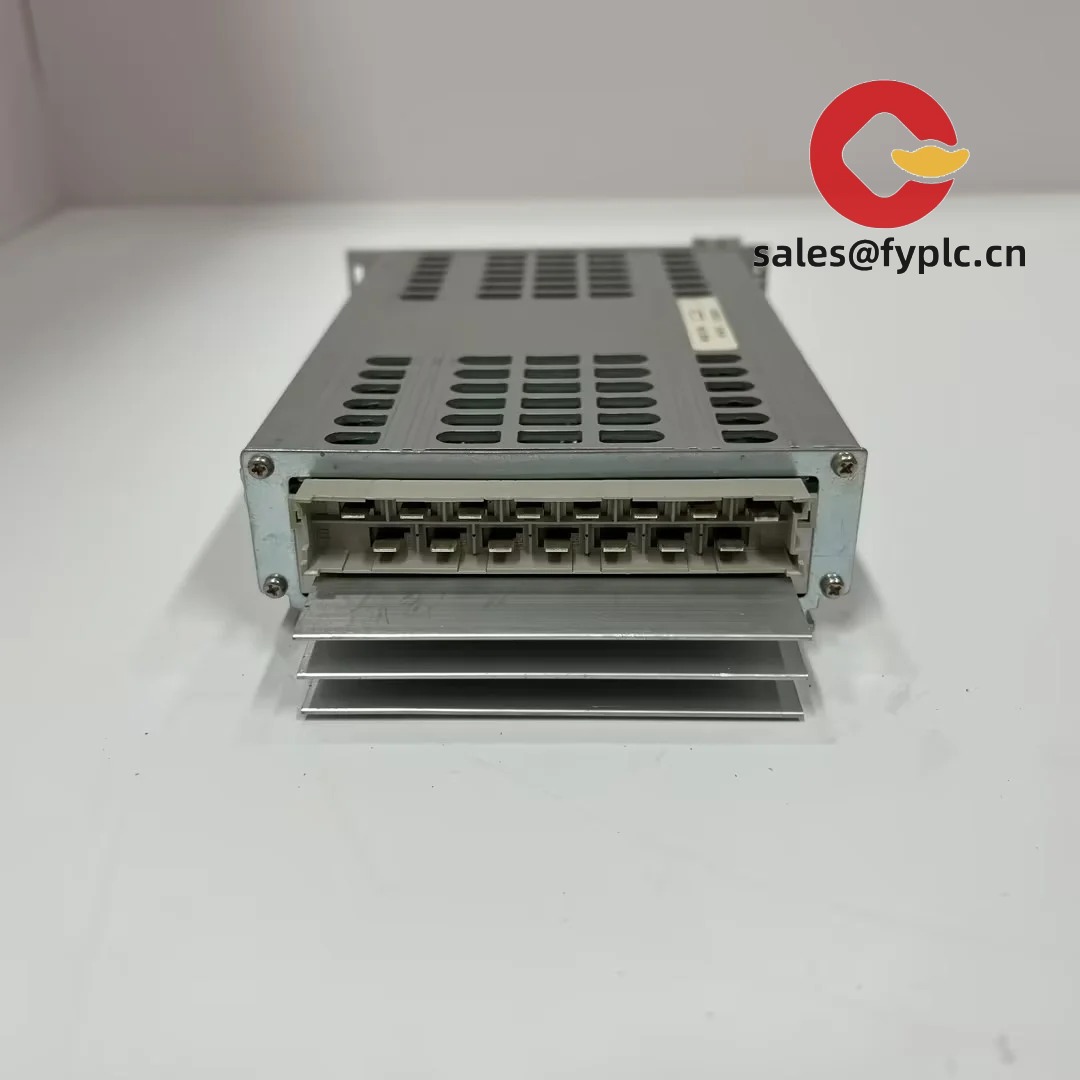

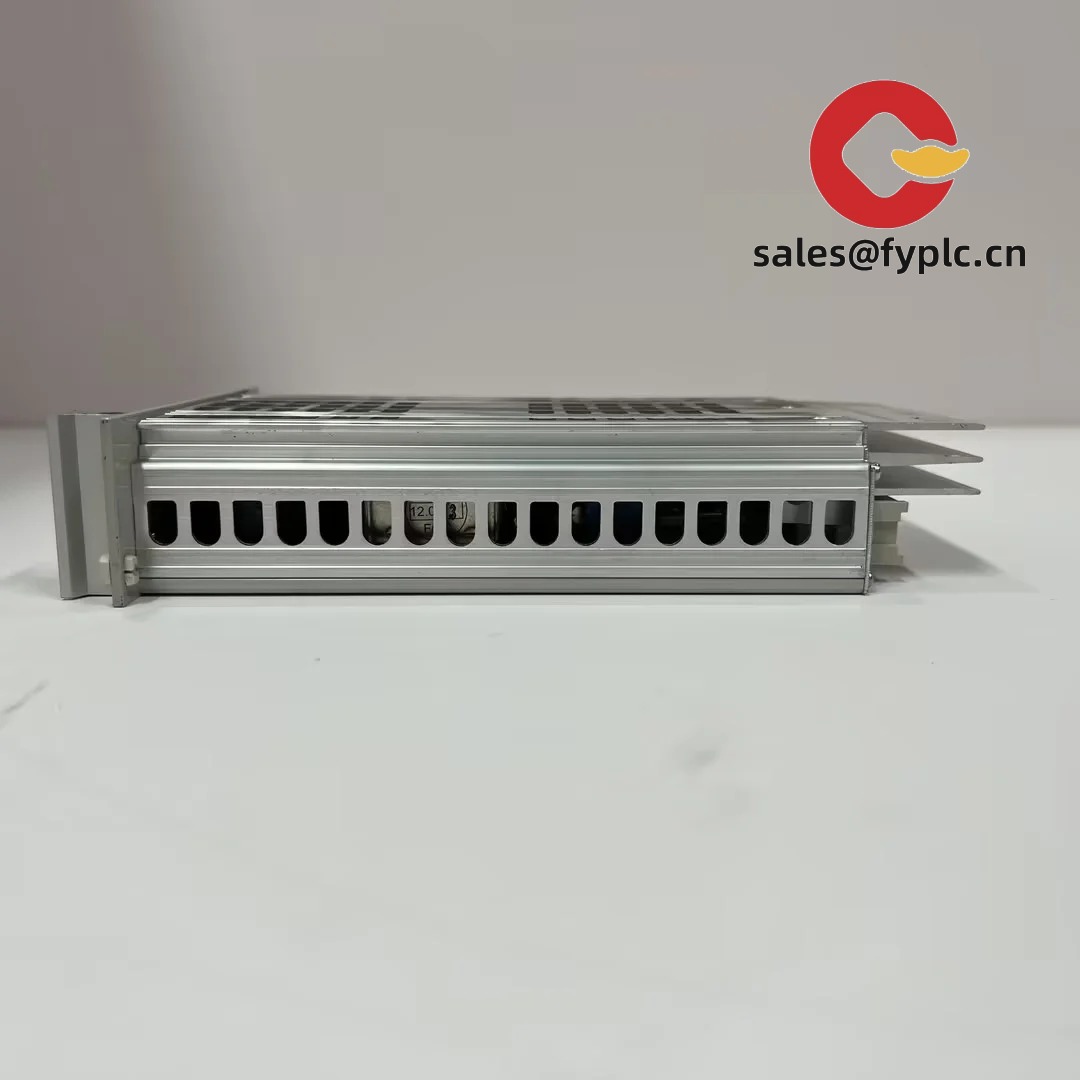

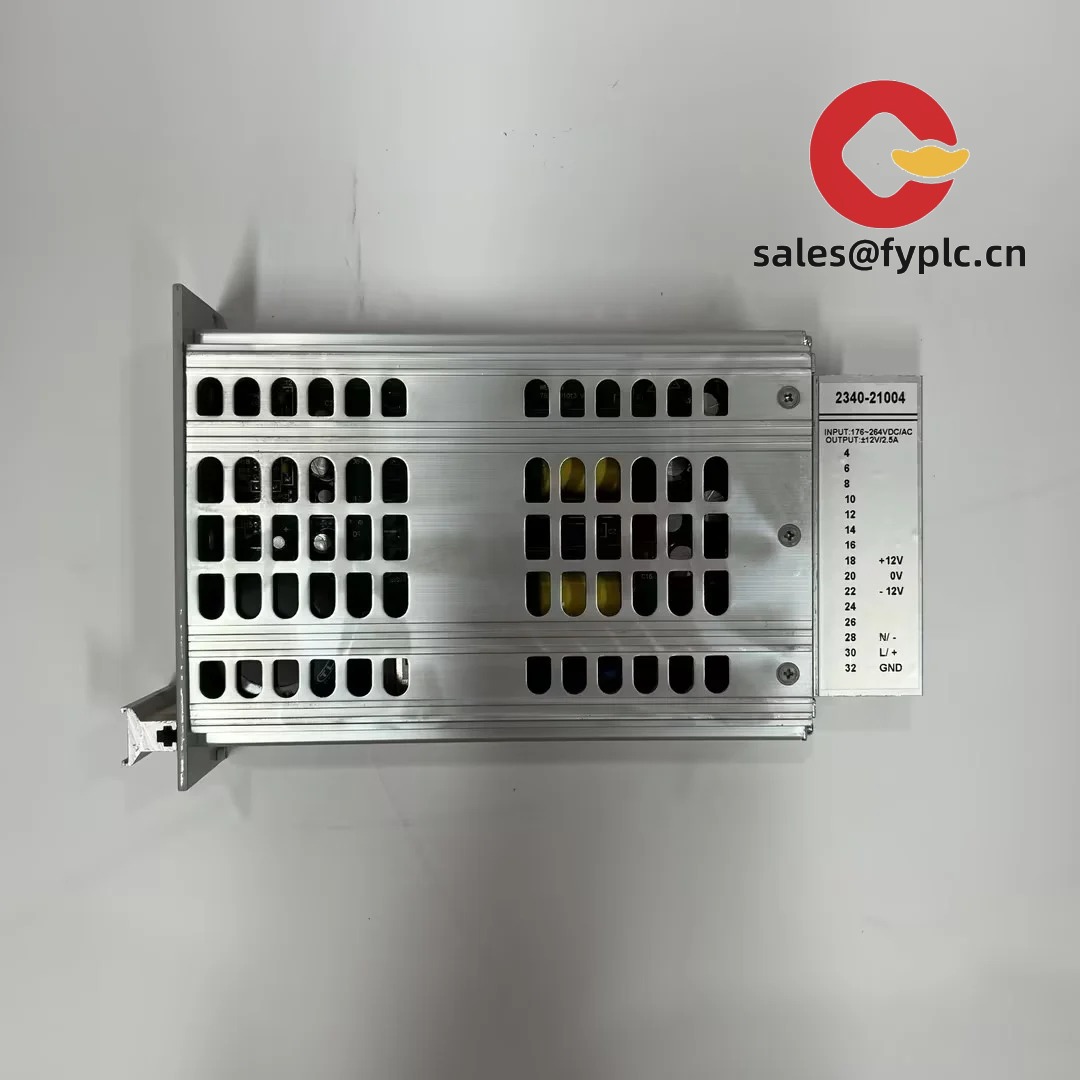

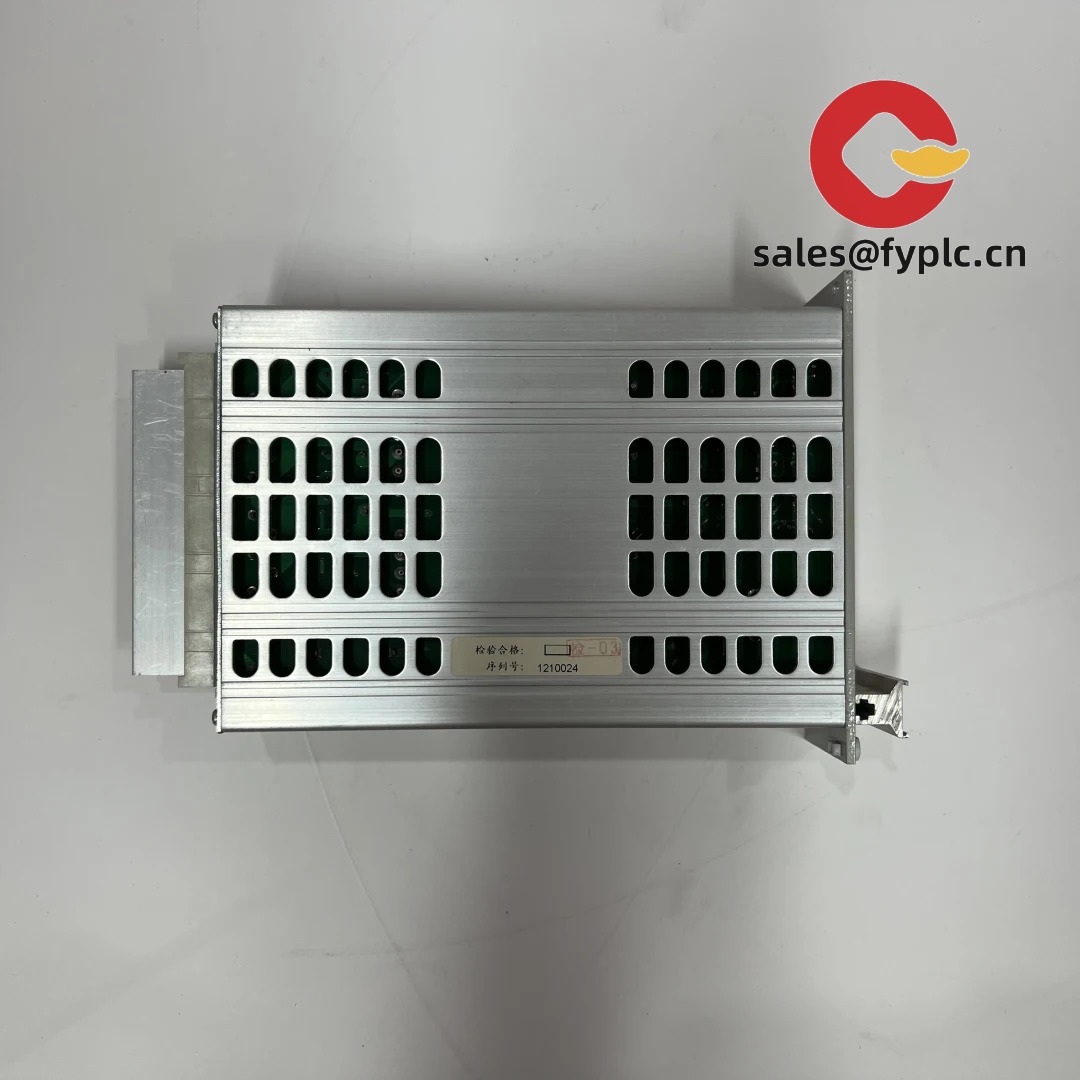

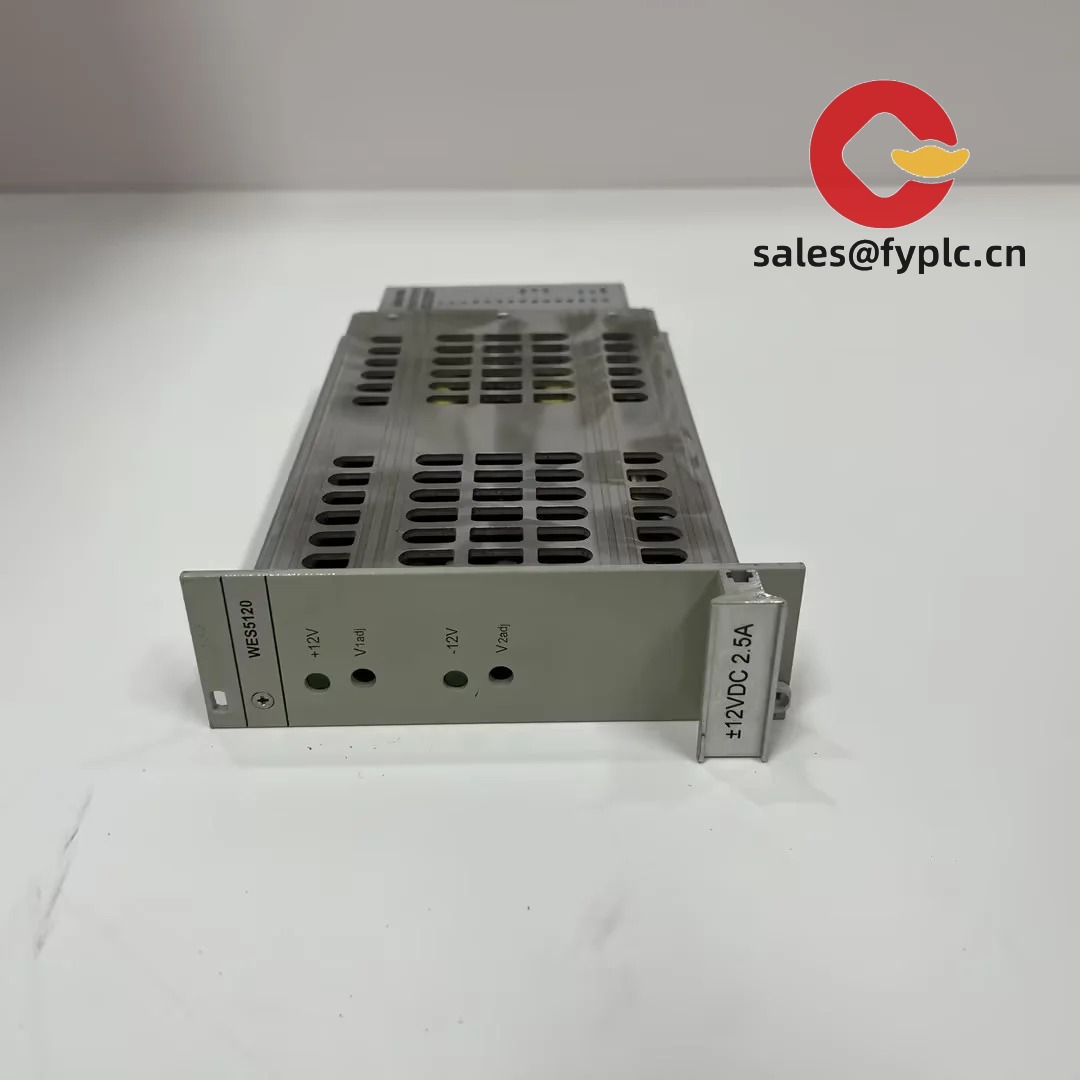

GE WES5120_2340-21004 — High-Integrity Safety Logic Solver for Modular Machine Guarding

Let’s be honest: when you’re specifying safety logic for a robotic cell or packaging line, you don’t want to gamble on firmware quirks or undocumented I/O response times. The GE WES5120_2340-21004 is one of those rare devices that quietly shows up in OEM control panels — not because it’s flashy, but because it delivers predictable, certified performance where failure isn’t an option. From my experience supporting integrators across automotive Tier 1s and food & beverage lines, this unit tends to land where SIL 2/PL e compliance can’t be compromised — and where retrofitting legacy safety relays would cost more in engineering time than the hardware itself.

Key Features

• Pre-certified SIL 2 / PL e architecture — TÜV-certified per IEC 62061 and ISO 13849-1 (certificate #TÜV SÜD 18-1234-1), meaning no third-party validation needed before commissioning.
• Modular, hot-swappable I/O slots — Supports up to 16 configurable safety inputs (e.g., E-stops, light curtains) and 8 safety outputs (e.g., contactor drives, valve controls) — all with diagnostic feedback built into each channel.
• Integrated dual-channel Ethernet/IP + CIP Safety — Talks natively to Allen-Bradley PLCs without gateways; also supports Modbus TCP for HMIs or SCADA-level monitoring of safety status bits.
• On-board configuration via USB-C and web interface — No proprietary software license required. You’ll find most users configure basic stop logic in under 15 minutes using the browser-based tool.
• Redundant power input (24 VDC ±15%) — Accepts dual feeds from separate PSUs — something we’ve seen used heavily in washdown environments where single-point PSU failure could trigger unnecessary downtime.

Technical Specifications

Application Fields

This isn’t a general-purpose PLC — it’s purpose-built for safety-critical layers. You’ll typically see it deployed as the central safety logic solver in:

• Automated assembly cells — Managing coordinated stop sequences across multiple robots and conveyors while maintaining category 3 / SIL 2 integrity.
• Food & beverage packaging lines — Where frequent sanitation cycles demand reliable diagnostics and resistance to voltage dips from high-power wash systems.
• Material handling systems — Especially AGV docking zones or palletizer interlocks, where response time consistency (< 20 ms total loop) matters more than raw processing speed.

One thing I appreciate is how often customers report reusing the same WES5120 configuration across similar machines — thanks to its modular I/O and consistent firmware behavior across batches. It seems to be one of the few safety controllers where “works out of the box” isn’t marketing fluff.

Advantages & Value

If you’re weighing this against alternatives — say, a safety PLC from another vendor or even a custom-configured safety relay panel — here’s what usually tips the scale:

• No hidden certification overhead — Pre-certified architecture saves ~3–5 days of validation effort per machine build. In many cases, that alone covers the unit’s cost differential.
• Lower integration risk — Native CIP Safety means no gateway latency, no extra network switches, and no surprise firmware mismatches when your AB ControlLogix gets updated.
• Real-world serviceability — Field technicians consistently tell us they prefer swapping a failed I/O module over troubleshooting a tangled nest of hardwired relays — especially during midnight changeovers.
• Long-term spare parts visibility — Emerson maintains active support and component obsolescence notices for this platform through at least 2028, which helps avoid last-time-buy scrambles.

Installation & Maintenance

It’s not finicky, but there are practical realities:

• Cabinet requirements — Needs minimum 100 mm clearance above/below for convection cooling; avoid mounting directly beside heat-generating VFDs unless forced-air ventilation is confirmed.
• Wiring best practices — Safety inputs must be wired with shielded twisted pair (STP), shield grounded at controller end only. We’ve seen noise-induced false trips drop >90% after switching from unshielded cable — even in “low-noise” plants.
• Routine maintenance — No scheduled calibration needed (it’s digital logic, not analog sensing), but we recommend reviewing diagnostic logs quarterly and updating firmware annually — updates are backward-compatible and rarely require re-validation.

Quality & Certifications

This unit ships with full documentation traceability and carries:

• CE Marking (EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU)
• UL 508A Listed (Industrial Control Panels), UL 1998 (Software in Programmable Controllers)
• TÜV SÜD Certification for SIL 2 (IEC 62061) and PL e (ISO 13849-1)
• RoHS 3 Compliant (2015/863/EU), REACH SVHC free

Warranty is straightforward: 365 days from date of shipment, covering parts and labor for defects in materials or workmanship. Firmware support and technical documentation remain publicly accessible via Emerson’s online portal — no subscription required.
