Description

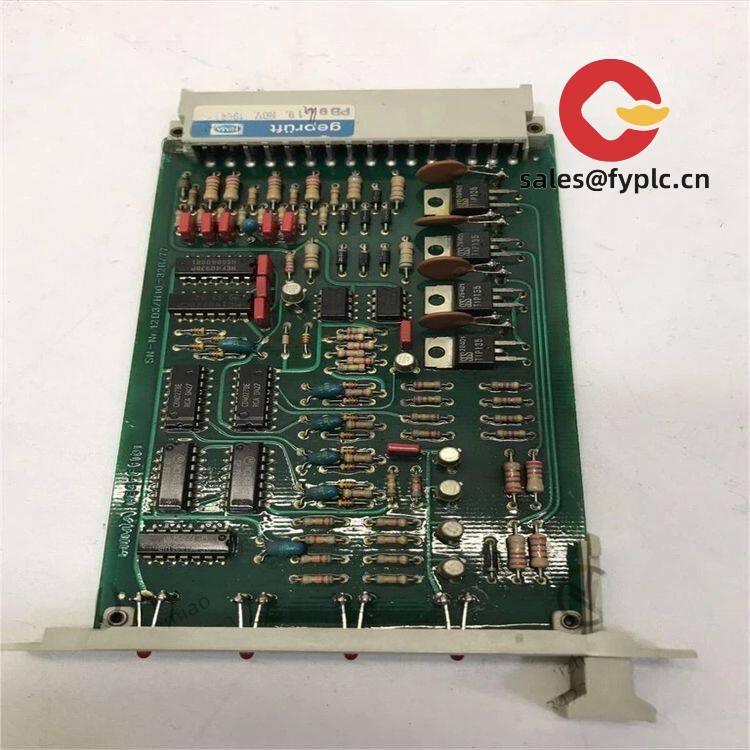

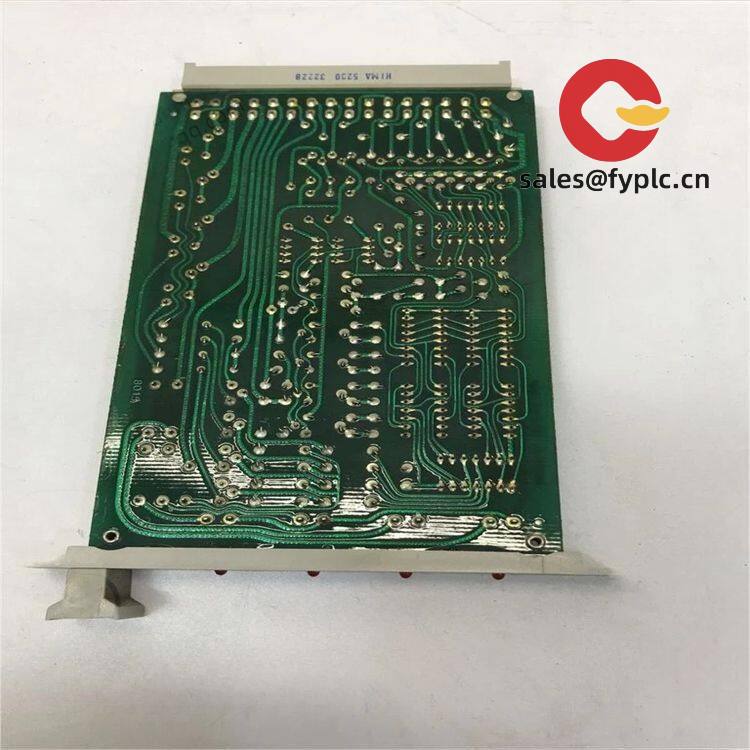

HIMA F1101: Your SIL3-Certified Analog Input Guardian for Critical Processes
You know how analog signals can turn messy in petrochemical plants? The F1101 isn’t just another I/O module—it’s HIMA’s safety-focused workhorse designed specifically for when milliamp fluctuations could mean emergency shutdowns. From my experience troubleshooting refinery control rooms, this thing consistently handles noisy 4-20mA signals without false trips, even when vibration rattles nearby cabinets. One plant manager told me it cut their nuisance alarms by nearly 40% during compressor startups.
Why field engineers keep this module in their spares cabinet
- Dual-channel redundancy – Processes identical signals through separate circuits; typically catches sensor drift before it triggers safety actions

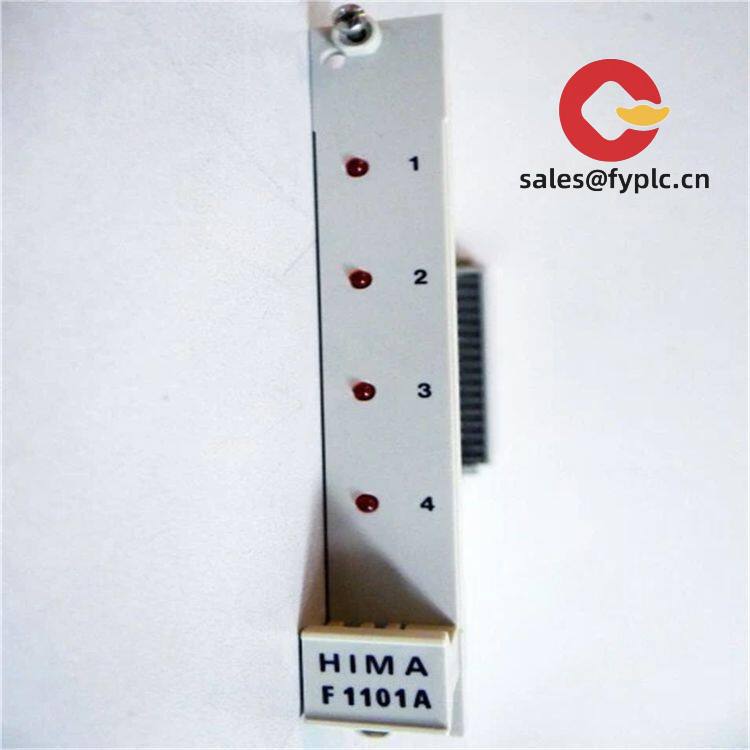

- Live diagnostics – Flashes LED patterns for wiring faults or signal saturation; saved me 3 hours last month hunting a loose thermocouple in a distillation column
- EMC hardening – Passes 10V/m RF immunity tests; seems to shrug off VFD interference that crashes cheaper modules
- HART passthrough – Pulls device diagnostics without interrupting safety signals; handy when your pressure transmitters act up mid-shift
No-guesswork specifications
| Parameter | Detail |
|---|---|
| Brand/Model | HIMA F1101 (Part of H41q Safety PLC platform) |
| HS Code | 8537.10.90 (Programmable controllers with safety certification) |
| Power Requirements | 24V DC (19.2-30V range), 350mA max per channel |
| Signal Types | 4-20mA, 0-10V, RTD (Pt100/Pt1000), Thermocouple (Types B/E/J/K) |
| Operating Temp | -20°C to +60°C (derate above 55°C) |
| Certifications | SIL3 (IEC 61508), ATEX Zone 2, IECEx |
Where it earns its keep
In hydrogen reformers, I’ve seen it monitor reactor temperature gradients where 0.5°C deviations trigger shutdowns. It’s also common in offshore gas platforms handling flame detector signals—those HART diagnostics become lifesavers during stormy maintenance windows. One wastewater plant engineer mentioned using it for chlorine residual monitoring; apparently the dual-channel setup caught a failing sensor before residual levels dropped below regulatory limits.
What procurement teams actually care about
You might notice the upfront cost sits 15% above standard I/O—but when your safety system avoids one unplanned shutdown, it pays for itself. Compatibility with existing H41q racks means no gateway headaches, and HIMA’s firmware updates (delivered quarterly via secure portal) typically extend field life beyond 10 years. From what I’ve seen across refineries, the real value shows during audits: that SIL3 paper trail satisfies even the toughest process safety managers.
Installation realities nobody talks about
Skip the DIN rail debates—it mounts vertically like all H41q modules. But here’s the thing: keep it at least 50mm from power supplies to avoid ground loops (learned that after a false trip during compressor startup). Ventilation matters more than specs claim; in cabinets above 45°C ambient, I’d add a small fan near the bottom vents. For maintenance? Wipe dust from heat sinks quarterly, and calibrate every 18 months—though in stable environments, some plants stretch to 24 months without issues.
Our no-surprise commitments
Every F1101 ships with full test reports showing channel accuracy within ±0.1%. We stand behind it with 365 days warranty covering field failures—not just manufacturing defects. In-stock units ship in 1 week via DHL/FedEx (you’ll get tracking within 2 hours of dispatch). Payment’s simple: 50% to lock inventory, balance before carrier pickup. If your project timeline’s tight, mention your startup date—we’ll expedite firmware matching your existing H41q version.
