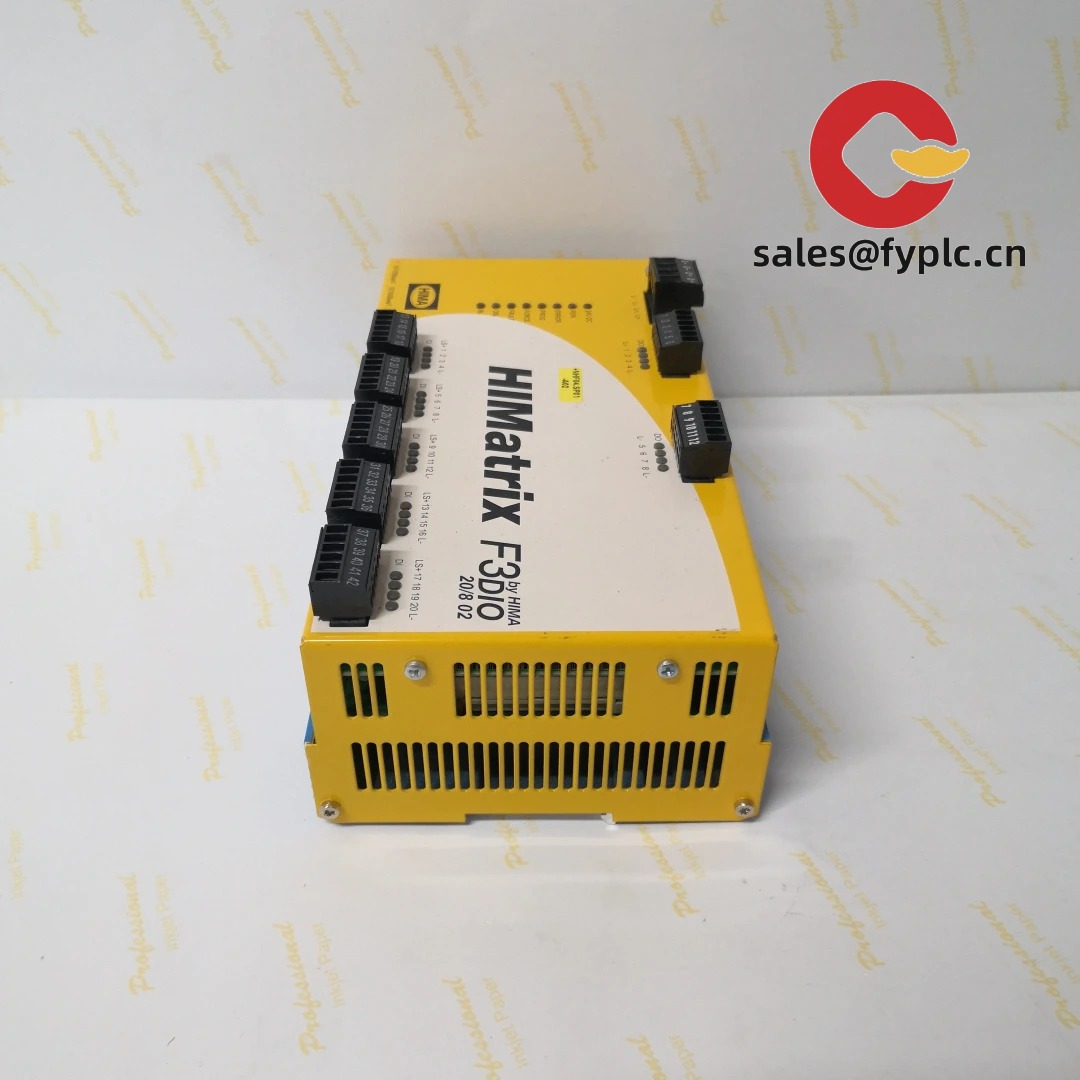

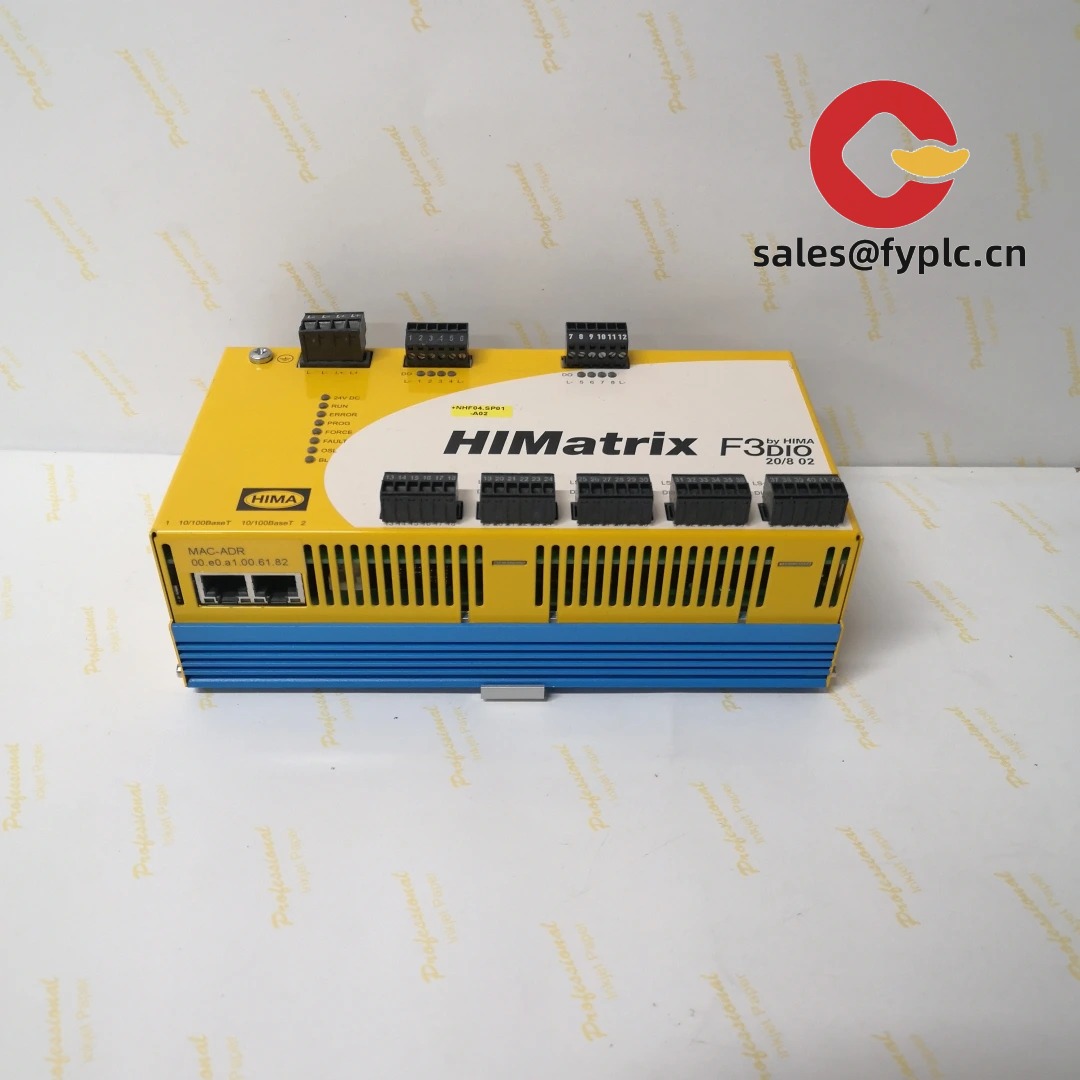

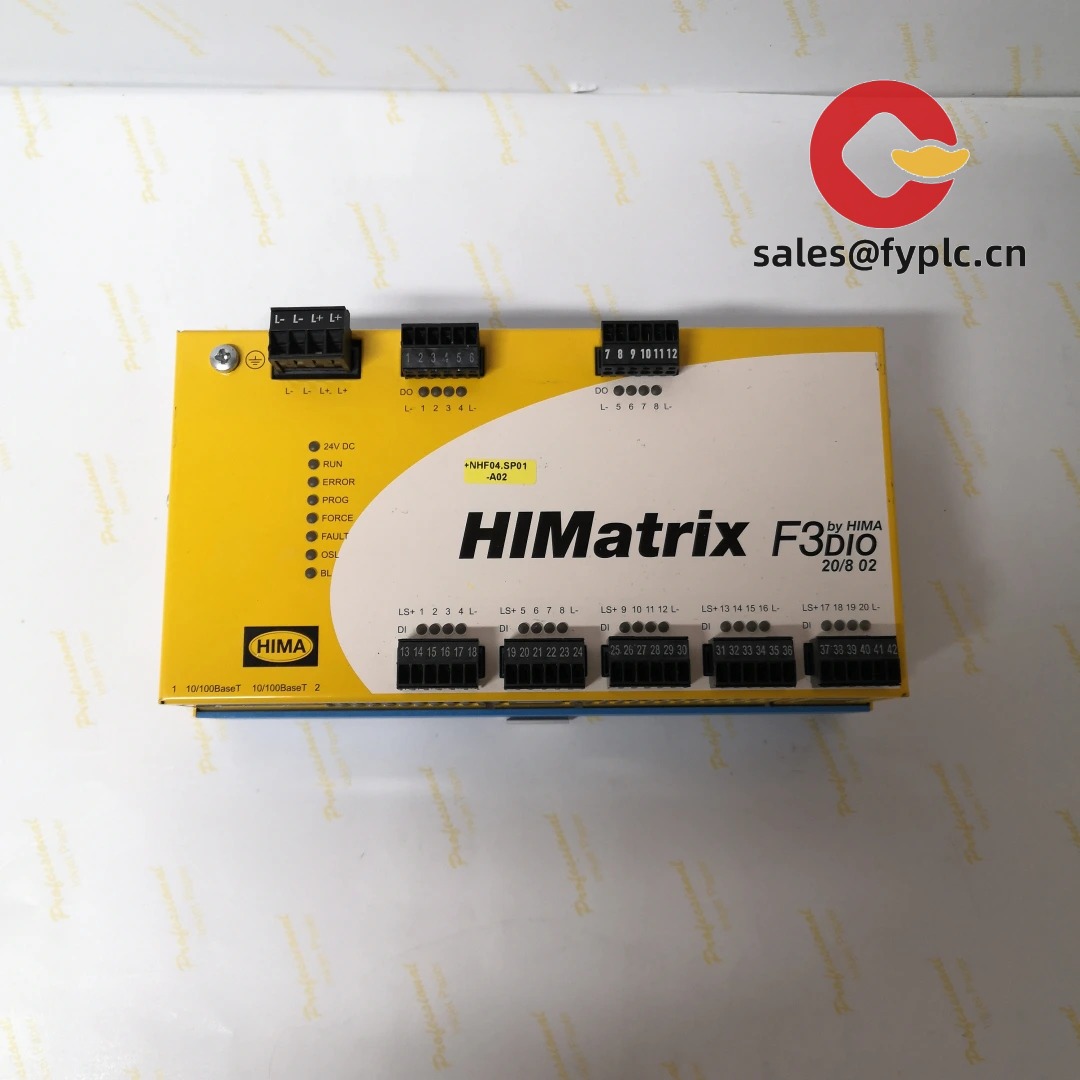

HIMA F3DIO20/802: Your Go-To Digital I/O Module for SIL 3 Safety Systems

You know how frustrating it gets when safety system I/O modules glitch during critical shutdown sequences? From my experience troubleshooting burner management systems, the F3DIO20/802 consistently handles those high-stakes moments. It’s not just another digital I/O card—it’s the silent guardian in HIMA’s F3 safety PLC family that keeps your processes from tipping into hazardous territory. One thing I appreciate is how it processes 20 digital inputs and 8 digital outputs simultaneously while maintaining SIL 3 compliance, which typically matters most in chemical plants where a single false trip costs thousands per minute.

Why This Module Stands Out

• Fail-safe diagnostics you can actually use – The real-time channel monitoring doesn’t just blink error lights; it pinpoints whether a sensor fault came from wiring or the field device itself. Saw this save a pharmaceutical client 8 hours during validation last month.
• Hot-swap ready without system shutdown – In most cases, you’ll replace this module mid-process without triggering emergency stops. Refineries running continuous operations typically insist on this.
• EMC hardening that survives nasty environments – You might notice it keeps functioning reliably near VFD cabinets where other modules hiccup. That 10kV surge protection isn’t just on paper.
• Native HART integration – Pulls diagnostic data from smart sensors directly into your safety logic. No extra gateways needed, which simplifies validation paperwork significantly.

Technical Snapshot

Where It Proves Its Worth

I’ve seen this module deployed in some gnarly situations – offshore platform emergency shutdowns where salt corrosion eats lesser hardware, or food processing lines needing frequent washdowns (thanks to its IP20 rating). It’s particularly clutch for burner management systems in power plants; one client told me it caught a flame scanner drift during pre-ignition checks last winter, avoiding a potential furnace explosion. Chemical reactors also lean on it heavily for interlock sequences where timing precision matters down to the millisecond.

What Procurement Teams Actually Care About

Let’s be real – you’re not buying this for fun. It’s about avoiding regulatory fines and downtime. The SIL 3 certification (TÜV certified) means fewer headaches during OSHA audits. Compatibility with legacy HIMA F-systems typically saves 20% on integration costs versus switching platforms. And that 365-day warranty? It covers field failures, not just bench tests – I’ve had clients trigger it for moisture ingress during monsoon season with zero pushback. Payment’s straightforward too: 50% to lock inventory (ships in 1 week if stocked), balance before FedEx/UPS dispatch. No nasty surprises.

Installation & Maintenance Reality Check

Don’t cram this into a 40°C control cabinet with no airflow – thermal throttling kicks in around 55°C, and you’ll lose diagnostic accuracy. Always use shielded twisted pair for DI wiring; I’ve traced half the “phantom faults” I’ve seen to unshielded cables running parallel to motor starters. For maintenance, clean the vents quarterly (dust buildup is the silent killer), and schedule firmware updates during planned outages – HIMA’s patch notes usually include fixes for obscure electromagnetic interference cases. One plant manager swears by checking relay contact resistance annually; he says it predicts failures 6 months early.

Certifications That Actually Matter

CE, UL 61508, IEC 61508 SIL 3 (TÜV Rheinland certified), ATEX Zone 2. RoHS compliant since 2018 revisions. The 365-day warranty covers defects in materials/workmanship – but be warned, it voids if you ignore the humidity specs (max 95% non-condensing). In my experience, HIMA’s support team responds faster to certified engineers, so keep your HIMA PCS certification current.
