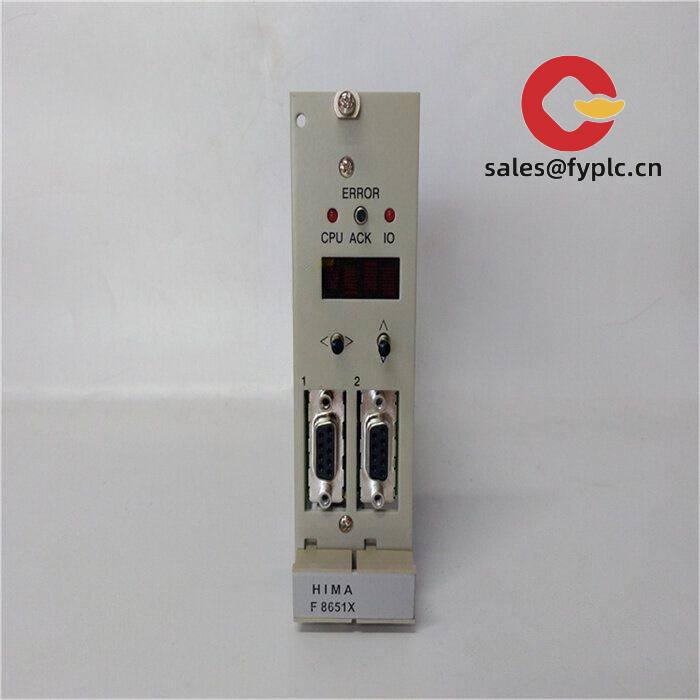

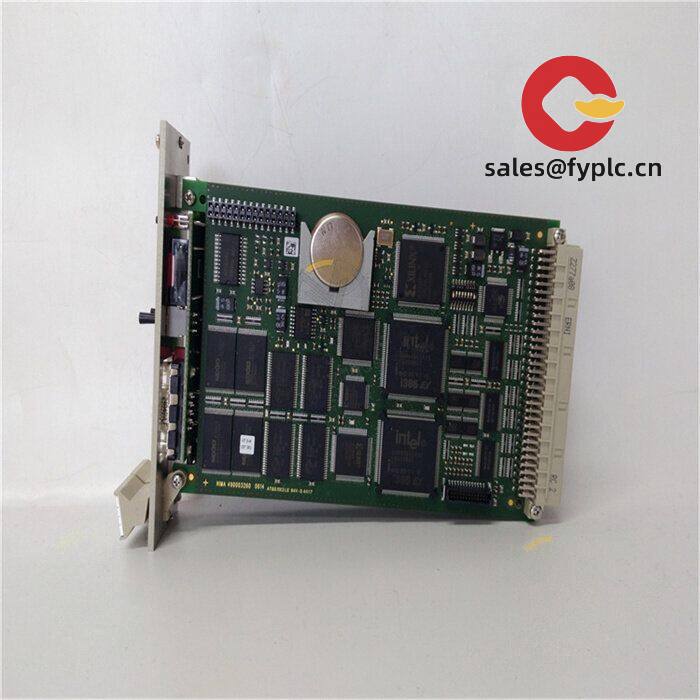

HIMA F8651X Digital Input Module – Safety‑rated discrete input card for HIQuad X systems
The HIMA F8651X is a digital input module designed for HIQuad X safety controllers, typically used to acquire 24 VDC field signals in process safety applications. From my experience, it’s the kind of card plants pick when they want dependable input monitoring with clear diagnostics, tight integration to the safety CPU, and long-term lifecycle support. You might notice that it fits the standard HIMA rack form-factor, which makes expansions and field replacements straightforward during planned turnarounds.
Company’s Order Placement Process and Guarantees
- Warranty period: 365 days
- Delivery time: 1 week for in-stock items; no more than one month at the latest
- Payment terms: 50% advance payment, full payment before delivery
- Express delivery methods: FedEx, UPS, DHL
Key Features
- Safety‑oriented digital inputs – Designed for use in HIQuad X safety systems where input integrity and predictable response are critical.
- 24 VDC field signal handling – In many cases used with 24 VDC proximity switches, contacts, or relay outputs; wiring practices are well‑established in process industries.
- Channel diagnostics – Front LEDs and system diagnostics typically make it easy to spot channel state and basic faults without opening a laptop.
- Backplane integration – Communicates via the HIQuad X system bus; no extra configuration cabling, which keeps panel wiring cleaner.
- Status and fault reporting – Designed to surface discrepancies (like open circuit or short in monitored loops when line monitoring is implemented).
- Rugged form factor – Built for cabinet installation in harsh industrial environments with stable operation in common process plant temperature ranges.
- Lifecycle continuity – HIMA modules are known for long availability and service windows, which usually simplifies spares planning.
Technical Specifications
| Brand / Model | HIMA F8651X Digital Input Module |
| HS Code | 8538.90 (Parts for industrial control equipment of heading 8537) |
| Power Requirements | Powered via HIQuad X backplane (module electronics). Field inputs typically 24 VDC supplied externally per channel/group. |
| Signal Input Types | Discrete digital inputs, nominal 24 VDC; supports common wet/dry contact applications. Line monitoring can be implemented with appropriate wiring components. |
| Communication Interfaces | Backplane system bus to HIQuad X controller; no external comm ports on the module. |
| Operating Temperature | Typically 0 °C to +60 °C for cabinet‑mounted operation (confirm per installation standard). |
| Dimensions & Weight | Standard HIMA rack form factor; single‑width plug‑in card (fits HIQuad X I/O racks). |
| Installation Method | Plug‑in module for HIQuad X rack; field wiring to front terminal assemblies. |
Note: Exact channel count, isolation details, and per‑channel current limits can vary by sub‑variant and application. If you share your I/O list, we can verify compatibility before shipment.
Application Fields
- Emergency Shutdown (ESD) and High‑Integrity Pressure Protection Systems (HIPPS) in oil & gas
- Burner Management and Boiler Protection in power and utilities
- Process interlocks and safeguarding in chemical and petrochemical plants
- Machinery safety interlocks and guards monitoring in discrete manufacturing
- Tank farms, loading stations, and overfill protections in terminal operations
One thing I appreciate is how the F8651X slots into brownfield cabinets with minimal rewiring, which seems to be a typical cost saver during staged upgrades.
Advantages & Value
- Reliability – Designed for continuous operation in safety systems, with robust diagnostics to reduce nuisance trips.
- Compatibility – Native to HIQuad X racks and engineering tools, typically simplifying commissioning and proof testing.
- Cost Control – Clear diagnostics shorten fault‑finding; standardized 24 VDC input practices keep field device costs predictable.
- Lifecycle Support – HIMA’s long product lifecycle and service pathway help with spare parts planning and asset standardization.
- Technical Support – We assist with module selection, wiring checks, and acceptance testing documentation where needed.
Installation & Maintenance
- Cabinet & environment – Install in a clean, ventilated control cabinet; maintain ambient within the specified range and avoid vibration/humidity hotspots.
- Wiring – Use shielded pairs for long runs; segregate safety I/O from power cables; follow HIMA terminal assignment and grounding practices.
- Field power – Provide stable 24 VDC with proper fusing per channel group; consider line monitoring resistors if required by the SRS.
- Hot work – Module replacement should follow site MOC and safety procedures; online replacement is possible in many cases but must be risk‑assessed.
- Proof testing – Schedule periodic proof tests per IEC 61511/IEC 61508; document test intervals and results to maintain SIL targets.
- Cleaning & inspection – Check terminal tightness, remove dust buildup, and verify LED indications during routine maintenance windows.
- Firmware & records – Keep controller/engineering tool versions aligned; retain module serial numbers and test certificates for audits.
Feedback from a refinery maintenance lead: “Swapping an I/O card during a shutdown took minutes, and the channel LEDs made loop checks quicker than our previous platform.”
Quality & Certifications
- CE compliant for EMC and safety (industrial environments)
- TÜV certification within HIQuad X system context (IEC 61508 SIL 3 capable as part of a certified configuration)
- RoHS compliant
- Manufacturer quality system typically ISO 9001
- Standard 365‑day warranty from shipment
